Product Overview

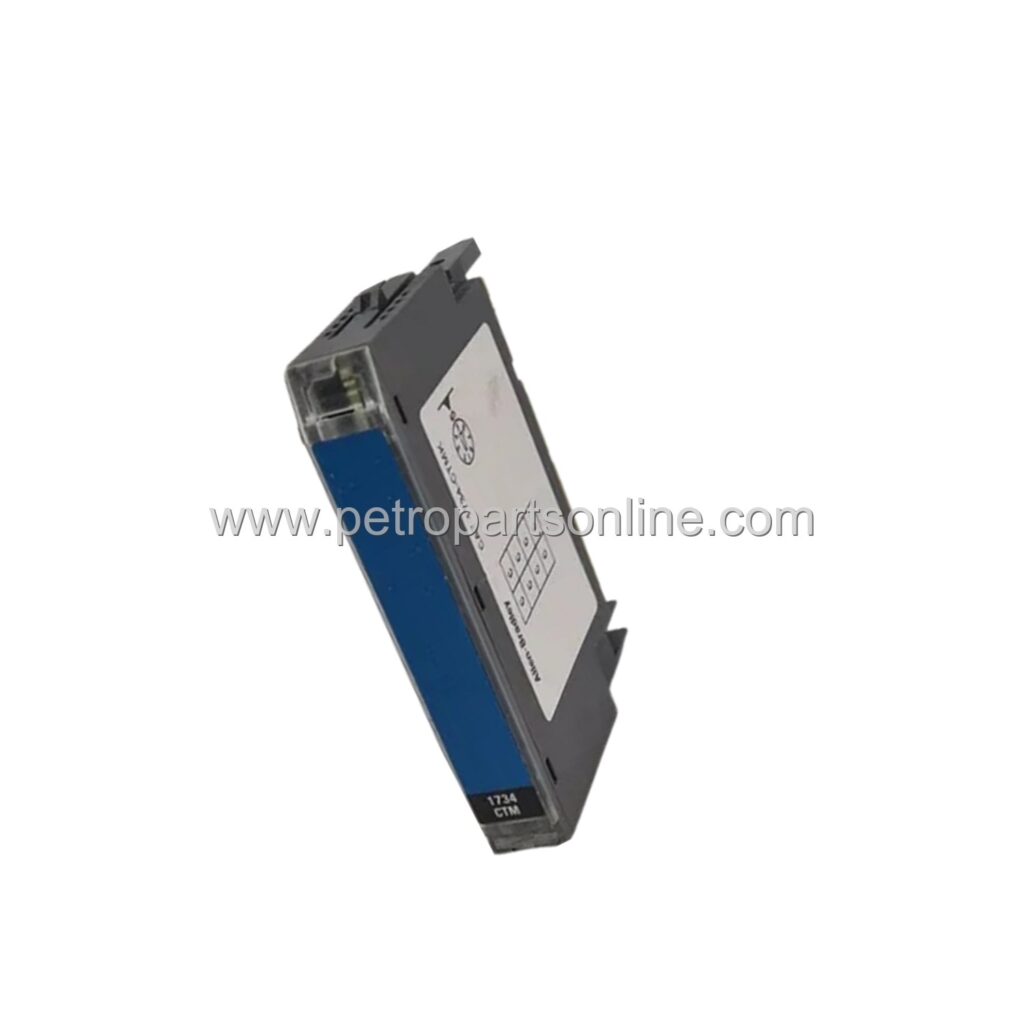

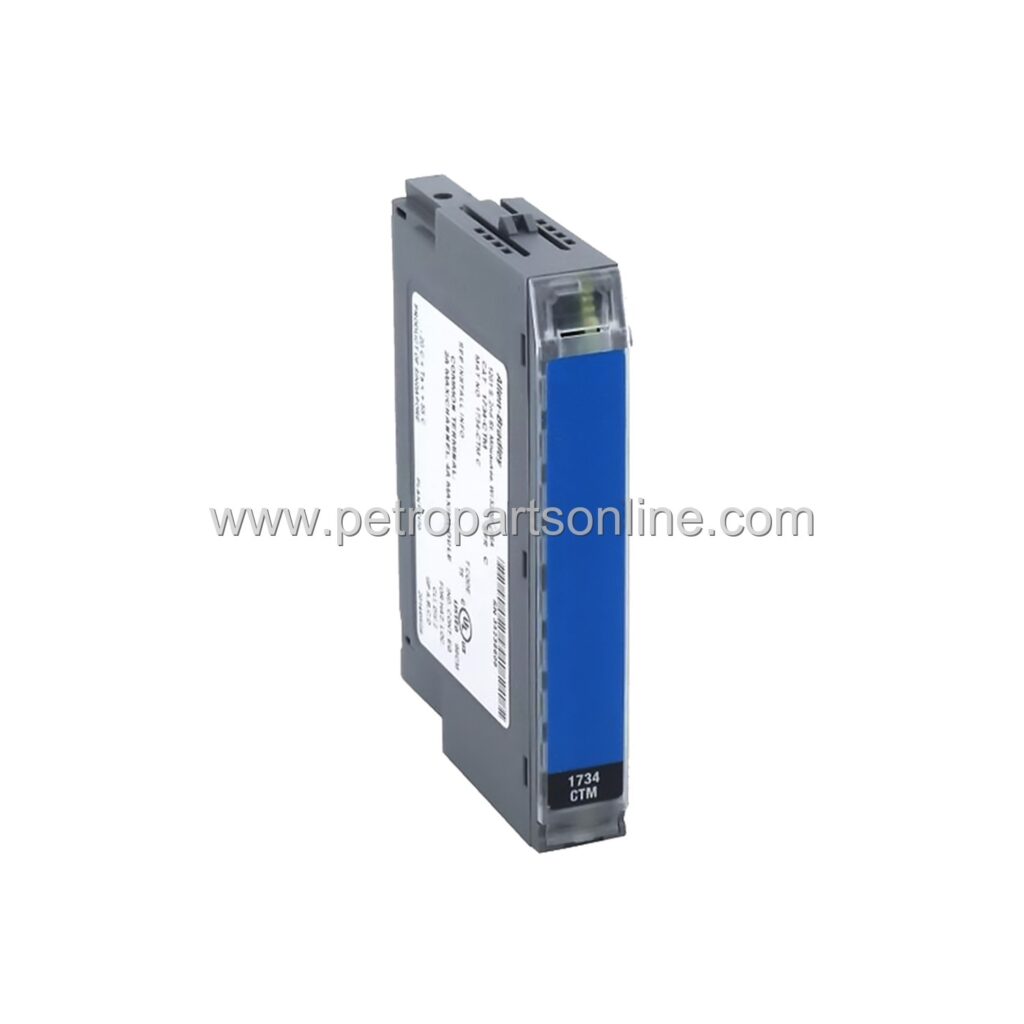

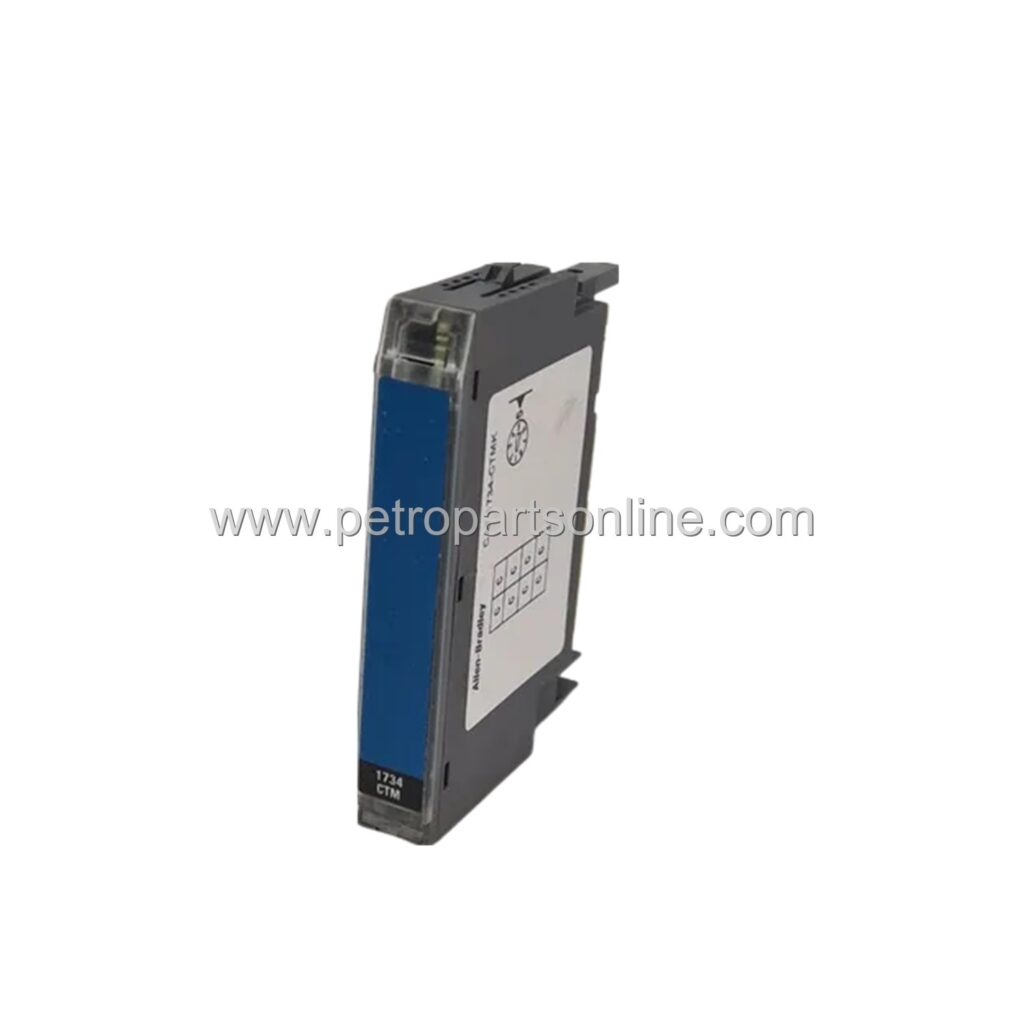

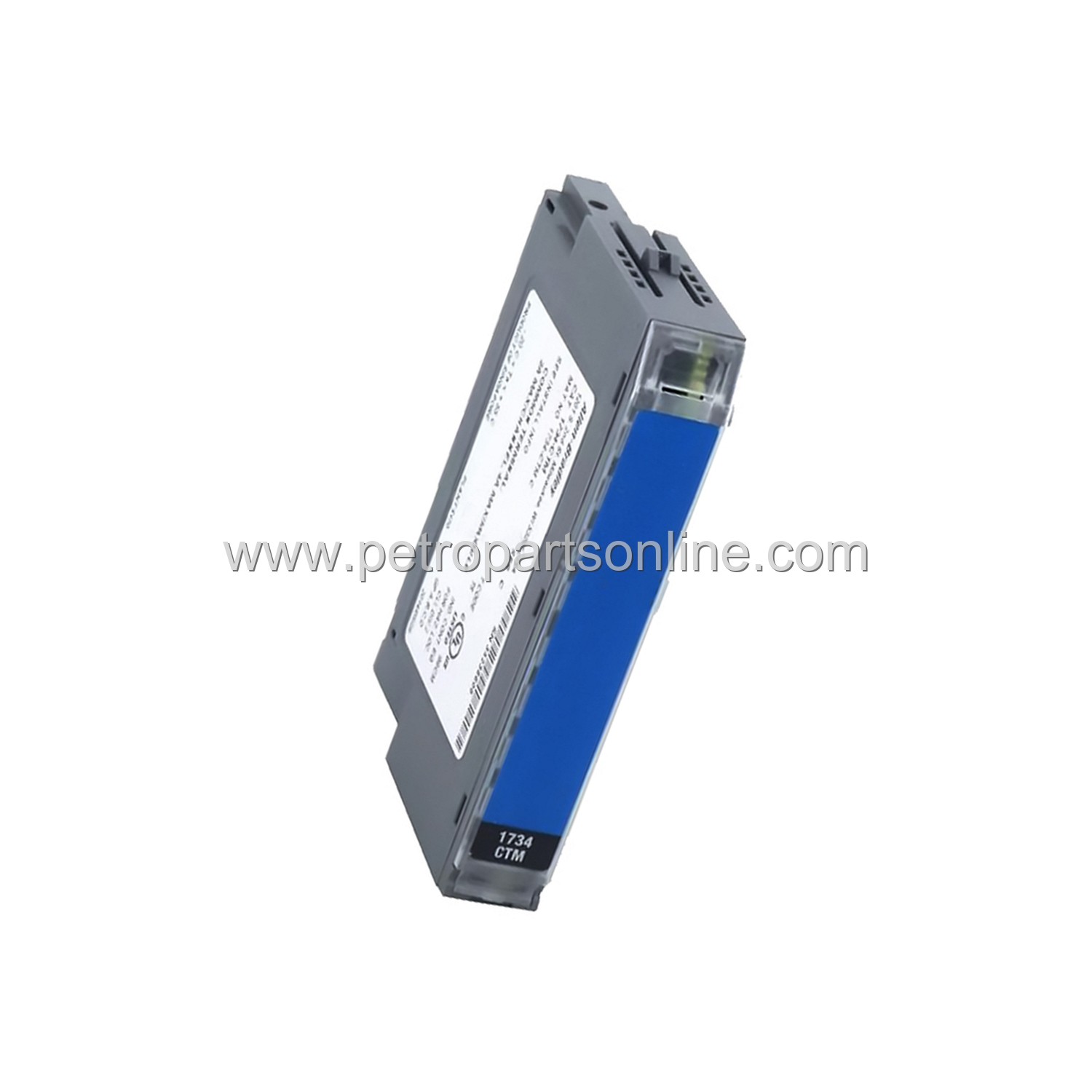

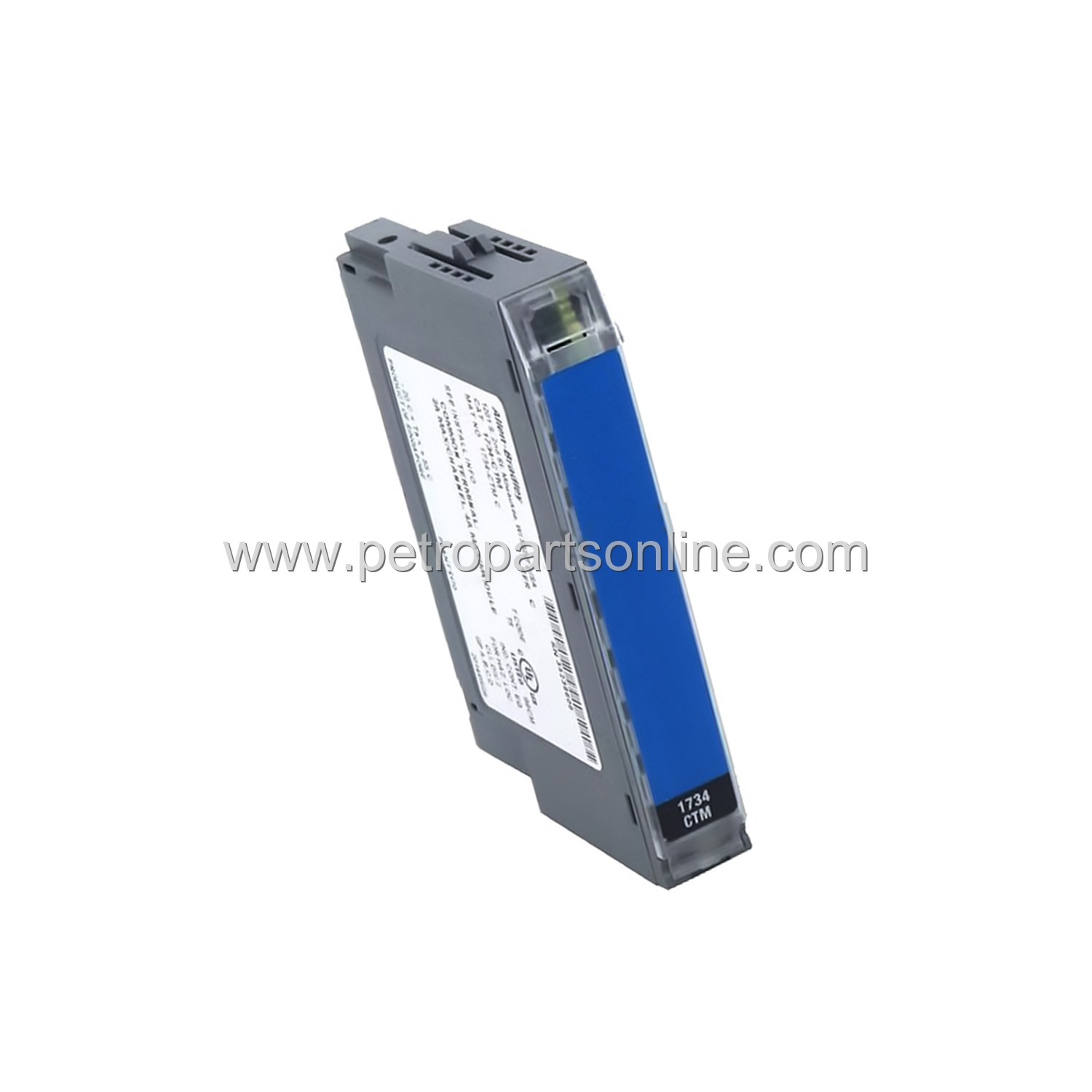

The 1734-CTM is a configurable module from the Allen-Bradley POINT I/O series. It mounts on a terminal base unit. This module supports various input and output combinations. It is designed for distributed industrial automation systems. The module communicates over the DeviceNet network. It provides flexible I/O configuration for different applications. The compact form factor saves panel space. It is ideal for remote I/O installations. The module is hot-swappable for easy maintenance. It integrates seamlessly with Logix controllers.

Application Scenarios

The 1734-CTM is used in manufacturing assembly lines. It works well in material handling systems. The module is suitable for packaging machinery. It is also used in process control applications. The module can monitor discrete sensors and actuators. It controls outputs like solenoids and indicator lights. The module is deployed in automotive production facilities. It is used in food and beverage processing plants. The module supports both 24V DC inputs and outputs. It is effective in conveyor control systems. The module is also used in building automation systems. It provides reliable I/O in harsh industrial environments.

Technical Specifications

The module requires 24V DC power supply. It has a maximum current draw of 150 mA. The module operates in temperatures from -20 to 60 degrees Celsius. It supports up to 8 input and 4 output points. The module uses a removable terminal block for wiring. It has an isolation voltage of 50V continuous. The module dimensions are 46 x 75 x 50 mm. It weighs approximately 0.12 kg. The module is UL and CE certified. It meets industrial standards for shock and vibration. The module has a power dissipation of 3.5 Watts. It supports output current of up to 2A per point. The module is compatible with 1734-TB and 1734-TBS bases.

Installation & Maintenance Guide

Mount the module onto a compatible terminal base. Ensure the base is securely attached to the DIN rail. Connect the DeviceNet cable to the base. Wire the field devices to the terminal block. Configure the module using RSNetWorx software. Set the node address using the rotary switches. Verify the module status with the LED indicators. Power up the system and check for faults. Regularly inspect the module for dust or damage. Replace the module without powering down the system. Use only recommended cables and connectors. Follow the manual for detailed wiring diagrams. Test the module after any configuration change. Keep the module in a clean, dry environment.

Frequently Asked Questions (FAQ)

What is the primary function of 1734-CTM?

The 1734-CTM functions as a configurable I/O module. It combines discrete inputs and outputs in one unit.

Is the 1734-CTM hot-swappable?

Yes, the 1734-CTM supports hot-swapping. You can replace it without removing power from the system.

What type of network does the 1734-CTM use?

The 1734-CTM communicates over the DeviceNet network. It acts as a slave device on the network.

What is the operating temperature range for this module?

The module operates in temperatures from -20 to 60 degrees Celsius. This range covers most industrial environments.

Which terminal bases are compatible with the 1734-CTM?

The module is compatible with 1734-TB and 1734-TBS terminal bases. These bases provide the necessary electrical connections.
