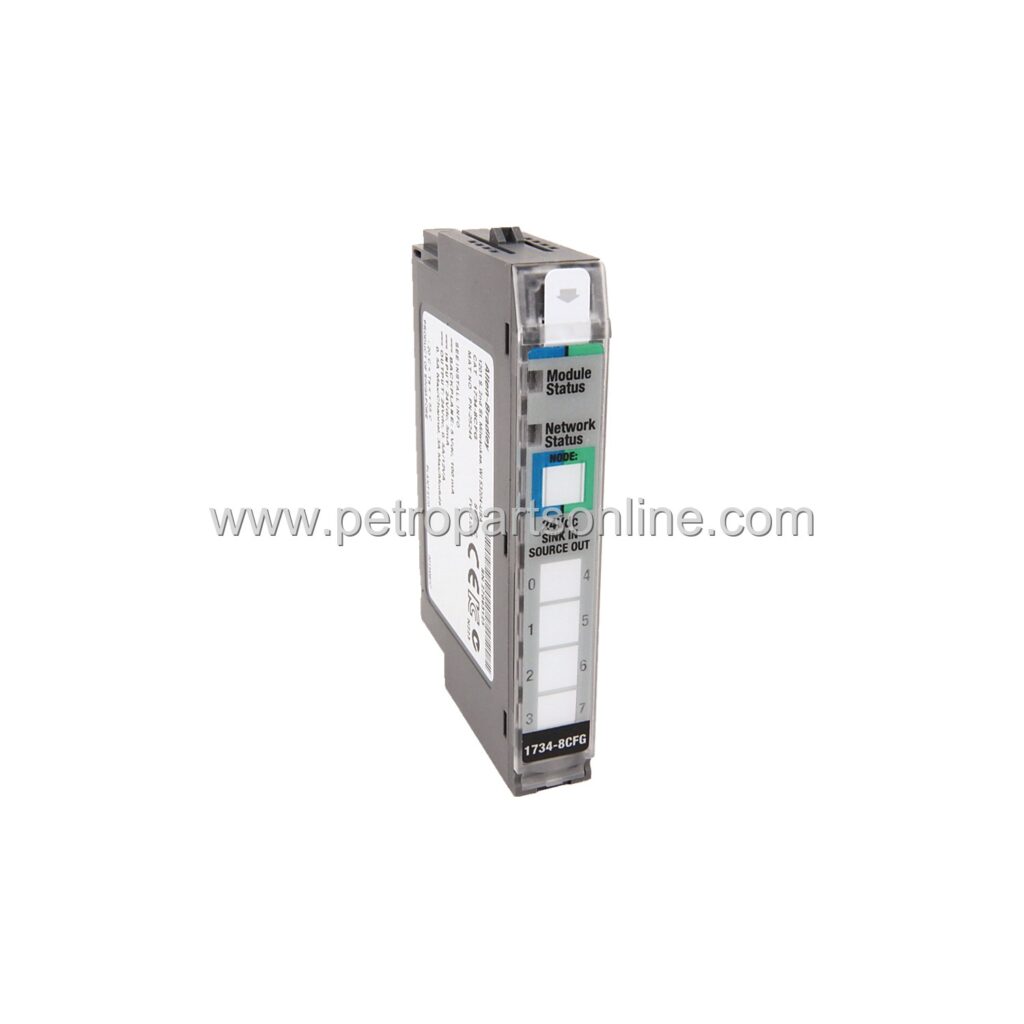

1734-8CFG | Allen-Bradley Point I/O Configurable Module
Introduction:
Allen-Bradley 1734-8CFG Point I/O configurable module, 8-point, 10-30V DC, new original, in stock, 12-month warranty.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Product Overview

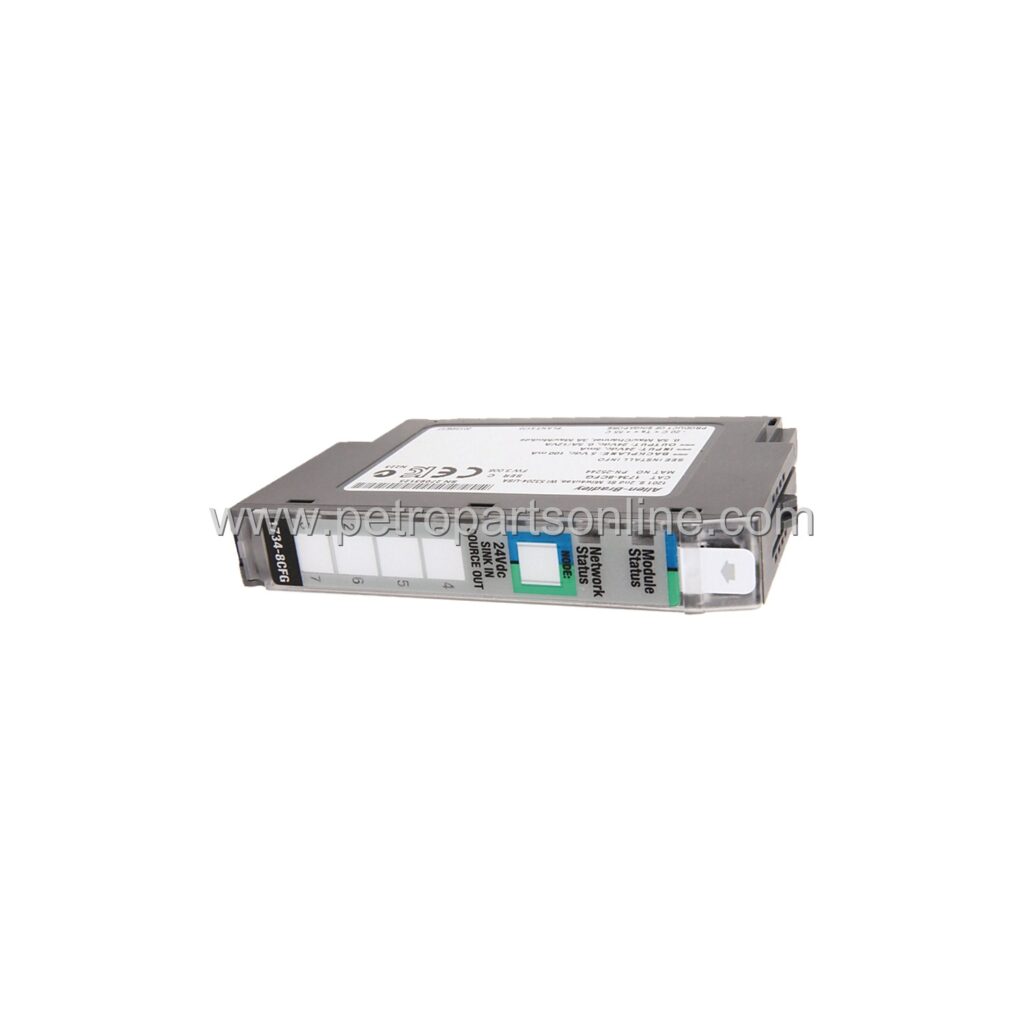

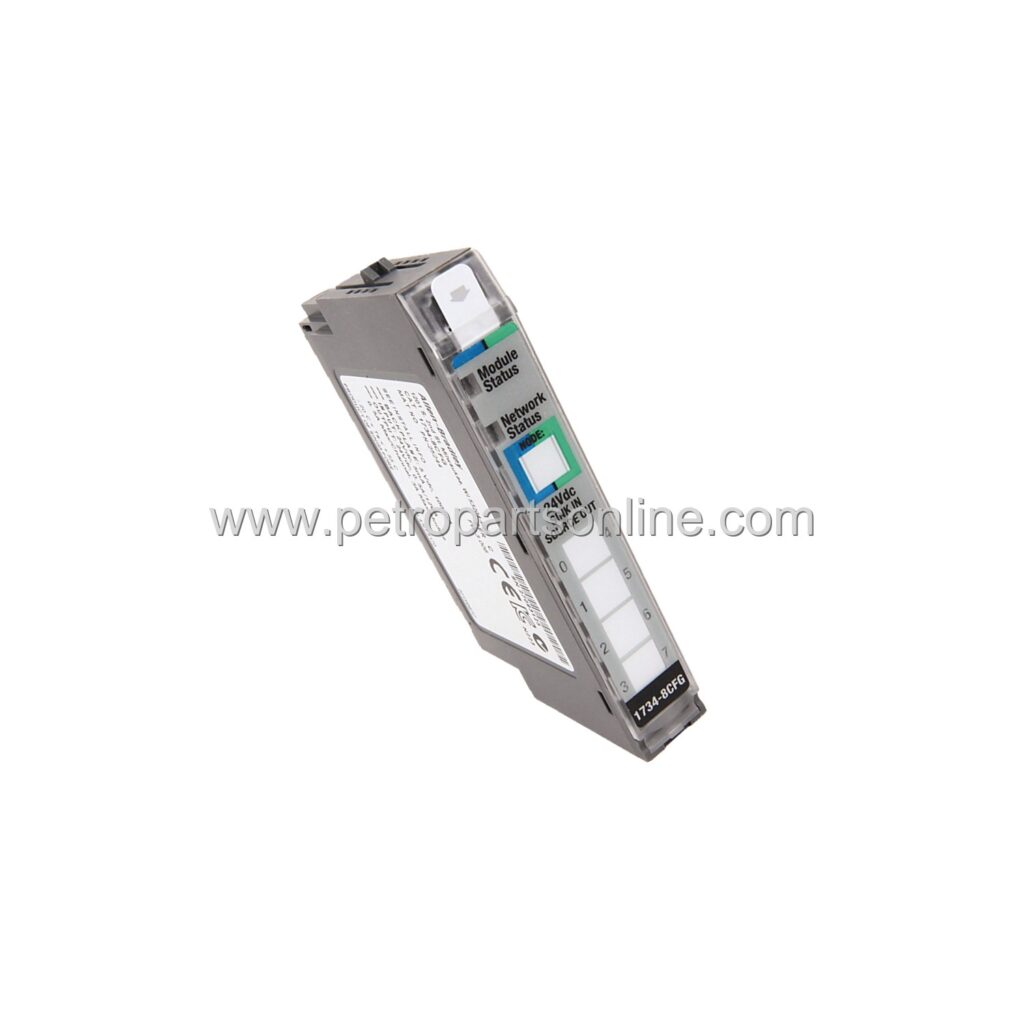

The Allen-Bradley 1734-8CFG is a Point I/O configurable module. It offers eight points for digital input or output. This module adapts to various field device needs. Users can set each point independently. The 1734-8CFG supports sinking or sourcing wiring. This flexibility reduces inventory complexity. It integrates seamlessly with Rockwell Automation systems. The module fits into a 1734 Point I/O chassis. It communicates via the backplane. The 1734-8CFG is a compact solution for distributed I/O. Its modular design simplifies installation. This module is ideal for mixed-signal applications. It provides reliable performance in industrial environments.
Application Scenarios
The 1734-8CFG works in discrete manufacturing. It suits packaging, assembly, and material handling. The module also serves process industries. It monitors valves, actuators, and sensors. The configurable nature allows one module to replace multiple types. This reduces spare parts stock. The 1734-8CFG fits in control panels near machines. It supports remote I/O cabinets. The module is common in automotive lines. It also appears in food and beverage plants. The flexibility aids in retrofitting older systems. It connects to various field devices without rewiring. The module is suitable for both new builds and upgrades.
Technical Specifications
- Module Type: Configurable I/O Module
- Number of Points: 8
- Input Voltage Range: 10-30V DC
- Output Voltage Range: 10-30V DC
- Output Current per Point: Up to 2A
- Isolation: 50V continuous
- Power Dissipation: 2.0W max
- Operating Temperature: -20 to 60 °C
- Enclosure: IP20
- Dimensions: 46 x 75 x 52 mm
- Weight: 0.1 kg
Installation & Maintenance Guide
Install the 1734-8CFG in any slot of a 1734 chassis. Ensure power is off before insertion. Align the module with the backplane connector. Push firmly until latched. Wire each point using a removable terminal base. Use copper wire rated for 75 °C. Torque terminals to 0.5 Nm. Do not connect live wires. For maintenance, inspect connections annually. Clean with a dry cloth. Avoid solvents. Replace module if damaged. No internal user-serviceable parts exist.
Frequently Asked Questions (FAQ)
What is the primary function of 1734-8CFG?
The module provides eight configurable digital I/O points. Each point can be set as input or output. This flexibility adapts to mixed field device requirements.
Can the 1734-8CFG be used with other brands?
No. The module is designed exclusively for Allen-Bradley Point I/O systems. It requires a compatible 1734 chassis and backplane.
What is the maximum cable length for inputs?
Standard digital input cable lengths apply. Use up to 30 meters for reliable signal integrity. Longer runs may require additional isolation.
Does the module support sinking or sourcing?
Yes. Each point can be independently configured for sinking or sourcing. This allows direct connection to various sensors and actuators.
What is the operating temperature range?
The module operates from -20 to 60 °C. It is suitable for most industrial control cabinets. Avoid exposure to condensation or corrosive gases.
