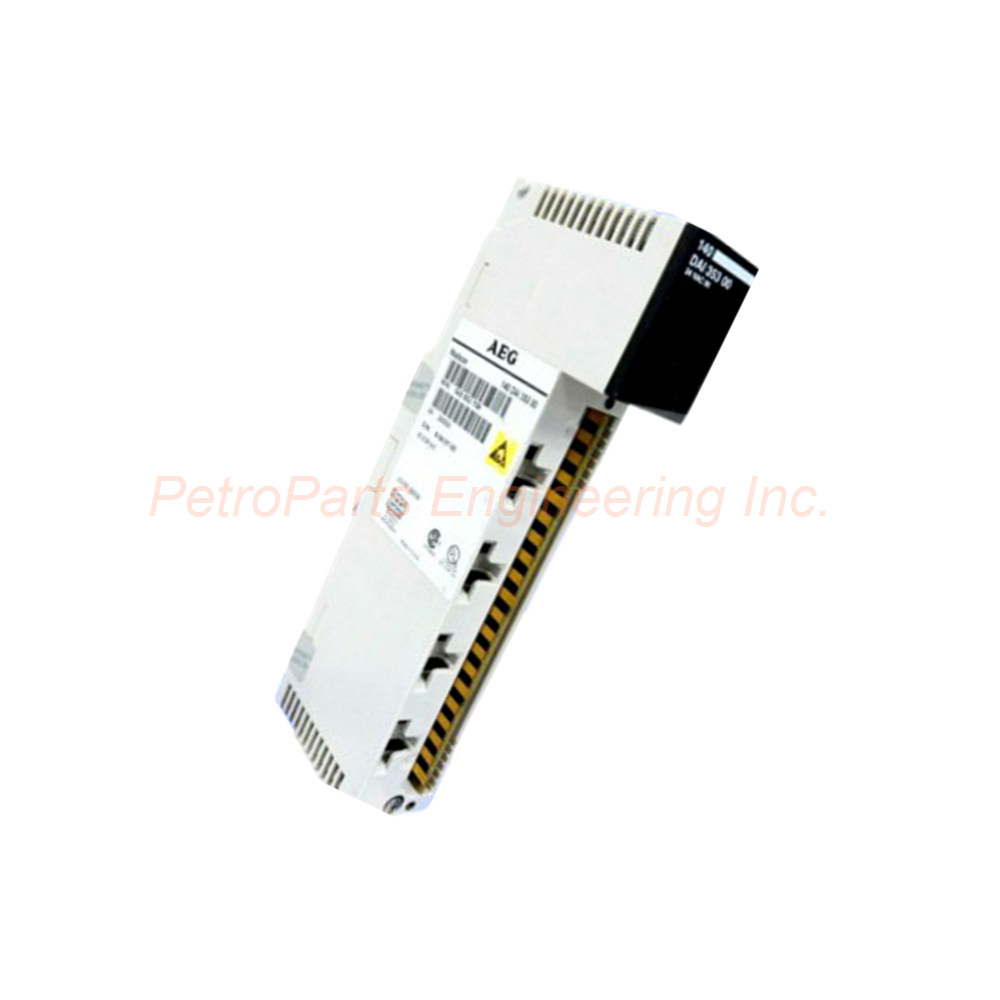

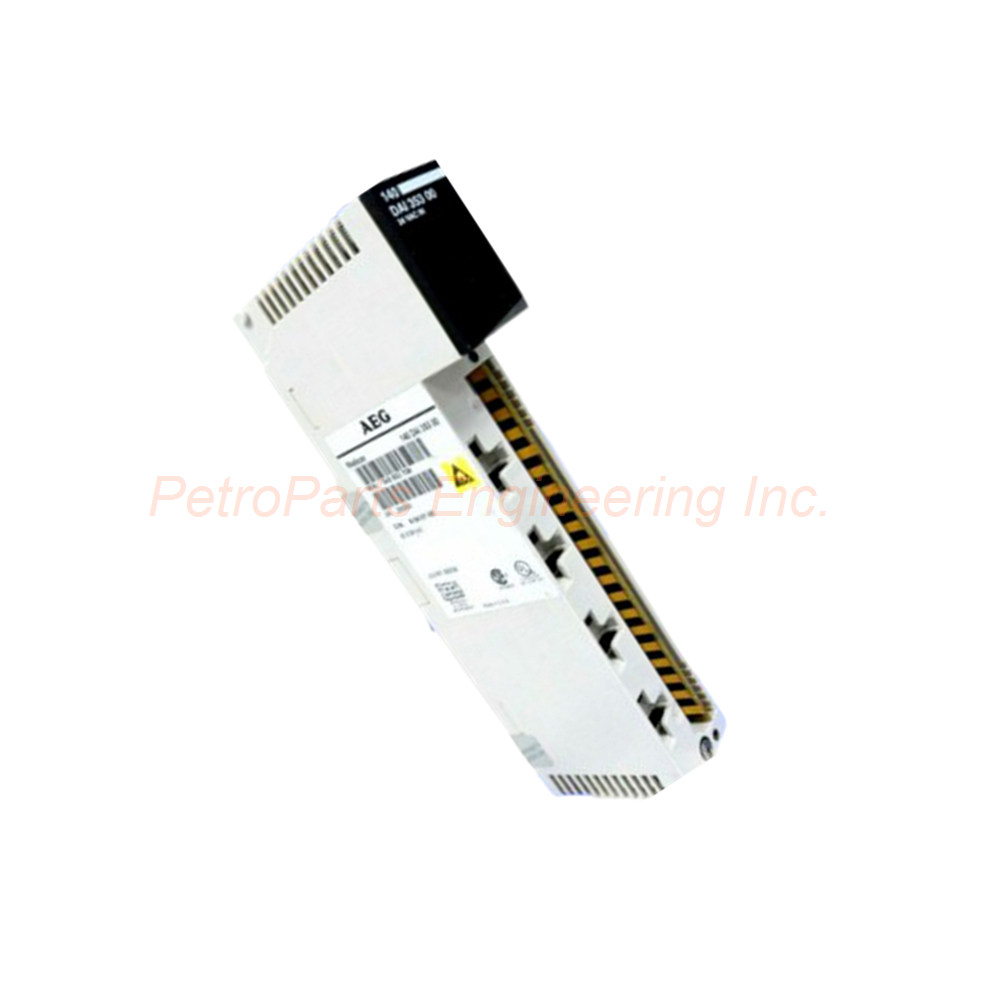

Overview of the Schneider Electric 140DAI35300 Discrete Input Module

The Schneider Electric 140DAI35300 serves as a high-density AC input module. Specifically, this unit belongs to the Modicon Quantum automation platform. As a result, it reads 24V AC signals from field devices like switches and sensors. Moreover, the 140DAI35300 integrates seamlessly with ProWORX 32, Concept, or Unity Pro software. Consequently, this module offers a reliable solution for AC input monitoring in industrial control systems.

Key Technical Specifications of the 140DAI35300

This section details the technical data for the Schneider Electric 140DAI35300.

Input Channel Configuration

First, regarding channel count, the module provides 32 discrete inputs in total. It organizes these inputs into 4 groups of channels for easier wiring. For addressing, the 140DAI35300 requires 2 input words in the CPU memory map. Therefore, each channel maps directly to a specific bit location. In addition, 32 green LEDs on the front panel show the real-time status of each input.

Voltage and Current Ratings

The 140DAI35300 operates at a nominal 24V AC input voltage. Specifically, the network frequency limits range from 47 to 63 Hz. For 57-63 Hz operation, the input current draws 11.1 mA per channel. For 47-53 Hz operation, the input current draws 13.2 mA per channel. A guaranteed ON state (logic 1) requires 12 to 30V AC at 57-63 Hz. For 47-53 Hz, the ON state requires 14 to 30V AC. A guaranteed OFF state (logic 0) reads 0 to 5V AC for both frequency ranges. The input impedance measures 2600 Ohm capacitive at 57-63 Hz. For 47-53 Hz, the input impedance measures 3100 Ohm capacitive.

Input Protection and Limits

The absolute maximum continuous input voltage reaches 30V AC. For short periods, the 140DAI35300 tolerates 32V AC for 10 seconds. It also withstands 50V AC for 1 cycle without damage. The maximum leakage current measures only 1.9 mA in the OFF state. Therefore, this module provides robust protection against voltage spikes.

Response Time Performance

The OFF to ON response time ranges from 4.9 to 0.75 ms per line cycle. The ON to OFF response time ranges from 7.3 to 12.3 ms. As a result, the 140DAI35300 captures fast AC signals accurately. These response times vary slightly with the input frequency.

Isolation and Electrical Strength

Isolation between channel groups reaches 1780 Vrms for 1 minute. Similarly, isolation between any group and the backplane bus reaches 1780 Vrms for 1 minute. Consequently, this module protects the CPU from field-side surges and noise. The 140DAI35300 also prevents ground loop issues in mixed systems.

Power and Thermal Data

The bus current requirement measures 250 mA from the Quantum backplane. Maximum power dissipation reaches 10.9 W under full load. Therefore, you should consider heat buildup when placing the 140DAI35300 in a dense rack. Allow adequate ventilation around this module for reliable long-term operation.

Status Indicators and Diagnostics

First, a green Active LED shows the bus communication is present. Next, a red F (Fault) LED lights up when an external fault is detected. As mentioned above, 32 green LEDs show the ON/OFF state of each input channel. Finally, the module carries a CE marking for European compliance.

Environmental and Certification Data

The 140DAI35300 meets UL 508 and CSA C22.2 No 142 standards. It holds FM Class 1 Division 2 certification for hazardous locations. In addition, the module has cUL approval for Canadian markets. For ESD resistance, it withstands 4 kV contact and 8 kV on air per IEC 801-2. For electromagnetic fields, it resists 9.1 V/m (10 V/m) from 80 to 2000 MHz per IEC 801-3. The operating temperature range spans 32 to 140 °F (0 to 60 °C) . Storage temperature ranges from -40 to 185 °F (-40 to 85 °C) . Relative humidity tolerance reaches 95% without condensation. Finally, the operating altitude reaches up to 5000 meters (16404 feet) .

Installation Guide for the 140DAI35300

Follow these steps to install your Schneider Electric 140DAI35300 correctly.

1. Power Down: First, disconnect all power from the Quantum backplane before installation.

2. Select Slot: Next, choose an available slot in your Modicon Quantum rack.

3. Insert Module: Then, align the 140DAI35300 with the card guides in the selected slot.

4. Seat Firmly: After that, push the module inward until it locks securely into the backplane.

5. Tighten Screws: Subsequently, use a screwdriver to fasten the top and bottom retaining screws.

6. Wire Inputs: Now, connect your 24V AC field devices to the terminal block channels.

7. Apply Power: Then, restore system power and check the green Active LED.

8. Configure Software: Finally, use ProWORX, Concept, or Unity Pro to configure the input addresses.

Always handle the 140DAI35300 by its metal edges to avoid static damage. Use copper wires only with an appropriate gauge for AC signals. Store the unit in its anti-static bag until you are ready to install it.

What is in the Box for the 140DAI35300?

Your package includes the following items:

• 1 x Schneider Electric 140DAI35300 Discrete Input Module (32 inputs, 24V AC)

• 1 x Product documentation sheet (quick reference guide)

Note: The package does not include a terminal block, wiring cables, or mounting screws. You must purchase the compatible terminal block (such as 140XTS00200) separately.

Frequently Asked Questions (FAQ) about the 140DAI35300

Q1: What software can I use to program the 140DAI35300?

A: The Schneider Electric 140DAI35300 works with ProWORX 32, Concept, and Unity Pro. Therefore, this module supports both legacy and modern Quantum systems.

Q2: Can the 140DAI35300 accept 120V AC inputs?

A: No, the 140DAI35300 accepts only 24V AC inputs. For 120V AC inputs, you need a different module like the 140DAI35310. Using higher voltage will damage this unit.

Q3: How many input words does the 140DAI35300 require in the CPU?

A: The 140DAI35300 requires 2 input words in the CPU memory map. Each word represents 16 discrete input channels. Therefore, 32 channels occupy exactly 2 words.

Q4: What does the red F (Fault) LED indicate on the 140DAI35300?

A: The red F LED lights up when an external fault is detected. For example, this could mean a missing field power supply or a short circuit. Check your field wiring when this LED activates.

Q5: Can I mix AC and DC inputs on the same 140DAI35300 module?

A: No, the 140DAI35300 accepts only 24V AC inputs on all 32 channels. You cannot mix AC and DC signals on this module. Use a separate DC input module for DC signals.

Why Choose the Schneider Electric 140DAI35300?

The 140DAI35300 delivers reliable AC input monitoring for Quantum systems. This 32-channel module simplifies wiring with its 4-group organization. Its 24V AC operation matches common industrial sensors and switches. Moreover, the 140DAI35300 provides excellent isolation at 1780 Vrms between groups. As a result, it rejects electrical noise and protects your CPU from field surges. The wide frequency range of 47 to 63 Hz suits global power systems. Furthermore, the clear LED indicators help you diagnose input status instantly. The module works with three major software platforms: ProWORX, Concept, and Unity Pro. Therefore, you can use the 140DAI35300 in both existing and new Quantum installations. For any application requiring 24V AC input monitoring, this module is the ideal choice. Consequently, choose the 140DAI35300 for reliable, long-term operation in demanding industrial environments.
