Introduction:
ABB 07KP93 communication module with 2 serial MODBUS RTU interfaces for Advant Controller 31 systems. Reliable spare part for industrial automation.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Product Overview

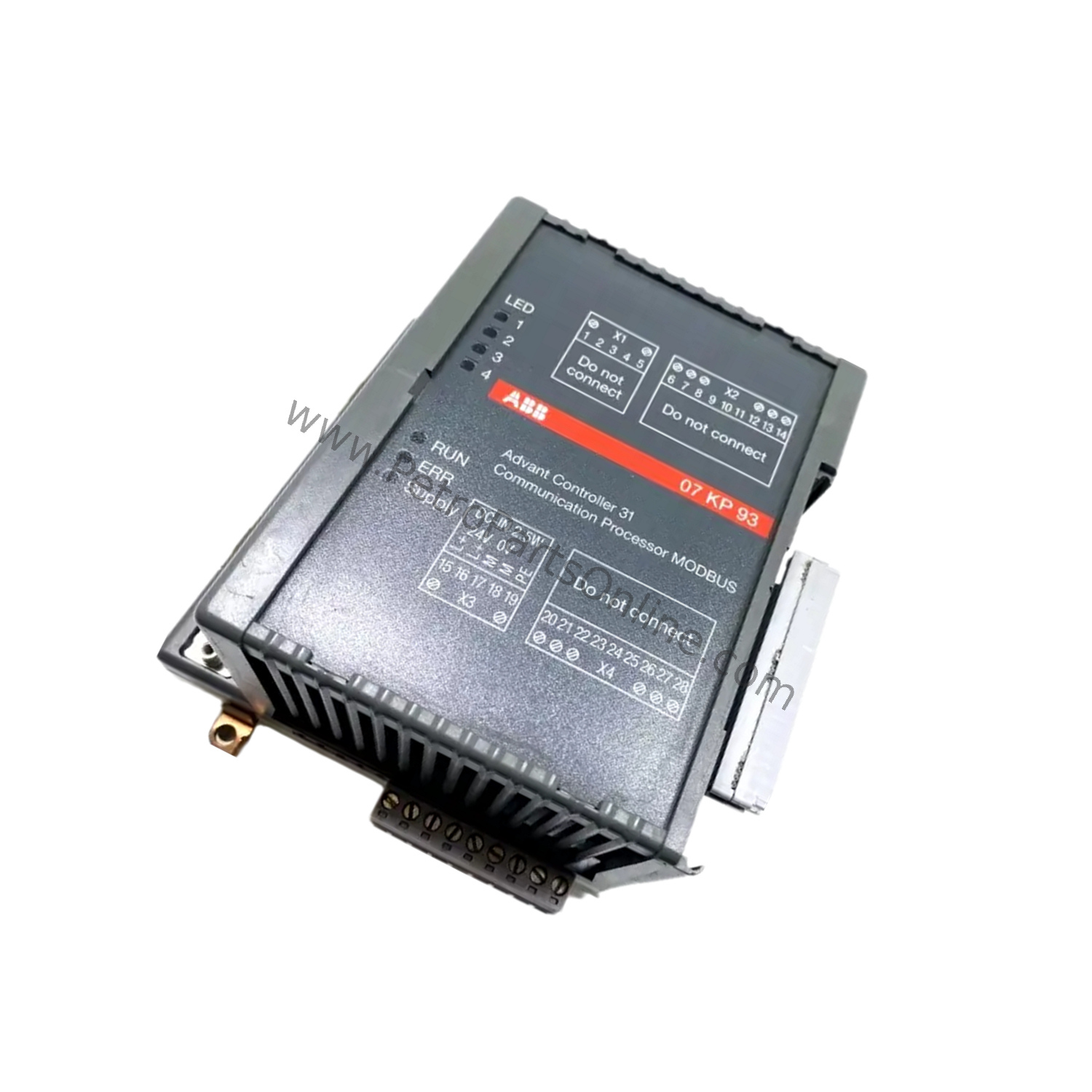

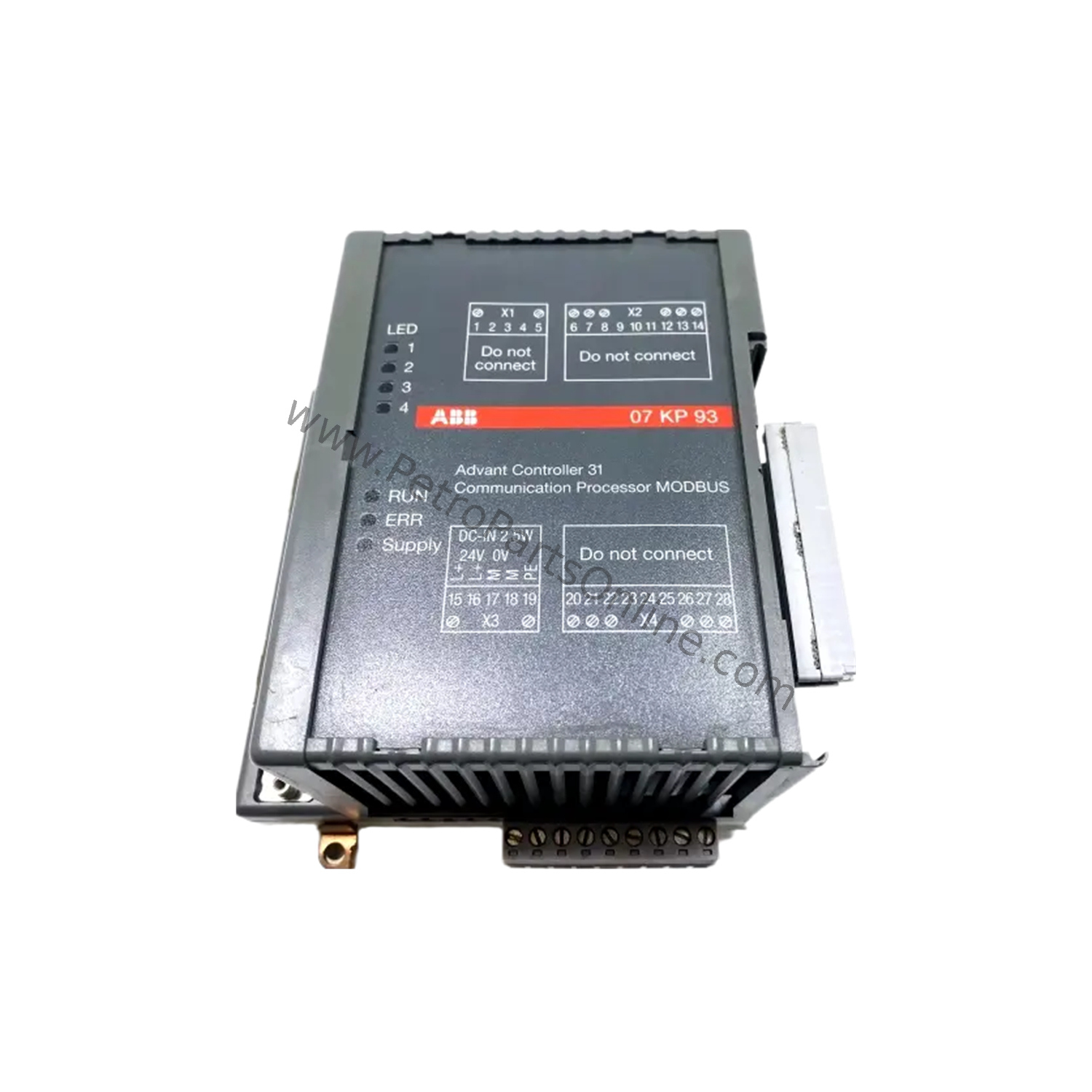

The 07KP93 is a communication processor module from ABB, designed for the Advant Controller 31 system. It provides two serial MODBUS RTU interfaces, enabling external devices to connect seamlessly. This spare part ensures reliable data exchange in industrial automation environments.
Technical Specifications Analysis
The ABB 07KP93 features 2 serial interfaces (COM3 and COM4) that support EIA RS-232 or EIA RS-485 standards. It includes 1 parallel networking interface for connection to the Advant Controller 31 basic unit. The module operates with a rated supply voltage of 24 V DC and has a typical power dissipation of 2.5 W (max. 5 W). Maximum current consumption at rated voltage is 210 mA, and at 30 V supply it is 170 mA. Protection against reversed terminal connection is included. The module measures 140 x 120 x 85 mm and weighs 0.58 kg. It mounts on a DIN rail according to DIN EN 50022–35, 15 mm deep, and can also be fastened with 4 M4 screws. Wiring uses removable terminal blocks with screw-type terminals, max. 2.5 mm². Diagnostic and status indicators include 4 yellow LEDs (LED1-LED4), 1 green LED for supply, 1 red ERR LED, and 1 green RUN LED.
Application Scenarios & Usage Methods
This module is ideal for connecting MODBUS RTU devices such as sensors, drives, and PLCs to an Advant Controller 31 system. In a typical setup, configure COM3 as master and COM4 as slave to poll data from field devices while reporting to a central controller. Alternatively, both ports can operate in slave mode to serve multiple masters. Use the 907 KP 93 programming software to configure function blocks for communication.
Installation Guide & Packing List
Mount the module on a DIN rail (DIN EN 50022–35, 15 mm deep) positioned centrally between the upper and lower edges. Secure with 4 M4 screws if needed. Connect wiring using removable terminal blocks with screw-type terminals, max. 2.5 mm². The scope of delivery includes the communication processor 07 KP 93 R1161, one 5-pole terminal block (5.08 mm grid), and a cable with terminals for earth connection.
Purchasing Advice
When selecting the 07KP93, verify that your system requires a MODBUS RTU communication coupler for the AC31 series. This module is a genuine ABB spare part, ensuring compatibility and reliability. PetroPartsOnline offers this product with detailed specifications and support for industrial automation needs.
Repair & Maintenance Tips
Regularly inspect the terminal blocks for tight connections and check the LED indicators for normal operation (supply green, RUN green, ERR off). Keep the module free of dust and moisture. Store in a clean, dry environment when not in use. Avoid exceeding the rated supply voltage of 24 V DC to prevent damage.
Frequently Asked Questions (FAQs)
Q: What is the supply voltage for the 07KP93?
A: The rated supply voltage is 24 V DC.
Q: How many serial interfaces does the module have?
A: It has 2 serial interfaces (COM3 and COM4) that can be used as EIA RS-232 or EIA RS-485.
Q: What is the maximum current consumption at rated voltage?
A: The maximum current consumption at rated voltage (24 V DC) is 210 mA.
Q: Can the module be mounted on a DIN rail?
A: Yes, it mounts on a DIN rail according to DIN EN 50022–35, 15 mm deep.
Q: What is included in the delivery?
A: The delivery includes the communication processor, one 5-pole terminal block, and a cable with terminals for earth connection.
