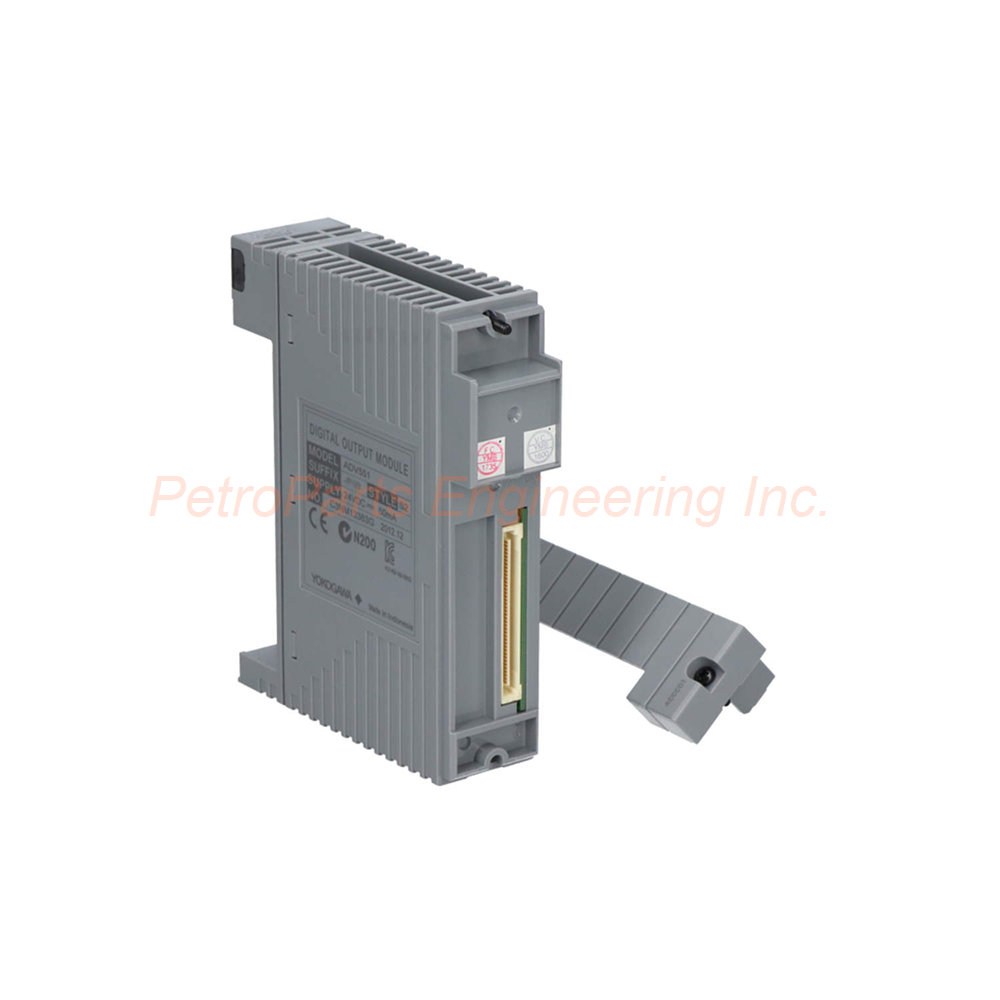

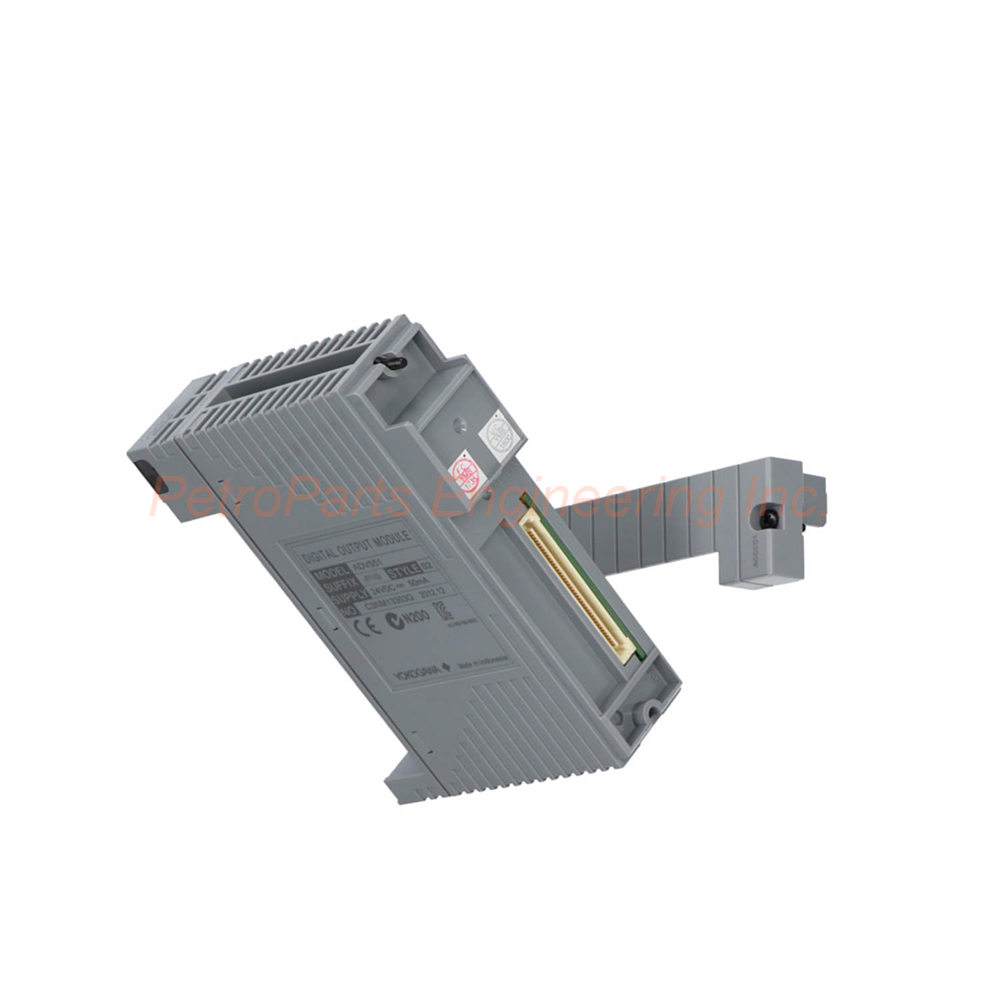

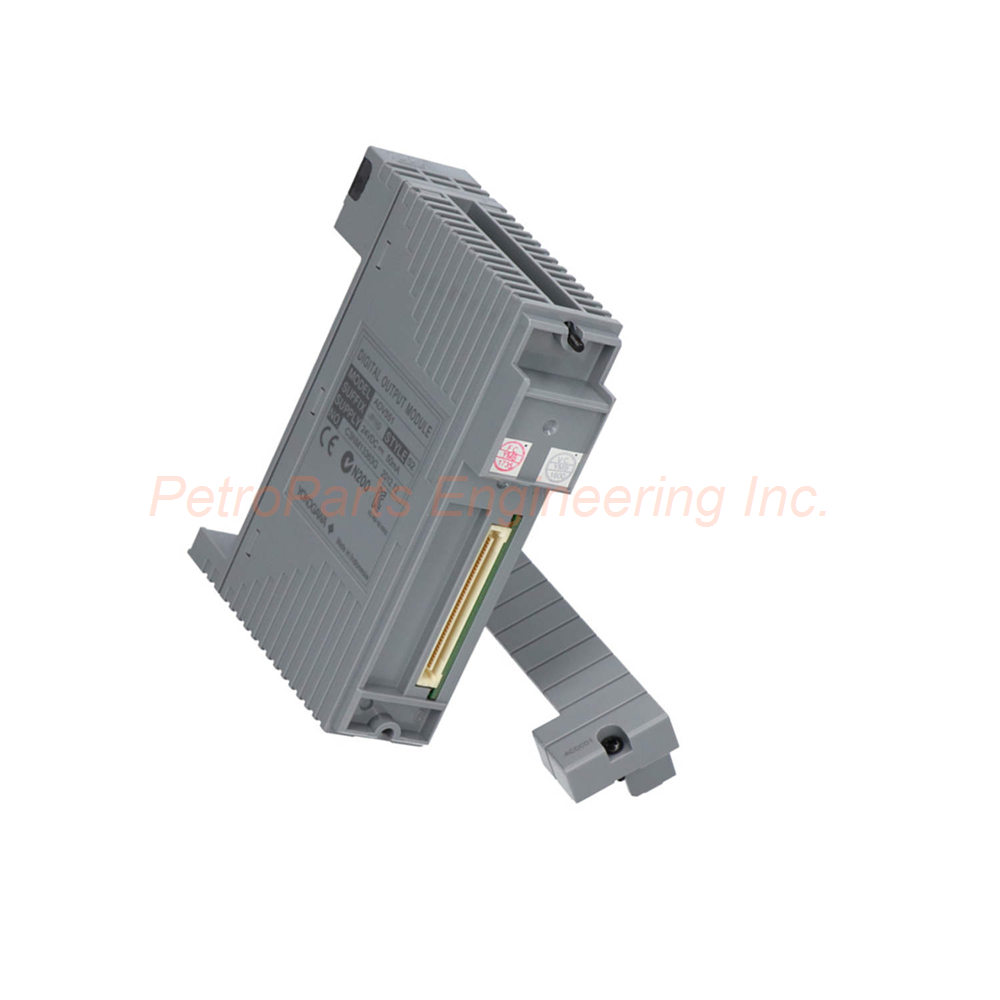

Yokogawa ADV551-P53/D5A00 – 32-Channel Digital Output Module with Pulse Output

The Yokogawa ADV551-P53/D5A00 is a digital output module. Specifically, this module provides 32 isolated output channels. It operates at 24 V DC with current sink output format. Furthermore, it includes pulse width output and time-proportional output functions. Consequently, this module suits demanding digital control and sequencing applications.

Ordering Configuration and Model Identification

• Model: ADV551 Digital Output Module (32-channel, 24 V DC, Isolated).

• Suffix Code -P: With pulse width output function and time-proportional output function.

• Suffix Code 5: Without status display; with no explosion protection.

• Suffix Code 3: With ISA Standard G3 option and temperature (-20 to 70°C) option.

• Option Code /D5A00: With KS Cable Interface Adapter for 32-channel Digital (Model: ATD5A-00).

• Therefore, the Yokogawa ADV551-P53/D5A00 offers advanced output functions and environmental protection.

Output Channel Specifications

• Number of Output Channels: 32 channels total.

• Output Format: Current sink type.

• Rated Applied Voltage: 24 V DC.

• External Power Supply Rating: 24 V DC, 50 mA.

• External Power Supply Voltage Range: 20.4 to 26.4 V DC.

• Output ON Voltage Maximum: 2 V DC.

• Leak Current Maximum (Output OFF): 0.1 mA.

• Maximum Load Current: 100 mA per channel at 26.4 V.

• Thus, the ADV551-P53/D5A00 drives solenoid valves, relays, and indicator lamps reliably.

Withstand Voltage and Isolation Ratings

• Between Output Signal and System: 2 kV AC for 1 minute.

• Between Commons: 500 V AC for 1 minute.

• Isolation Groups: Common minus (–) side every 16 channels.

• Module Type: Isolated digital output.

• Consequently, the Yokogawa ADV551-P53/D5A00 provides robust electrical isolation for field wiring.

Pulse Width Output Function

• Pulse Width Output: One-shot pulse width output function available.

• Time-Proportioning Output: Time-proportioning ON/OFF control supported.

• Pulse Width Range: 8 milliseconds to 7200 seconds.

• Pulse Width Resolution: 8 milliseconds (plus max 1 ms ON/OFF delay).

• Application: Precise control of heating elements or motor starters.

• Therefore, the ADV551-P53/D5A00 replaces separate timing relays in many applications.

Output Response Times

• Status Output Response Time: 3 ms or less.

• Mixed Status and Pulse Outputs Response Time: 10 ms or less.

• Status Output Function: ON/OFF status output monitoring.

• Update Speed: Suitable for high-speed digital control loops.

• Thus, the Yokogawa ADV551-P53/D5A00 responds quickly to control system commands.

Status Output Function

• Status Output: ON/OFF status output function.

• Monitoring: Real-time channel status feedback.

• Diagnostics: Helps verify output operation.

• Integration: Works with system-level status displays.

• Consequently, operators can confirm output states without external indicators.

Current Consumption and Power Requirements

• 5V DC System Current: 700 mA maximum.

• External Power Supply Current: 60 mA maximum.

• External Supply Voltage: 24 V DC (20.4 to 26.4 V range).

• Power Source: External power supply required for field outputs.

• Therefore, the ADV551-P53/D5A00 requires both system and external power.

Temperature and Environmental Specifications

• Standard Operating Temperature: -20°C to +70°C.

• ISA Standard G3 Compliance: Yes (suffix code 3).

• Corrosion Resistance: G3 rating for moderate corrosive atmospheres.

• Explosion Protection: None (suffix code 5).

• Status Display: Not included (suffix code 5).

• Moreover, the Yokogawa ADV551-P53/D5A00 withstands harsh industrial environments.

Physical Specifications and Weight

• Weight: Approximately 0.20 kg (without adapter).

• With /D5A00 Adapter: Additional weight from KS cable interface adapter.

• External Connection Options:

  • Pressure clamp terminal.

  • Dedicated cable (AKB331).

  • MIL connector cable.

• KS Cable Interface Adapter: Model ATD5A-00 (included with /D5A00 option).

• Therefore, flexible connection options suit various installation preferences.

Installation Guide

First, verify that system power is completely disconnected. Then, select your preferred connection method (pressure clamp, AKB331 cable, or MIL connector). For KS cable interface, the /D5A00 adapter (ATD5A-00) is pre-installed. After that, mount the Yokogawa ADV551-P53/D5A00 into the designated I/O slot. Connect the external 24V DC power supply (20.4 to 26.4 V range) to the module. Ensure the supply can deliver at least 60 mA plus channel loads. Next, connect your field devices to the 32 output channels. Each channel sinks up to 100 mA at 26.4 V maximum. Then, configure the pulse width output or time-proportional output functions as needed. Set pulse widths from 8 ms to 7200 seconds. Subsequently, configure status output monitoring if required. Finally, power on the system and verify output operation. As a result, the Yokogawa ADV551-P53/D5A00 will provide reliable digital output control.

Packaging List

• One Yokogawa ADV551-P53/D5A00 digital output module

• One KS cable interface adapter (ATD5A-00, pre-installed)

• One pressure clamp terminal block (or MIL connector per order)

• One product identification label

• One installation and configuration guide

Common FAQs

Q1: How many output channels does the Yokogawa ADV551-P53/D5A00 provide?
A: This module provides 32 isolated output channels. Specifically, isolation is provided every 16 channels on the common minus side. Therefore, two isolation groups are available.

Q2: What is the maximum load current per channel?
A: The maximum load current is 100 mA per channel at 26.4 V. The output format is current sink. Consequently, it drives most small solenoids, relays, and indicator lamps.

Q3: Does the ADV551-P53/D5A00 support pulse width modulation?
A: Yes, it includes pulse width output function and time-proportional output function. Pulse width ranges from 8 milliseconds to 7200 seconds. Resolution is 8 milliseconds plus up to 1 ms delay.

Q4: What is the response time of this digital output module?
A: Status output response time is 3 ms or less. Mixed status and pulse outputs respond in 10 ms or less. Therefore, it suits high-speed control applications.

Q5: What environmental ratings does the Yokogawa ADV551-P53/D5A00 have?
A: The suffix code 3 provides ISA Standard G3 compliance. Operating temperature ranges from -20°C to +70°C. However, no explosion protection is included (suffix code 5).
