Product Overview

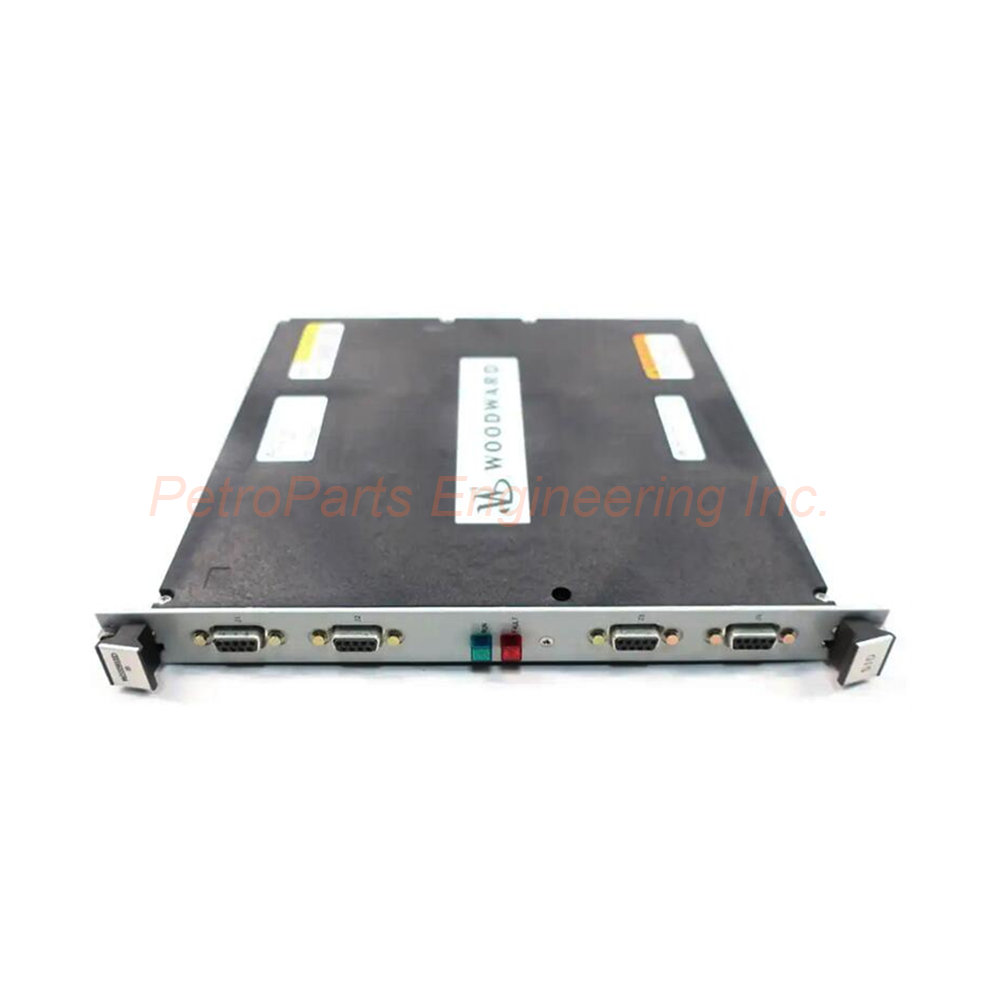

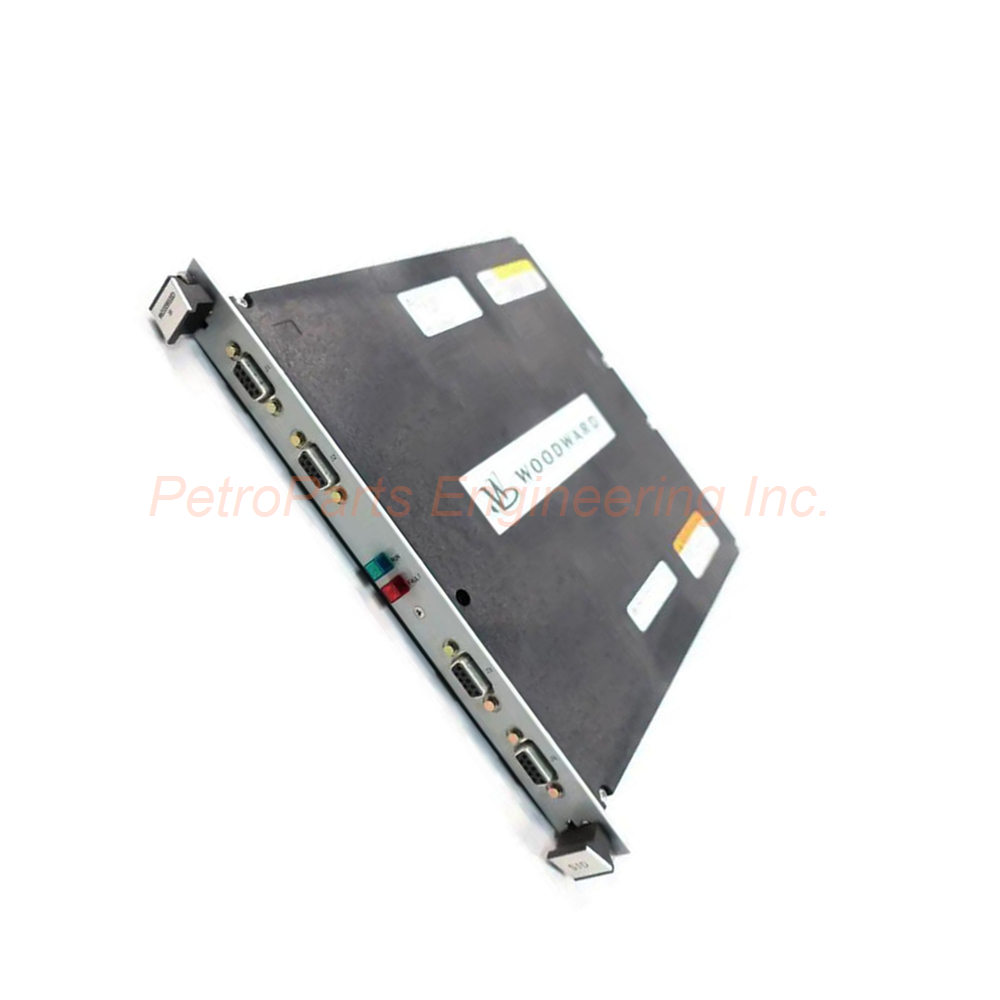

The Woodward 5466-348 belongs to the Netcon family of serial I/O modules. This module interfaces with digital actuator drivers for precise position control. The Woodward 5466-348 has three independent RS-485 ports for flexible connectivity. You get one driver per port with a 5 millisecond update rate. Each port can operate at a different rate group. The Woodward 5466-348 detects communication faults and disables faulty drivers automatically.

Technical Specifications

The Woodward 5466-348 delivers reliable serial communication for digital actuator drivers. All parameters follow the official datasheet.

Communication Specifications

• Protocol: RS-485 UART

• Baud rate: 417 kbaud

• Parity: None

• Data bits: 8

• Stop bit: 1

• The Woodward 5466-348 uses standard UART framing for reliable data transfer.

Port Configuration

• Number of RS-485 ports: Three

• Rate group: One driver per port

• Update rate: 5 milliseconds

• Driver compatibility: EM or GS/LQ Digital Actuator Drivers

• Address matching: Each driver's address switches must match the driver number in the GAP application program

Driver Interface Features

• Position command resolution: 16 bits with no noise

• Command type: Fast and very accurate position commands

• Communication fault detection: Yes, per driver

• Fault response: Drivers with comm faults are disabled automatically

• Remote monitoring: Driver parameters can be monitored remotely

• Remote configuration: Driver parameters can be configured remotely

Country of Manufacture

• Origin: United States (USA)

Functional Modes

The Woodward 5466-348 supports multiple operational configurations.

Full Control Mode

• Send position demand to driver

• Send configuration information to driver

• Monitor driver status outputs

• The Woodward 5466-348 provides complete driver management.

Configuration and Monitoring Only

• Configure the driver remotely

• Monitor status outputs

• Position demand comes from 4-20 mA input or CAN bus interface

• The Woodward 5466-348 acts as a configuration tool in this mode.

Monitoring Only

• Monitor driver status outputs only

• No configuration or position demand capability

• Driver position demand from 4-20 mA input or CAN bus

• Configuration input from RS-232 or CAN bus

Installation Guide

Follow these steps to install the Woodward 5466-348 correctly.

1. Power down the Netcon system before inserting the module.

2. Align the Woodward 5466-348 with the correct slot in the chassis.

3. Slide the module firmly into place until fully seated.

4. Connect RS-485 wiring to each of the three ports for actuator drivers.

5. Verify driver address switches match GAP application program numbers.

6. Configure each port for the appropriate rate group as needed.

7. Apply power and test communication at 417 kbaud on the Woodward 5466-348.

Packing List

This package for the Woodward 5466-348 includes the following items.

• Woodward 5466-348 Netcon SIO Module (one unit)

• RS-485 port connector kit

• Product documentation and configuration guide

• Anti-static protective bag

Frequently Asked Questions (FAQ)

1. How many RS-485 ports does the Woodward 5466-348 have?
The Woodward 5466-348 has three RS-485 ports. Each port is intended for use with EM or GS/LQ Digital Actuator Drivers.

2. What is the update rate for the Woodward 5466-348?
The update rate is 5 milliseconds for the Woodward 5466-348. One driver is allowed per port every 5 ms for critical parameters.

3. What baud rate does the 5466-348 use for communication?
The Woodward 5466-348 uses a baud rate of 417 kbaud. The protocol is RS-485 UART with 8 data bits, 1 stop bit, and no parity.

4. Does the Woodward 5466-348 detect communication faults?
Yes, the Woodward 5466-348 detects communication faults for each driver. Drivers with communication faults are automatically disabled.

5. What position command resolution does the 5466-348 provide?
The Woodward 5466-348 allows drivers to issue fast, accurate position commands with 16 bits and no noise. This provides precise actuator control.
