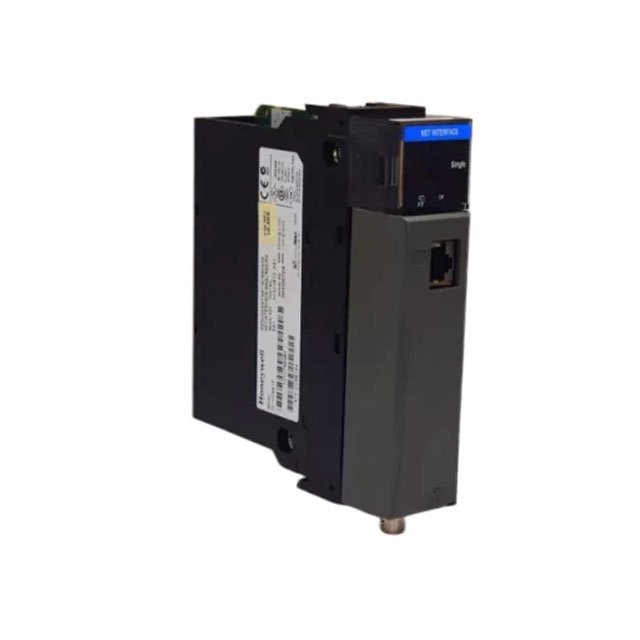

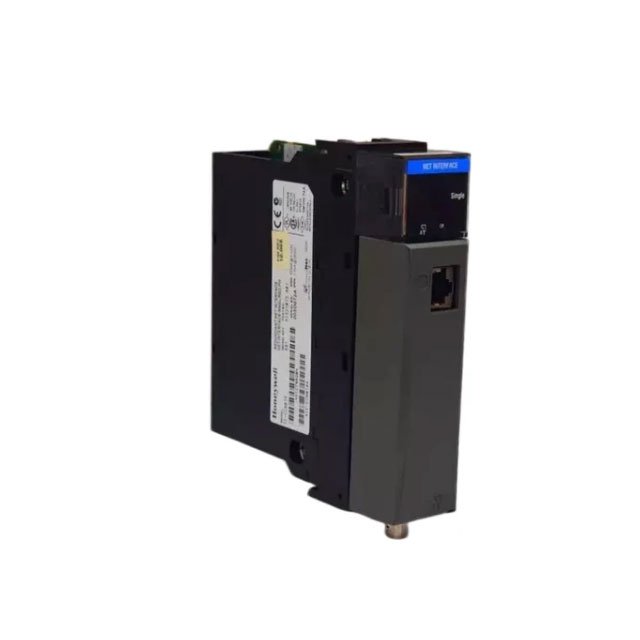

Overview of the Honeywell TC-IAH061 Analog Input Module

The Honeywell TC-IAH061 serves as a high-precision analog input component within the Experion Process Knowledge System (PKS) architecture. Honeywell designed this module to interface directly with industrial field transmitters, converting physical process variables such as pressure, temperature, and flow into digital data for the controller. As a critical part of the Experion I/O family, the TC-IAH061 ensures that the central control system receives accurate, real-time information from the plant floor.

Engineers specifically value the TC-IAH061 for its superior signal integrity in electrically noisy environments. By utilizing advanced filtering and high-speed data processing, this module maintains the stability of the control loop, which is essential for maintaining safety and efficiency in complex industrial processes.

High-Performance Isolated Channel Architecture

The TC-IAH061 features six galvanically isolated channels. Unlike standard non-isolated modules where a single electrical fault can propagate across multiple inputs, the TC-IAH061 isolates each channel individually. This design offers several distinct advantages:

• Noise Mitigation: Isolation prevents ground loops and cross-channel interference, which often plague long-distance analog signal wires.
• System Protection: The module acts as a barrier, protecting the sensitive internal electronics of the Experion PKS chassis from high-voltage transients or field-side surges.
• Signal Accuracy: Each channel operates independently, ensuring that the measurement of one process variable does not influence the accuracy of another.

Technical Specifications and Signal Processing

The TC-IAH061 delivers industry-leading performance metrics tailored for high-speed process control.

1. Rapid Update Rate: The module updates all six channels every 25 ms. This high frequency allows the control system to respond to rapid process changes, making it ideal for high-speed turbine control or pressure regulation.
2. Frequency Filtering: With a channel bandwidth of 0 to 15 Hz (-3 dB), the module effectively filters out high-frequency electrical noise while preserving the essential process signal.
3. Open Circuit Detection: To prevent “frozen” control loops, the TC-IAH061 includes built-in diagnostics. It generates an upscale reading for voltage inputs (typically within 5 seconds) and a zero-scale reading for current inputs (within 1 second) upon detecting an open circuit.
4. RFI Immunity: Industrial environments often contain significant radio frequency interference. The TC-IAH061 maintains an error of less than 2.0% even when exposed to 10 V/m fields across the 27 to 1000 MHz spectrum.

Power Efficiency and Hardware Integration

Honeywell optimized the TC-IAH061 for low-heat operation within densely packed control cabinets. The module consumes a maximum of 4.3 W of power, reducing the thermal load on the system power supplies and cooling equipment.

For field wiring, the module utilizes the TC_TBNH 20-position terminal block. This standardized connection system allows technicians to perform quick replacements or wiring audits without disturbing the adjacent modules. The compact form factor fits seamlessly into the Experion PKS I/O rack, maximizing the use of cabinet space while providing clear LED status indicators for each channel.

Application Scenarios in Modern Industry

Facilities in the Oil & Gas, Power Generation, and Chemical Processing sectors rely on the TC-IAH061 for their most critical monitoring tasks.

• Refining: Monitoring pressure and flow in catalytic cracking units where signal precision is a safety requirement.
• Power Plants: Tracking steam temperatures and turbine speeds where 25ms update rates are necessary for governor control.
• Water Treatment: Managing chemical dosing pumps by receiving accurate 4-20mA feedback from remote flow meters.

Why Choose the TC-IAH061 for Your System?

Choosing the genuine Honeywell TC-IAH061 ensures full compatibility with your existing Experion PKS firmware and hardware. Unlike generic alternatives, the TC-IAH061 undergoes rigorous factory testing to meet international safety and performance standards. Its combination of galvanic isolation, rapid data updates, and robust RFI immunity makes it a superior choice for facilities that prioritize uptime and measurement accuracy. By integrating this module, you reduce the risk of unplanned shutdowns caused by signal interference or hardware failure, ultimately protecting your production output and equipment longevity.
