Product Overview of the Allen-Bradley 1794-IB8

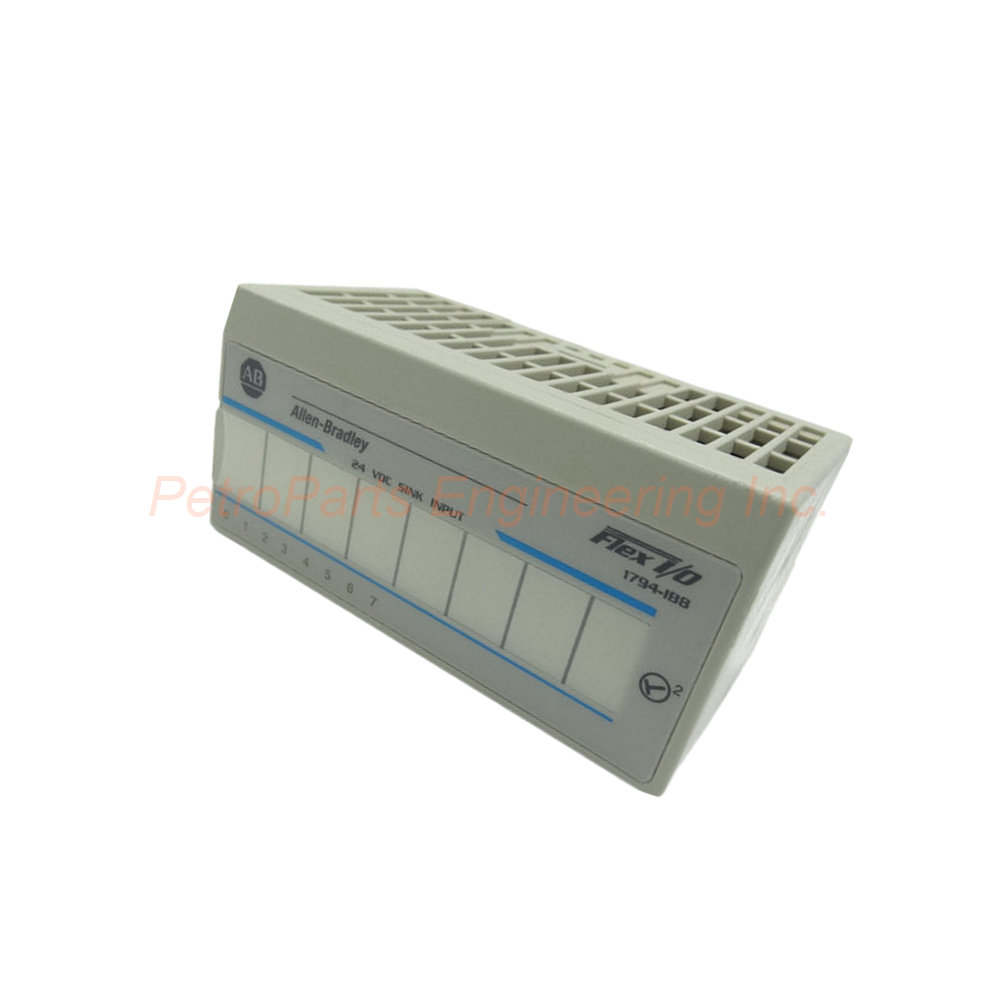

The Allen-Bradley 1794-IB8 is a reliable Flex I/O digital input module. Specifically, it belongs to the popular 1794 Flex I/O series. This module provides eight (8) current sinking inputs for field devices. Therefore, it reads discrete signals from sensors and switches. The 1794-IB8 is DC-powered for industrial control applications. Furthermore, it enjoys a strong reputation for reliability and cost-effectiveness. Users also appreciate its modularity and flexibility in system design.

Input Voltage and Current Specifications

First, let us examine the voltage requirements. The 1794-IB8 has a nominal on-state voltage of 24V DC. Its minimum on-state voltage is 10V DC. Similarly, the maximum on-state voltage reaches 31.2V DC. Therefore, this module accepts a wide input voltage range. The off-state voltage maximum is 5V DC. Consequently, false triggering is minimized effectively.

Now, consider the current specifications. The 1794-IB8 requires a minimum on-state current of 2.0mA. Its maximum on-state current is 12.0mA. The off-state current maximum is only 1.5mA. Hence, the module consumes very little power when inputs are inactive. The nominal input impedance is 4.6 kΩ. As a result, the module presents a proper load to your field devices.

Power Consumption and Thermal Characteristics

The 1794-IB8 draws a Flexbus current of 20mA at 5V DC. Its maximum power dissipation reaches 3.5W at 31.2V DC. Therefore, heat generation is relatively low. This module works well in dense control cabinets. Moreover, special D and XT versions exist for diagnostics and extreme environments. Thus, you can reduce panel and maintenance costs with the right choice.

Compatible Terminal Base Units

The 1794-IB8 requires a compatible terminal base unit. Specifically, it works with 1794-TB3 and 1794-TB3S terminal bases. Therefore, verify your existing base before purchasing. The module mounts on a standard DIN rail. This mounting method simplifies installation significantly. Furthermore, the terminal base handles all field wiring connections. Consequently, the 1794-IB8 itself has no direct wiring.

Hot-Swappable Design Benefits

The 1794-IB8 supports module insertion and removal under power. You can change this module without shutting down your system. As a result, production uptime improves dramatically. This feature also removes system restarting inefficiencies. Therefore, maintenance becomes faster and safer. The 1794-IB8 fits inside the terminal base unit. This design connects field devices to the I/O bus seamlessly.

Status Indicators and Diagnostics

The 1794-IB8 features sixteen yellow LEDs as status indicators. Each input channel has a corresponding LED. Furthermore, these LEDs indicate both input device and output signals. Thus, troubleshooting is quick and intuitive. A lit LED means the input is actively receiving a signal. In contrast, an unlit LED indicates no input signal present. The D version offers enhanced diagnostic capabilities. Similarly, the XT version withstands extreme environmental conditions.

Communication and Network Options

The 1794-IB8 supports multiple communication options. For example, you can use ControlNet for deterministic control. Similarly, DeviceNet works well for device-level networking. EtherNet/IP provides standard Ethernet connectivity. Finally, Universal Remote I/O offers legacy system compatibility. Therefore, the 1794-IB8 integrates into almost any architecture.

Environmental Specifications

You can operate the 1794-IB8 between 0 to 55 °C (32 to 131 °F) . The relative humidity range is 5 to 95% noncondensing. Hence, this module suits most industrial environments. The storage temperature range is not specified by the manufacturer. However, typical Flex I/O modules store at -40 to 85°C. Always refer to the official documentation for exact limits.

Installation Guidelines for the 1794-IB8

First, mount the compatible terminal base on a DIN rail. Second, snap the 1794-IB8 onto the terminal base. You can do this with power applied to the system. However, exercise caution during hot insertion. Third, connect your field devices to the terminal base wiring points. The 1794-IB8 accepts sinking input connections. Therefore, the input common connects to the DC supply positive. Each input channel connects to the negative side through a switch. Finally, verify all LED indicators respond correctly to input signals.

Typical Applications for the 1794-IB8

The 1794-IB8 reads signals from various field devices. For example, it works with proximity sensors and limit switches. Similarly, it accepts signals from push buttons and selector switches. Photoelectric sensors also connect directly to this module. Furthermore, it reads dry contact closures from relays. Therefore, the 1794-IB8 serves many discrete input needs.

Package Contents

• One Allen-Bradley 1794-IB8 Flex I/O Digital Input Module

• One product information sheet with wiring diagrams

• One replacement label for channel identification

• No terminal base unit included (sold separately)

Frequently Asked Questions (FAQ)

Q1: What terminal base units are compatible with the 1794-IB8?
A: The 1794-IB8 works with 1794-TB3 and 1794-TB3S terminal bases. Therefore, ensure you have the correct base before installation.

Q2: Can I remove the 1794-IB8 while the system is powered on?
A: Yes, the 1794-IB8 supports hot insertion and removal. You can change this module without shutting down the entire system.

Q3: What do the yellow LEDs indicate on the 1794-IB8?
A: The 1794-IB8 has sixteen yellow LEDs showing input status. A lit LED means the corresponding input channel is active.

Q4: What is the difference between standard, D, and XT versions of the 1794-IB8?
A: The standard 1794-IB8 works for general applications. The D version adds diagnostic features. The XT version handles extreme temperatures and environments.

Q5: How much current does the 1794-IB8 draw from the Flexbus?
A: The 1794-IB8 draws only 20mA at 5V DC from the Flexbus. Consequently, it places a very small load on your power supply.
