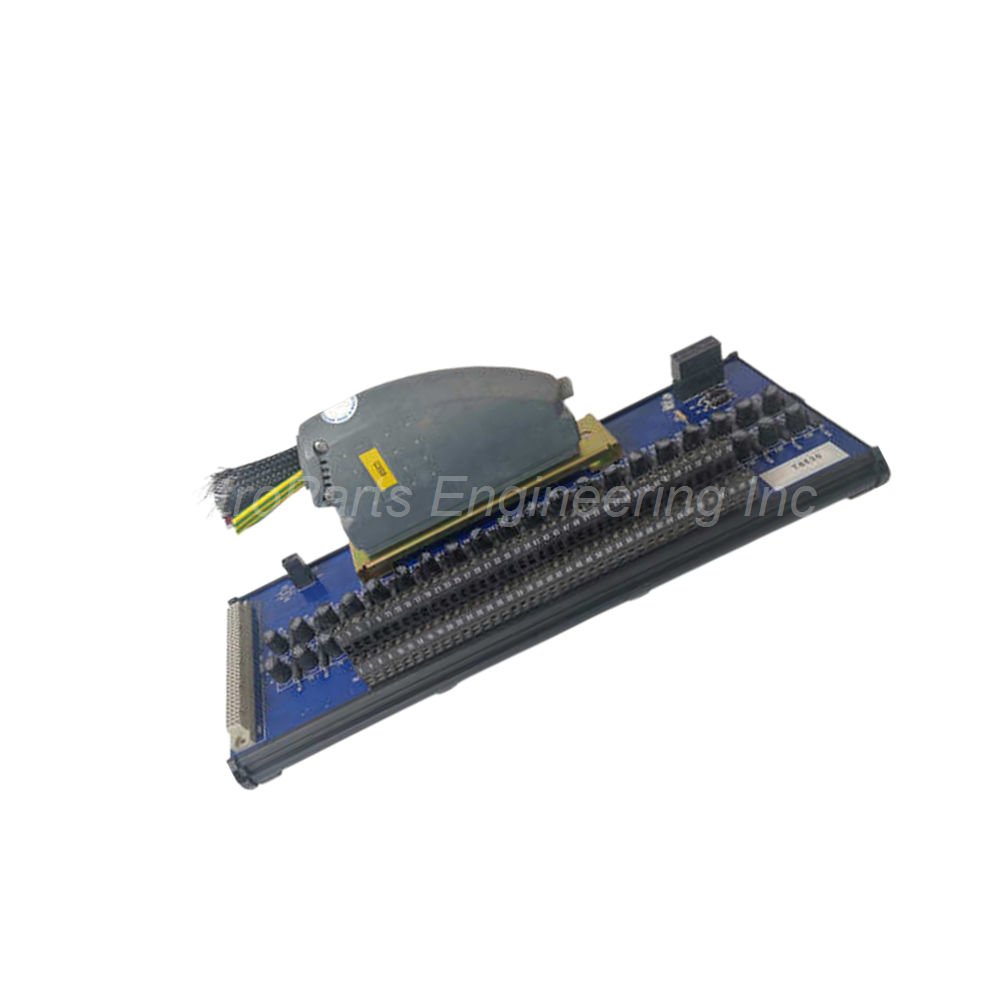

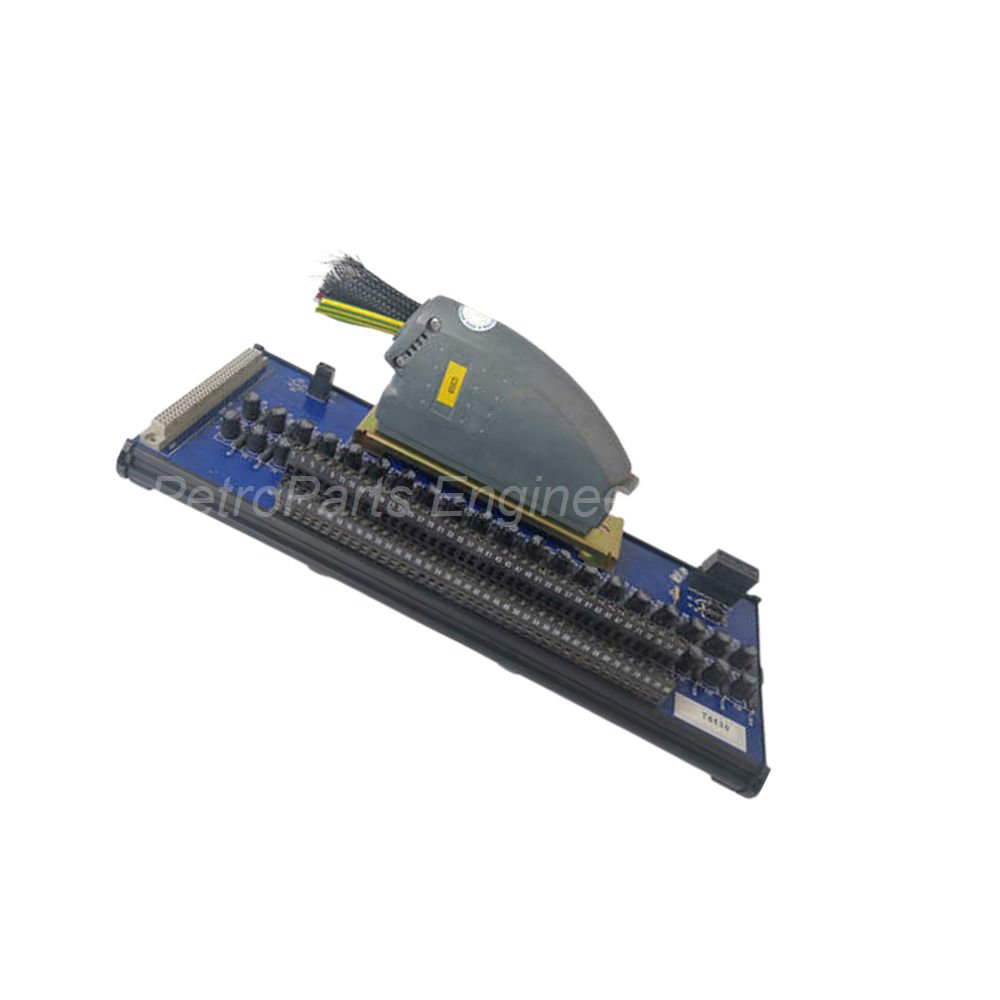

T8830 ICS Triplex Trusted 40-Channel Analog Input FTA Module
Introduction:
The ICS Triplex T8830 is a Field Termination Assembly for the Trusted TMR System. This unit interfaces field devices with the T8431 analog input module. The T8830 provides termination for up to 40 analog input channels. It accepts 0 to 22 mA signals from 2-wire field devices. Use this FTA to connect sensors and transmitters to your safety system
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Technical Specifications of T8830
Manufacturer: ICS Triplex (Rockwell Automation).
Catalog Series: Trusted TMR System.
Description: 40 channel analog input field termination assembly.
Input Channels: 40 channels per FTA.
Input Signal Range: Accepts 0 to 22 mA per channel.
Fuse Type: TR5, 50 mA time-delay fuse per channel.
Fuse Quantity: Includes 40 fuses with the module.
Supply Voltage Range: 18 to 32 V DC.
Power Consumption: 5 Watts maximum.
Field Device Wiring: Uses standard 2-wire connections.
Mounting: Fits standard DIN rail.
SmartSlot Support: Version 1 compatible for hot replacement.
LED Indicators: Green LED shows field power integrity.
Power Supply Inputs: Dual 24 V DC feeds with diode commoning.
Input Resistor: Uses 250 Ω resistor for signal conversion.
Connector Type: 96-way socket SK1 for module cable.
Certifications: Ordinary and Hazardous Locations.
Hazardous Area Ratings: ATEX and IECEx approved.
Installation and Wiring Guide
Mount the T8830 on a standard 35 mm DIN rail. Connect dual 24 V DC power feeds to the PWR TB terminal block. The FTA commons both feeds using internal diodes. Check the green LED to confirm power supply integrity. Wire each field device using 2-wire connections. Connect the device positive wire through the 50 mA fuse. The T8830 provides one fuse per channel. Use the 250 Ω resistor to convert current to voltage. The analog input module reads this voltage signal. Connect the T8431 module to SK1 using a 96-way cable. The SmartSlot connector SK2 supports Version 1 hot replacement. Do not use SK2 for SmartSlot Version 2 systems. Terminate all 40 input signals on the provided terminal blocks. Use 12 three-way terminal blocks for most connections. Use 2 two-way terminal blocks for the remaining channels.
Package Contents
One ICS Triplex T8830 analog input FTA.
Forty TR5, 50 mA time-delay fuses.
Product documentation and installation guide.
Frequently Asked Questions (FAQ)
Q: Which analog input module works with the T8830?
A: The T8830 is designed specifically for the Trusted T8431 analog input module. Other modules may not be compatible.
Q: What happens when a channel fuse blows?
A: The 50 mA fuse isolates that specific channel. The remaining 39 channels continue operating normally.
Q: Can I use 4-20 mA transmitters with this FTA?
A: Yes, the T8830 accepts 0-22 mA signals. This covers the standard 4-20 mA range perfectly.
Q: What is the purpose of the dual power supply inputs?
A: Dual inputs provide redundancy for high availability systems. The FTA automatically uses the active supply.
Q: Does the T8830 support hot replacement of the T8431 module?
A: Yes, SmartSlot Version 1 allows module replacement without system shutdown.
