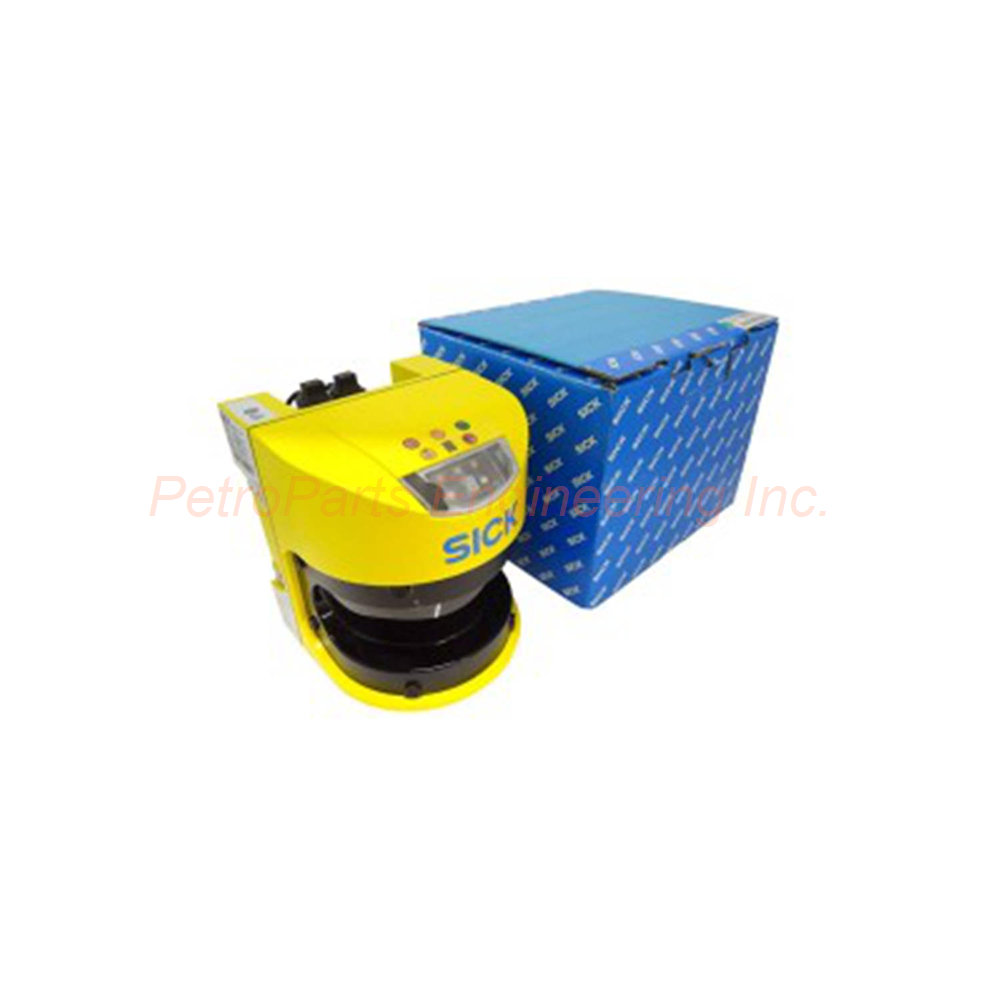

SICK S30A-7111CP Safety Laser Scanner Overview

The SICK S30A-7111CP is a safety laser scanner from the S3000 PROFINET IO Advanced series. This device operates as a sensor head with I/O module. The SICK S30A-7111CP is designed for indoor applications requiring network integration. This scanner has no local inputs or outputs on the device itself. It operates only in a network with a corresponding PROFINET controller. The SICK S30A-7111CP provides a protective field range of 7 meters. Its warning field range extends up to 49 meters (20 meters at 20% reflectivity). The distance measuring range reaches 49 meters for reference contours.

Technical Specifications

General Specifications

• Model: S30A-7111CP.

• Usage: S3000 PROFINET IO Advanced (no local I/O, network operation only).

• Application: Indoor.

• Protective Field Range: 7 m.

• Warning Field Range: 49 m (20 m at 20% reflectivity).

• Distance Measuring Range: 49 m.

• Scanning Angle: 190°.

• Angular Resolution: 0.5° or 0.25° (depending on range and resolution).

• Response Time: 60 ms.

• Protective Field Supplement: 100 mm.

• Number of Multiple Samplings: 2 to 16 (configurable).

• Delay of Automatic Reset: 120 ms to 4,920 ms (configurable).

Field Configuration

• Number of Simultaneously Monitored Protective Fields: 2 fields.

• Type of Field Set: Dual field sets.

• Number of Field Sets: 4 sets.

• Number of Fields: 8 fields.

• Number of Monitoring Cases: 4 cases.

Resolution Options (Configurable)

The SICK S30A-7111CP offers selectable resolution settings:

• 30 mm

• 40 mm

• 50 mm

• 70 mm

• 150 mm

Safety-Related Parameters

• Type: Type 3 (IEC 61496).

• Safety Integrity Level: SIL 2 (IEC 61508).

• Category: Category 3 (EN ISO 13849).

• Performance Level: PL d (EN ISO 13849).

• PFHD: 8.0 x 10⁻⁸ (mean probability of dangerous failure per hour).

• TM (Mission Time): 20 years (EN ISO 13849).

• Safe State in Event of Fault: The safety-related data is logic 0.

PROFINET and Communication Interfaces

• Bus Connection: Copper conductor with 2 female connectors for RJ-45 push-pull plug.

• Supply Connection: System plug with or without connecting cable.

• Configuration and Diagnostics Interface: RS-232 at 9.6/19.2/38.4 kBaud.

• Fieldbus/Industrial Network: PROFINET PROFIsafe.

• Type of Fieldbus Integration: Integrated in the device.

• Device Properties: PROFINET IO device with 2-port real-time switch (PROFINET specification V2.2).

• PROFIsafe Profile: 6-octet input and 6-octet output (IEC 61784-3-3 V2.4).

• Cycle Time: 4, 8, 16, 32 ms (configurable).

• GSDML: According to GSDML specification V2.25.

Switch Properties

• Filtering Data Base according to IEEE 802.1D

• 6 prioritization levels for IEEE 802.1Q network prioritization

• 64 KB SRAM memory for caching telegrams (768-byte segments)

• Resource prioritization for network control and RTC2/3 frames

• Telegram extension based on Cut-through

• Port status (Disabled, Blocking, Forwarding)

• Support for non-real-time and real-time data transfer

• Auto-negotiation, Auto-crossover (MDIX), Auto-polarity, 100Base-TX

• Conformance Class B

Topology and Diagnostics Support

• SNMP, MIB-2, LLDP according to IEEE 802.1AB

• MRP client support

• Application-related manufacturer-specific channel diagnostics

• Channel diagnostics for PROFIsafe profile (individually switchable)

• Report system errors

• Cable diagnostics

• Neighborhood alerts

• Port statistics support

• I&M support from I&M0 to I&M4

• TCP port 9000 and UDP port 30718

• RS-232

Functions Not Supported

• Multicast communication

• Supervisor AR

• MAC-pause mechanism in full duplex

• Back-pressure in half duplex

• Static learning

• Broadcast Storm Control

Electrical Specifications

• Protection Class: III (VDE 0106, EN 60950).

• Supply Voltage Vs: 24 V DC (16.8 V DC to 28.8 V DC).

• Power Consumption: 0.8 A at 24 V DC without output load.

Mechanical Specifications

• Dimensions (W x H x D): 155 mm x 185 mm x 160 mm.

• Weight: 3.3 kg.

• Gross Weight: 3.8 kg (with packaging).

• Housing Material: Aluminum die cast.

• Housing Color: RAL 1021 (yellow).

• Front Screen Material: Polycarbonate.

• Front Screen Surface Finish: Outside with scratch-resistant coating.

Laser Specifications

• Type of Light: Pulsed laser diode.

• Wavelength: 905 nm.

• Detectable Remission Factor: 1.8% to >1,000% (reflectors).

• Laser Class: 1 (21 CFR 1040.10 and 1040.11, IEC 60825-1).

Ambient Conditions

• Enclosure Rating: IP65 (EN 60529).

• Ambient Operating Temperature: -10°C to +50°C.

• Storage Temperature: -25°C to +50°C.

• Vibration Resistance: IEC 60068-2-6, IEC 60068-2-64, IEC 60721-3-5, IEC TR 60721-4-5, IEC 61496-3; Class 5M1.

• Shock Resistance: IEC 60068-2-27, IEC 60721-3-5, IEC TR 60721-4-5, IEC 61496-3; Class 5M1.

• Continuous Shock: 50 m/s² for 11 ms; 100 m/s² for 16 ms.

Installation Guide

Follow these steps to install the SICK S30A-7111CP correctly:

1. Mount the scanner on a stable indoor surface with clear 190° view.

2. Connect the system plug for 24 V DC power supply.

3. Connect both RJ-45 push-pull plugs to the PROFINET network.

4. Configure the PROFINET IO device settings using GSDML file.

5. Set the PROFIsafe profile for 6-octet input and output.

6. Program the 4 field sets and 8 fields using CDS software.

7. Configure the response time and resolution as needed.

8. Test the SICK S30A-7111CP with the PROFINET controller before operation.

Packaging List

• SICK S30A-7111CP sensor head with I/O module (1 unit)

• 2 x RJ-45 push-pull plug connectors (pre-attached)

• System plug for power connection (1 piece)

• Quick start guide (1 copy)

• CDS configuration software CD (1 piece)

Frequently Asked Questions (FAQ)

1. Does the SICK S30A-7111CP have local I/O on the device?
No, this scanner has no local inputs or outputs. It operates only with a PROFINET network controller.

2. What is the protective field range of the S30A-7111CP?
The SICK S30A-7111CP provides a protective field range of 7 meters for personnel safety.

3. What industrial network protocol does this scanner support?
This scanner supports PROFINET with PROFIsafe profile for safety communication.

4. What safety ratings does this device have?
The SICK S30A-7111CP has Performance Level PL d and Safety Integrity Level SIL 2 certifications.

5. How many field sets can I configure on this scanner?
You can configure up to 4 field sets with 8 total fields and 4 monitoring cases.
