Product Overview of the Schneider Electric ABFC08R12R Commoning Link

The Schneider Electric ABFC08R12R is a compact commoning link. Specifically, this accessory belongs to the Modicon Momentum series from Schneider Electric. It is primarily used to facilitate electrical connections within automation systems. Consequently, this link simplifies wiring between I/O modules and terminal blocks. The compact design optimizes space in crowded control cabinets. Therefore, the ABFC08R12R is ideal for installations with limited panel space.

Physical Specifications and Dimensions

The Schneider Electric ABFC08R12R has very small physical dimensions. The length measures 3.15 inches. The width measures 2.76 inches. The height is just 0.31 inches. Consequently, this link fits easily into tight spaces between other components. The total weight of this component is only 0.02 kg. As a result, handling during setup is very easy. Furthermore, the lightweight design does not add significant weight to your control panel.

Color and Identification
The device is finished in a bright red color. Therefore, it is easily identifiable among other components in the cabinet. This visual distinction helps maintenance personnel quickly locate the commoning link. As a result, troubleshooting and system modifications become faster and safer.

Environmental Operating Conditions

The ABFC08R12R operates effectively within specified temperature limits. The maximum ambient temperature is 60 degrees Celsius. The minimum ambient temperature is 0 degrees Celsius. Therefore, this link works reliably in various industrial conditions. For storage, the same temperature range applies. Consequently, you can store the component in non-climate-controlled warehouses without concern.

Humidity Resistance
The Schneider Electric ABFC08R12R handles humidity levels up to 95 percent. This rating applies to non-condensing environments during regular operation. The same 95 percent limit applies during storage as well. As a result, this commoning link suits diverse operational conditions. For example, it works well in humid environments such as food processing plants or outdoor enclosures.

Altitude Rating
The device is designed for use at altitudes up to 1000 meters above sea level. Consequently, it performs consistently across most geographic locations. For installations above 1000 meters, please consult the derating guidelines. This ensures proper performance at higher altitudes.

Compliance and Standards

The ABFC08R12R complies with CE standards. Specifically, this compliance assures adherence to European safety and quality guidelines. Therefore, the link meets the requirements for sale and use in European markets. The EAN number for this product is 3389110449273. Consequently, you can easily verify authenticity using this unique identifier.

Compatibility and Integration

The Schneider Electric ABFC08R12R is specifically designed for the Modicon Momentum series. Therefore, it works seamlessly with Momentum I/O modules and terminal bases. This commoning link simplifies the connection of multiple points within the same circuit. As a result, it reduces wiring time and potential wiring errors. Furthermore, the compact design allows for dense module mounting without interference.

Installation Guide for the ABFC08R12R

Follow these steps for a correct setup of Schneider Electric ABFC08R12R.

• First, verify that your system uses Modicon Momentum series components. This link is not compatible with other series.

• Next, identify the terminal blocks that require commoning. The red color helps locate the link position.

• Then, insert the ABFC08R12R into the designated commoning slots on the terminal base. Ensure proper alignment before pressing firmly.

• After that, check that the link sits flush against the terminal block. Any gaps may indicate incorrect installation.

• Subsequently, verify all connections are secure. The link should not move when gently touched.

• Finally, perform a continuity test to confirm proper electrical connection. This step ensures reliable system operation.

Installation Awareness Notes
When planning your installation, consider environmental conditions that might affect performance. For example, keep the operating temperature between 0 and 60 degrees Celsius. Avoid condensation by maintaining proper enclosure ventilation. Furthermore, do not exceed the 95 percent humidity limit. Always mount the link in a dry, clean environment. The maximum altitude of 1000 meters should not be exceeded without derating.

Packaging List for ABFC08R12R

The original box includes the following items.

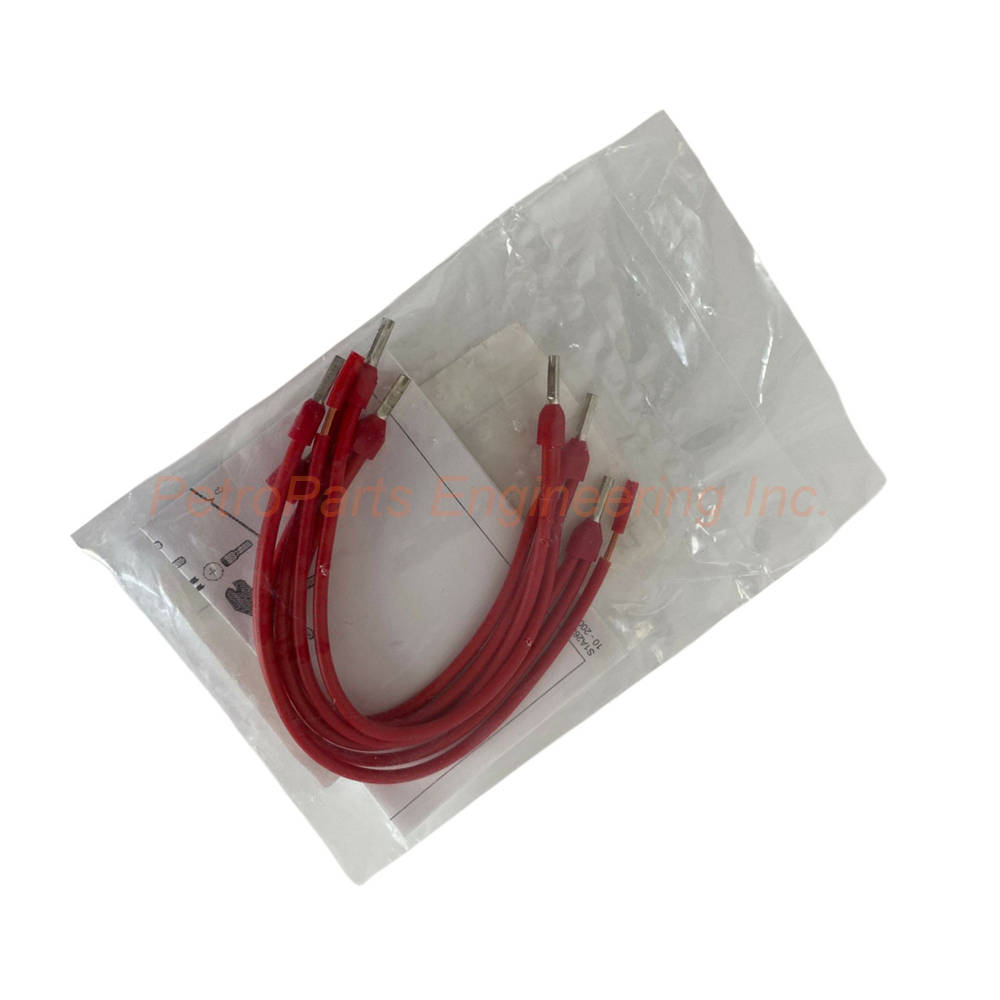

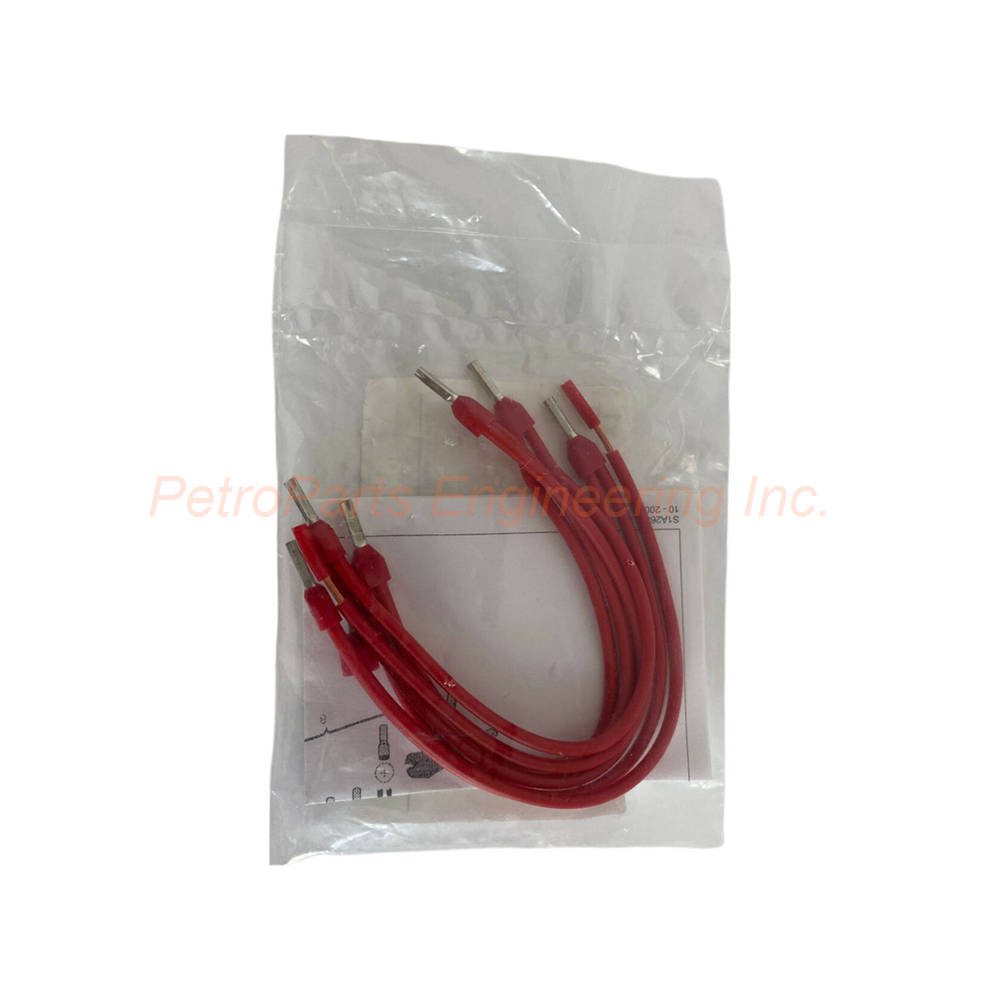

• One Schneider Electric ABFC08R12R commoning link in red color

• One anti-static protective bag for safe storage

• One quick reference card with installation diagram

Common FAQs About This Schneider Commoning Link

What series is the ABFC08R12R compatible with?
The Schneider Electric ABFC08R12R is designed exclusively for the Modicon Momentum series. Therefore, it does not work with other Schneider series such as Modicon M340 or M580.

What is the operating temperature range for this link?
This commoning link operates from 0 to 60 degrees Celsius. For storage, the same temperature range applies. Consequently, avoid extreme temperatures outside this range.

Is this link suitable for high humidity environments?
Yes, the ABFC08R12R handles up to 95 percent humidity. This rating applies to non-condensing environments during operation and storage.

What does the red color indicate on this component?
The red color helps identify the commoning link among other components. Therefore, maintenance personnel can quickly locate it during troubleshooting.

What standards does this product comply with?
The ABFC08R12R complies with CE standards. Consequently, it meets European safety and quality requirements.

What is the weight of this commoning link?
The total weight is only 0.02 kg. Therefore, it adds negligible weight to your control panel assembly.

Can I use this link at high altitudes?
The Schneider Electric ABFC08R12R is rated for use up to 1000 meters above sea level. For higher altitudes, please consult the derating specifications from Schneider Electric.
