Product Overview

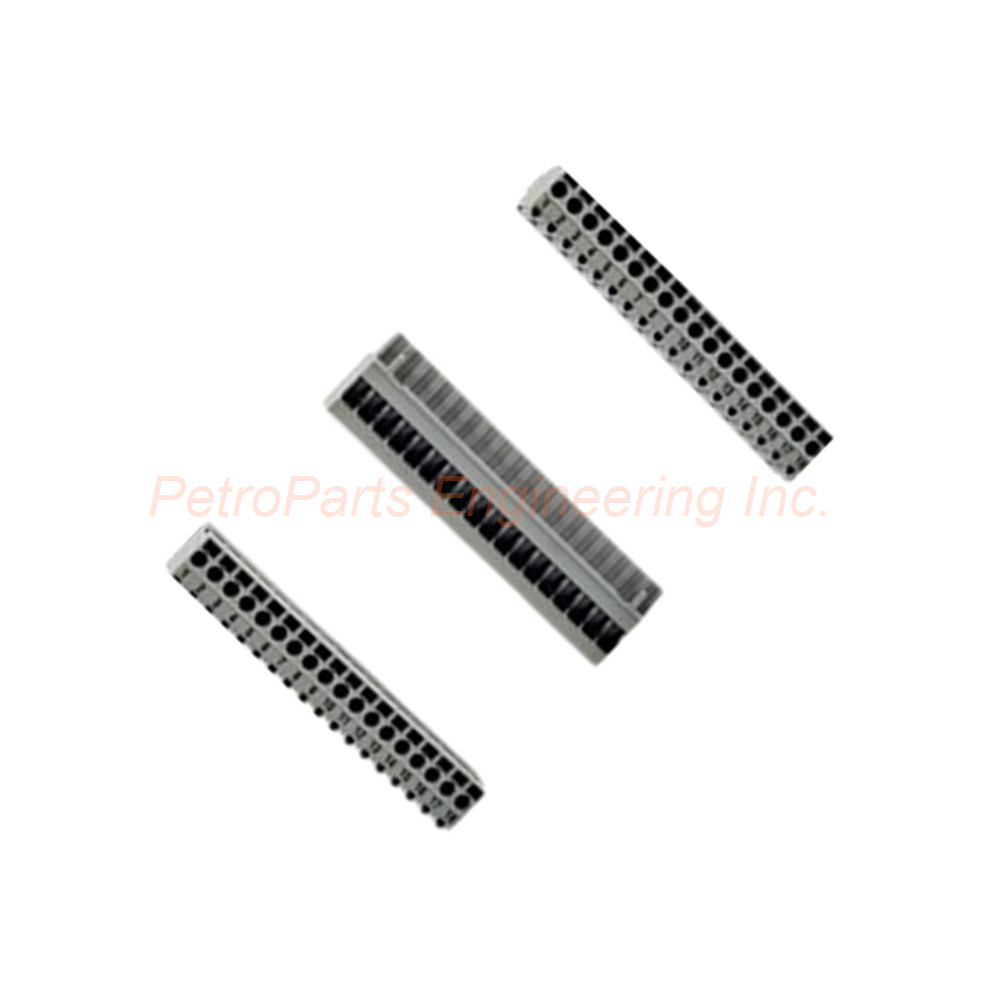

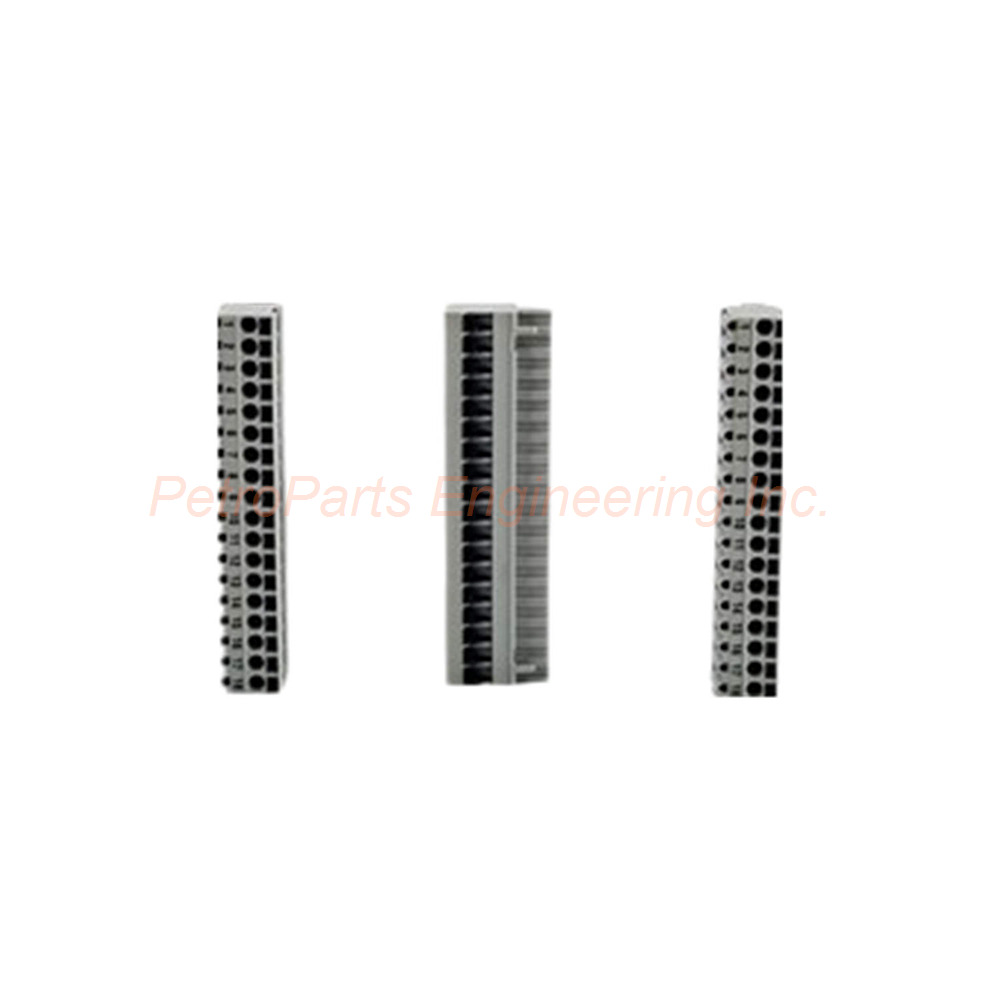

The Schneider Electric 170XCP20000 organizes and identifies cables in Momentum systems. This accessory belongs to the Modicon Momentum series. It provides labels and markers for cable coding applications. The 170XCP20000 kit helps technicians trace wiring quickly during maintenance. You can use this kit for new installations or panel retrofits. Its compact design fits easily into tool bags and panel drawers.

Key Features

• Product type: Cable coding kit (labels and markers)

• Series compatibility: Modicon Momentum

• Cooling method: Natural (no forced air required)

• CE standard compliance: Yes

• Operating temperature: 0°C to 60°C

• Humidity tolerance: 95% non-condensing

• Maximum altitude: 1000 meters above sea level

• Weight: 53 grams (lightweight)

Technical Specifications

Physical Dimensions

Environmental Ratings

Standards and Compliance

Kit Contents

The 170XCP20000 typically includes these items (verify with actual packaging):

• Pre-printed cable number labels (various digits)

• Blank write-on cable markers

• Cable tie mounts (adhesive backing)

• Nylon cable ties (various lengths)

• Instruction sheet for coding system

Contact your distributor for the exact contents of the Schneider Electric 170XCP20000. Kit contents may vary by manufacturing batch and regional requirements.

Application Guidelines

When to Use the 170XCP20000

The 170XCP20000 is ideal for these situations:

• New Momentum panel installations requiring cable labeling

• Retrofit projects replacing old I/O modules

• Troubleshooting assistance for maintenance teams

• Commissioning documentation support

• Panel standardization across multiple machines

Recommended Coding System

For best results with the 170XCP20000, follow this coding approach:

Installation Instructions

Follow these steps to use the 170XCP20000 cable coding kit:

1. Remove the 170XCP20000 kit from its packaging.

2. Sort the labels and markers by type and size.

3. Clean the cable surface where the marker will be placed.

4. Select the appropriate label for each cable based on your coding plan.

5. Write the cable number or wrap the pre-printed label around the cable.

6. Secure the label using the adhesive backing or nylon tie.

7. For wire ducts, attach cable tie mounts to the duct surface.

8. Route the cable tie through the mount and around the wire bundle.

9. Tighten the tie and trim excess length with scissors.

10. Verify all labels are readable from a standing position.

Do not apply 170XCP20000 labels to hot cables exceeding 60°C surface temperature. The adhesive may soften and release over time. Allow cables to cool before applying labels.

Panel Labeling Best Practices

When using the Schneider Electric 170XCP20000, follow these best practices:

Label Placement

• Place labels within 50mm of the termination point

• Orient labels for easy reading from the panel door

• Avoid placing labels on cable bends or flex points

• Keep labels away from heat sinks and power resistors

Durability Considerations

• The 170XCP20000 labels resist oil and mild solvents

• Avoid direct contact with aggressive chemicals (acetone, MEK)

• For washdown areas, apply clear heat shrink over labels

• Replace faded or damaged labels during maintenance

Documentation

• Create a cable schedule referencing each label number

• Store the schedule inside the panel door for technicians

• Update the schedule whenever cables are added or changed

Environmental Limitations

The 170XCP20000 operates within these environmental boundaries:

Install the 170XCP20000 inside a panel with IP54 minimum rating for best label longevity.

Compatibility Information

The 170XCP20000 works with all Modicon Momentum products:

This kit is not restricted to Momentum products. You can use the Schneider Electric 170XCP20000 on any industrial control panel wiring.

Packaging List

• 1 x Schneider Electric 170XCP20000 cable coding kit (assorted labels and markers)

• 1 x instruction sheet for coding system

• 1 x storage box or blister pack (varies by region)

Storage Recommendations

Store unused portions of the 170XCP20000 kit under these conditions:

• Temperature: 10°C to 35°C (50°F to 95°F)

• Humidity: 30% to 70% (non-condensing)

• Avoid direct sunlight and UV exposure

• Keep away from ozone generating equipment (motors, welders)

• Seal partially used label sheets in plastic bags

Common FAQs

Q1: What is included in the 170XCP20000 cable coding kit?
A1: The 170XCP20000 includes pre-printed number labels, blank markers, cable tie mounts, and nylon ties. Contact your distributor for exact contents by region.

Q2: Can I use the 170XCP20000 labels on cables outside the control panel?
A2: Yes, but protect the 170XCP20000 labels from direct sunlight and weather. Use additional clear heat shrink or label covers for outdoor installations.

Q3: Are replacement labels available separately for the 170XCP20000?
A3: No, Schneider Electric does not sell replacement labels separately. Order another 170XCP20000 kit for additional labels and markers.

Q4: What temperature range do the 170XCP20000 labels withstand?
A4: The 170XCP20000 labels operate from 0°C to 60°C. Above 60°C, the adhesive may soften. Below 0°C, the adhesive becomes brittle.

Q5: Is the 170XCP20000 certified for use in hazardous locations?
A5: No, the Schneider Electric 170XCP20000 has no hazardous location certification. It is a passive labeling accessory with no electrical components. Use in Class I Division 2 areas is permitted as it generates no sparks.
