Overview

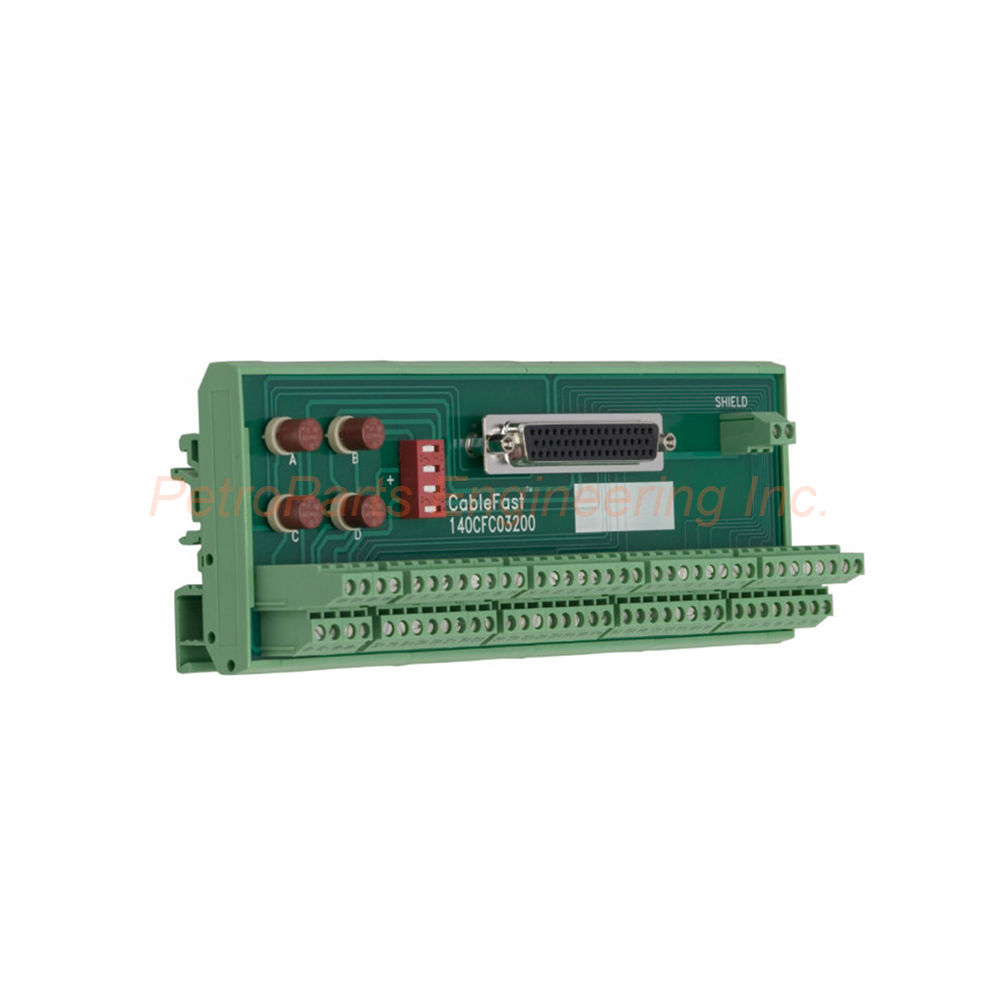

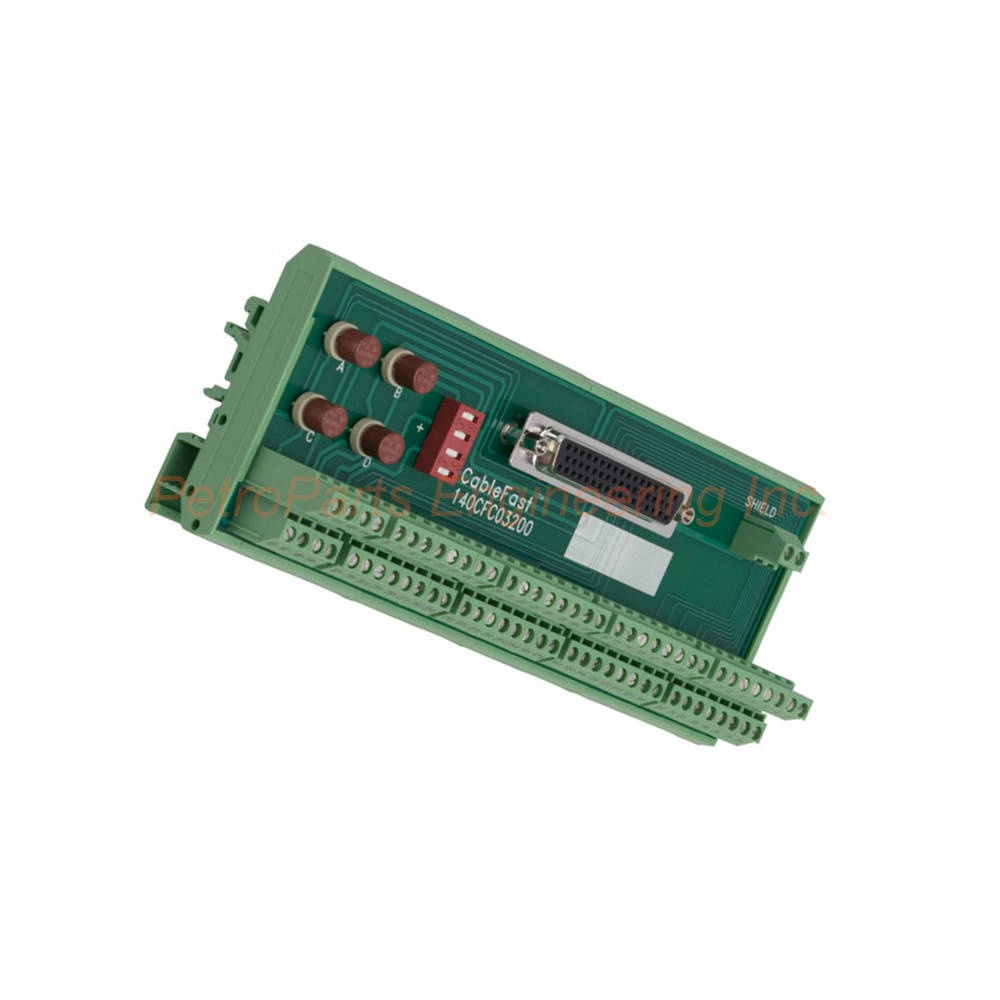

The Schneider Electric 140CFC03200 is a CableFast terminal block with integrated fuses. This unit belongs to the Modicon Quantum automation platform. Specifically, it provides group fusing connections for I/O modules. The 140CFC03200 features 32 contacts arranged in 4 groups. For this reason, industrial users trust this terminal block for organized field wiring.

Moreover, this terminal block connects directly to Quantum I/O modules. Each point is allocated 2 terminals, which simplifies wiring significantly. Additionally, the group fusing provides 0.8 A protection per group. Consequently, the CableFast design reduces both installation time and maintenance effort.

Product Specifications

Designed for use with Quantum I/O modules, the 140CFC03200 serves as a terminal block accessory. Its primary application provides 0.8 A group fusing connections.

Main Specifications

• Range of Product: Modicon Quantum automation platform

• Accessory Designation: CableFast terminal block with fuses

• Accessory Type: Terminal block

• Accessory Category: Connection accessories

• Specific Application: Provides 0.8 A group fusing connections

Complementary Specifications

• Number of Ways: 32 contacts

• Arrangement: 4 groups of 8 I/O points

• Terminals per Point: 2 terminals per point

• Electrical Connection: 1 female connector SUB-D 50, captive screw terminal

• Mounting Support: Standard DIN rail

Compatible I/O Modules

The 140CFC03200 works with the following Quantum I/O modules. Therefore, users have multiple configuration options.

Compatible Modules

• 140DDI35300

• 140DDO15310

• 140DDI85300

• 140DAI35300

• 140DDO35300

• 140DAI55300

• 140DAI45300

• 140DDI15310

Physical Specifications

The Schneider Electric 140CFC03200 has a compact design for easy panel mounting. Furthermore, its lightweight construction simplifies handling during installation.

Dimensions

• Package 1 Height: 4.33 in (11 cm)

• Package 1 Width: 6.89 in (17.5 cm)

• Package 1 Length: 10.91 in (27.7 cm)

• Package Weight: 19.7 oz (558 g)

Mounting

• Mounting Support: Standard DIN rail

• Connection Type: Female SUB-D 50 connector

• Wire Connection: Captive screw terminal

Key Features

The 140CFC03200 provides organized field wiring for Quantum I/O modules. For example, the 32 contacts support up to 32 I/O points. Meanwhile, the 4 groups of 8 points simplify troubleshooting. Additionally, each group has 0.8 A fusing for reliable circuit protection.

Each I/O point receives 2 terminals on the block. As a result, connecting field devices becomes much easier. The captive screw terminals secure wires without any loose parts. Likewise, the SUB-D 50 connector interfaces directly with the I/O module.

The CableFast design significantly reduces wiring time. Furthermore, the terminal block mounts on standard DIN rail without special tools. The group fusing protects both the module and field devices. In addition, the modular design allows for quick replacement when needed.

The 140CFC03200 is compatible with multiple Quantum I/O module types. For instance, it works with discrete input modules like 140DDI35300. Similarly, it works with discrete output modules like 140DDO35300. Finally, it also works with analog input modules like 140DAI35300.

Installation Guidelines

To install the 140CFC03200, first mount it on a standard DIN rail. Then snap the terminal block onto the rail firmly until it locks. After that, connect the SUB-D 50 cable to the Quantum I/O module. Finally, secure the connector with the locking screws.

When wiring field devices, connect them to the captive screw terminals. Each I/O point has two terminals, which makes wiring straightforward. Strip wires to the appropriate length before inserting into captive screws. Then tighten screws to secure each wire properly.

Install fuses in each group according to your requirements. The group fusing provides 0.8 A protection per group. For best results, label each terminal for easy identification. Above all, verify all wiring before applying power.

Package Contents

• Schneider Electric 140CFC03200 CableFast Terminal Block (1 unit)

• Female SUB-D 50 connector (factory installed)

• Captive screw terminals (32 positions)

• Installation instruction sheet

Frequently Asked Questions (FAQ)

1. What is the function of the Schneider Electric 140CFC03200 terminal block?
The 140CFC03200 is a CableFast terminal block with group fusing. Specifically, it provides 0.8 A group fusing connections for Quantum I/O modules. Moreover, each point has 2 terminals for convenient field wiring.

2. How many contacts does the 140CFC03200 have?
The 140CFC03200 has 32 contacts in total. These are arranged in 4 groups of 8 I/O points. Additionally, each point is allocated 2 terminals for easy field wiring.

3. What Quantum I/O modules are compatible with the 140CFC03200?
The 140CFC03200 works with several Quantum modules. These include 140DDI35300, 140DDO15310, 140DDI85300, and 140DAI35300. Furthermore, it works with 140DDO35300, 140DAI55300, 140DAI45300, and 140DDI15310.

4. How is the 140CFC03200 mounted?
The 140CFC03200 mounts on a standard DIN rail for easy installation. It connects to the I/O module via a female SUB-D 50 connector. Meanwhile, captive screw terminals secure the field wiring reliably.

5. What is the weight and dimensions of this Schneider terminal block?
The 140CFC03200 weighs 558 g (19.7 oz) including packaging. Package dimensions are 11 cm in height, 17.5 cm in width, and 27.7 cm in length. Therefore, it fits conveniently in standard control cabinets.
