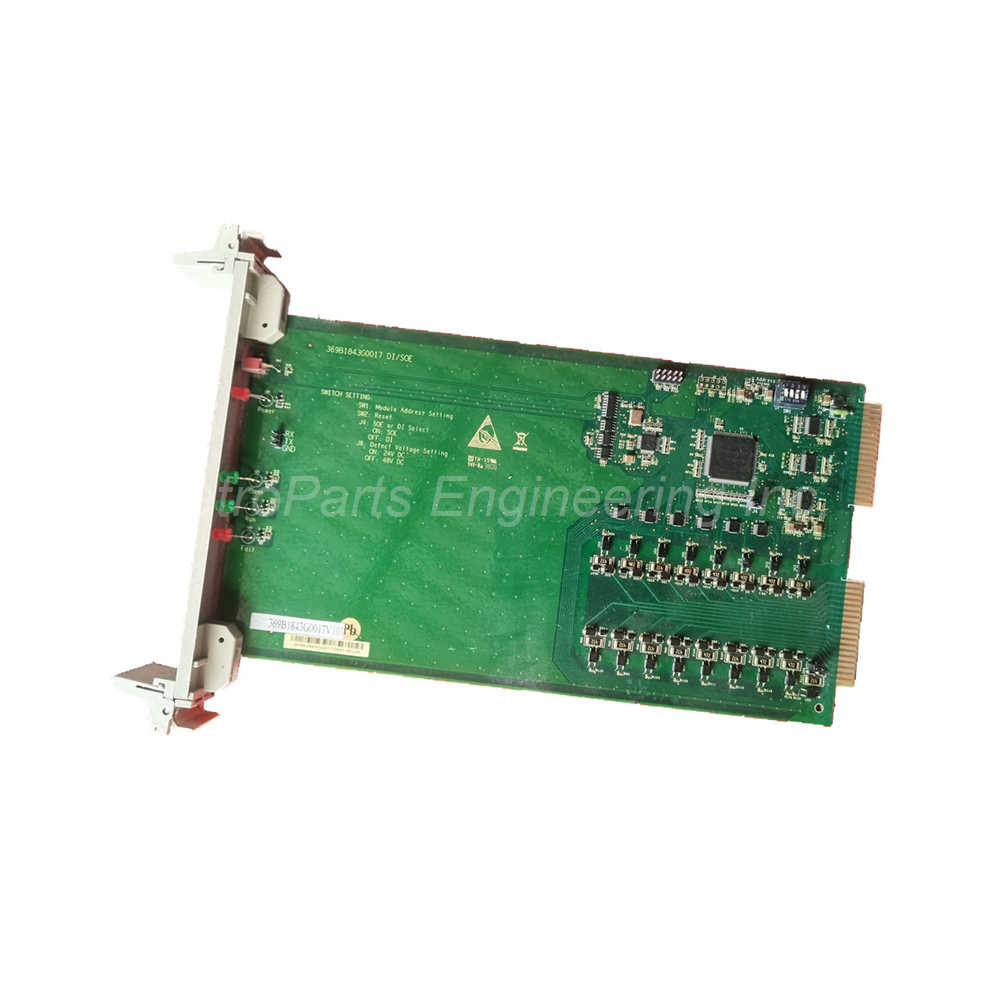

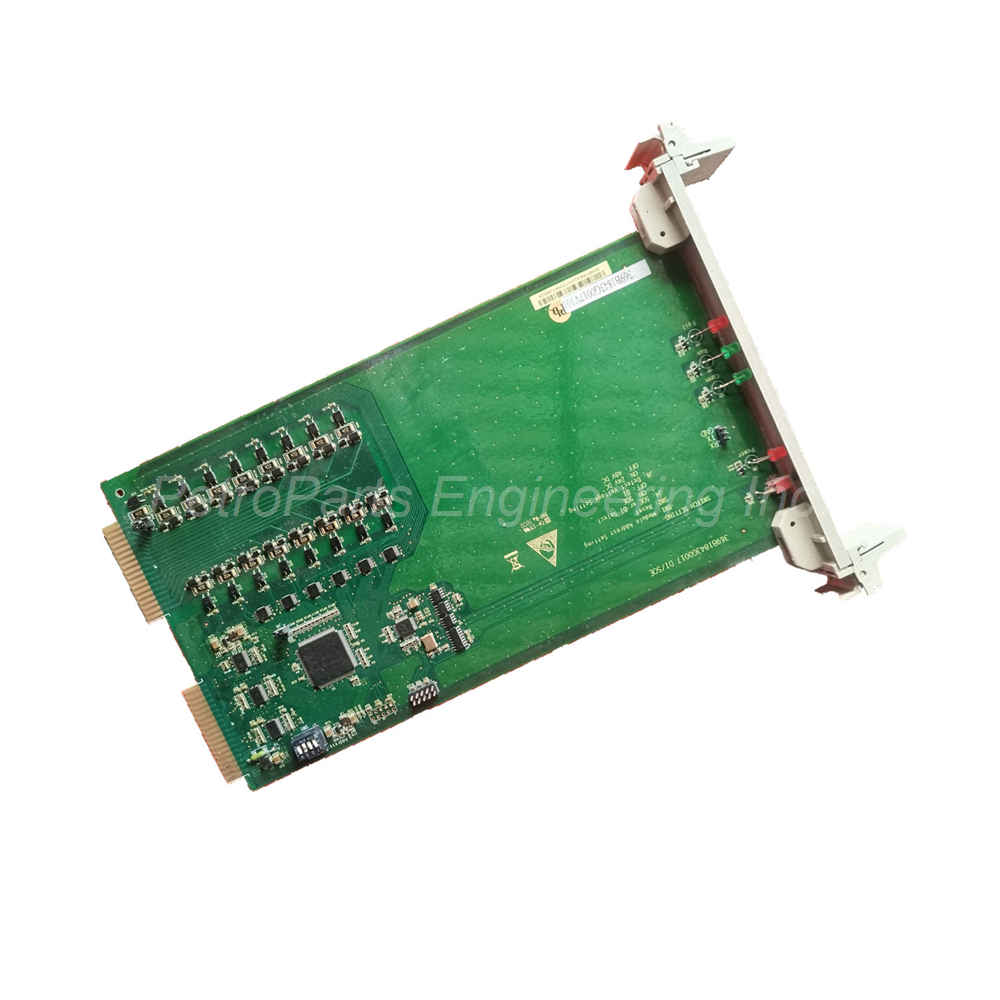

GE Nexus XDPS-400e DO 369B1844G0019 Analog Input Unit
The GE Nexus XDPS-400e DO 369B1844G0019 is an analog input unit for industrial control. This device belongs to the XDPS-400e and Nexus product families. You can use it to convert continuous analog signals into digital values for a PLC. The module handles common industrial signals like temperature and pressure. It also includes an I/O expansion interface for system growth.
Technical Specifications of the 369B1844G0019
The GE Nexus XDPS-400e DO 369B1844G0019 converts analog signals from field sensors. Common input signals include temperature, pressure, speed, flow, and displacement. The sensor outputs are continuous voltage or current signals. The PLC can only process digital values. This unit bridges the analog and digital worlds.
Input Signal Ranges
The module accepts multiple analog input signal types. Voltage signals include -10 to +10V for bipolar measurements. Voltage signals also include 0 to 10V and 1 to 5V for unipolar applications. Current signals include 4 to 20 mA for process transmitters. The GE Nexus XDPS-400e DO 369B1844G0019 handles all these ranges.
Signal Processing Architecture
The analog input unit consists of several functional blocks. Signal processing conditions the raw input signal. A multi-channel multiplexer switch selects the active channel. The A/D converter transforms analog to digital values. Optocoupler isolation protects the PLC from field noise.
I/O Expansion Interface
The GE Nexus XDPS-400e DO 369B1844G0019 includes an I/O expansion interface. This interface connects the host to I/O expansion units. You can add more input or output points as needed. Use this when system requirements exceed the main PLC capacity.
Conversion Process
The analog input unit receives the analog signal from sensors. The signal processing prepares it for conversion. The A/D converter changes it into a digital signal. The CPU unit then processes this digital value. The GE Nexus XDPS-400e DO 369B1844G0019 ensures accurate and reliable conversion.
Installation Guidelines for the 369B1844G0019
Mount the GE Nexus XDPS-400e DO 369B1844G0019 in the XDPS-400e chassis. Connect analog sensors to the input terminals. Use shielded cables for voltage and current signals. Set the correct input range for your sensor type. Use the I/O expansion interface for additional modules.
Package Contents
Common FAQs for the 369B1844G0019
1. What signal ranges does this module accept?
The GE Nexus XDPS-400e DO 369B1844G0019 accepts -10 to +10V, 0-10V, and 1-5V voltage signals. It also accepts 4-20 mA current signals.
2. Why does a PLC need an analog input unit?
A PLC only processes digital signals. The GE Nexus XDPS-400e DO 369B1844G0019 converts continuous analog signals into digital values that the CPU can understand.
3. What types of sensors work with this unit?
The GE Nexus XDPS-400e DO 369B1844G0019 works with temperature, pressure, speed, flow, and displacement sensors. These sensors output voltage or current signals.
4. What is the I/O expansion interface used for?
The I/O expansion interface on the GE Nexus XDPS-400e DO 369B1844G0019 connects to additional I/O modules. Use it when you need more points than the main PLC provides.
5. What are the main components inside this unit?
The GE Nexus XDPS-400e DO 369B1844G0019 contains signal processing, a multiplexer, an A/D converter, and optocoupler isolation.
Why Choose the GE Nexus XDPS-400e DO 369B1844G0019?
This analog input unit bridges analog sensors and digital PLCs reliably. The wide input range handles most industrial transmitters. Optocoupler isolation protects your control system from noise. The I/O expansion interface supports system growth. Order the GE Nexus XDPS-400e DO 369B1844G0019 today for your analog input needs.
