GE Nexus MDI50 369B1843G5003 Digital Input Module

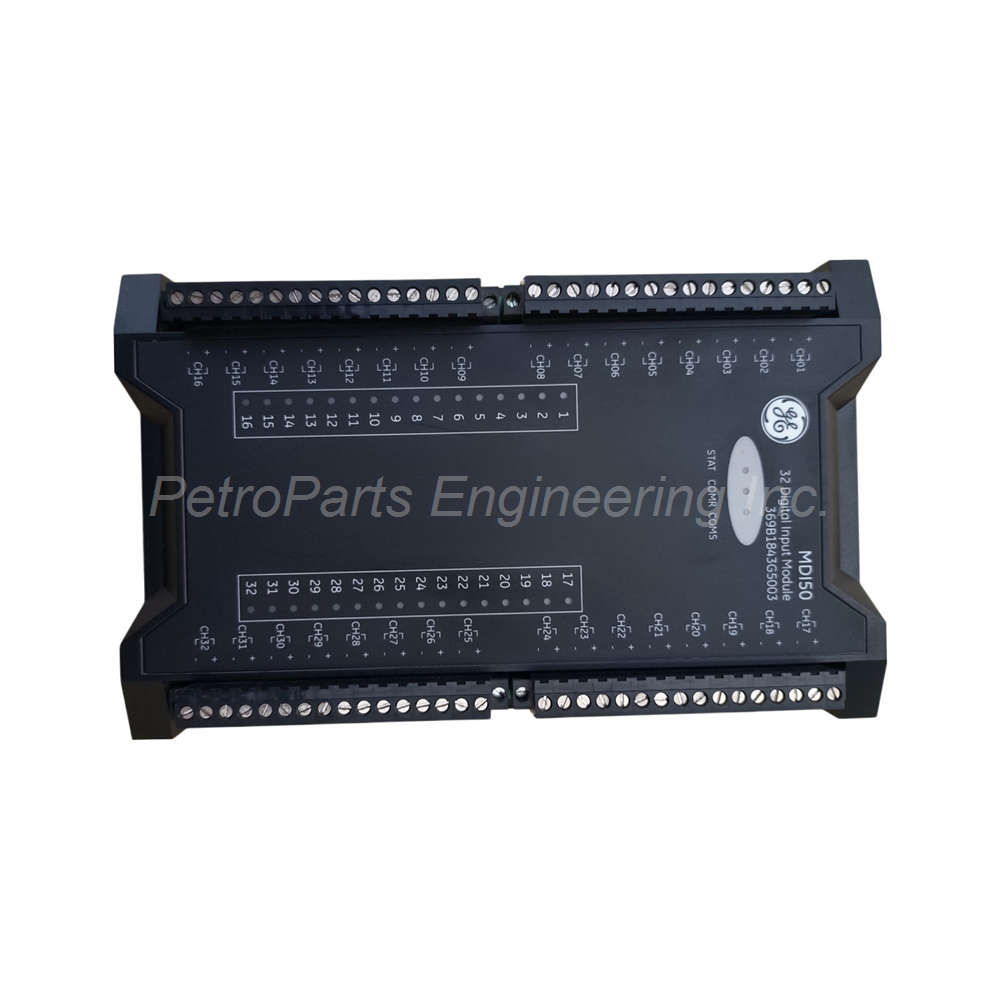

The GE Nexus MDI50 369B1843G5003 is a high-density digital input module. This device belongs to the Nexus product family from GE. You can use it for monitoring switch and sensor status in industrial systems. The module provides 32 channels of digital input. It also supports counting and Sequence of Events (SOE) functionality.

Technical Specifications of the 369B1843G5003

The GE Nexus MDI50 369B1843G5003 features 32 digital input channels. The input signal accepts dry contact or sink current signals. The query voltage is 48V DC for reliable field detection. Each channel has a dedicated input status indicator.

SOE Functionality

The module includes full SOE (Sequence of Events) capability. The SOE accuracy is 1 millisecond for precise event timing. This allows exact sequence determination for troubleshooting. The GE Nexus MDI50 369B1843G5003 captures event timestamps with high precision.

Signal Filtering

The signal filtering is implemented in firmware. The filter adjustment range is 3 to 50 milliseconds. The default filter setting is 24 milliseconds. This reduces noise and prevents false triggering.

Pulse Input (PI) Functionality

The last 4 channels support pulse input functionality. The PI frequency range is 0 to 1.5 kHz. This allows the GE Nexus MDI50 369B1843G5003 to measure frequency and count pulses. Use these channels for flow meters or rotational speed sensors.

LED Indicators

The module includes multiple LED indicators. These show the module operating status clearly. The LEDs also indicate communication status. Fault alarm status is also displayed for quick diagnosis. Channel input states are shown on individual LEDs.

Isolation Specifications

The GE Nexus MDI50 369B1843G5003 provides 500V AC channel-to-ground isolation. Channel-to-system isolation reaches 1500V AC. This ensures safe operation in industrial environments.

Power Consumption

Typical power consumption is 1.2 Watts for energy efficiency. Maximum power consumption reaches 8.5 Watts under full load.

Certifications

The module carries CE certification with the system. This ensures compliance with European standards.

Installation Guidelines for the 369B1843G5003

Mount the GE Nexus MDI50 369B1843G5003 in a clean and dry cabinet. Connect dry contacts or sink current signals to the inputs. Set the signal filter according to your application needs. Use the last 4 channels for pulse input up to 1.5 kHz. Ensure proper grounding for noise immunity.

Package Contents

• One (1) GE Nexus MDI50 369B1843G5003 digital input module

• Installation and configuration manual

Common FAQs for the 369B1843G5003

1. How many input channels does the MDI50 have?
The GE Nexus MDI50 369B1843G5003 provides 32 digital input channels. All channels support dry contact or sink current signals.

2. What is the SOE accuracy of this module?
The GE Nexus MDI50 369B1843G5003 has an SOE accuracy of 1 millisecond. This enables precise event sequence determination.

3. Do any channels support pulse input?
Yes, the last 4 channels on the GE Nexus MDI50 369B1843G5003 support pulse input. The frequency range is 0 to 1.5 kHz.

4. What is the signal filter range?
The GE Nexus MDI50 369B1843G5003 has adjustable signal filtering from 3 to 50 ms. The default setting is 24 ms.

5. What is the isolation rating for this module?
The GE Nexus MDI50 369B1843G5003 has 500V AC channel-to-ground isolation. Channel-to-system isolation is 1500V AC.

Why Choose the GE Nexus MDI50 369B1843G5003?

This digital input module provides 32 channels for high-density monitoring. The 1ms SOE accuracy captures critical event sequences precisely. Four pulse input channels add frequency measurement capability. Adjustable filtering reduces noise for reliable readings. Order the GE Nexus MDI50 369B1843G5003 today for your digital input needs.
