Product Overview

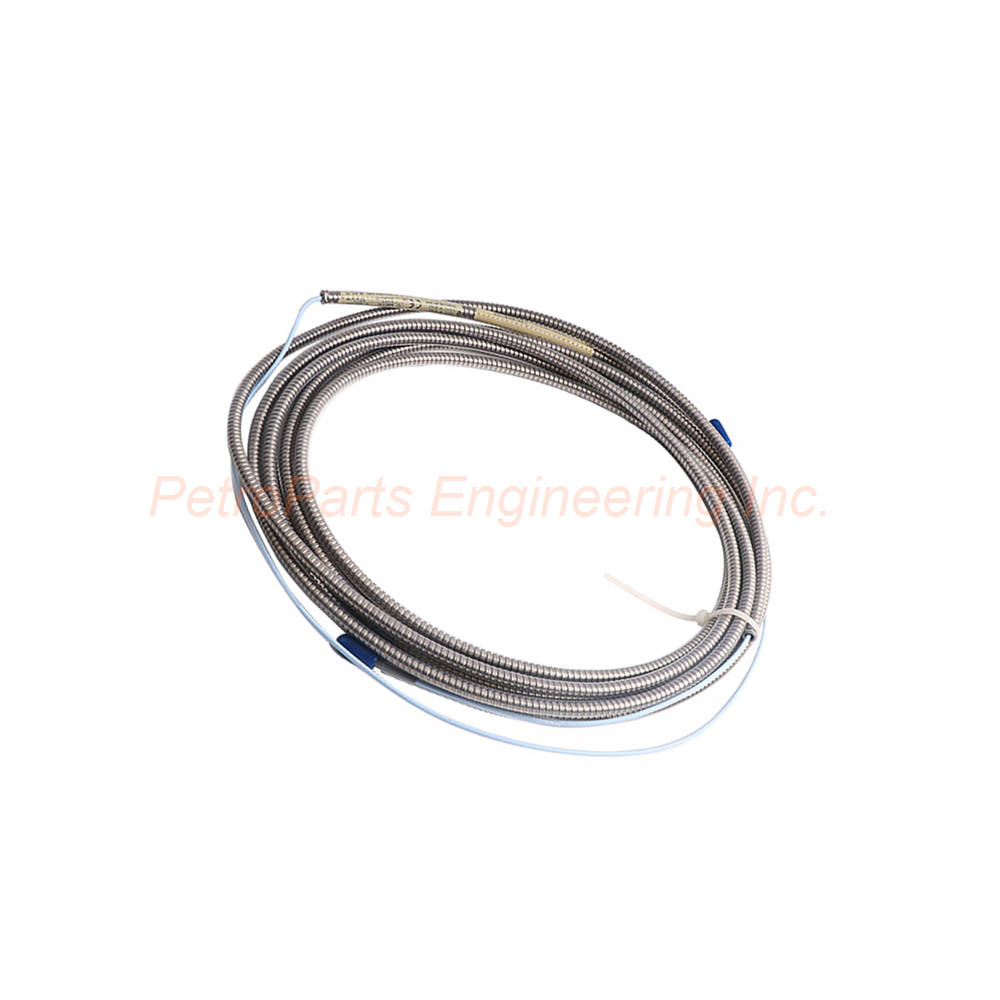

The Bently Nevada 330730-080-13-05 is an 11 mm extension cable. It belongs to the 3300 XL series from Bently Nevada. This cable connects the proximity probe to the Proximitor Sensor. The Bently Nevada 330730-080-13-05 features armored FluidLoc construction with a connector protector. The connector protector adds extra protection in humid or moist environments. Users trust this cable for reliable transducer system performance in harsh conditions.

Technical Specifications

The 330730-080-13-05 delivers robust extension cable performance with enhanced protection. Below are the complete technical details.

General Specifications

• Manufacturer: Bently Nevada for industrial measurement reliability.

• Product Type: 3300 XL 11 mm Extension Cable.

• Product Number: 330730-080-13-05 for precise identification.

• Origin: Made in U.S.A for quality assurance.

• Cable Length Option: 080 = 8.0 metres (26.2 feet) total length.

• Connector and Cable Option: 13 = Armored FluidLoc cable with connector protector.

• Agency Approval Option: 05 = Multiple Approvals.

Electrical Specifications

• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical.

• Cable Impedance: 75 Ω triaxial construction.

• Cable Insulation: Fluoroethylene propylene (FEP) insulated.

• DC Resistance (8.0m) - Center: 2.0 ± 0.5 ohms from center conductor.

• DC Resistance (8.0m) - Coaxial: 0.6 ± 0.2 ohms from coaxial conductor.

Mechanical Specifications

• Extension Cable Weight: 45 g/m (0.5 oz/ft) for standard cable.

• Armored Extension Cable Weight: 140 g/m (1.5 oz/ft) for heavy duty.

• Cable Armor Material: Flexible AISI 302 SST with FEP outer jacket.

• Armor Option: Armored construction for additional protection.

• Connector Type: Gold-plated brass ClickLoc connectors.

• Connector Locking: Locks into place preventing loose connections.

• Connector Protector: Included for humid or moist environments.

Temperature Specifications

• Operating Temperature: -52°C to +177°C (-62°F to +351°F).

• Storage Temperature: -52°C to +177°C (-62°F to +351°F).

• Material Rating: FEP insulation withstands extreme temperatures.

Probe Compatibility and Features

• Probe Thread Options: Armored and unarmored ½-20, 5⁄8-18, M14 X 1.5, M16 X 1.5.

• Reverse Mount Threads: 3⁄8-24 or M10 X 1 standard options.

• TipLoc Molding: Patented method bonds probe tip to probe body.

• CableLoc Design: Patented design provides 330 N (75 lb) pull strength.

• FluidLoc Option: Prevents oil and liquid leakage through cable interior.

• Connector Protector Option: Provides additional protection in moist environments.

• Connector Protector Recommendation: Recommended for all installations.

Field Wiring Specifications

• Wire Size Range: 0.2 to 1.5 mm² (16 to 24 AWG).

• Wire with Ferrules: 0.25 to 0.75 mm² (18 to 23 AWG).

• Recommended Cable: Three-conductor shielded triad cable.

• Maximum Field Wiring Length: 305 meters (1,000 feet) between Proximitor Sensor and monitor.

• Signal Rolloff: Check frequency response for high frequency applications.

Linear Range and Gap Setting

• Linear Range: 4.0 mm (160 mils) total range.

• Linear Range Start: Begins at approximately 0.5 mm (20 mils) from target.

• Linear Range End: Extends from 0.5 to 4.5 mm (20 to 180 mils).

• Voltage Range: Approximately -1 to -17 Vdc.

• Extended DSL Range: 0.5 to 5.0 mm (20 to 200 mils).

• Extended DSL Voltage: Approximately -1 to -19 Vdc.

• DSL Restriction: Not applicable when using zener barriers.

• Recommended Gap Setting: 2.5 mm (100 mils) for optimal performance.

Probe Material Specifications

• Probe Tip Material: Polyphenylene sulfide (PPS) for durability.

• Probe Case Material: AISI 304 stainless steel (SST).

• Probe Cable Specification: 75 Ω triaxial, FEP insulated.

• Probe Length Options: 1, 5, or 9 meters total probe lengths.

Installation Accessories

• Locknut: Standard with pre-drilled safety wire holes.

• Silicone Tape: Provided with each 3300 XL extension cable.

• Tape Restriction: Not recommended for turbine oil exposure.

• Connector Protectors: Recommended for all installations.

Calibration Notes

• Default Calibration: Factory calibrated to AISI 4140 steel.

• Alternative Calibration: Available for other target materials upon request.

Installation Guide

Follow these steps to install the Bently Nevada 330730-080-13-05 correctly.

1. Inspect the Cable: Check for any damage to the armored FEP jacket.

2. Connect to Probe: Attach the ClickLoc connector to the 3300 XL 11 mm probe.

3. Lock the Connector: Turn until the ClickLoc locks into place securely.

4. Install Connector Protector: Place the protector over the connection point.

5. Route the Cable: Run the 8.0 meter cable to the Proximitor Sensor location.

6. Connect to Proximitor Sensor: Attach the other end to the sensor input.

7. Secure the Cable: Use cable ties to prevent movement or vibration damage.

8. Set Gap Distance: Adjust the probe to 2.5 mm (100 mils) recommended gap.

9. Verify FluidLoc Seal: Check that the seal prevents liquid leakage.

10. Test the System: Verify proper operation across the temperature range.

Installation Notes

• The connector protector is recommended for all installations.

• Do not use silicone tape in turbine oil exposure applications.

• The armored cable weighs 140 g/m for heavy duty routing.

• Maximum field wiring from Proximitor to monitor is 305 meters.

• The CableLoc design provides 330 N pull strength for secure attachment.

Packaging List

This unit ships as a new and original product.

• Bently Nevada 330730-080-13-05 3300 XL 11 mm Extension Cable (8.0 meters)

• Armored FluidLoc cable construction

• Connector protector for environmental sealing

• ClickLoc connectors (gold-plated brass)

• Silicone tape for connection sealing

• Factory sealed anti-static packaging box

Frequently Asked Questions (FAQ)

1. What is the difference between 330730-080-13-05 and 330730-080-11-05?
The Bently Nevada 330730-080-13-05 includes a connector protector in addition to the armored FluidLoc cable. The 330730-080-11-05 has armored FluidLoc without the connector protector.

2. Why should I use the connector protector on this extension cable?
The connector protector provides additional protection in humid or moist environments. Bently Nevada recommends connector protectors for all installations to increase environmental protection.

3. What is the maximum field wiring length from the Proximitor Sensor to the monitor?
The 330730-080-13-05 system supports up to 305 meters (1,000 feet) of field wiring between the 3300 XL Proximitor Sensor and the monitor.

4. Can I use silicone tape instead of the connector protector?
Yes, silicone tape is provided with each 3300 XL extension cable. However, silicone tape is not recommended for applications where the connection will be exposed to turbine oil.

5. What is the pull strength of the CableLoc design on this probe system?
The patented CableLoc design provides 330 N (75 lb) pull strength. This securely attaches the probe cable to the probe tip for reliable operation.
