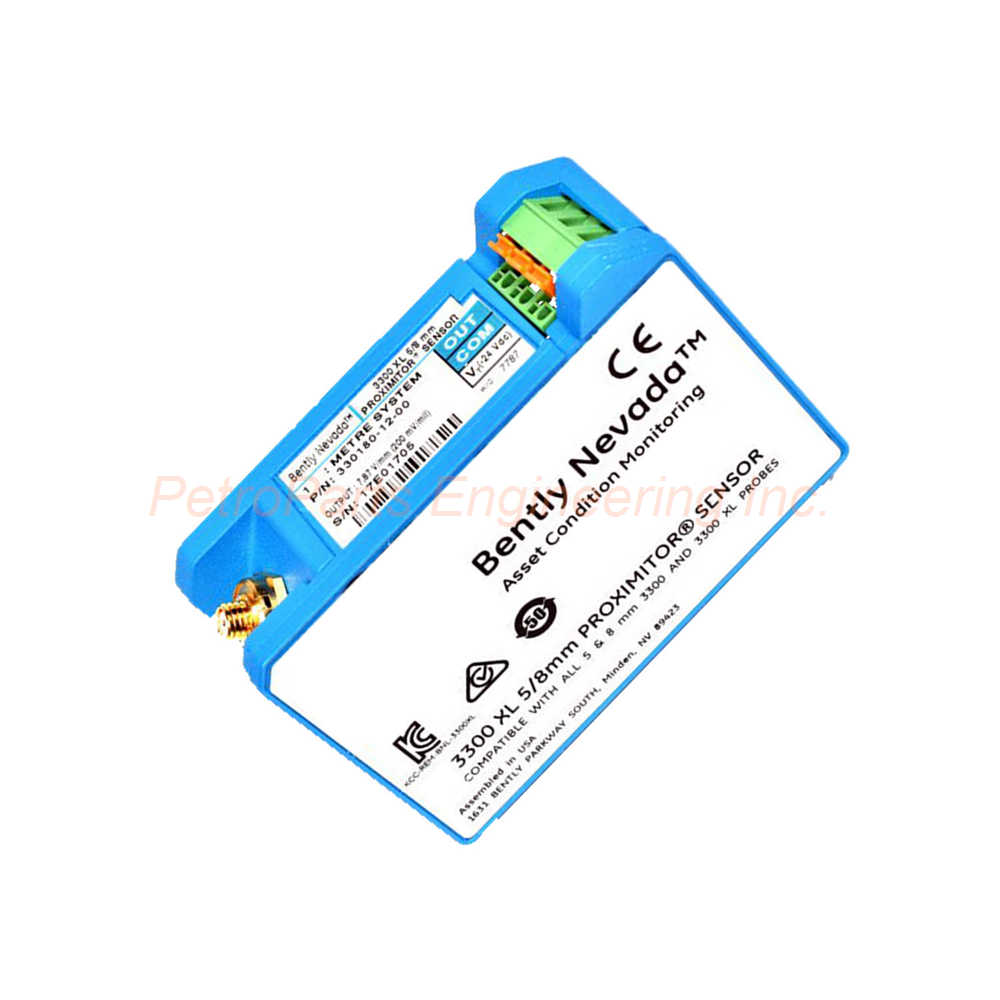

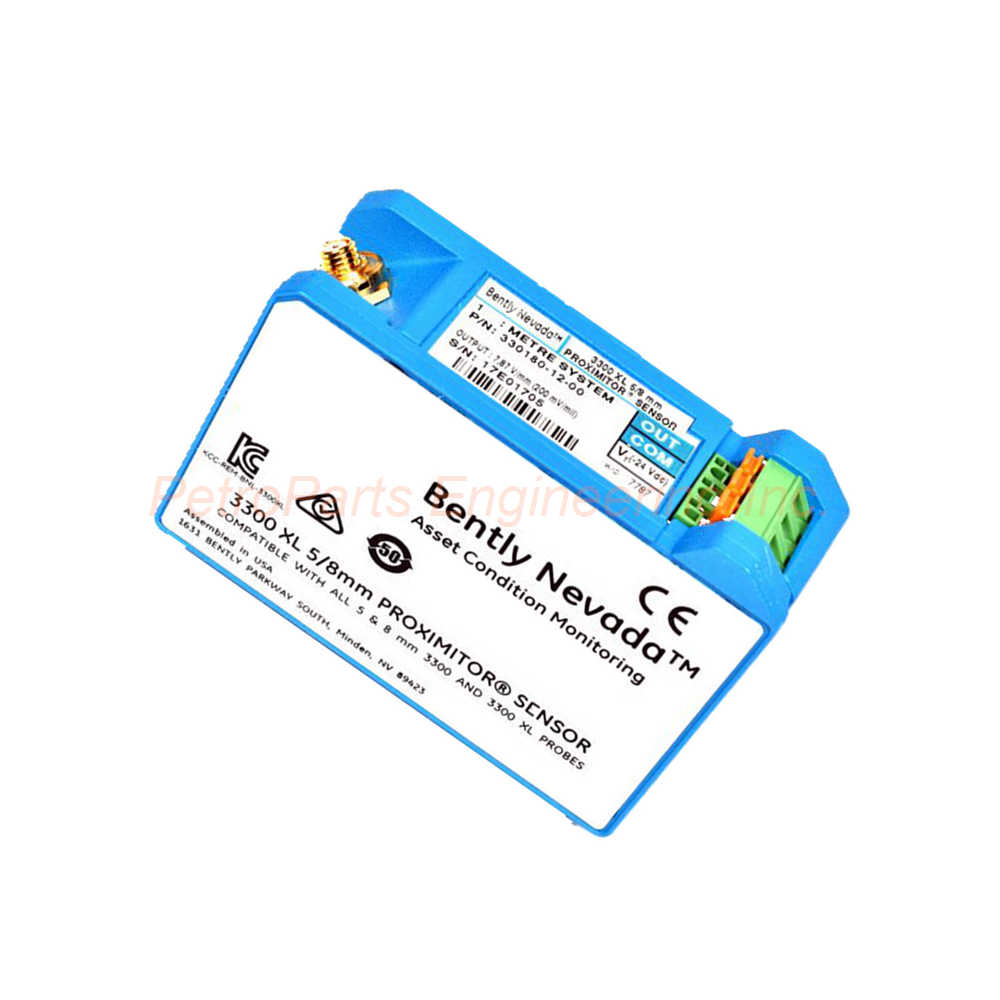

Bently Nevada 330180-12-00 3300 XL Proximitor Sensor
Introduction:
The 330180-12-00 is a 3300 XL Proximitor Sensor from Bently Nevada. It features a 1.0 meter system length, no mounting hardware, and high RFI/EMI immunity.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Product Overview
The Bently Nevada 330180-12-00 is a 3300 XL Proximitor Sensor. This sensor incorporates numerous improvements over previous designs.
Its physical packaging allows you to use it in high-density DIN-rail installations. You can also mount the sensor in a traditional panel mount configuration. In panel mount mode, it shares an identical 4-hole mounting "footprint" with older Proximitor Sensor designs. The mounting base for either option provides electrical isolation and eliminates the need for separate isolator plates.
Ordering Information Breakdown
The 330180-12-00 follows a specific ordering code structure.
330180: 3300 XL Proximitor Sensor base model.
12: 1.0 meter (3.3 feet) system length, no mounting hardware.
00: Agency approval not required.
General Specifications
The 330180-12-00 offers reliable signal conditioning for proximity systems.
Manufacturer: Bently Nevada.
Product Type: 3300 XL Proximitor Sensor.
System Length: 1.0 meter (3.3 feet).
Mounting Option: No mounting hardware included.
Country of Origin: Made in U.S.A.
Physical Specifications:
Proximitor Sensor Material: A308 aluminum.
Connector Material: Gold-plated brass or gold-plated beryllium copper.
Proximitor Sensor Weight: 246 g (8.67 oz).
RFI/EMI Immunity Features
The 330180-12-00 is highly immune to radio frequency interference. Therefore, you can install it in fiberglass housings without adverse effects from nearby radio frequency signals.
The improved RFI/EMI immunity satisfies European CE mark approvals without requiring special shielded conduit or metallic housings. As a result, lower installation costs and reduced complexity are achieved.
SpringLoc Terminal Strips
The 3300 XL's SpringLoc terminal strips require no special installation tools. They facilitate faster, more robust field wiring connections by eliminating screw-type clamping mechanisms that can loosen. Consequently, installation time is reduced and long-term reliability is improved.
Electrical Specifications
The 330180-12-00 accepts one non-contacting 3300-series 5 mm or 3300 XL 8 mm Proximity Probe and Extension Cable.
Power Requirements:
Requires -17.5 Vdc to -26 Vdc when installed with non-incendive circuit connected per installation drawing 140979 at 12 mA maximum consumption.
Requires -23 Vdc to -26 Vdc with barriers.
Important Note: Operation at a more positive voltage than -23.5 Vdc can result in reduced linear range.
Supply Sensitivity:
Less than 2 mV change in output voltage per volt change in input voltage.
Output Resistance:
50 Ω.
Mounting Configuration Options
The 330180-12-00 offers two mounting configurations.
High-Density DIN-Rail Installation:
The physical packaging allows use in high-density DIN-rail installations. This saves cabinet space and suits large systems with many sensors.
Traditional Panel Mount Configuration:
The sensor shares an identical 4-hole mounting "footprint" with older Proximitor Sensor designs. Therefore, it is a drop-in replacement for legacy installations.
Electrical Isolation:
The mounting base for either option provides electrical isolation. Consequently, separate isolator plates are not required.
Temperature Range
The 330180-12-00 handles extreme temperatures.
Operating Temperature: -52°C to +100°C (-62°F to +212°F).
Storage Temperature: -52°C to +105°C (-62°F to +221°F).
Key Features
The 330180-12-00 offers several advantages for proximity measurement.
High-Density DIN-Rail Mounting:
Saves cabinet space in large monitoring systems. The compact design allows more sensors per rack.
Panel Mount Compatibility:
Shares the same 4-hole footprint as older Proximitor Sensors. Hence, it is a direct replacement for legacy installations.
Integrated Electrical Isolation:
The mounting base provides electrical isolation. Therefore, separate isolator plates are eliminated.
Superior RFI/EMI Immunity:
Satisfies European CE mark approvals without shielded conduit or metallic housings. This reduces installation costs and complexity.
SpringLoc Terminal Strips:
Require no special tools and eliminate screw-type clamps. Consequently, wiring is faster and more reliable.
Wide Temperature Range:
Operates from -52°C to +100°C. Storage temperature extends to +105°C. Hence, the sensor suits extreme climate conditions.
Typical Applications
The 330180-12-00 suits various turbomachinery monitoring applications.
Radial vibration monitoring on steam turbines.
Axial position measurement on gas compressors.
Shaft eccentricity monitoring on hydro turbines.
Differential expansion measurement on large rotating equipment.
Thrust position monitoring on industrial fans and blowers.
Installation Guidelines
Install the 330180-12-00 according to standard 3300 XL proximity system practices. Mount the sensor on a DIN rail or panel using the 4-hole footprint.
For DIN-rail mounting, snap the sensor onto the rail. For panel mounting, use four screws in the pre-drilled holes. The mounting base provides electrical isolation, so no isolator plate is needed.
Connect the 3300-series 5 mm or 3300 XL 8 mm Proximity Probe and Extension Cable to the sensor input. The system length is 1.0 meter.
Connect power at -17.5 Vdc to -26 Vdc for non-incendive circuits. For installations with intrinsic safety barriers, use -23 Vdc to -26 Vdc. Ensure the voltage does not exceed -23.5 Vdc positive side to avoid reduced linear range.
Use SpringLoc terminal strips for field wiring. Insert wires directly without special tools. No screw-type clamps are required.
What is in the Box
Please inspect all items upon delivery.
Bently Nevada 330180-12-00 3300 XL Proximitor Sensor.
SpringLoc terminal strips (installed).
Installation instruction manual.
Note: No mounting hardware is included with the -12 option.
Frequently Asked Questions (FAQ)
1. What is the system length of the 330180-12-00?
The 330180-12-00 has a 1.0 meter (3.3 feet) system length. The -12 suffix in the part number indicates this length with no mounting hardware.
2. What types of probes work with this Proximitor Sensor?
The 330180-12-00 accepts one non-contacting 3300-series 5 mm probe or 3300 XL 8 mm probe with its extension cable.
3. What is the operating temperature range of this sensor?
The 330180-12-00 operates from -52°C to +100°C (-62°F to +212°F). Storage temperature ranges from -52°C to +105°C.
4. Does this sensor require special mounting hardware?
The -12 option includes no mounting hardware. However, the 330180-12-00 can be mounted on a DIN rail directly. For panel mounting, you must provide four screws.
5. What power supply voltage does this sensor require?
The 330180-12-00 requires -17.5 Vdc to -26 Vdc for non-incendive circuits. With barriers, it requires -23 Vdc to -26 Vdc. Operation above -23.5 Vdc may reduce linear range.
