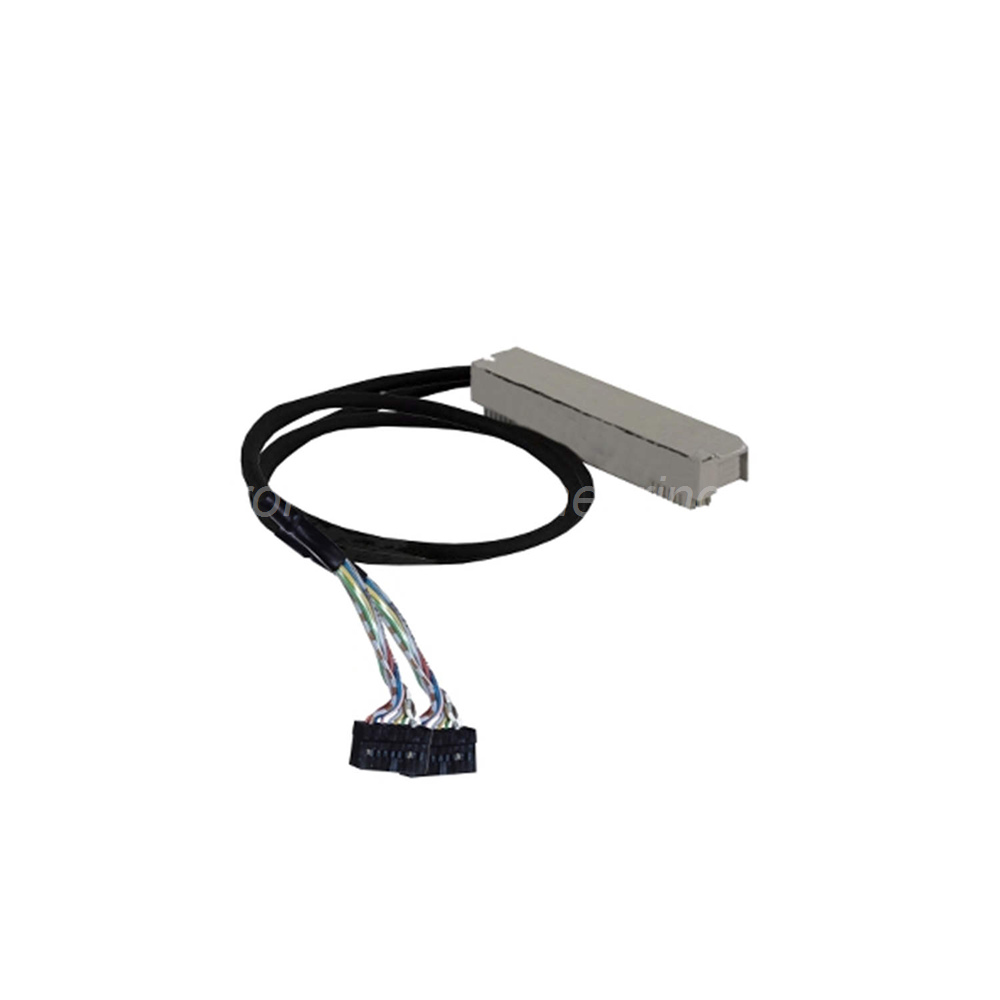

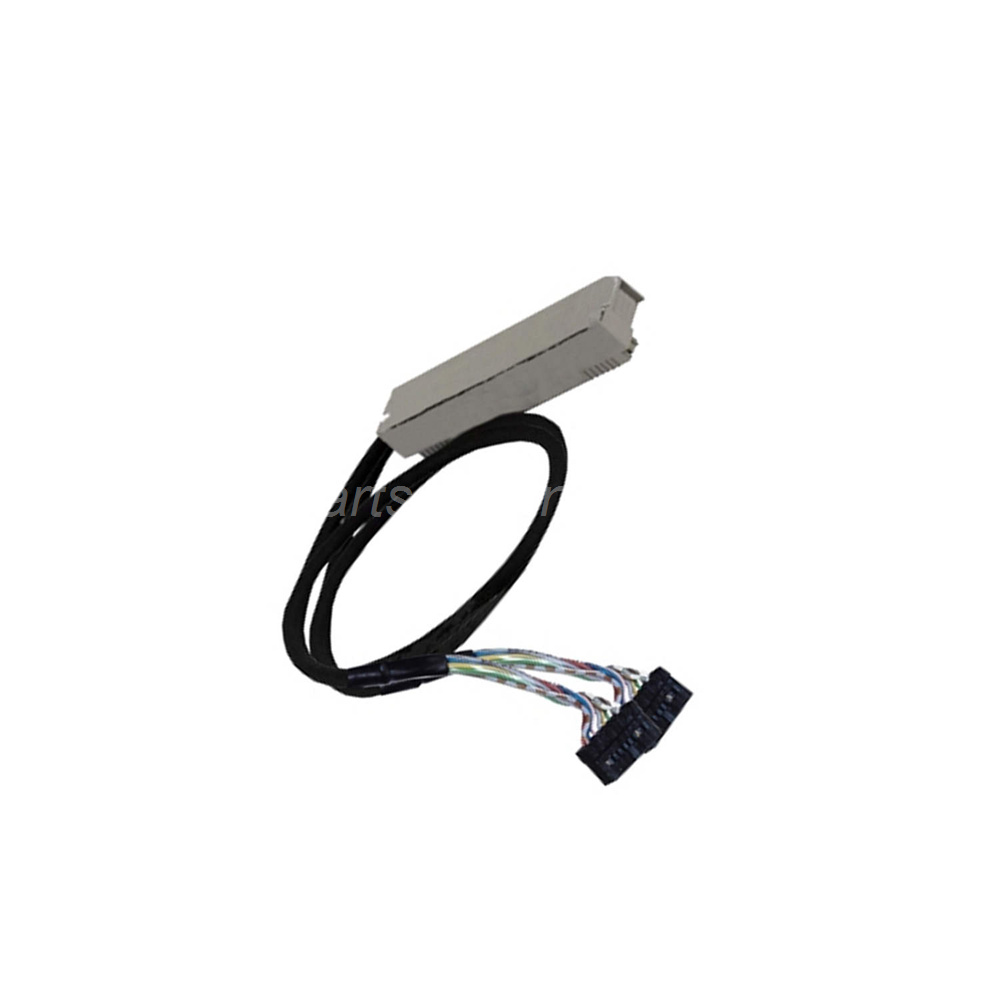

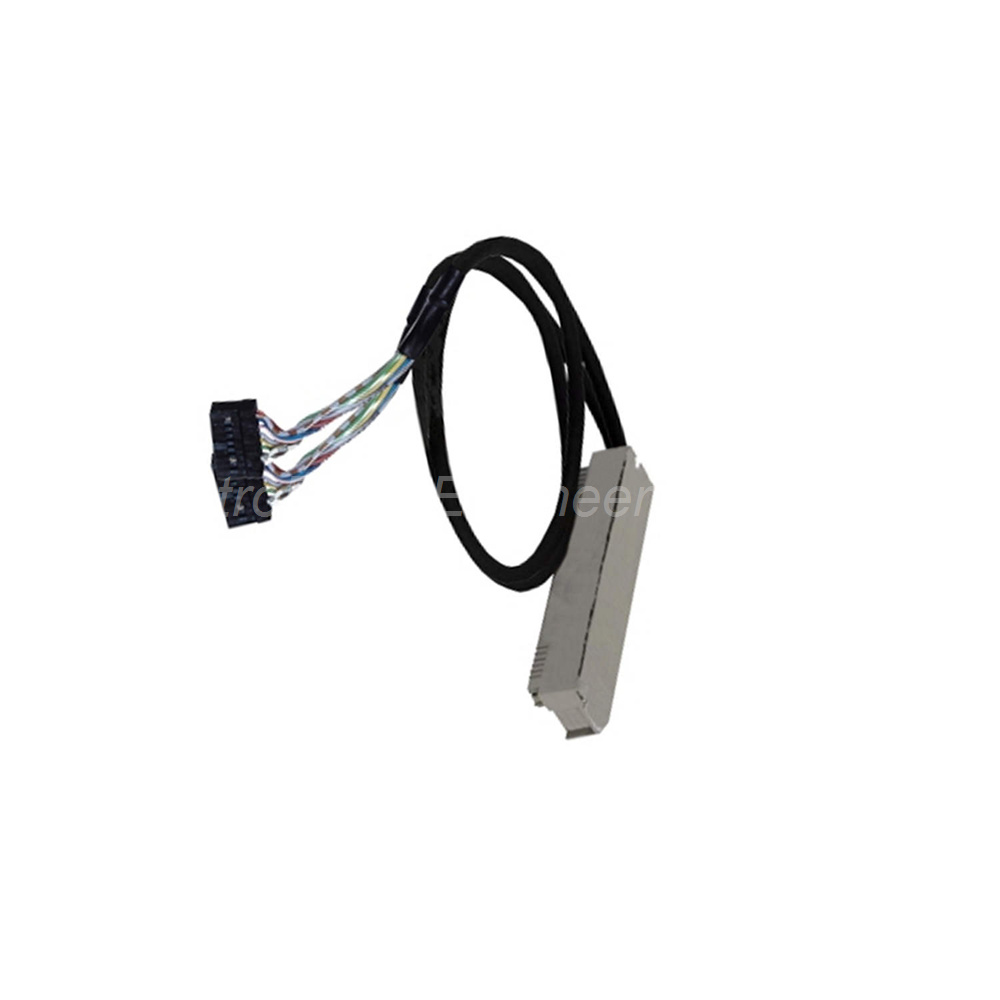

Schneider Electric ABFM16H301 Cabled Connector
The Schneider Electric ABFM16H301 is a cabled connector for the Modicon Quantum series. Specifically, this accessory is designed to manage digital relay output signals. You can use it to connect Quantum PLCs to field devices efficiently. The cable measures 9.8 feet (3 meters) in length, providing ample reach. It is equipped with two HE10 connectors for easy system integration.
Technical Specifications of the ABFM16H301
Regarding channel configuration, the Schneider Electric ABFM16H301 offers 16 channels. These channels are specifically intended for digital relay output signals. The connector supports channel splitting into two groups of 8 channels each. Consequently, this enhances wiring versatility for complex setups.
Electrical Specifications
The electrical connection uses two HE10 connectors. Total number of ways is 20 for flexible wiring options. Current rating is 0.5 Amps per channel. Voltage rating is 250 Volts for industrial applications. The Schneider Electric ABFM16H301 handles standard digital output requirements reliably.
Cable Construction
The cable uses multi-conductor shielded construction. This shielding provides excellent noise immunity for digital signals. AWG gauge is 22 for adequate current carrying capacity. Wire section measures 0.324 mm² (0.0005 in²). The Schneider Electric ABFM16H301 ensures signal integrity in electrically noisy environments.
Physical Specifications
Cable length is 9.8 feet (3 meters) for flexible installation. Net weight is 2.2 lb (1.0 kg) for sturdy construction. The country of origin is FR (France). The Schneider Electric ABFM16H301 is built to industrial standards.
Environmental Specifications
Operating temperature ranges from -20°C to +60°C. This wide range suits various industrial environments. The Schneider Electric ABFM16H301 performs reliably in both cold and warm conditions.
Compatibility
The Schneider Electric ABFM16H301 is compatible with Modicon Quantum PLCs. It also works with 984A120 Compact systems. This broad compatibility makes it a versatile connectivity solution.
Installation Guidelines for the ABFM16H301
First, identify the correct HE10 ports on your Quantum module. Then, align the connector properly before insertion. Apply even pressure to seat both HE10 connectors fully. After that, route the 3-meter cable away from high-voltage wires. Finally, secure the cable using appropriate cable ties at regular intervals.
Package Contents
Common FAQs for the ABFM16H301
1. How many channels does the ABFM16H301 support?
The Schneider Electric ABFM16H301 supports 16 channels. These are split into two groups of 8 channels each for flexible wiring.
2. What type of signals does this cable handle?
The Schneider Electric ABFM16H301 handles digital relay output signals. Current rating is 0.5 A with voltage rating of 250 V.
3. What connectors are on this cable assembly?
The Schneider Electric ABFM16H301 has two HE10 connectors. These provide secure and reliable electrical connections to Quantum modules.
4. What is the length of this cable?
The Schneider Electric ABFM16H301 cable measures 9.8 feet (3 meters). This provides sufficient reach for most cabinet installations.
5. Is this cable shielded?
Yes, the Schneider Electric ABFM16H301 uses multi-conductor shielded cable. Consequently, it provides excellent noise immunity for digital signals.
Why Choose the Schneider Electric ABFM16H301?
This cabled connector provides a complete 16-channel wiring solution for Modicon Quantum systems. The 3-meter length offers installation flexibility. Dual HE10 connectors ensure secure and reliable connections. Shielded construction protects against electrical noise. Order the Schneider Electric ABFM16H301 today for your digital relay output wiring needs.
