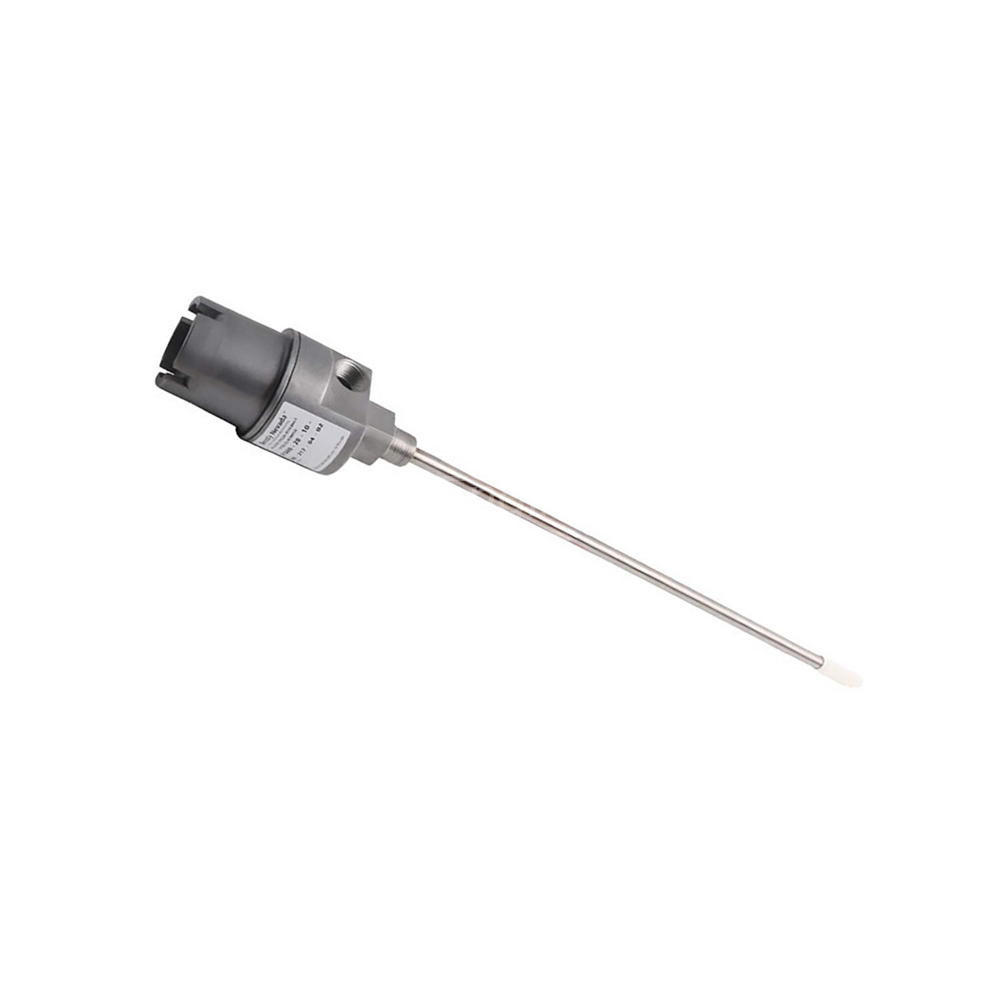

Bently Nevada 24701-16-10-00-037-03-02 Proximity Probe Housing Assembly

Product Overview and Core Function
This official Bently Nevada 24701-16-10-00-037-03-02 provides a complete housing solution for proximity probes. As a result, it effectively protects the probe in harsh industrial environments. The device belongs to the 24701 Series for turbomachinery monitoring applications. Specifically, this assembly includes a 3300 XL 8mm probe without approvals. Consequently, you get reliable shaft vibration and position measurement in one robust package.

Key Technical Parameters and Configuration
The Bently Nevada 24701-16-10-00-037-03-02 features a 303 stainless steel body with a 304 stainless steel sleeve. For instance, the probe cable length is 1.0 metre (39 inches). The probe penetration measures 3.7 inches (037 code) with no standoff adapter. The maximum (C) + (D) dimension with visible probe is 17.0 inches (43.18 mm). Similarly, the maximum total (C) + (D) dimension reaches 29.2 inches (74.2 mm).

Materials and Mechanical Construction
The housing body uses 303 stainless steel for excellent corrosion resistance. Its sleeve features 304 stainless steel for additional durability. In addition, the assembly includes a dome cover that screws into the housing body. Threaded ports allow for easy conduit connections. Specifically, the probe sleeve comes in an optional length as configured. O-rings and a thread seal provide proper environmental protection accordingly.

Fittings and Mounting Specifications
This model includes several useful fittings with Option 03. For example, you get one 3/4-14 NPT plug for sealing unused ports. Similarly, one 3/4-14 to 1/2-14 NPT reducer enables connection flexibility. In addition, the package contains one cable seal grip with three grommets. These grommets accommodate the following cable sizes:

1/8 to 3/16 inches

1/4 to 5/16 inches

5/16 to 3/8 inches

The mounting thread is 3/4-14 NPT (Option 02). Therefore, this thread matches standard industrial conduit fittings perfectly.

Physical and Environmental Ratings
The typical weight is 1.8 kg (4.1 lb) without fittings. The probe operates reliably in demanding conditions. Housing materials resist UV damage and provide mechanical strength. Specifically, the 303 and 304 stainless steel construction offers excellent durability. As a result, this assembly withstands vibration and harsh industrial environments.

Component Breakdown: Housing and Sealing Parts
The Bently Nevada 24701-16-10-00-037-03-02 assembly consists of several key parts. For instance, a dome cover screws directly into the housing body. Consequently, this cover provides easy access for probe installation. Threaded ports provide conduit connection points for field wiring. A probe sleeve of optional length holds the probe securely in position. Similarly, O-rings and a thread seal prevent contamination and moisture ingress.

Component Breakdown: Probe and Fittings
A reverse mount proximity probe is included as part of this assembly. Therefore, you do not need to purchase a separate probe. Optional conduit fittings are not included in this specific configuration. Similarly, an optional standoff adapter is not provided with model 24701-16-10-00-037-03-02. The included cable seal grip offers three grommet sizes. As a result, this grip accommodates various cable diameters commonly found in the field.

Installation Guide
Mount the housing using the 3/4-14 NPT mounting thread. First, install the probe sleeve at the desired length. Next, insert the 3300 XL 8mm probe into the sleeve. Use the provided O-rings and thread seal to prevent leakage. Then, connect the conduit to the threaded ports. Select the appropriate grommet for your cable size from the three options. Finally, screw the dome cover onto the housing body. Always verify that the probe does not contact rotating machinery.

Complete Package Contents
Bently Nevada 24701-16-10-00-037-03-02 Proximity Probe Housing Assembly (1 unit)

3300 XL 8mm probe without approvals (Probe Option 16)

1.0 metre probe cable (Cable Length Option 10)

No standoff adapter (Standoff Adapter 00)

3.7-inch probe penetration (Probe Penetration 037)

One 3/4-14 NPT plug

One 3/4-14 to 1/2-14 NPT reducer

One cable seal grip with three grommets (1/8-3/16″, 1/4-5/16″, 5/16-3/8″)

Dome cover

Housing body with threaded ports

Probe sleeve

O-rings

Thread seal

Reverse mount proximity probe

Frequently Asked Questions (FAQ)
1. What probe is included with the Bently Nevada 24701-16-10-00-037-03-02?
This assembly includes a 3300 XL 8mm probe without approvals. Specifically, it comes as a reverse mount configuration for easy installation.

2. What is the probe penetration length of this housing assembly?
The probe penetration measures 3.7 inches (037 code). Consequently, no standoff adapter is used with this particular configuration.

3. What materials are used in this housing assembly?
The body uses 303 stainless steel. On the other hand, the sleeve uses 304 stainless steel for added corrosion protection.

4. What cable sizes does the included seal grip support?
The seal grip includes three grommets for 1/8-3/16″, 1/4-5/16″, and 5/16-3/8″ cables. Therefore, you can choose the correct size for your specific installation needs.

5. What is the total weight of this proximity probe housing assembly?
The typical weight is 1.8 kg (4.1 lb) without fittings. With all fittings installed, the weight increases only slightly.
