Product Overview

The Allen-Bradley 1794-OV32 belongs to the Flex I/O 1794 series. This module provides thirty-two digital output channels. Each channel includes a dedicated yellow status indicator. The 1794-OV32 mounts onto a Flex I/O terminal base. It operates safely in non-hazardous industrial environments with controlled pollution levels.

Environmental Ratings

The 1794-OV32 carries a Pollution Degree 2 rating. This means only non-conductive pollution occurs occasionally. Temporary conductivity from condensation is possible but acceptable. The module also meets Overvoltage Category II standards. This rating applies to equipment powered from fixed installations.

Temperature limits for the 1794-OV32:

• Operating temperature: 32 to 131 °F (0 to 55 °C)

• Storage temperature: -40 to 185 °F (-40 to 85 °C)

• Full operation capacity across entire temperature range

Humidity and shock ratings:

• Relative humidity: 5 to 95% non-condensing

• Operating shock: 30 G

• Non-operating shock: 50 G

• Same humidity tolerance for operation and storage

LED Indicators

The 1794-OV32 features 32 yellow status indicators. These LEDs locate on the field side of the module. Each indicator corresponds to one output channel. The LED turns ON when the output is energized. It turns OFF when the output is de-energized. Operators can monitor module and machine status at a glance. This visual feedback speeds up troubleshooting significantly.

EMC and Emissions Classification

The 1794-OV32 is classified as Group 1, Class A equipment. Group 1 means it generates radio frequency energy for internal use. Class A indicates suitability for industrial environments. CISPR 11 emissions standards apply to this module. The 1794-OV32 should not be used in residential areas. It may cause interference to domestic radio communications.

Enclosure Requirements

The 1794-OV32 ships as open equipment. You must install it inside an appropriate enclosure. The enclosure protects the module from water, dust, and debris. It also shields against flames and electrostatic discharge. Choose an enclosure that meets your site's environmental conditions. The 1794-OV32 has no enclosure type rating of its own.

Grounding and Installation

The 1794-OV32 requires proper grounding for electrical safety. Use a zinc-plated yellow chromate steel DIN rail. This rail provides a low impedance ground path. Install the module onto a terminal base with the correct keyswitch position. Terminal screw torque depends on the specific terminal base used. Refer to the terminal base manual for torque values.

Terminal Base Compatibility

The 1794-OV32 works with standard Flex I/O terminal bases. Compatible bases include the 1794-TB3 series family. The module supports hot insertion under power. You can replace the 1794-OV32 without removing field wiring. This feature reduces system downtime during maintenance.

Installation Guidelines

Mount the terminal base onto a grounded DIN rail first. Push the 1794-OV32 straight into the terminal base. Listen for the locking tab to click into position. Verify the keyswitch setting matches the terminal base. Wire output devices according to the terminal base manual. Use copper wire rated for the application voltage and current.

Do not install the 1794-OV32 in areas with conductive pollution. Keep relative humidity below 95% non-condensing. Allow adequate space around the module for cooling. The module weighs approximately 0.33 kg for easy handling.

Package Contents

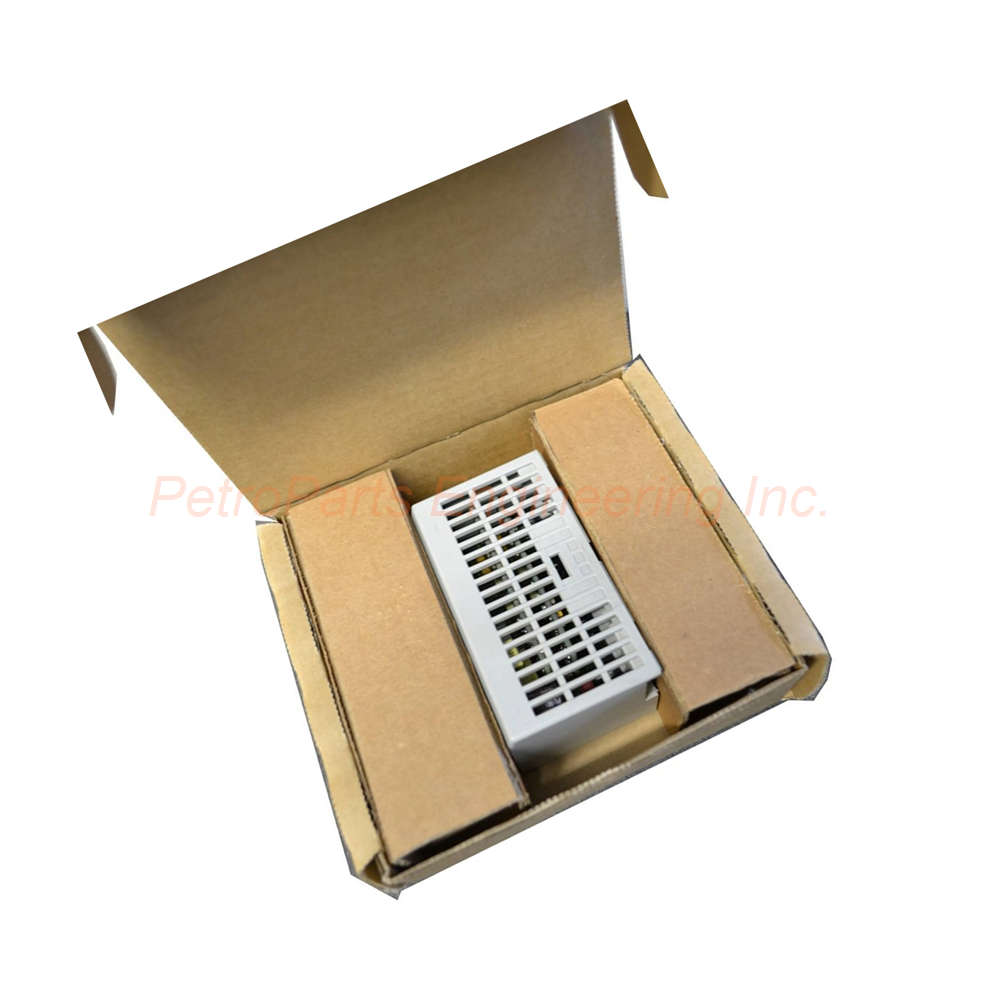

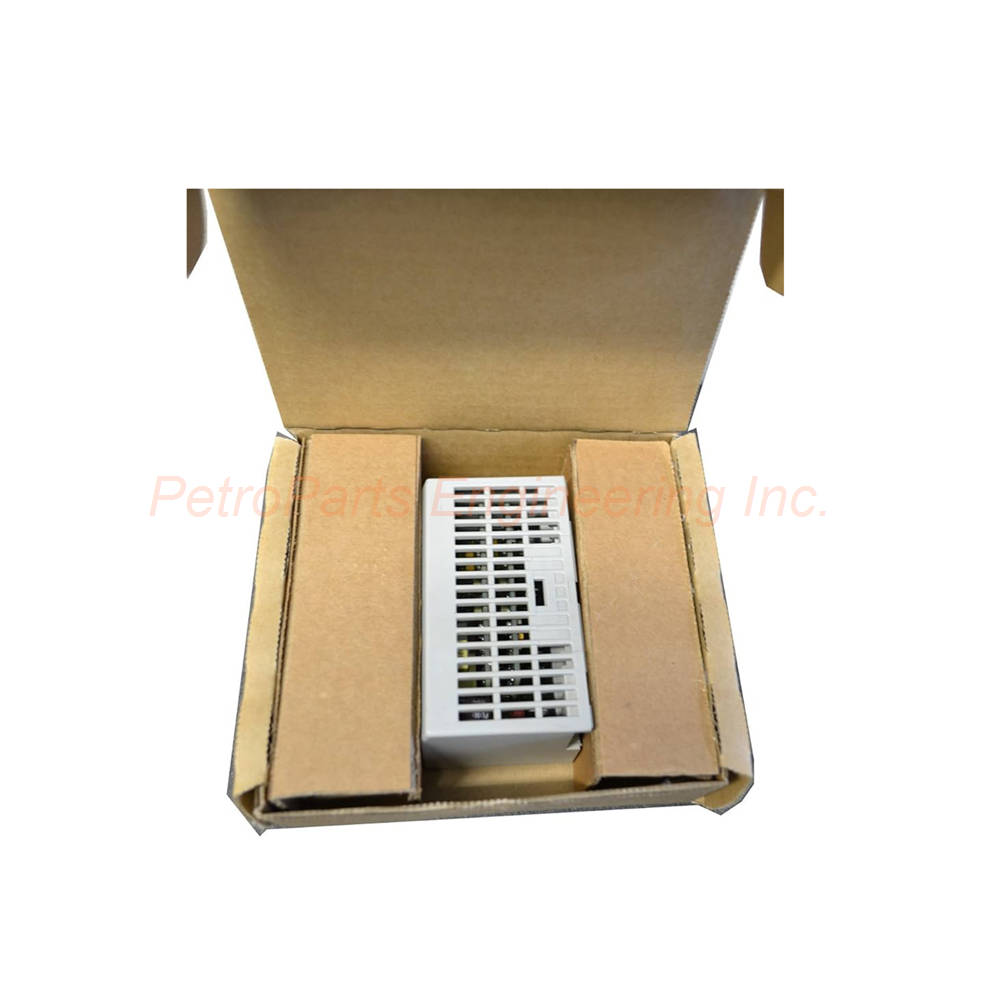

• One Allen-Bradley 1794-OV32 Flex I/O Digital Output Module

• One keyswitch label (preset position)

• Product identification label

Frequently Asked Questions (FAQ)

1. How many output channels does the 1794-OV32 provide?
The 1794-OV32 provides thirty-two digital output channels. Each channel has a dedicated yellow LED indicator.

2. What is the Pollution Degree rating of the 1794-OV32?
The 1794-OV32 is rated for Pollution Degree 2 environments. This suits most industrial control panels and factory floors.

3. Does the 1794-OV32 need an external enclosure?
Yes, the 1794-OV32 ships as open equipment. You must install it inside a protective enclosure for safety and reliability.

4. What shock levels can the 1794-OV32 withstand?
The 1794-OV32 tolerates 30 G during operation. Non-operating shock tolerance is 50 G for shipping and handling.

5. Can I remove the 1794-OV32 while the system is powered?
Yes, the 1794-OV32 supports hot insertion. You can replace it under power using a compatible terminal base.
