Allen-Bradley 1794-IB10XOB6 Digital Combination I/O Module Overview

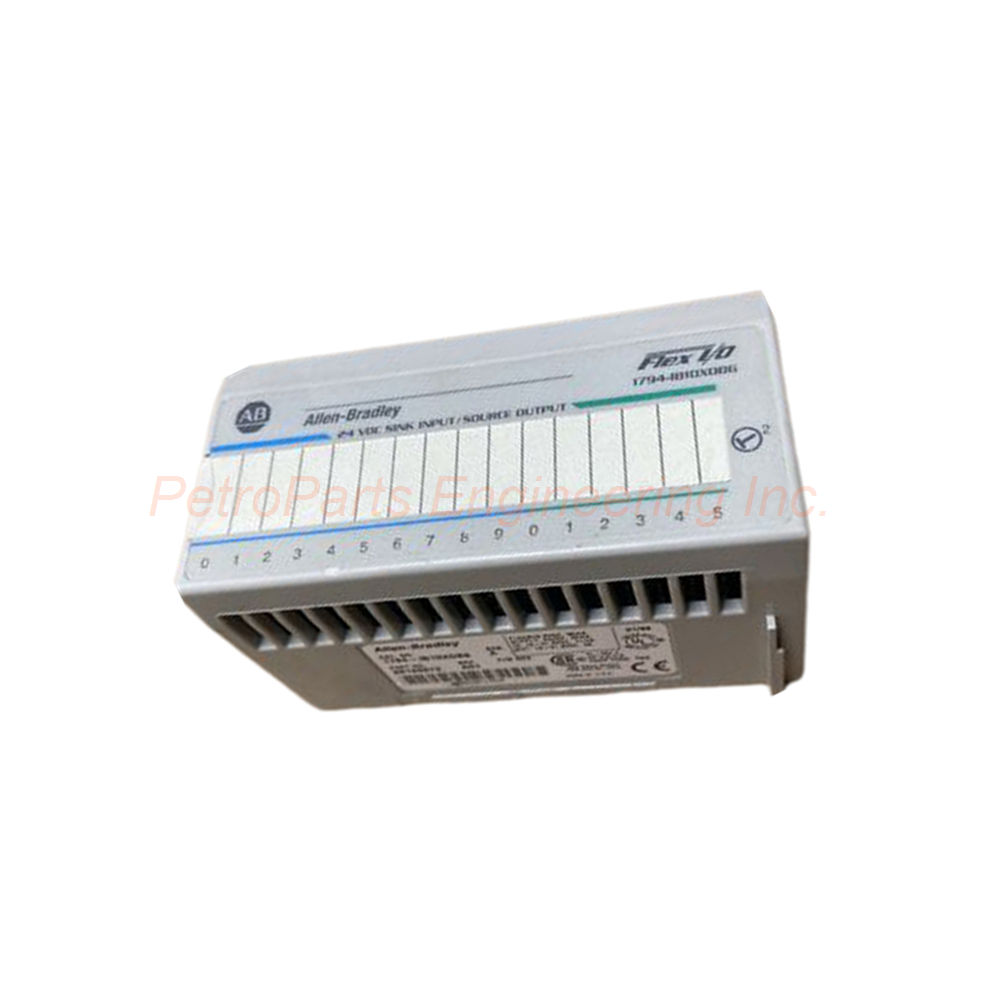

The Allen-Bradley 1794-IB10XOB6 is a digital combination I/O module from the Flex I/O 1794 series. This module manages both inputs and outputs in a compact framework. The Allen-Bradley 1794-IB10XOB6 operates on a nominal input voltage of 24 VDC. It provides 10 current sink inputs for field device connection. The module also offers 6 current source outputs for load control. The Allen-Bradley 1794-IB10XOB6 seamlessly integrates into various control systems. It provides reliable digital I/O management within a small footprint.

Technical Specifications

General Specifications

• Manufacturer: Allen Bradley (Rockwell Automation).

• Series: Flex I/O 1794.

• Part Number: 1794-IB10XOB6.

• Product Type: Digital Combination I/O Module.

• Number of Inputs: 10 inputs.

• Number of Outputs: 6 outputs.

• Input Type: Current sink inputs.

• Output Type: Current source outputs.

• IP Rating: None (Open enclosure).

Input Specifications

• Nominal On-State Input Voltage: 24 VDC.

• Nominal On-State Input Current: 8 mA at 24 VDC.

• Nominal Input Impedance: 4.8 kilohms.

Output Specifications

• Nominal On-State Output Voltage: 24 VDC.

• Nominal On-State Output Current: 2 A per channel.

Power Specifications

• Flexbus Current: 50 mA.

Environmental Specifications

• Operating Temperature: -20°C to 55°C.

• Enclosure Type: Open (no IP rating). Not suitable for environments requiring protection against dust or moisture.

Physical Specifications

• Product Net Weight: 0.25 kg.

• Gross Weight: 0.45 kg (with packaging).

Installation Guide

Follow these steps to install the Allen-Bradley 1794-IB10XOB6 correctly:

1. Turn off all power to the Flex I/O system before installation.

2. Mount the Allen-Bradley 1794-IB10XOB6 on a DIN rail or panel.

3. Connect the module to the adjacent Flex I/O modules using the Flexbus.

4. Wire sinking input devices to the 10 input channels at 24 VDC.

5. Wire sourcing output loads to the 6 output channels at 24 VDC.

6. Ensure each output channel does not exceed 2 A current rating.

7. Verify the operating temperature stays within -20°C to 55°C range.

8. Test the Allen-Bradley 1794-IB10XOB6 by checking input status and output switching.

Packaging List

• Allen-Bradley 1794-IB10XOB6 digital combination I/O module (1 unit)

• Anti-static protective bag (1 piece)

• Installation instructions manual (1 copy)

• Product label with catalog number

• Removable terminal block (1 piece)

Frequently Asked Questions (FAQ)

1. How many inputs and outputs does the 1794-IB10XOB6 provide?
The Allen-Bradley 1794-IB10XOB6 provides 10 sinking inputs and 6 sourcing outputs.

2. What is the output current rating per channel on this module?
Each output channel on the 1794-IB10XOB6 is rated for 2 A at 24 VDC.

3. Does the 1794-IB10XOB6 have an IP rating?
No, this module has no IP rating and is open. It is not suitable for dusty or wet environments.

4. What is the operating temperature range of this module?
The Allen-Bradley 1794-IB10XOB6 operates from -20°C to 55°C.

5. What type of inputs does the 1794-IB10XOB6 use?
This module uses current sink inputs with a nominal input impedance of 4.8 kilohms.
