1. Product Overview – The ControlLogix Analog Input Solution

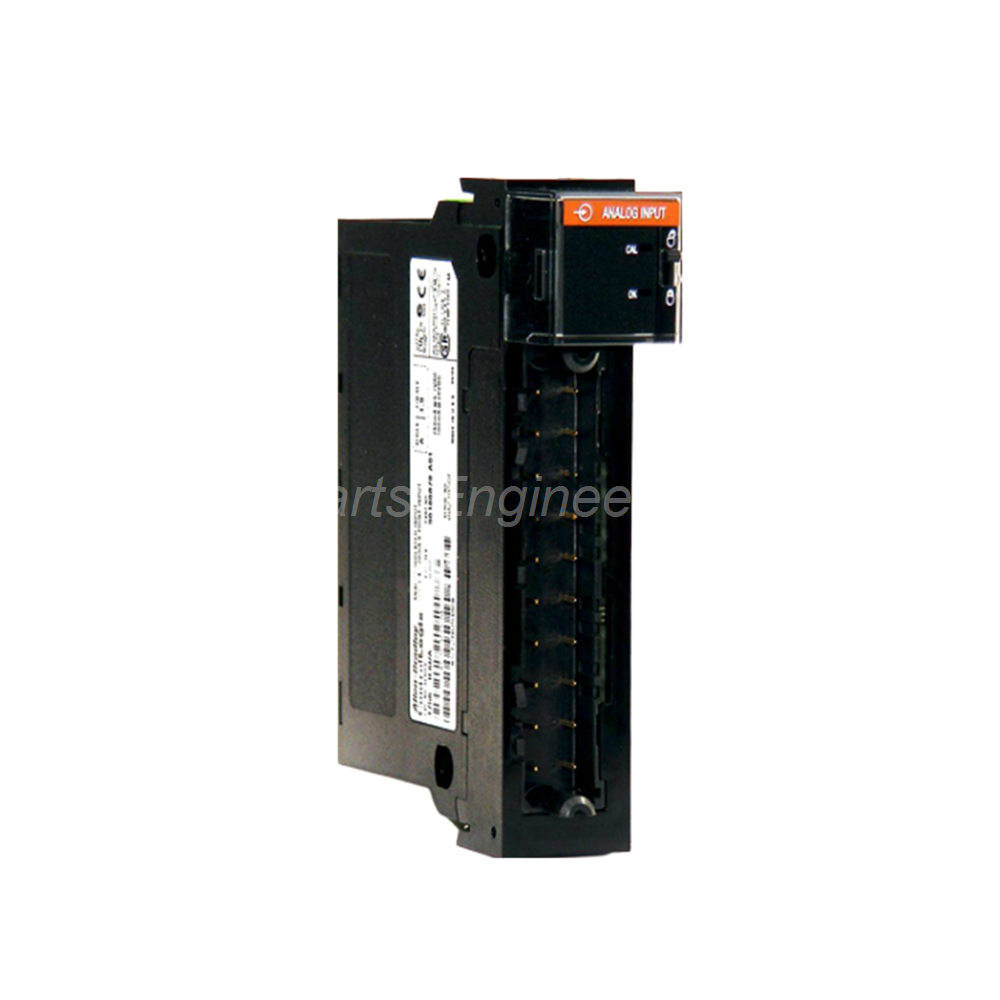

The Allen-Bradley 1756-IF8 is a high-density Analog Input Module belonging to the prestigious ControlLogix platform. Designed for maximum flexibility, this module accepts both current and voltage signals, making it an indispensable component for integrating field instruments into your Rockwell Automation architecture. As a key member of the I/O Modules category, the 1756-IF8 provides eight configurable input channels, enabling seamless connectivity with transmitters, transducers, and signal isolators within a single-slot chassis.

2. Core Technical Specifications & Signal Conversion

The 1756-IF8 module employs a Sigma-Delta conversion method to ensure high-integrity signal processing. It supports multiple input signal ranges, including ±10.25V, 0-10.25V, 0-5.125V, and 0-20.5mA. The input resolution varies by range to provide precise data:

• For ±10.25V range: 320 µV/count (15 bits plus sign bipolar)

• For 0-10.25V range: 160 µV/count (16-bit)

• For 0-5.125V range: 80 µV/count (16-bit)

• For 0-20.5mA range: 0.32 µA/count (16-bit)

The data format is output as Integer mode (left justified, 2's complement) or IEEE 32-bit floating point, ensuring compatibility with all ControlLogix controllers.

3. Power Ratings & Environmental Durability

• Backplane Current (5V): 150 mA

• Backplane Current (24V): 40 mA

• Max Power Dissipation: 1.73 W (Voltage mode) / 2.33 W (Current mode)

• Overvoltage Protection: 30V DC (Voltage) / 8V DC (Current)

• Operating Temperature: 0 to 60 °C (32 to 140 °F)

• Environmental Tolerance: Designed with robust noise immunity and industrial-grade shielding for reliable operation in harsh factory floors.

4. Installation Guide & Wiring Configurations

The Allen-Bradley 1756-IF8 supports three wiring configurations to match your application needs:

Hardware Installation:
This module must be installed in a ControlLogix chassis. It is mechanically keyed using the removable terminal blocks (RTBs) – specifically compatible with 1756-TBCH (cage clamp) and 1756-TBS6H (screw clamp) – which are sold separately. Ensure proper grounding and shielding to maintain signal integrity, especially when using the high-speed mode.

5. Advanced Diagnostic Features

The 1756-IF8 includes comprehensive on-board diagnostics that enhance system reliability:

• Under-range / Over-range detection

• Process alarms (high/low limits)

• Wire-off detection (broken sensor cable)

• Digital filtering for noise reduction

• Rate alarms for slew-rate monitoring

These diagnostics allow for real-time monitoring and rapid troubleshooting, minimizing downtime in critical processes such as oil & gas, water treatment, and heavy manufacturing.

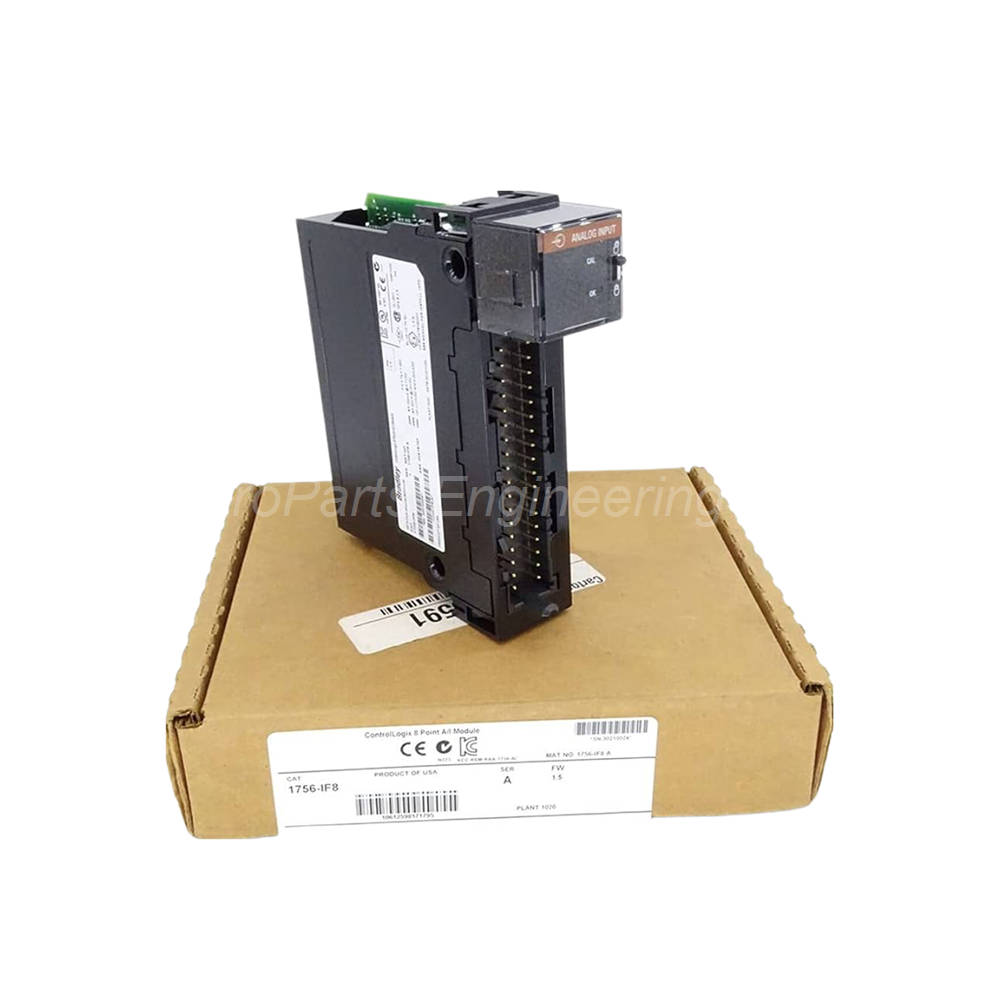

6. Package Checklist (Physical Contents Only)

• (1) Allen-Bradley 1756-IF8 Analog Input Module

• (1) Installation Instructions Manual (printed)

• (1) Removable Terminal Block Connector Housing (pins not pre-wired)

7. Frequently Asked Questions (FAQs)

Q1: What is the maximum number of input channels on the Allen-Bradley 1756-IF8?
A1: The 1756-IF8 provides a total of 8 input channels. These can be configured as single-ended (8 channels), 4-point differential (4 channels), or 2-point high-speed differential (2 channels) depending on your noise immunity and speed requirements.

Q2: Can the 1756-IF8 accept both voltage and current signals simultaneously on different channels?
A2: Yes, the 1756-IF8 is fully configurable on a per-channel basis. You can independently set each channel for Voltage (±10V, 0-10V, 0-5V) or Current (0-20 mA) signals, providing exceptional versatility for mixed sensor inputs.

Q3: What is the resolution of the 1756-IF8 for a 0-10V input signal?
A3: For a 0-10V signal, the 1756-IF8 delivers a high-precision resolution of 160 µV/count (16-bit). For ±10V signals, the resolution is 320 µV/count (15-bit plus sign).

Q4: Which removable terminal blocks are compatible with the 1756-IF8?
A4: This module is compatible with the 1756-TBCH (cage clamp) and 1756-TBS6H (screw clamp) RTBs. Both are sold separately and feature user-defined mechanical keying for secure installation.

Q5: How does the 1756-IF8 handle a broken wire (wire-off) condition?
A5: The Allen-Bradley 1756-IF8 features built-in wire-off detection per channel. If a sensor or transmitter loses connection, the module will flag a diagnostic alarm, allowing the controller to take predefined fail-safe actions without unexpected system shutdowns.
