330980-51-CN Bently Nevada 3300 XL NSv Proximity Sensor
Introduction:

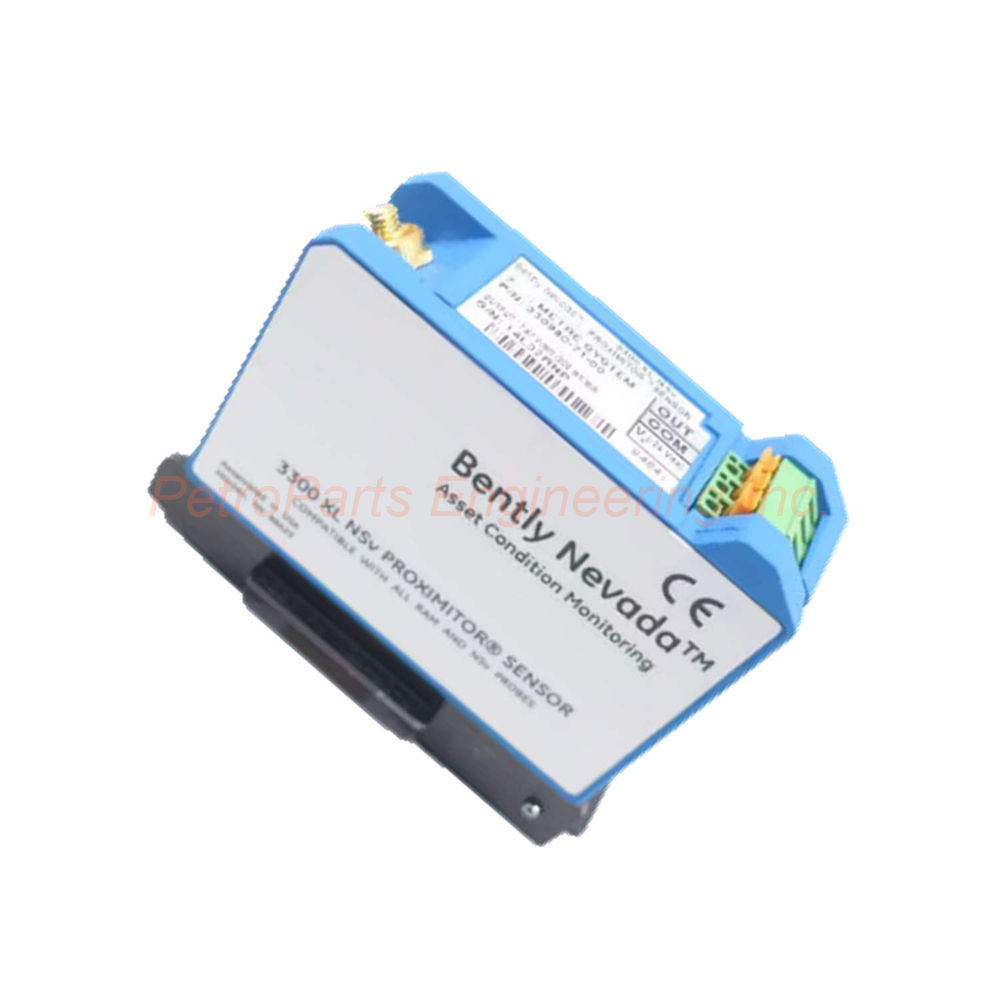

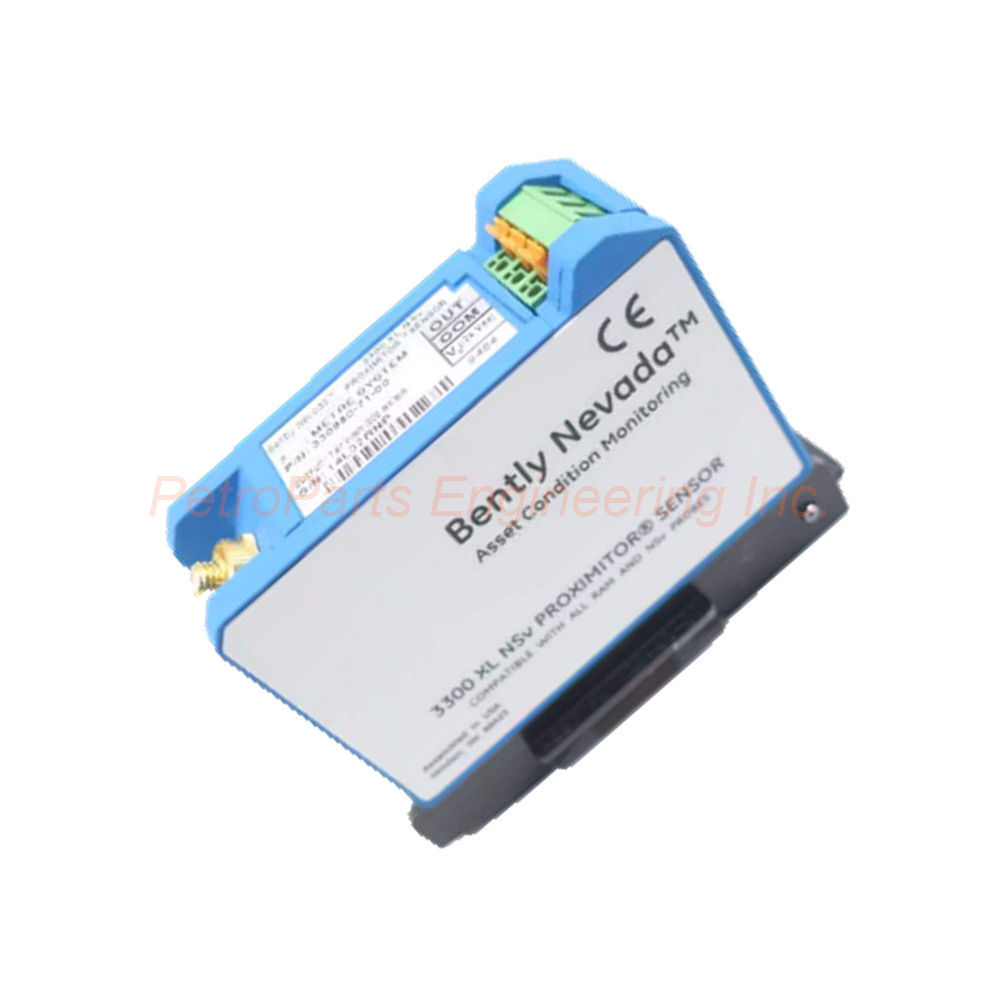

3300 XL NSv Proximitor Sensor with 5.0 meter cable and DIN rail mount. Country specific approvals. RFI and EMI immune design.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Product Overview
Sensor Design and Compatibility
The Bently Nevada 330980-51-CN is a 3300 XL NSv Proximitor Sensor. Therefore, this sensor shares similar features with the 3300 XL 8 mm Proximitor Sensor. The thin design allows high-density DIN-rail installations. In addition, you can mount the sensor in a traditional panel mount configuration. The 330980-51-CN accepts one non-contacting 3300 RAM or 3300 NSv Proximity Probe and Extension Cable. Consequently, it provides flexible compatibility with various probe types.
RFI and EMI Immunity
Improved RFI and EMI immunity allows the 330980-51-CN to achieve European CE mark approvals. Therefore, no special mounting considerations are required for compliance. This RFI immunity also prevents nearby high frequency radio signals from affecting the transducer system. Consequently, you can install the sensor in electrically noisy environments without performance degradation.
SpringLoc Terminal Strips
SpringLoc terminal strips on the Proximitor Sensor require no special installation tools. Therefore, they facilitate faster and highly robust field wiring connections. The elimination of screw-type clamping mechanisms prevents loosening from vibration. Consequently, field wiring remains secure even in high-vibration applications.
Ordering Information and Model Breakdown
The Bently Nevada 330980-51-CN follows a specific ordering code structure.
| Code Position | Value | Meaning |
|---|---|---|
| 330980 | Base Model | NSv Proximitor Sensor |
| 51 | Length and Mounting | 5.0 meters (16.4 feet) system length, DIN rail mount |
| CN | Agency Approval | Country Specific |
Technical Specifications
General Specifications
Manufacturer: Bently Nevada
Part Number: 330980-51-CN
Model: NSv Proximitor Sensor
Series: 3300 XL
Product Type: NSv Proximitor Sensor
Country of Origin: Made in U.S.A.
Total System Length: 5.0 meters (16.4 feet)
Mounting Type: DIN rail mount
Agency Approval: Country Specific (CN)
Material and Physical Specifications
Proximitor Sensor Material: A380 aluminum
Sensor Weight: 255 grams (9.0 ounces)
Proximitor Sensor Input
The 330980-51-CN accepts specific proximity probes and extension cables.
Probe Compatibility: Non-contacting 3300 RAM proximity probe
Probe Compatibility: Non-contacting 3300 NSv proximity probe
Extension Cable: Compatible with 3300 XL extension cables
Power Requirements
Voltage Range (Without Barriers): -17.5 Vdc to -26 Vdc
Maximum Current Consumption: 12 mA
Voltage Range (With Barriers): -23 Vdc to -26 Vdc
Linear Range Warning: Operation above -23.5 Vdc reduces linear range
Supply Sensitivity: Less than 2 mV output change per volt input change
Output Resistance: 50 Ω
Temperature and Environmental Ranges
The Bently Nevada 330980-51-CN operates in extreme conditions.
| Condition | Temperature or Rating |
|---|---|
| Operating Temperature | -52°C to +100°C (-62°F to +212°F) |
| Storage Temperature | -52°C to +105°C (-62°F to +221°F) |
| Relative Humidity | 100% condensing (non-submersible when connectors protected) |
| Humidity Standard | Tested to IEC 68-2-3 damp heat |
| Maximum Altitude | 2000 meters |
Calibration and Target Specifications
The 330980-51-CN system accuracy depends on specific conditions.
Standard Target: Bently Nevada AISI 4140 steel target
Target Diameter: 31 mm (1.2 inches) or larger
Probe Gap: 1.0 mm (40 mils)
Power Supply: -24 Vdc
Load Resistance: 10 kΩ
Temperature Range for Specs: 0°C to +45°C (+32°F to +113°F)
Therefore, system accuracy specifications do not apply when using other targets. Consequently, always calibrate with Bently Nevada AISI 4140 steel targets for guaranteed performance.
Installation Guide
Follow these steps to install the Bently Nevada 330980-51-CN correctly.
Mount DIN Rail: First, secure a standard 35mm DIN rail in your cabinet.
Attach Sensor: Next, clip the 330980-51-CN onto the DIN rail until it clicks.
Secure Connection: Then, verify the sensor is firmly locked in place.
Connect Probe: After that, attach your 3300 RAM or NSv probe to the input.
Wire Power: Meanwhile, connect -17.5 Vdc to -26 Vdc to the SpringLoc terminals.
Verify Target: Finally, ensure your target is AISI 4140 steel for accurate readings.
The 330980-51-CN requires no special installation tools for the SpringLoc terminal strips. Therefore, field wiring connections become faster and more robust. In addition, protect all connectors from submersion to maintain humidity ratings. Consequently, proper installation ensures reliable operation in harsh environments.
Package List
The package includes the following physical items.
Bently Nevada 330980-51-CN NSv Proximitor Sensor (1 piece)
SpringLoc terminal strips (pre-installed)
DIN rail mounting clips (attached to sensor base)
Product label with part number and suffix codes
5.0 meter integral cable (attached)
Note: The 3300 RAM or NSv probe is sold separately. Extension cables are not included. No calibration certificate is provided with this sensor.
Frequently Asked Questions (FAQ)
1. What is the system length of the 330980-51-CN?
The Bently Nevada 330980-51-CN has a total system length of 5.0 meters (16.4 feet). Therefore, the suffix code 51 indicates this length with DIN rail mount. Consequently, this sensor suits applications requiring moderate cable runs with DIN rail mounting.
2. What mounting configuration does the 330980-51-CN use?
The Bently Nevada 330980-51-CN features DIN rail mount configuration. Therefore, you can clip the sensor directly onto standard 35mm DIN rail. The thin design also allows traditional panel mount if preferred. Consequently, you have flexibility in choosing the mounting method.
3. What probes are compatible with the 330980-51-CN?
The Bently Nevada 330980-51-CN accepts non-contacting 3300 RAM probes. In addition, it works with 3300 NSv proximity probes. Therefore, you have flexible options for your measurement application. However, always use genuine Bently Nevada probes for optimal performance.
4. What is the operating temperature range of this sensor?
The Bently Nevada 330980-51-CN operates from -52°C to +100°C (-62°F to +212°F). Therefore, this sensor performs reliably in extreme cold and moderate heat. For storage, the range extends to +105°C (+221°F). Consequently, the sensor suits outdoor and unheated industrial environments.
5. What target material is required for accurate measurement?
The Bently Nevada 330980-51-CN requires a Bently Nevada AISI 4140 steel target. Therefore, system accuracy specifications only apply with this target material. Using other steel alloys or different targets will affect linearity. Consequently, always use the specified target for guaranteed performance.
6. What is the humidity rating of the 330980-51-CN?
The Bently Nevada 330980-51-CN operates in 100% condensing humidity conditions. However, the sensor is non-submersible when connectors are unprotected. Therefore, protect all cable connectors from direct water immersion. The sensor is tested to IEC 68-2-3 damp heat standards. Consequently, the unit withstands high humidity environments reliably.
7. What country specific approvals does this sensor carry?
The Bently Nevada 330980-51-CN with option code CN has country specific approvals. Therefore, these approvals vary depending on the destination country. Contact Bently Nevada for the specific approvals applicable to your region. Consequently, verify your local requirements before ordering this configuration.
