Product Overview

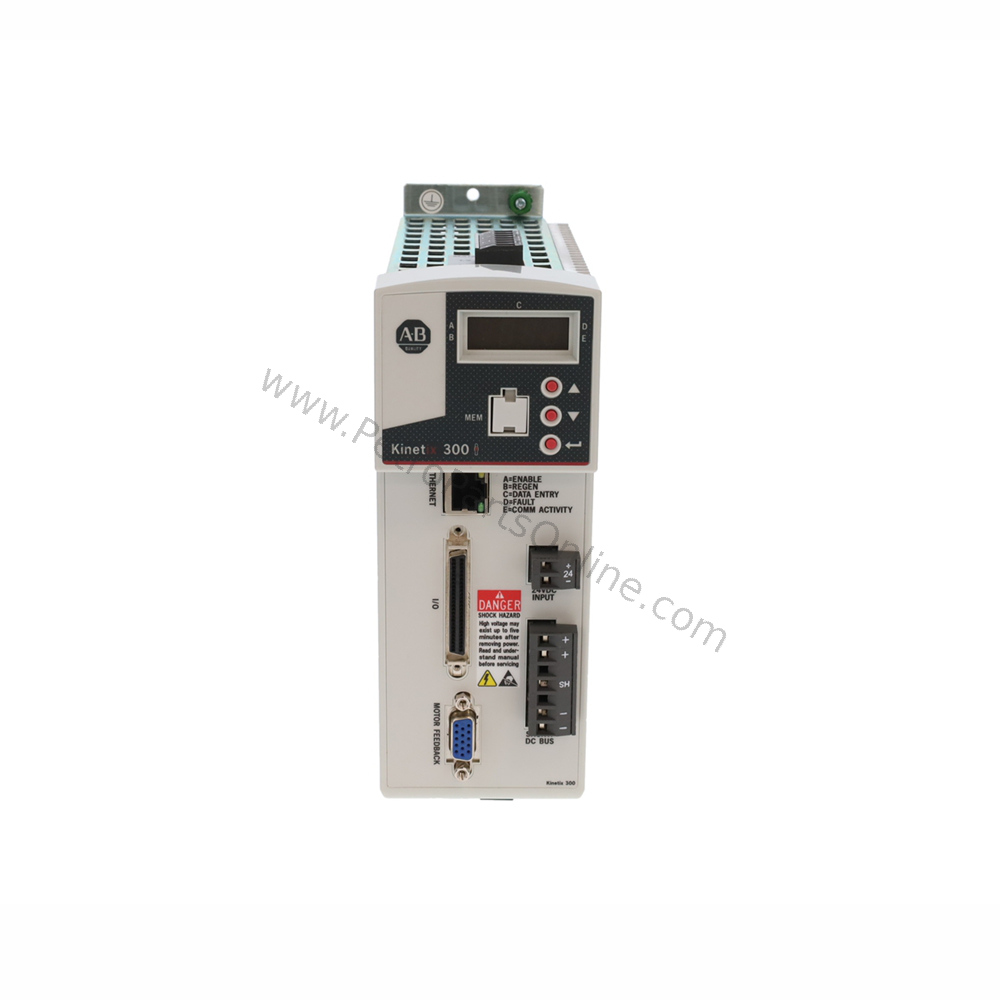

The 2097-V34PR3 is a Kinetix 300 Ethernet I/P Indexing servo drive from Allen-Bradley, manufactured by Rockwell Automation. This drive delivers precise motion control for industrial automation applications. It features a 3-phase AC input voltage of 320-528V rms with a 480V nominal value. The drive provides continuous output current of 2.8A and continuous power output of 1.00 kW. Built-in Safe Torque-Off functionality enhances operator safety.

Technical Specifications Analysis

The 2097-V34PR3 operates with an input frequency of 48…62 Hz. Its main AC input current is 2.7 A nominal, with a max inrush of 4.5 A. Control power back-up requires 20…26V DC input, drawing 500 mA nominal and up to 30 A max inrush. Continuous output current ratings are 2.0 A rms and 2.8 A 0-pk. Peak output current reaches 6.0 A rms and 8.5 A 0-pk. Power dissipation is 39 Watts. The drive supports a torque value of 4.5 lb*in (0.5 N*m). Operating temperature range is 32-104 F (0-40 C). Dimensions are 9.37 x 7.29 x 2.70 in (238 x 185 x 69.0 mm), and weight is 3.3 lbs (1.5 kg). The drive does not include an integrated AC line filter and does not support 120 Volt Doubler Mode.

Application Scenarios & Usage Methods

This servo drive excels in packaging machinery, material handling, and assembly lines. Use it with Kinetix MP and TLY Rotary Motors or Kinetix MPAI Heavy-duty Electric Cylinders for precise indexing. The Ethernet I/P interface simplifies integration with ControlLogix or CompactLogix PACs. Program up to 32 index positions for flexible positioning tasks. The Safe Torque-Off function allows safe maintenance without removing system power.

Installation Guide & Packing List

Mount the drive on a vertical surface to ensure proper cooling. Maintain clearance for airflow as per the manual. Connect 3-phase power at 320-528V rms. Use shielded cables for motor and feedback connections. The package includes the 2097-V34PR3 drive unit and a memory module for automatic device replacement. No additional accessories are included.

Purchasing Advice

Verify your system voltage matches the 320-528V rms input range. Confirm motor compatibility with Kinetix MP or TLY series. For reliable supply, order from PetroPartsOnline, a trusted source for industrial automation parts. Choose this drive for applications requiring Ethernet I/P indexing and safety-rated torque-off.

Repair & Maintenance Tips

Keep the drive clean and free from dust. Check connections periodically for tightness. Operate within 0-40 C ambient temperature. Do not exceed 95% non-condensing humidity. Replace the drive if the Safe Torque-Off circuit trips repeatedly. Store in a dry, vibration-free environment.

Frequently Asked Questions (FAQs)

Q: What is the input voltage requirement for the 2097-V34PR3?

A: The drive requires 3-phase AC input voltage of 320-528V rms, with a nominal value of 480V.

Q: Does the 2097-V34PR3 support Safe Torque-Off?

A: Yes, the drive includes Safe Torque-Off functionality certified to ISO 13849-1 PLd/SIL2.

Q: What is the continuous output current of this drive?

A: The continuous output current is 2.8 A (0-pk) and 2.0 A (rms), with continuous power output of 1.00 kW.

Q: What motors are compatible with the 2097-V34PR3?

A: It works with Kinetix MP and TLY Rotary Motors, MPAI Heavy-duty Electric Cylinders, and other Kinetix actuators.

Q: What are the dimensions and weight of the 2097-V34PR3?

A: Dimensions are 9.37 x 7.29 x 2.70 in (238 x 185 x 69.0 mm), and weight is 3.3 lbs (1.5 kg).
