Product Overview

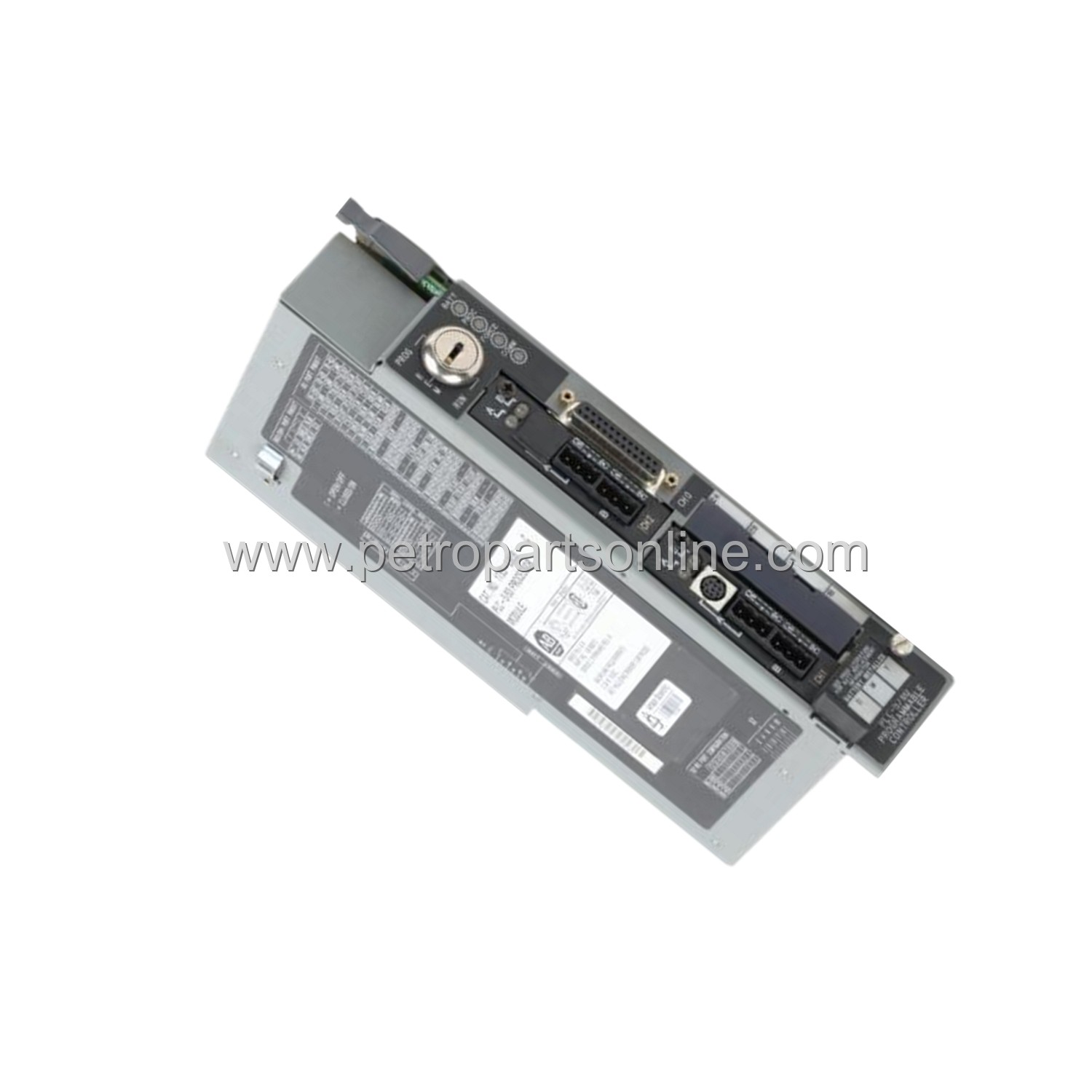

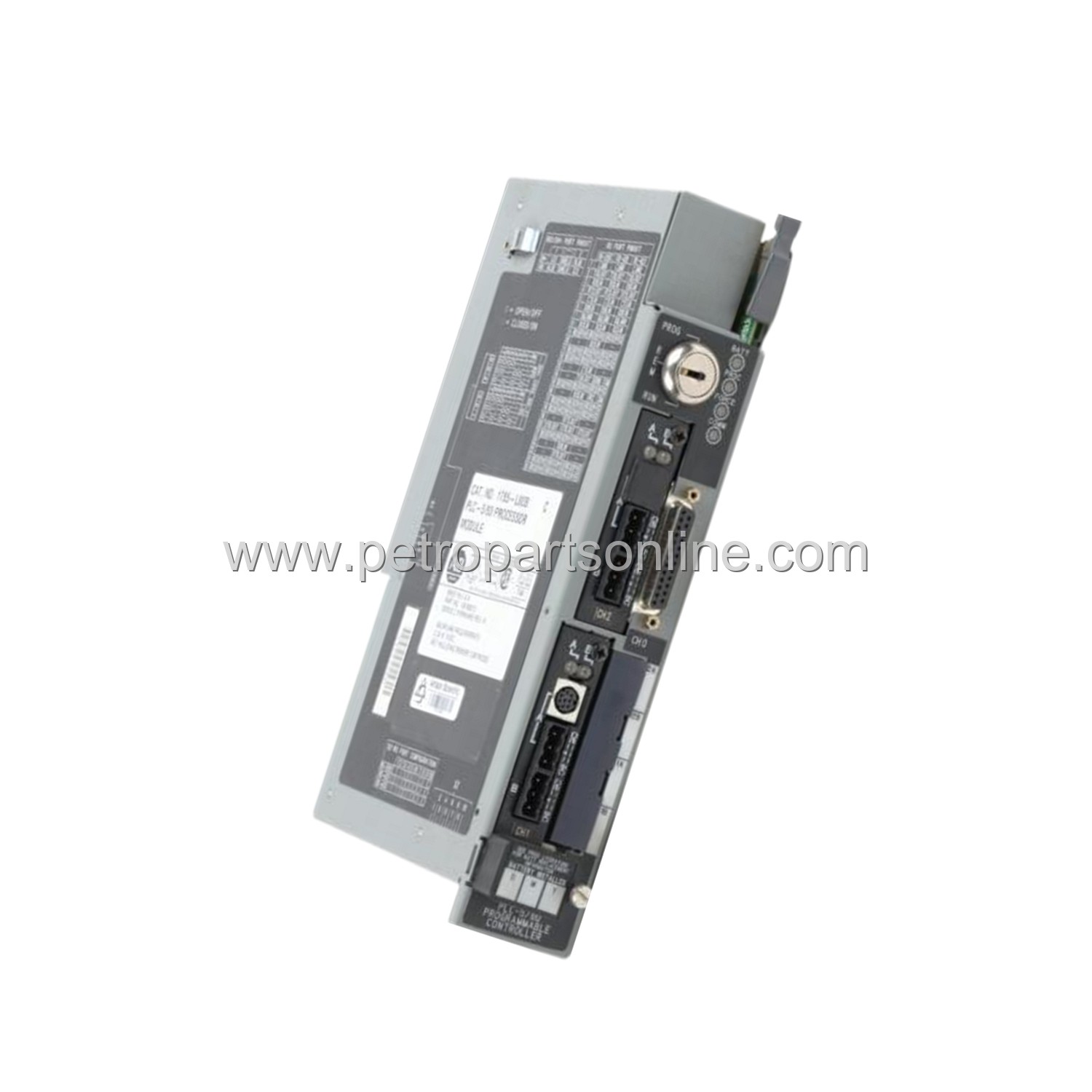

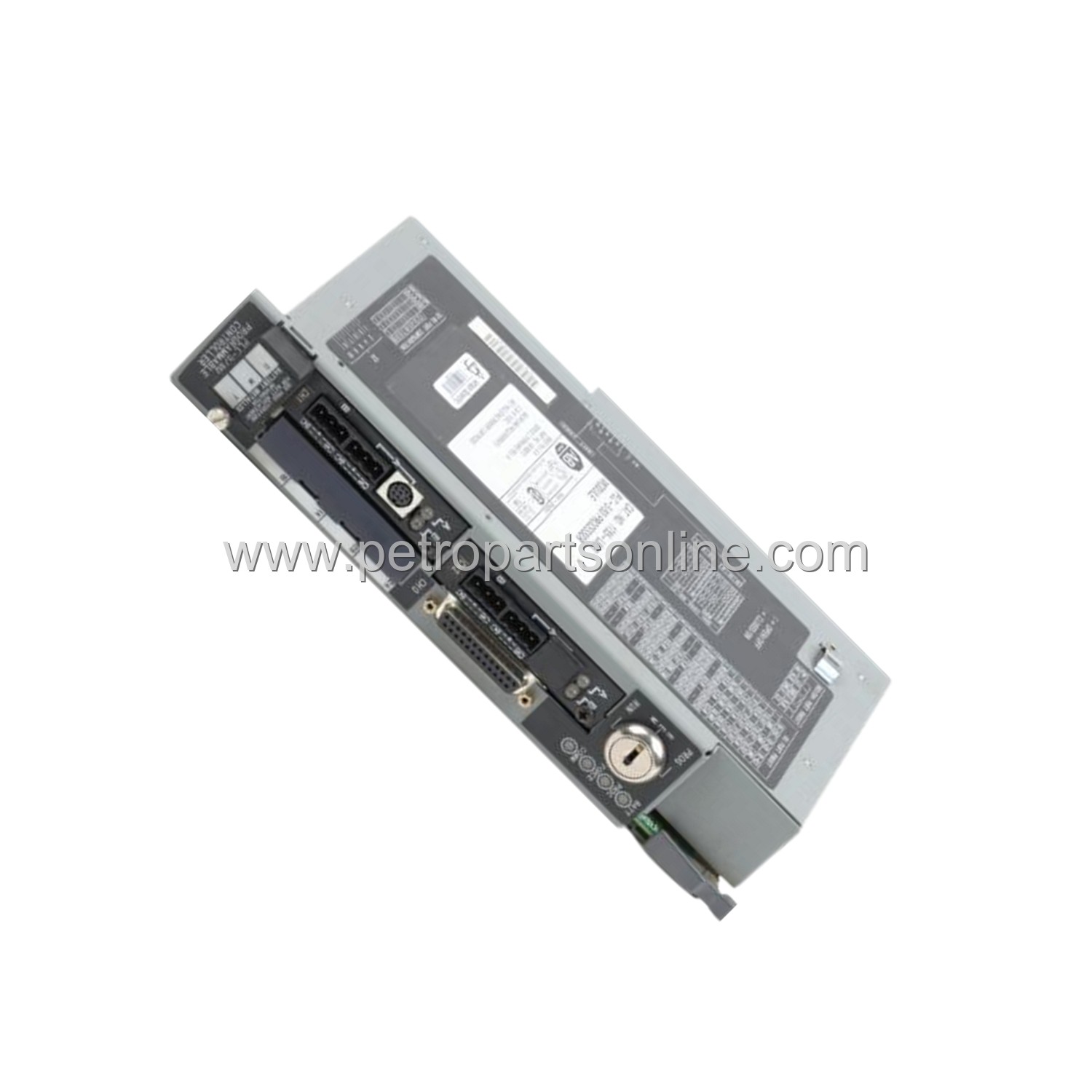

The 1785-L80B is a programmable logic controller module from the Allen-Bradley PLC-5 family. It serves as the central processing unit for medium to large-scale automation systems. This module is designed for reliable control in industrial environments. It supports a wide range of discrete and analog I/O configurations. The unit operates with the PLC-5 backplane and requires a dedicated chassis. It is a key component for legacy and current automation architectures. The module is a new original unit, ensuring long-term dependability. It is suitable for both new installations and replacement projects. The product is fully tested and ready for immediate deployment. It comes with a standard 12-month warranty for peace of mind. This controller is a staple in the industrial automation market. It offers seamless integration with existing PLC-5 systems. The module is ideal for process control and discrete manufacturing. It provides robust performance in harsh factory conditions. The unit is shipped from Xiamen with global logistics support. This product is an essential part of a reliable control system.

Application Scenarios

The 1785-L80B is widely used in manufacturing plants and process industries. It controls assembly lines, packaging machines, and material handling systems. The module manages chemical batch processes and water treatment facilities. It is also deployed in oil and gas pipeline monitoring stations. The controller handles complex sequencing and interlocking tasks. It integrates with SCADA systems for remote supervision. The unit is common in automotive production and food processing. It supports both standalone and distributed control architectures. The module is suitable for critical infrastructure like power generation. It operates reliably in temperature-controlled and harsh environments. The controller is often used in retrofitting older PLC-5 systems. It enables seamless upgrades without major rewiring. The unit is a preferred choice for system integrators and OEMs. It provides a stable platform for real-time control applications. The module supports redundancy configurations for high-availability systems. It is also used in mining and metals processing operations. The controller is versatile for both batch and continuous processes.

Technical Specifications

The 1785-L80B is a PLC-5 processor with integrated memory. It supports a maximum of 4096 I/O points. The module uses a 68020 microprocessor for fast execution. It has a scan time of 0.5 ms per 1K of logic. The unit includes built-in communication ports for network connectivity. It supports Data Highway Plus and remote I/O protocols. The module requires 5V DC and 24V DC power from the chassis. It operates in a temperature range of 0 to 60 degrees Celsius. The unit has a form factor compatible with 1771 I/O chassis. It includes a battery-backed RAM for program retention. The module has a status indicator panel for diagnostics. It supports ladder logic and structured text programming. The unit has a memory capacity of 80K words. It is designed for rack-based installation in standard enclosures. The module meets industrial standards for shock and vibration resistance. It has a weight of approximately 1.5 kg. The unit is certified for use in hazardous locations.

Installation & Maintenance Guide

Install the module into an empty slot of the 1771 chassis. Ensure the backplane connector is clean and undamaged. Align the module with the card guides and push firmly. Secure the module with the retaining screws at the top and bottom. Connect the communication cables to the appropriate ports. Apply power to the chassis and verify the status LEDs. The module requires no routine maintenance except battery replacement. Replace the battery every two years or when the low battery LED lights. Keep the module free of dust and moisture. Use only approved replacement batteries from the manufacturer. Ensure proper grounding of the chassis to avoid electrical noise. Do not insert or remove the module with power applied. Store spare modules in anti-static packaging. Follow the manufacturer's guidelines for program backup. Regularly check the module for firmware updates. Use a clean, dry cloth for cleaning the module exterior. Always follow plant safety procedures during installation.

Frequently Asked Questions (FAQ)

What is the primary function of 1785-L80B?

The 1785-L80B functions as the central processing unit for Allen-Bradley PLC-5 programmable logic controllers. It executes user-written control programs to manage industrial machinery and processes.

Is 1785-L80B compatible with newer ControlLogix systems?

No, the 1785-L80B is designed exclusively for the PLC-5 platform and its 1771 I/O chassis. It is not directly compatible with ControlLogix or CompactLogix systems without additional bridging hardware.

What communication protocols does 1785-L80B support?

The module supports Data Highway Plus (DH+) and remote I/O (RIO) protocols. These allow it to communicate with other PLC-5 processors, operator interfaces, and I/O racks.

What is the operating temperature range for 1785-L80B?

The 1785-L80B operates reliably in an ambient temperature range of 0 to 60 degrees Celsius. This makes it suitable for most industrial control cabinet environments.

How do I replace the battery in 1785-L80B?

To replace the battery, remove the module from the chassis, open the battery compartment, and install a new lithium battery. Reinstall the module and verify that the program is retained. Always follow manufacturer instructions.
