Product Overview

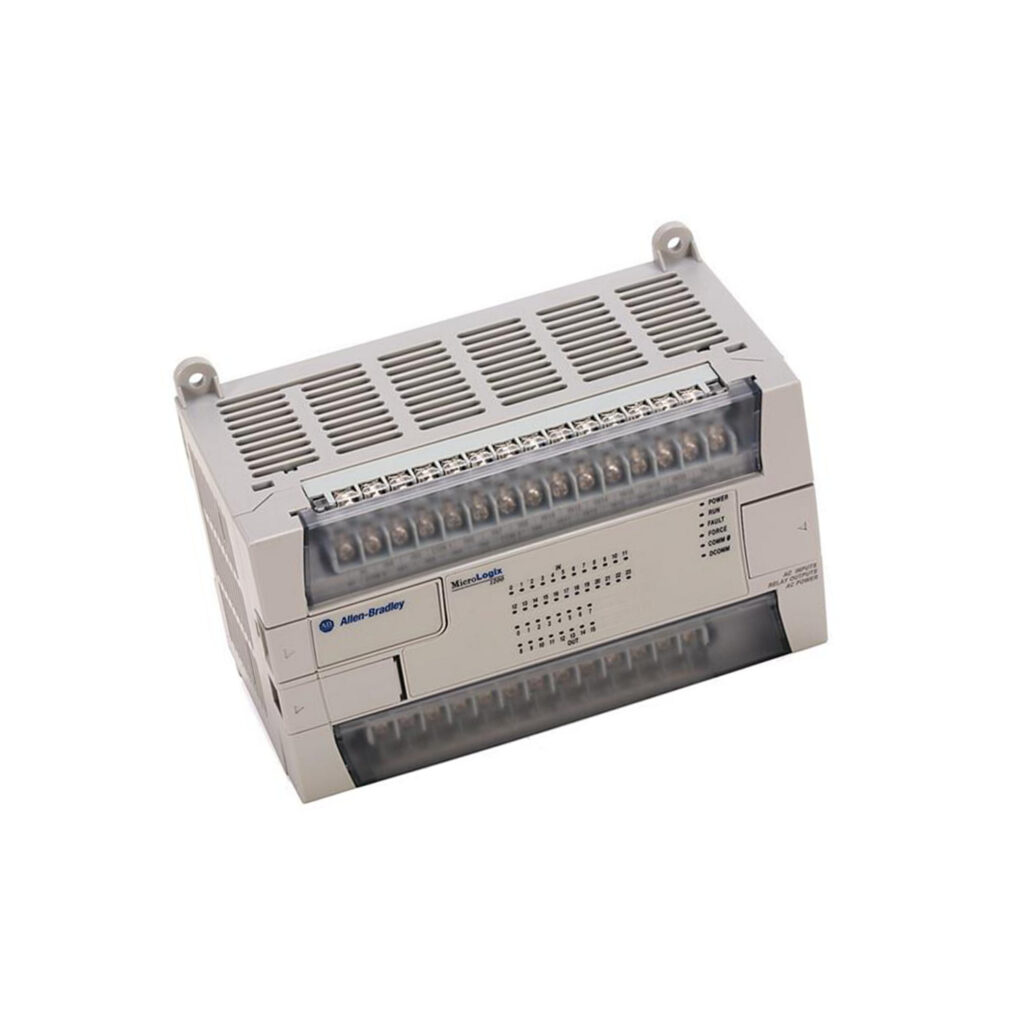

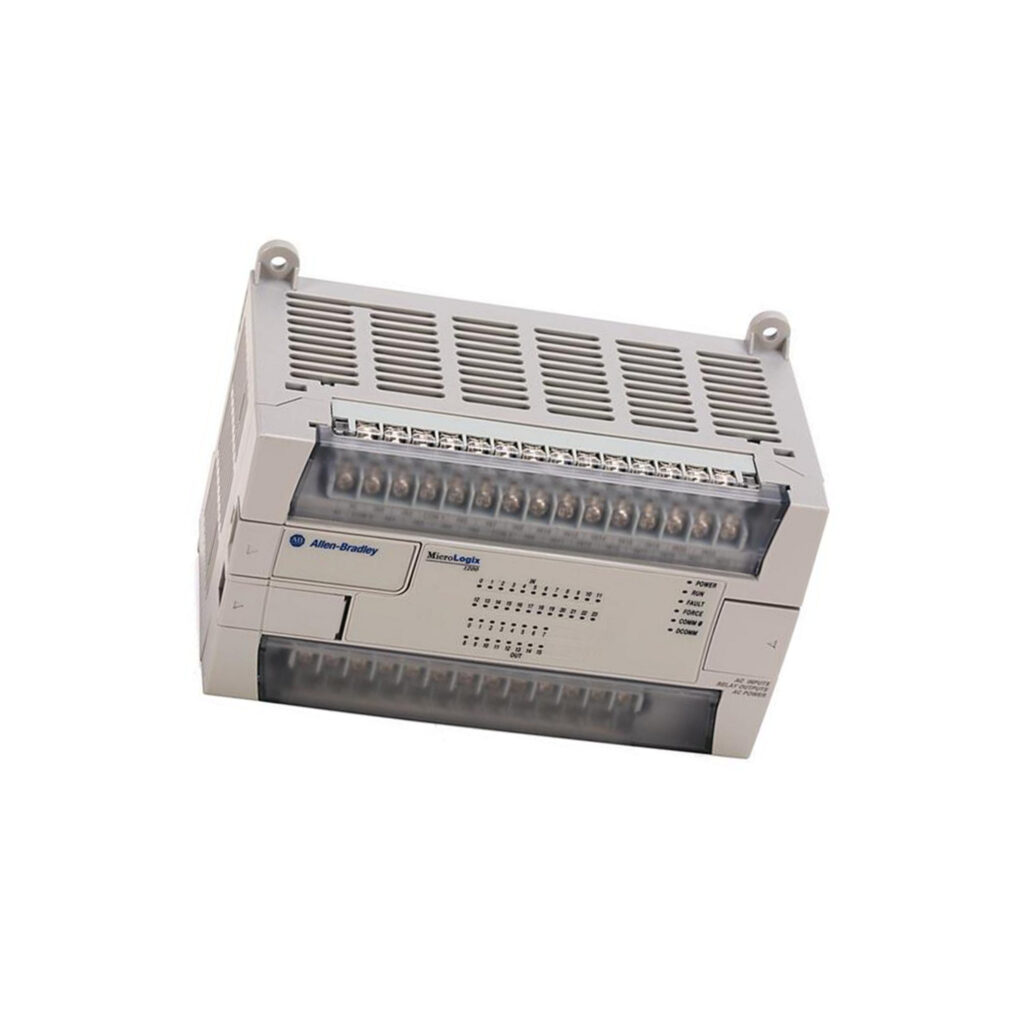

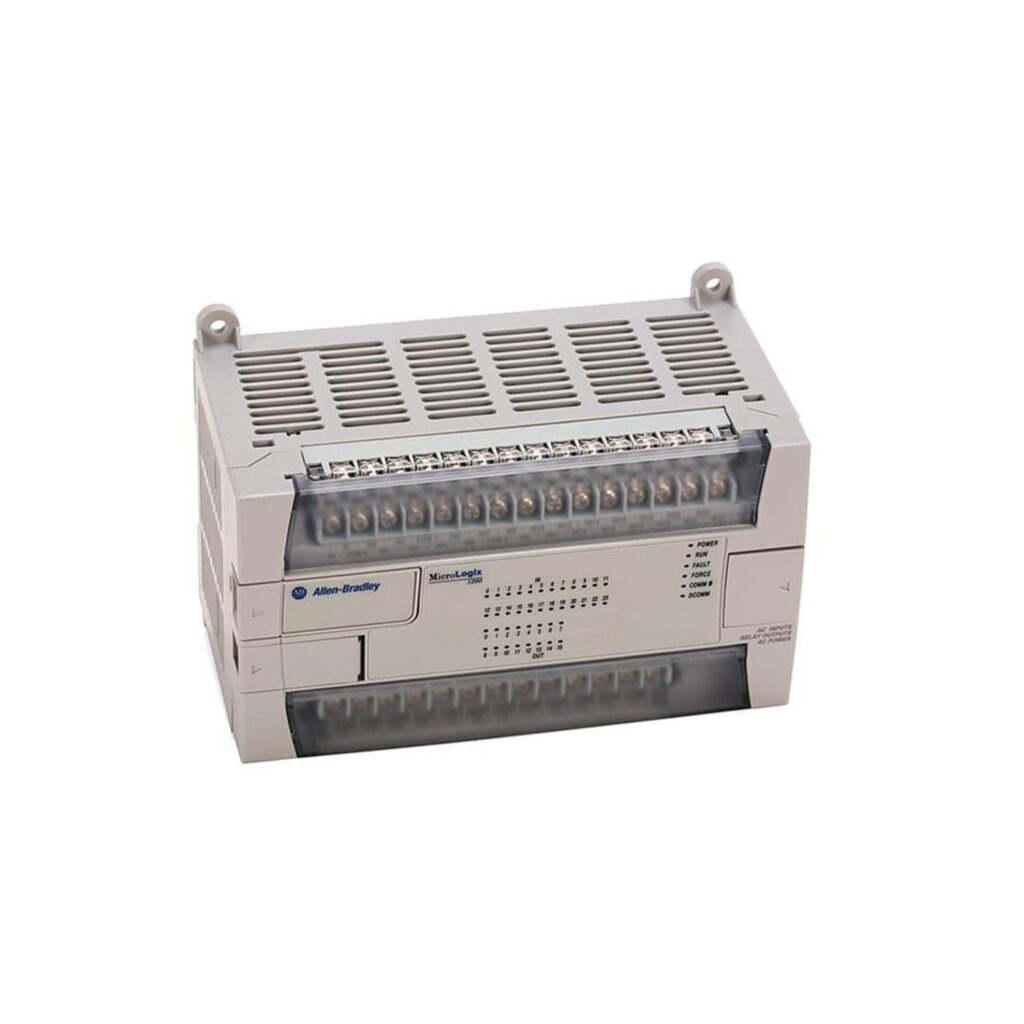

The Allen-Bradley 1762-L40BXBR is a compact programmable logic controller. It belongs to the MicroLogix 1100 series. This controller integrates 40 I/O points. It combines a CPU, power supply, and I/O in one unit. The 1762-L40BXBR supports Ethernet and serial communications. It is ideal for small to medium control systems. This module offers flexibility for various automation tasks. It is a reliable choice for industrial applications. The controller is easy to program and configure. It provides a cost-effective solution for machine control.

Application Scenarios

The 1762-L40BXBR excels in discrete manufacturing environments. It controls packaging machines and conveyor systems. It manages assembly line operations effectively. The controller is used in material handling equipment. It is suitable for HVAC system control. The module operates in water treatment facilities. It supports pump and valve automation. The controller works in building management systems. It is ideal for standalone machine control. The 1762-L40BXBR fits retrofit projects seamlessly.

Technical Specifications

The controller features 24 digital inputs. It includes 16 digital outputs. The module has a built-in power supply. It supports 24V DC input voltage. The 1762-L40BXBR includes an embedded Ethernet port. It has a serial RS-232/485 interface. The controller memory is 8 KB for logic. It supports up to 6 analog expansion modules. The operating temperature range is 0 to 55°C. The module measures 110 x 80 x 87 mm. It weighs approximately 0.5 kg. The controller is CE and UL certified.

Installation & Maintenance Guide

Mount the controller on a DIN rail. Ensure proper grounding for noise immunity. Connect the 24V DC power supply correctly. Wire inputs and outputs using the terminal block. Use shielded cables for analog signals. Avoid running signal wires near high-voltage lines. Configure the module using RSLogix 500 software. Perform regular visual inspections for damage. Keep the enclosure clean and dust-free. Replace the module only when powered off. Follow the user manual for detailed steps. Test the system after each maintenance cycle.

Frequently Asked Questions (FAQ)

What is the primary function of 1762-L40BXBR?

The 1762-L40BXBR is a programmable logic controller. It executes user-defined logic for industrial automation. It controls machines and processes based on input signals.

What communication ports does 1762-L40BXBR have?

The controller has one embedded Ethernet port. It also includes one serial RS-232/485 port. These ports allow network connectivity and programming access.

What is the maximum number of expansion modules supported?

The 1762-L40BXBR supports up to six analog expansion modules. This allows flexible I/O configuration for various applications.

What software is used to program the 1762-L40BXBR?

RSLogix 500 programming software is used. It provides a ladder logic editor and configuration tools. The software is compatible with Windows operating systems.

What is the operating temperature range for this controller?

The operating temperature range is 0 to 55 degrees Celsius. This ensures reliable performance in typical industrial environments.
