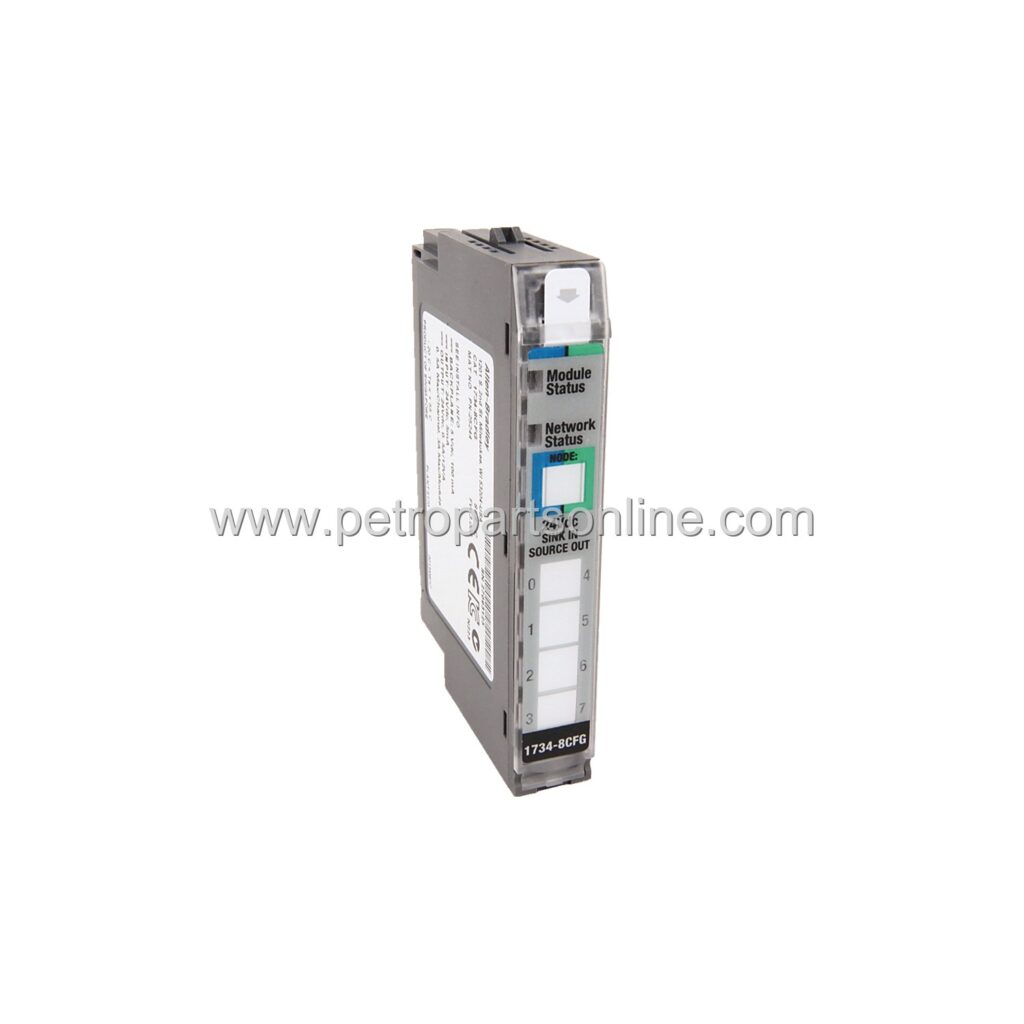

1734-8CFGDLX | Allen-Bradley POINT I/O Module In Stock
Introduction:
Allen-Bradley 1734-8CFGDLX POINT I/O configurable module. 8 channels, new original, in stock, ready to ship.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Product Overview

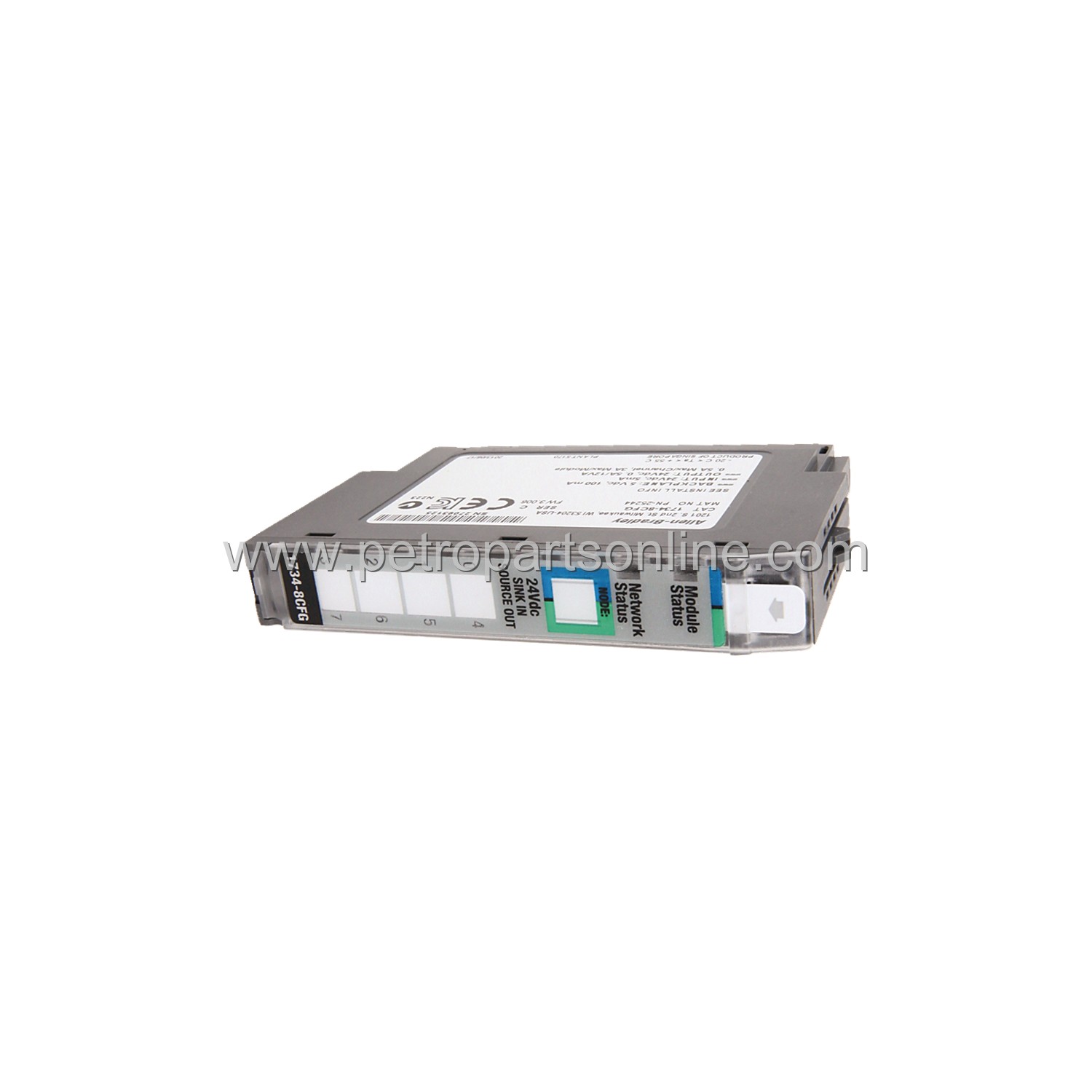

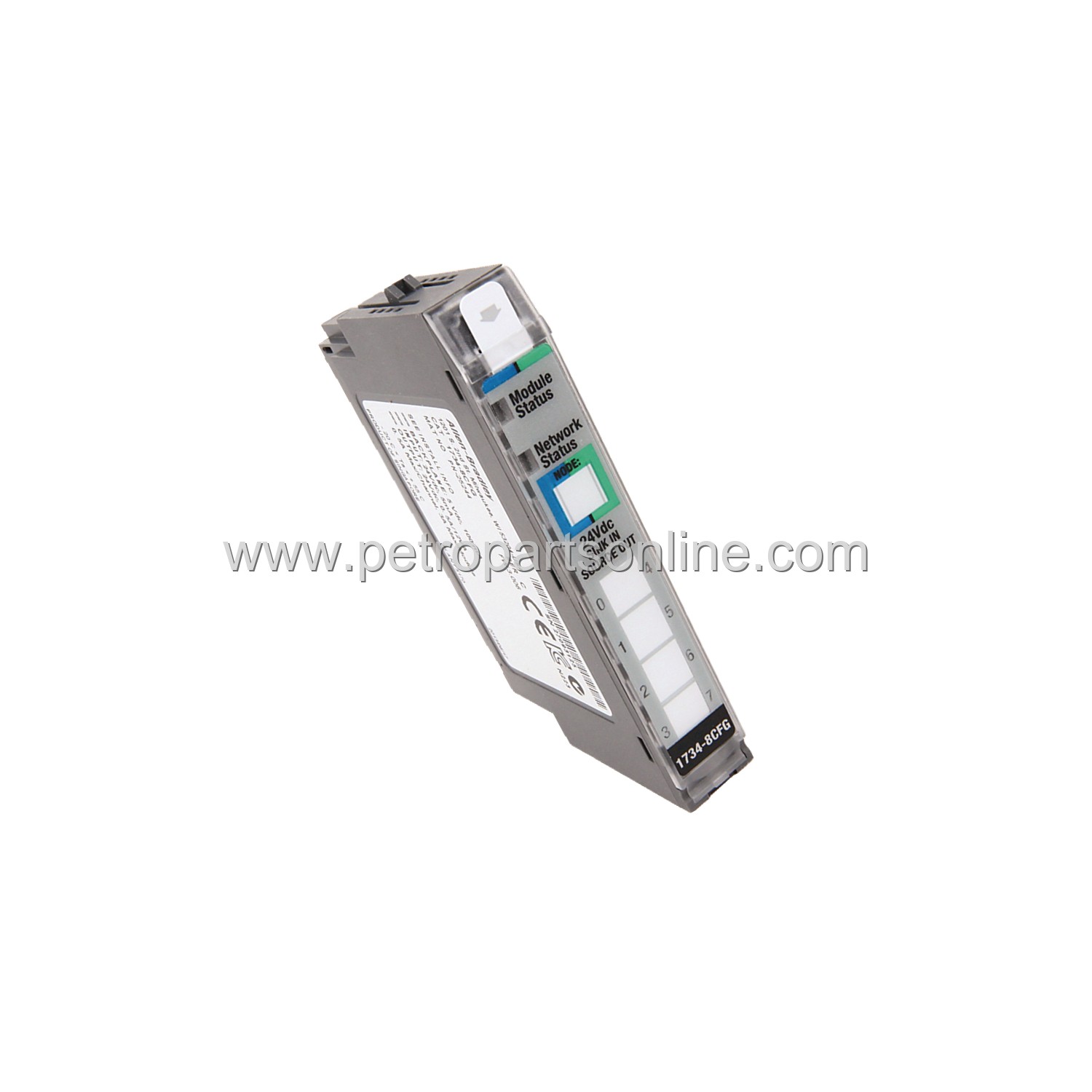

The Allen-Bradley 1734-8CFGDLX is a configurable module for the POINT I/O system. It provides eight channels for digital input or output functions. This module supports flexible field wiring and reduces inventory needs. It is a new original unit ready for immediate shipment.
Application Scenarios
This module works in industrial automation and process control. It is ideal for discrete manufacturing and material handling. Use it for machine control and conveyor systems. It fits in standard POINT I/O racks with other modules. The device supports remote I/O applications in factory floors.
Technical Specifications
- Number of channels: 8
- Type: Configurable digital input or output
- Voltage range: 10-30V DC
- Current per channel: Up to 2A
- Operating temperature: 0 to 55°C
- Storage temperature: -40 to 85°C
- Isolation: 50V continuous
- Terminal base: 1734-TB or 1734-TBS
- Weight: 0.3 kg
Installation & Maintenance Guide
Mount the module onto a 1734-TB terminal base. Connect field wiring to the base terminals. Configure channels using software like RSLogix 5000. Set each channel as input or output per application needs. Check wiring for correct polarity and voltage. Do not exceed rated current per channel. Keep the module clean and dry. Replace if any damage is found.
Frequently Asked Questions (FAQ)
What is the primary function of 1734-8CFGDLX?
It provides eight configurable digital I/O channels for POINT I/O systems.
What terminal base is compatible with this module?
Use the 1734-TB or 1734-TBS terminal base for wiring connections.
Can I mix input and output channels on the same module?
Yes, each channel can be independently set as input or output.
What is the maximum current per channel?
Each channel supports up to 2A continuous current.
Is this module hot-swappable?
Yes, it can be removed or inserted while power is applied.
