Triconex 3007: Enhanced Main Processor II

2026-04-04

ExcerptNavigate the technical complexities of the Triconex 3007. This guide provides essential selection criteria, configuration strategies, and troubleshooting tips for deploying the central processing unit of a Triconex Safety Instrumented System (SIS).

The Triconex 3007 is an Enhanced Main Processor II (MP II) module, serving as the central logic solver for the Triconex Triple Modular Redundant (TMR) controller. It is the “brain” of the system, responsible for executing safety logic, performing continuous self-diagnostics, and managing data communication with external hosts.

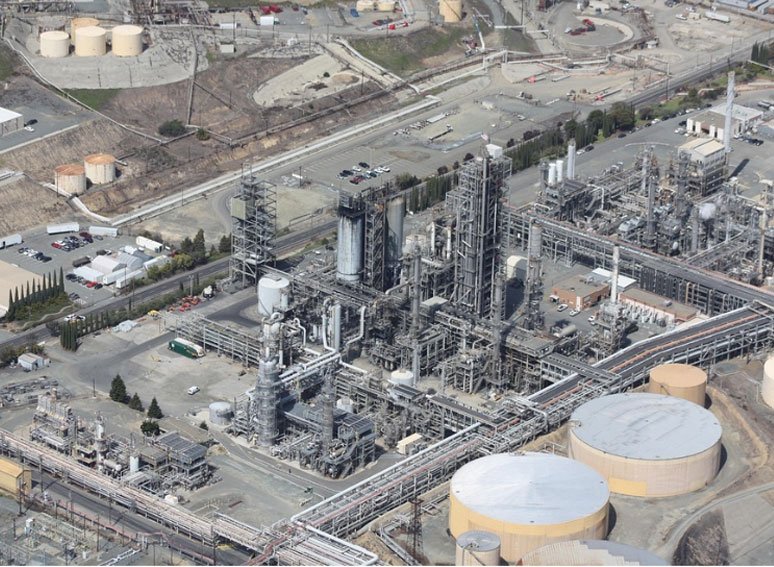

In critical industrial environments like refineries and power plants, the 3007 solves the pain point of reliability vs. performance. Unlike standard PLC processors, the 3007 utilizes TMR architecture, meaning it contains three independent processing channels that vote on every calculation. If one channel fails, the other two outvote it, ensuring the system continues to operate safely without interruption. The 3007 specifically bridges the gap between safety and control, featuring specialized capabilities to communicate directly with Distributed Control Systems (DCS), such as Honeywell UCN, ensuring that safety logic and process control remain synchronized.

Technical Insights: Decoding the Specifications

To maximize the effectiveness of the 3007, you must understand three key technical parameters that influence system design and safety.

1. Triple Modular Redundancy (TMR) Architecture

The module executes the control program on three separate channels simultaneously.

Impact: This provides Single Fault Tolerance. The processor can sustain a failure of one channel (due to hardware fault or electrical noise) without tripping the process or losing safety protection. This is the core differentiator between the Triconex 3007 and standard single-CPU controllers.

2. Enhanced Memory and SOE (Sequence of Events)

The “Enhanced” designation (MP II) typically indicates upgraded memory capacity (e.g., 1MB or 2MB SRAM) and support for Sequence of Events logging.

Impact: The increased memory allows for more complex logic and larger variable tables. Crucially, the SOE capability allows the processor to timestamp critical events (like a high-pressure trip) with millisecond precision. This is indispensable for post-mortem analysis, helping engineers determine exactly why a shutdown occurred.

3. Specialized Communication Capabilities

The 3007 is distinct from other main processors (like the 3006 or 3008) due to its specific communication firmware.

Impact: The 3007 is often optimized for Honeywell UCN (Universal Control Network) communication. This allows the Triconex system to appear as a native device on a Honeywell DCS network, simplifying the integration of safety data into the operator’s console.

Field Installation and Maintenance Guide

Working with the main processor requires strict adherence to configuration protocols. Here are field-tested recommendations for deploying the Triconex 3007.

Memory Backup and Battery Maintenance

The 3007 utilizes volatile memory (SRAM) to store the logic and critical runtime data.

Field Tip: The module contains a backup battery to retain memory during power cycles or module swaps. Check the battery voltage during every maintenance shutdown. If the battery fails, the processor will lose its logic and configuration, leading to a total system failure. Always keep a spare, fully charged battery on hand.

Firmware and Compatibility Matching

The 3007 must be compatible with the other modules in the chassis (I/O, Communication Modules).

Field Tip: When replacing a 3007, you must ensure the firmware revision matches the existing system or is compatible with your version of TriStation 1131 software. Mixing incompatible firmware versions between the Main Processor and the Communication Modules (like the 4351A) can cause “Comm Fail” errors or logic mismatches.

DIP Switch Configuration

The module features DIP switches on the faceplate for hardware configuration.

Field Tip: These switches typically control settings like the System Number and Chassis ID. Ensure these are set correctly before powering up the module. An incorrect System Number setting can cause the processor to reject the I/O modules or fail to establish a network connection with the engineering workstation.

Buyer’s Guide & FAQ

What is the difference between the 3006, 3007, and 3008?

They are all Main Processor II modules, but they differ in communication protocols and memory.

Selection Advice:
- 3006: The standard Enhanced Main Processor II. Good for standalone applications or generic Modbus/TCP integration.
- 3007: Optimized for Honeywell UCN communication. Choose this if your plant uses a Honeywell DCS.
- 3008: Optimized for Foxboro (Invensys) or other specific DCS integrations.
- Note: Always verify the memory size (1MB vs 2MB) required for your logic program before purchasing, as older stock may have lower capacity.

Can I upgrade from a 3004 to a 3007?

Yes, but it requires a system download.

Selection Advice: The 3007 is a newer generation (MP II) compared to the older 3004. While physically compatible with the chassis, the 3007 requires a newer version of the Triconex operating system. You will likely need to re-compile and download your logic database using the TriStation software to take advantage of the 3007’s enhanced features.
