Evolution of the Yokogawa CP461-50

The Yokogawa CP461-50 represents the latest iteration of high-performance processor modules for the CENTUM VP and CS 3000 Distributed Control Systems (DCS). Specifically engineered for the AFV300 and AFV400 Field Control Stations (FCS), this module serves as the “brain” of the control unit. It executes complex control logic, manages communication with I/O modules, and ensures seamless data exchange with the human-machine interface (HMI).

As industrial processes become more data-intensive, Yokogawa introduced the CP461-50 as a direct, enhanced replacement for the legacy CP461-10 module. This upgrade provides better long-term reliability and compatibility with modern firmware versions, ensuring that aging control systems remain operational without requiring a full-scale system overhaul.

Technical Specifications

The following table outlines the critical hardware parameters for the CP461-50:

High Availability through Dual-Redundancy

In critical process industries such as oil and gas or chemical manufacturing, downtime can lead to significant financial losses and safety risks. The CP461-50 addresses this by supporting a dual-redundant configuration. In this setup, two CP461-50 modules work in tandem within the FCS. One module acts as the “Active” processor, while the second remains in “Standby” mode.

The standby module continuously synchronizes its internal data with the active module. If the active unit detects a hardware failure or a processing error, the standby unit takes over control instantaneously. This seamless “bumpless” transfer ensures that the controlled process continues without interruption. Yokogawa designs these modules to handle this transition in milliseconds, maintaining the integrity of the control loops.

Suffix Code and Configuration Breakdown

Yokogawa uses a specific suffix coding system to define the module’s environmental and functional capabilities. For the CP461-50:

• Suffix Code “5”: This indicates the “Standard type.” It operates in general-purpose industrial environments but does not feature specialized explosion protection (non-Ex). Users typically install these in control rooms or environmentally controlled cabinets.
• Suffix Code “0”: This identifies the module as the “Basic type.” It focuses on core processing duties within the AFV300/AFV400 architecture, providing the essential logic execution required for standard DCS operations.

I/O Module Management

While the CP461-50 focuses on processing, its ability to manage field data is equally vital. Each processor module can interface with a maximum of eight (8) I/O modules. This capacity allows for a compact yet powerful control node capable of handling hundreds of field points (analog and digital). The module efficiently polls these I/O units, processes the incoming data through the programmed control algorithms, and sends back the resulting control signals to field actuators.

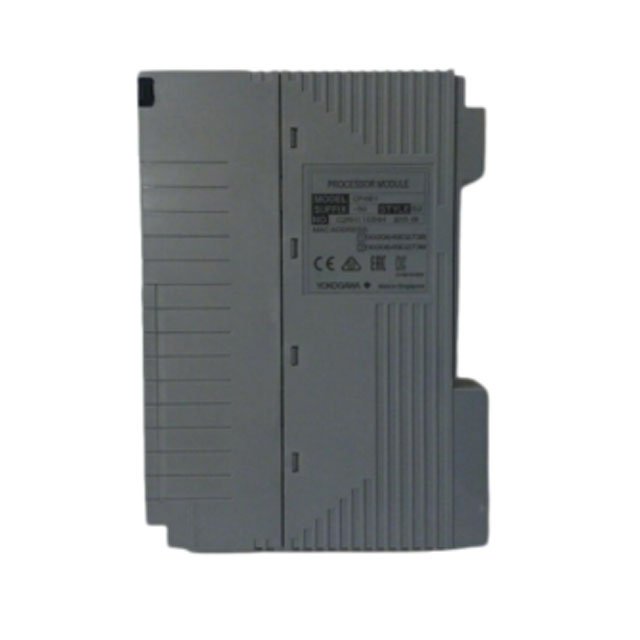

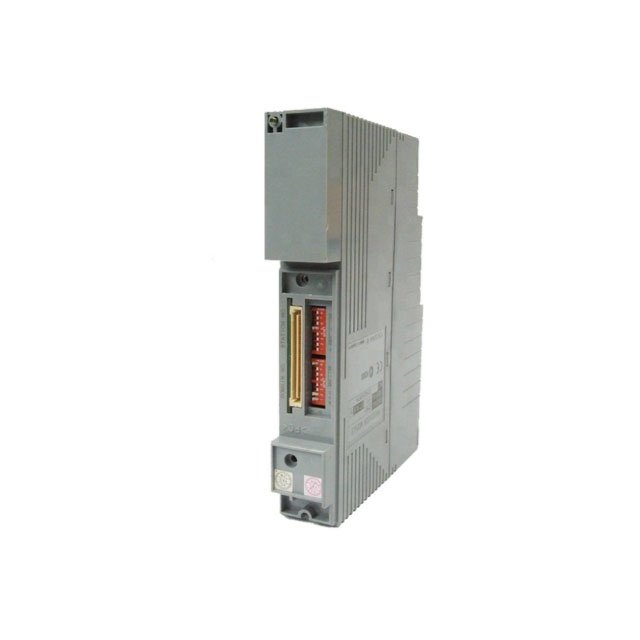

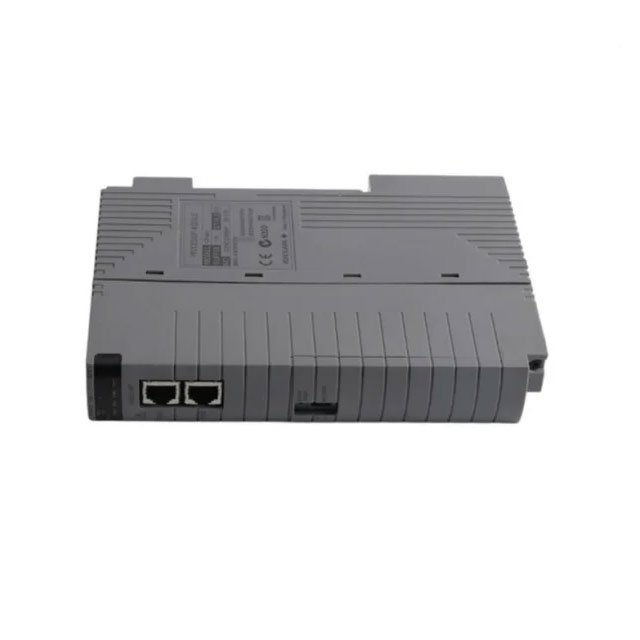

Physical Design and Installation

The CP461-50 features a compact, vertical form factor designed for high-density rack mounting. Measuring 15.2 cm deep and only 5.1 cm wide, it allows engineers to maximize the use of cabinet space. At just 0.7 kg, the module is lightweight and easy to handle during installation or maintenance.

The front panel typically includes status LEDs that provide immediate visual feedback regarding the module’s health, redundancy status (Active/Standby), and communication activity. This simplifies troubleshooting for plant technicians, allowing them to identify faulty units at a glance.

Why Choose the CP461-50?

Choosing the CP461-50 ensures that your Yokogawa CENTUM system stays current. It offers:

1. Seamless Integration: It fits perfectly into existing AFV300 and AFV400 slots without requiring hardware modifications.
2. Legacy Support: It provides an immediate path forward for plants currently running the older CP461-10 modules.
3. Reliability: Built to Yokogawa’s exacting standards, it delivers years of continuous service in 24/7 industrial operations.
