Functional Overview

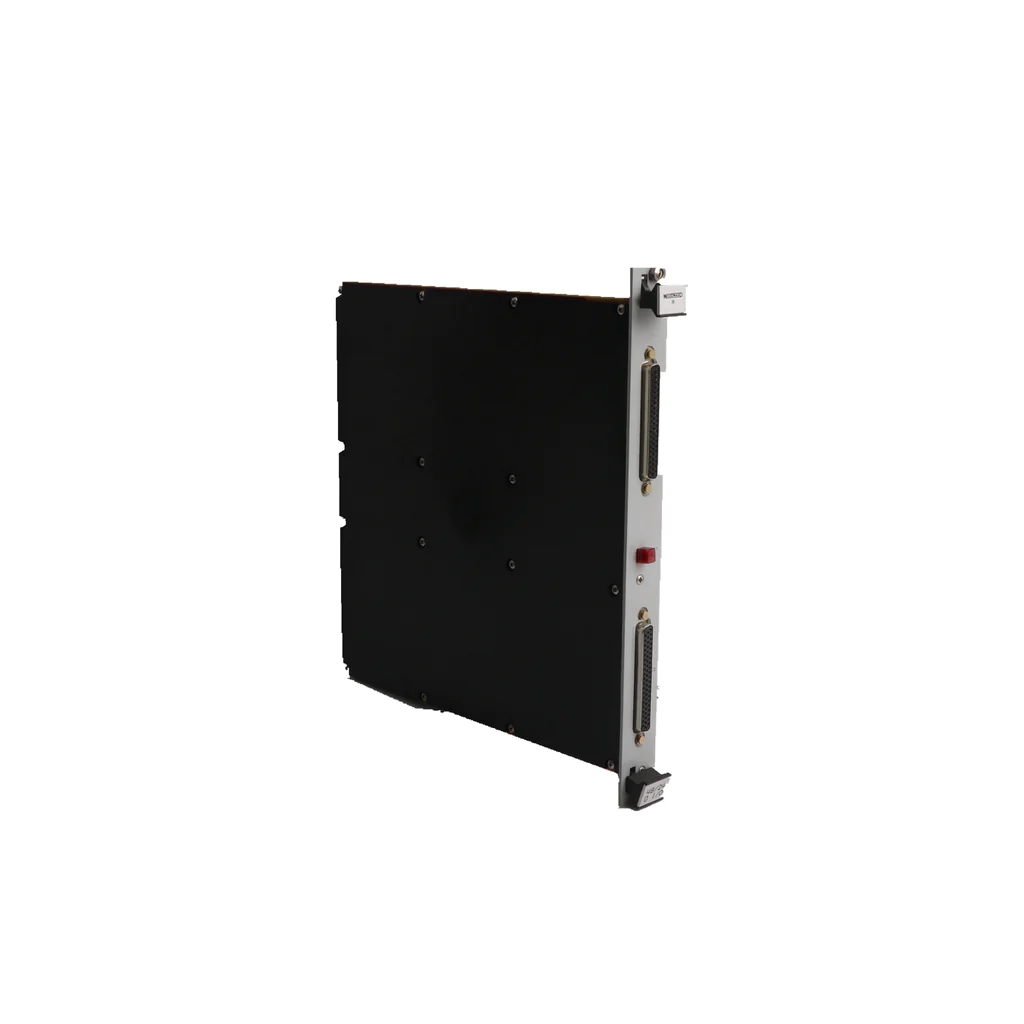

The Woodward 5466-5026 provides the interface between the central processing unit and external field devices. Specifically, this module features 48 discrete channels, typically configured as 24 digital inputs and 24 digital outputs. Because Woodward designs these for high-speed industrial applications, the module supports fast update rates for real-time turbine sequencing and protection. Furthermore, the 5466-5026 utilizes 24 VDC logic levels, making it compatible with a wide range of industrial sensors, switches, and solenoids. Therefore, this hardware acts as the primary sensory and execution layer for the MicroNet architecture.

Reliable Signal Processing

Accuracy and electrical isolation define the hardware profile of the 5466-5026. The module incorporates advanced filtering and debouncing logic to ensure that electrical noise does not trigger false state changes. Additionally, the discrete outputs feature short-circuit protection and over-current monitoring to prevent damage to the internal circuitry. Consequently, the module maintains stable operation even in the high-EMI (electromagnetic interference) environments typical of power generation plants.

System Integration and Hot-Swap Capability

As a member of the MicroNet Plus series, the Woodward 5466-5026 supports a high-performance VME-based backplane. This allows for seamless data exchange with the CPU and other I/O modules in the rack. Furthermore, the module is designed for “hot-swap” functionality in many configurations, allowing technicians to replace components without shutting down the entire control system. In other words, this module provides the scalability and serviceability required for mission-critical turbine operations.

Technical Specifications

The 5466-5026 delivers high-density I/O in a single-slot form factor, maximizing rack space efficiency.

Installation and Maintenance

To begin, ensure you follow proper ESD (electrostatic discharge) procedures when handling the module. First, align the Woodward 5466-5026 with the designated slot in the MicroNet chassis and slide it firmly until the connectors seat into the backplane. Next, secure the front panel screws to ensure mechanical stability and proper grounding.

Furthermore, use the Woodward Graphic Application Programmer (GAP) software to configure the I/O mapping for your specific turbine application. Meanwhile, check the front panel LEDs during startup; specifically, a green “OK” light confirms that the module has passed its internal self-test. Finally, monitor the diagnostic parameters in the HMI to ensure that field wiring remains free of faults or ground loops.

Packaging List

• 1 x Woodward 5466-5026 Discrete I/O Module

• 1 x Technical Hardware Summary

• 1 x Anti-Static Protective Shield

• Shipping Carrier: Fedex, UPS, DHL

FAQ

Q: What is the main difference between the 5466-5026 and other MicroNet I/O cards?

Specifically, this model provides a high-density 48-channel discrete interface (24 in/24 out) optimized for 24VDC industrial logic.

Q: Does this module support redundant configurations?

Yes. In a MicroNet Plus chassis, you can utilize dual 5466-5026 modules to provide redundant I/O paths for critical safety functions.

Q: Can I use this with 125VDC field signals?

No. The 5466-5026 is rated for 24VDC logic. For higher voltage signals, you must use interposing relays or a different Woodward module rated for those levels.

Q: Are the outputs protected against short circuits?

Yes. The digital outputs feature onboard protection that prevents internal hardware damage if a field device shorts to ground.

Q: How do I identify a module failure?

The module includes front-panel LEDs. A red fault light or a flickering status light usually indicates a hardware failure or a communication error with the CPU.
