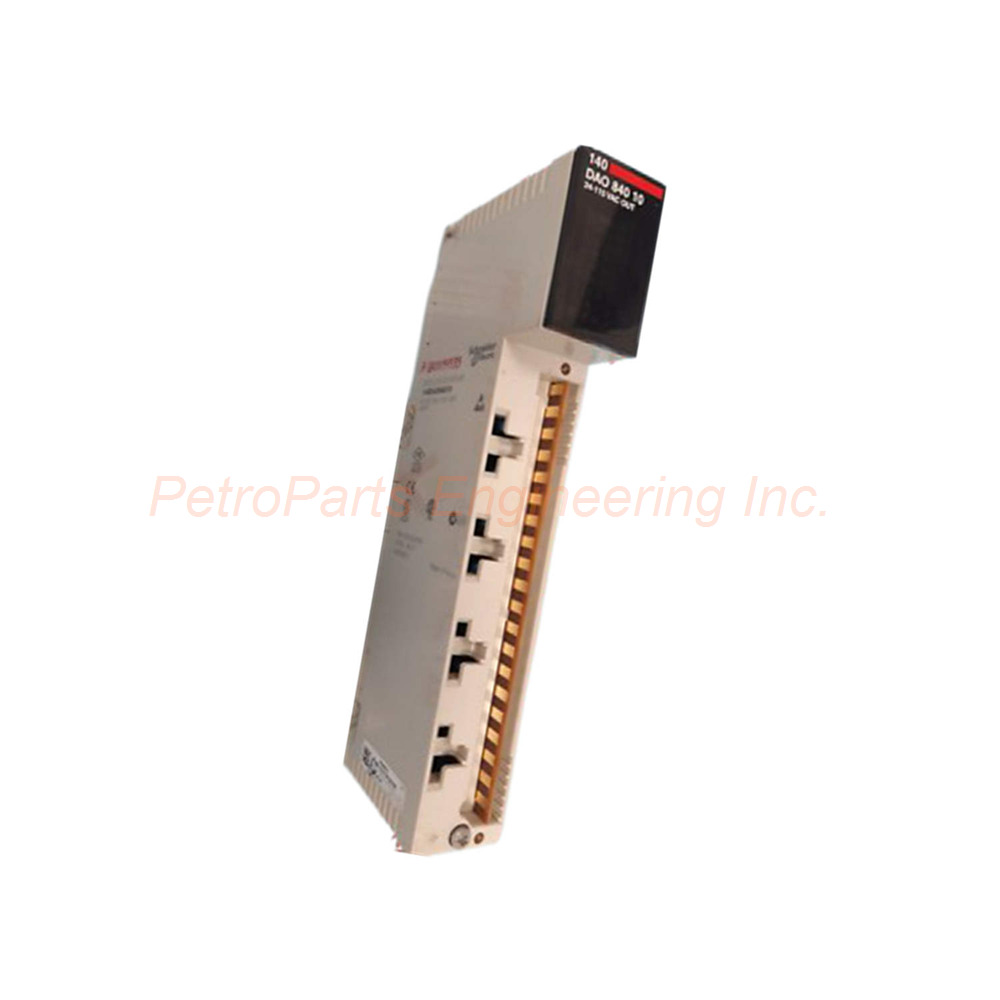

Robust 140DAO84010 AC Discrete Output Module for Modicon Quantum

Technical Specifications Overview
First, let us examine the core parameters of the 140DAO84010. This module offers 16 isolated sinking output channels. Each channel delivers an output voltage ranging from 20 to 132V AC at 47-63 Hz. The maximum continuous current per point is 4A RMS. In addition, the total module current capacity is 16A RMS . The maximum voltage drop across each output is only 1.5V for efficient power delivery. Furthermore, the 140DAO84010 requires 1 output word for addressing in the control system. The bus current requirement is 350 mA from the backplane.

Performance and Surge Handling Capabilities
Now let us discuss the dynamic performance of this module. The Schneider Electric 140DAO84010 responds in ≤ 0.5 ms for both On and Off transitions. As a result, it handles high inrush loads commonly found in inductive devices. For example, the module supports a surge current of 30A for one AC cycle per point. Similarly, for short overloads, it tolerates 20A for two cycles per point. The absolute maximum output reaches 156V for 10 seconds and 200V for one cycle . Moreover, an internal RC filter provides excellent dv/dt protection rated at 400 V/ms. Power dissipation is calculated as 1.85 + (1.1V x total module load current) .

Environmental Tolerances and Physical Protection
Next, consider the environmental ratings for the 140DAO84010. This module operates reliably in demanding industrial conditions. Specifically, its operating temperature range is 0°C to 60°C . The storage temperature range extends from -40°C to 85°C . Maximum relative humidity tolerance is 95% without condensation . The module groups its 16 channels into 16 isolated groups of 1 channel each. Therefore, this isolation prevents ground loops and cross-channel faults. Local signaling includes 16 green LEDs for channel status. Additionally, there is one green Active LED and one red F fault LED. The module carries the CE Marking for European compliance.

Mounting and Installation Guide
After understanding the specifications, follow these steps to install the Modicon Quantum 140DAO84010. First, ensure the Quantum backplane is powered off before insertion. Then, align the module with a standard slot on the rack. Next, push the 140DAO84010 firmly until the locking tabs engage securely. After that, wire each output channel to your field devices (contactors, solenoids). Also, install an external 5A fuse on each output for short-circuit protection. Finally, configure the module using your programming software with 1 output word . For your reference, the off-state leakage current is 2 mA RMS maximum at 115V AC.

Packing List
The package includes the following physical items:

1. 140DAO84010 AC Discrete Output Module (One unit)

2. Removable screw terminal block for field wiring.

3. Product installation and wiring guide.

Frequently Asked Questions (FAQ)

1. Can the 140DAO84010 control both 24V AC and 110V AC loads?
Yes, the 140DAO84010 accepts any AC voltage from 20 to 132V. As a result, this includes 24V, 48V, 110V, and 120V AC systems.

2. What does the red F LED indicate on the 140DAO84010?
The red F LED lights up when an external fault is detected. Typically, this means a blown external fuse or a field wiring short circuit.

3. Is the Schneider Electric 140DAO84010 compatible with older Quantum CPUs?
Yes, the 140DAO84010 works with all Modicon Quantum CPUs that support discrete I/O modules. However, check your CPU’s backplane current budget (350 mA required) first.

4. How do I reduce false triggering on my 140DAO84010 outputs?
The module has an internal RC filter already in place. Nevertheless, ensure your field wiring is separated from high-power AC cables to avoid induced noise.
