Product Overview

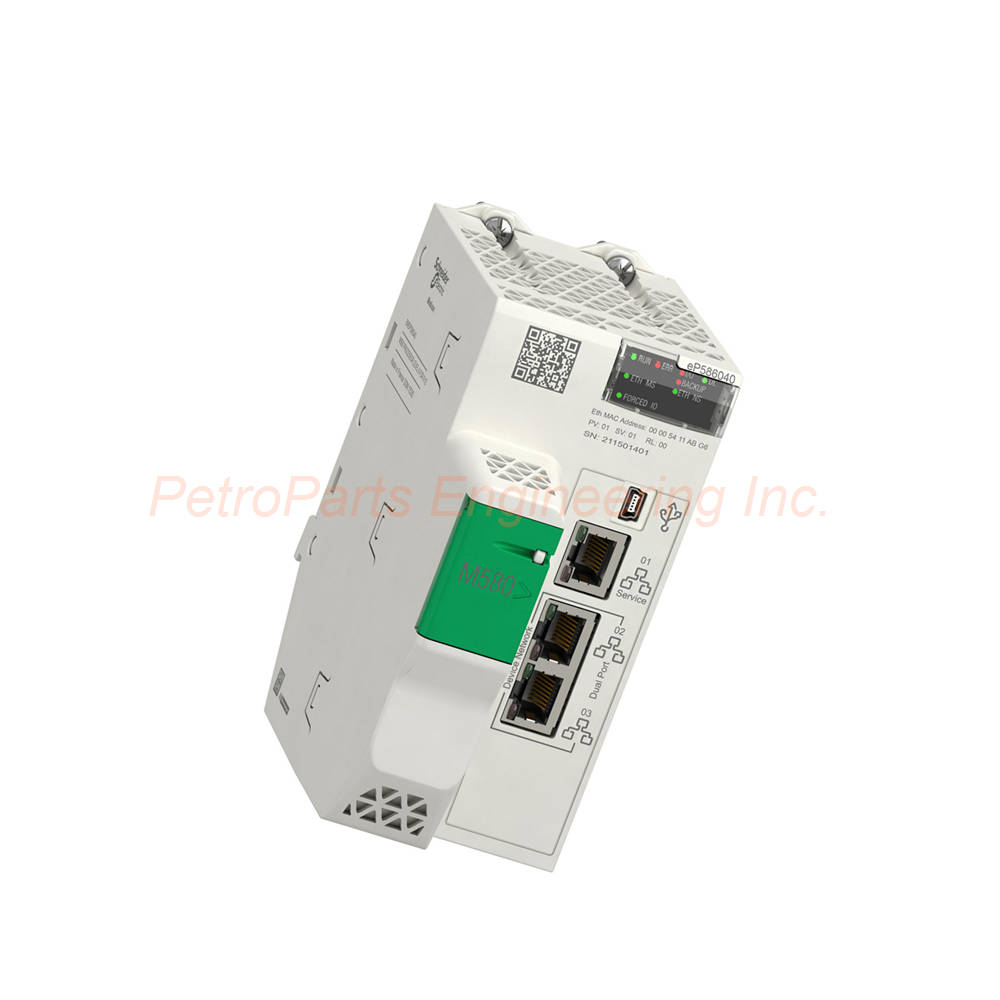

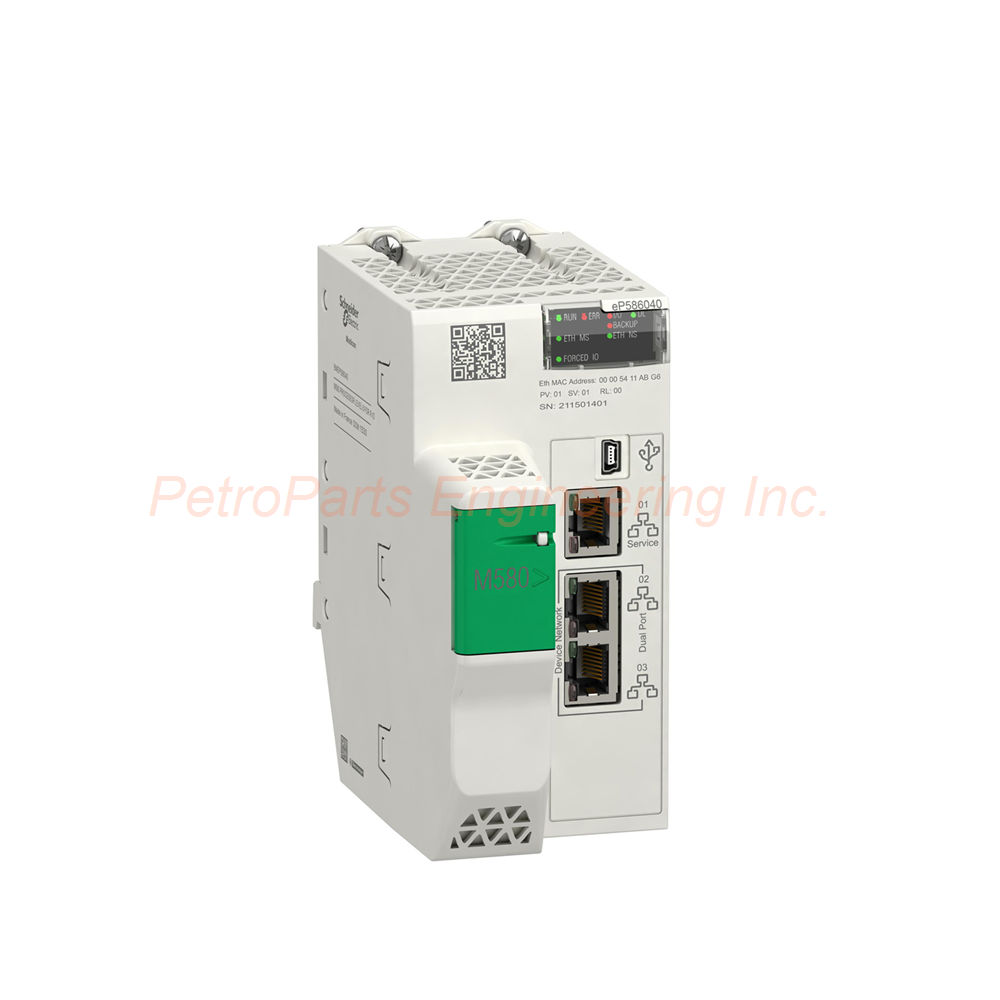

The Schneider BMEP586040C belongs to the Modicon M580 range of processors. This module provides powerful local I/O processing for control applications. The Schneider BMEP586040C supports up to 8 racks in a single system. You get 6144 discrete I/O and 1536 analog I/O capacity locally. The module has integrated Ethernet and USB connectivity. The Schneider BMEP586040C includes conformal coating for harsh environment protection.

Technical Specifications

The Schneider BMEP586040C delivers high performance processing for Modicon M580 systems. All parameters follow the official datasheet.

Memory & Performance

• Integrated RAM: 10 kB system memory

• Integrated RAM: 64 MB program and data

• Expandable flash: 4 GB data storage

• Instructions per ms (100% Boolean): 50 Kinst/ms

• Instructions per ms (65% Boolean + 35% arithmetic): 40 Kinst/ms

• MTBF reliability: 775,000 hours

• The Schneider BMEP586040C delivers exceptional processing speed for complex logic.

Application Structure

• Application structure tasks: 1 cyclic/periodic master task, 1 periodic fast task, 2 auxiliary tasks, 128 event tasks

• Control channels: Programmable loops for process control

• Checks: Built-in diagnostic capabilities

I/O Capacity

• Local I/O processor capacity (discrete): 6144 I/O

• Local I/O processor capacity (analog): 1536 I/O

• Number of application specific channels (local rack): 216

• Number of remote I/O stations: 31 (2 remote drop)

• Number of distributed equipment: 64

Communication Capabilities

• Communication module processor capacity: 6 Ethernet communication modules, 16 AS-Interface modules

• Communication services: RIO scanner, DIO scanner

• Application specific I/O: Serial link, HART, motion control, accurate time stamping, SSI encoder, counter

Integrated Connection Types

• Integrated connection type: 1 Ethernet TCP/IP service port, 2 Ethernet TCP/IP device network, USB type mini B

• The Schneider BMEP586040C provides versatile connectivity for programming and networking.

Power & Current

• Supply: Internal power supply via rack

• Current consumption: 300 mA at 24 V DC

• Impregnation material: Conformal coated

Status LEDs

The Schneider BMEP586040C provides comprehensive status indication:

• 1 LED (Green): Processor running (RUN)

• 1 LED (Red): Processor or system fault (ERR)

• 1 LED (Red): I/O module fault (I/O)

• 1 LED (Green): Download in progress (DL)

• 1 LED (Red): Memory card or CPU flash fault (BACKUP)

• 1 LED (Green/Red): ETH MS (Ethernet port configuration status)

• 1 LED (Green/Red): Eth NS (Ethernet network status)

• 1 LED (Green): I/O values overridden by user (FORCED IO)

Environmental Specifications

• Ambient air temperature for operation: -25°C to 60°C (-13°F to 140°F)

• Ambient air temperature for storage: -40°C to 85°C (-40°F to 185°F)

• Relative humidity: 5 to 95 percent at 55°C (131°F) without condensation

• IP degree of protection: IP20

• Operating altitude: 0 to 2000 m (0 to 6562 ft); 2000 to 5000 m with derating factor

• Vibration resistance: 3 gn

• Shock resistance: 30 gn

• Protective treatment: Conformal coating

Certifications & Directives

• Directives: 2014/35/EU (low voltage), 2014/30/EU (EMC), 2014/34/EU (ATEX)

• Product certifications: CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22

• Standards: IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5 interface type 1 and type 2, EN/IEC 61850-3 location G, IEC 60079-0

Environmental Characteristics

• Gas resistant class: Gx ISA S71.04, 3C4 IEC 60721-3-3

• Dust resistant class: 3S4 IEC 60721-3-3

• Sand resistant class: 3S4 IEC 60721-3-3

• Salt resistant level: 2 IEC 68252

• Mold growth resistant class: 3B2 IEC 60721-3-3

• Fungal spore resistant class: 3B2 IEC 60721-3-3

• Hazardous location: Class I division 2

Physical Specifications

• Product weight: 1.872 lb (0.849 kg)

• Marking: CE

• Country of origin: FR (France)

• GTIN: 3606485440064

• Returnability: No

Packaging Details

• Unit type of package 1: PCE (1 unit per package)

• Package 1 height: 3.54 in (9.000 cm)

• Package 1 width: 7.05 in (17.900 cm)

• Package 1 length: 9.92 in (25.200 cm)

• Package 1 weight: 31.146 oz (883.000 g)

• Unit type of package 2: S03 (6 units)

• Package 2 weight: 12.732 lb (5.775 kg)

Installation Guide

Follow these steps to install the Schneider BMEP586040C correctly.

1. Power down your Modicon M580 rack before inserting the processor.

2. Align the BMEP586040C with the correct slot in the rack.

3. Slide the processor firmly into place until fully seated.

4. Connect Ethernet cables to the service port and device network ports.

5. Connect a USB cable to the mini B port for programming.

6. Apply 24 V DC power to the Schneider BMEP586040C.

7. Verify the green RUN LED illuminates and red ERR LED remains off.

Packing List

This package for the Schneider BMEP586040C includes the following items.

• Schneider BMEP586040C processor module (one unit)

• Product documentation and quick start guide

• Anti-static protective bag

• Conformal coating certificate

Frequently Asked Questions (FAQ)

1. How much memory does the BMEP586040C have?
The Schneider BMEP586040C has 64 MB of program and data RAM. It also has 10 kB of system memory and 4 GB of expandable flash data storage.

2. What is the processing speed of the BMEP586040C?
The Schneider BMEP586040C executes 50 Kinstructions per millisecond for 100 percent Boolean logic. For mixed logic, it executes 40 Kinstructions per ms.

3. How many racks does the Schneider BMEP586040C support?
The Schneider BMEP586040C supports up to 8 racks. The local I/O capacity is 6144 discrete I/O and 1536 analog I/O.

4. What communication ports are on the BMEP586040C?
The Schneider BMEP586040C has 1 Ethernet TCP/IP service port, 2 Ethernet TCP/IP device network ports, and 1 USB mini B port.

5. What is the operating temperature range for the BMEP586040C?
The Schneider BMEP586040C operates from -25°C to 60°C (-13°F to 140°F). Storage temperature ranges from -40°C to 85°C (-40°F to 185°F).
