Schneider 140XTS33200 I/O Connector | Modicon Quantum 40-Pin Blue
Introduction:

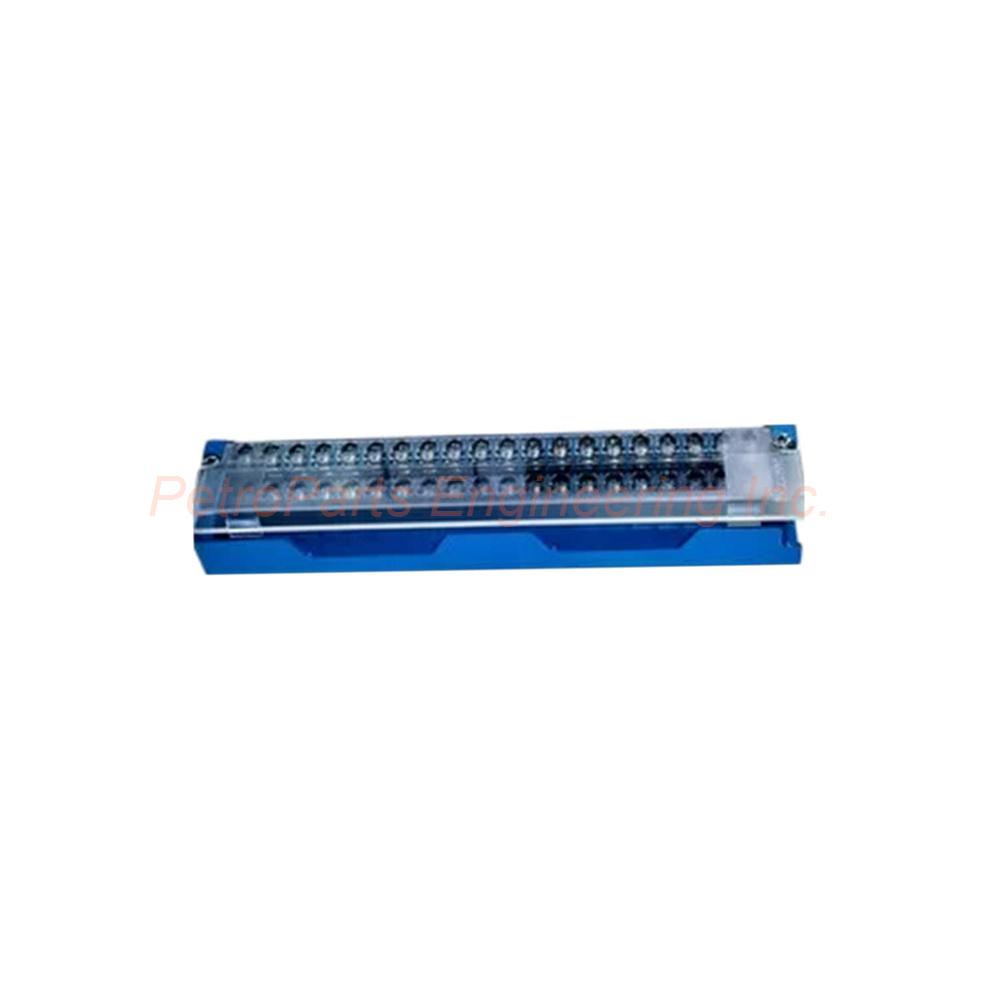

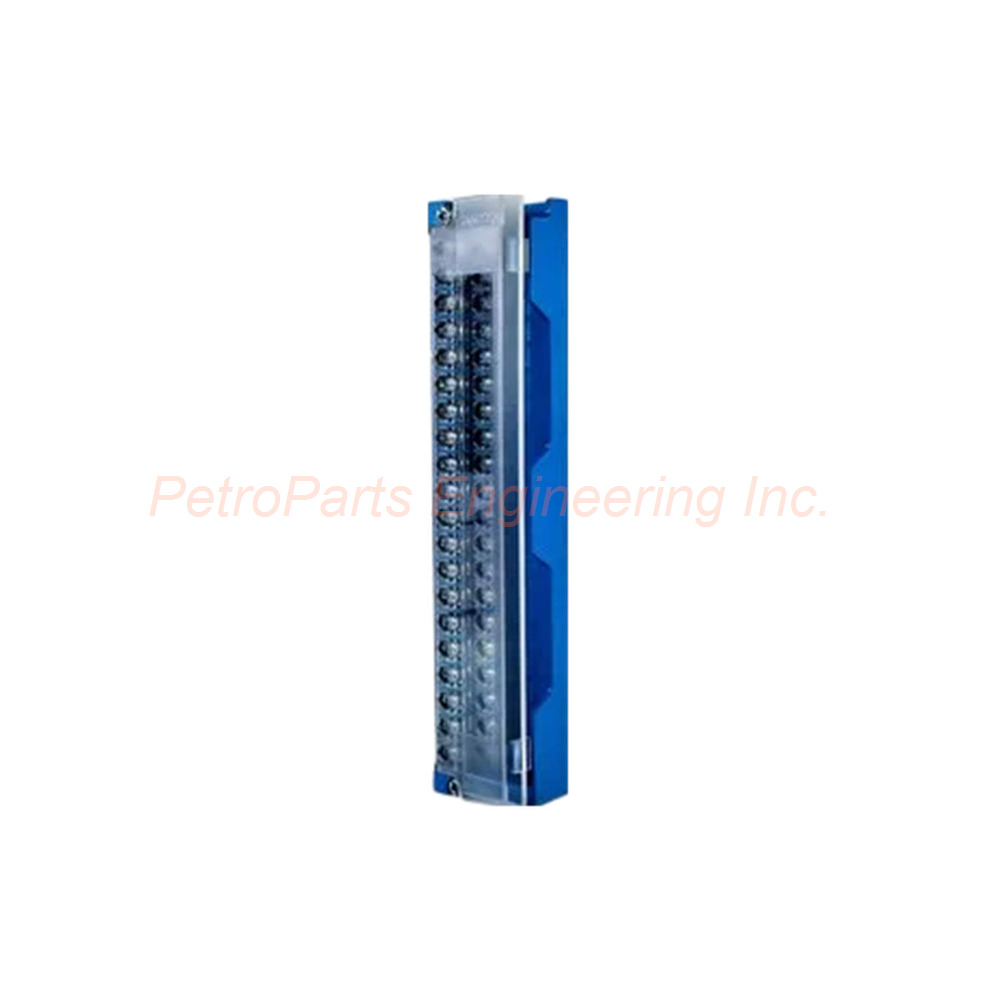

Schneider Electric 140XTS33200 I/O connector for Quantum intrinsically safe modules. 40 pins, 8 channels, blue color coding. IP20 rated.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Product Overview
The Schneider Electric 140XTS33200 connects your Quantum I/O modules to field devices. This accessory belongs to the Modicon Quantum series. It provides 40 pins for eight independent signal channels. The 140XTS33200 works specifically with intrinsically safe I/O modules. Its blue color code helps technicians identify it quickly in control cabinets. You need this connector to wire analog or digital inputs safely.
Technical Specifications
Connector Characteristics
Connector Type: I/O connector (terminal strip)
Number of Pins: 40 pins
Number of Channels: 8 channels
Color: Blue (intrinsically safe identification)
Protection Rating: IP20
The 140XTS33200 mounts directly on compatible I/O modules. Its IP20 rating suits indoor control cabinet installation. Do not expose this connector to water or dust directly.
Electrical Isolation
Isolation Type: Galvanic isolation between channels
Isolation Voltage: 500 Vrms (channel to channel)
Intrinsically Safe: Yes (module class)
Galvanic isolation prevents signal interference on the 140XTS33200. Each of the eight channels operates independently. A short circuit on one channel does not affect the others. This feature improves safety in hazardous area applications.
Compatible Modules
The Schneider Electric 140XTS33200 works with these Quantum I/O modules:
| Module Number | Module Type | Description |
|---|---|---|
| 140AII33000 | Analog Input | 8-channel isolated analog input |
| 140DII33000 | Digital Input | 8-channel isolated digital input |
| 140DIO33000 | Digital I/O | Mixed digital input/output module |
| 140AII33010 | Analog Input | 8-channel high-speed analog input |
| 140AIO33000 | Analog I/O | Mixed analog input/output module |
Always verify compatibility before ordering the 140XTS33200. These five modules require this specific blue connector. Other Quantum modules use different connector models.
Mechanical Specifications
Physical Dimensions
Height: 85 mm (3.35 in)
Width: 45 mm (1.77 in)
Depth: 55 mm (2.17 in)
Weight: 0.15 kg (0.33 lbs)
Termination Details
Wire Gauge Range: 0.2 to 1.5 mm² (24 to 16 AWG)
Strip Length: 7 mm (0.28 in)
Terminal Type: Screw clamp (rising cage)
Tightening Torque: 0.4 to 0.5 Nm
Use copper wires only with the 140XTS33200. Do not use aluminum or tinned wires. Strip the insulation to exactly 7mm for reliable clamping.
Installation Guidelines
Follow these steps to install the 140XTS33200 connector:
Turn off power to the Quantum I/O module completely.
Remove the protective dust cover from the module's front.
Align the 140XTS33200 with the 40-pin guide rails.
Press the connector firmly until it clicks into place.
Tighten the two locking screws at the top and bottom.
Strip each field wire to 7mm for proper insertion.
Insert each wire into its numbered terminal position.
Tighten each screw clamp to 0.5 Nm torque.
Verify all wires match the module's wiring diagram.
Do not force the Schneider Electric 140XTS33200 onto the module. Bent pins indicate misalignment. Always secure both locking screws to prevent vibration loosening.
Wiring Guide by Channel
The 140XTS33200 assigns specific pins to each of the eight channels:
| Channel | Pin Numbers (Signal) | Pin Numbers (Return) |
|---|---|---|
| Channel 0 | 1, 2 | 21, 22 |
| Channel 1 | 3, 4 | 23, 24 |
| Channel 2 | 5, 6 | 25, 26 |
| Channel 3 | 7, 8 | 27, 28 |
| Channel 4 | 9, 10 | 29, 30 |
| Channel 5 | 11, 12 | 31, 32 |
| Channel 6 | 13, 14 | 33, 34 |
| Channel 7 | 15, 16 | 35, 36 |
Pins 37 through 40 are unused on the 140XTS33200. These pins connect to the module's internal ground shield.
Application Examples
The Schneider Electric 140XTS33200 serves many industries:
HVAC Systems: Connect temperature and pressure sensors
Automotive Testing: Wire thermocouples and strain gauges
Boilers and Furnaces: Connect flame detectors and thermostats
Food Processing: Wire sanitary pressure transmitters
Power Plants: Connect 4-20mA loop powered instruments
Each application benefits from the 140XTS33200 galvanic isolation. Ground loops cannot form between different measurement channels.
Environmental Information
Protection Rating: IP20 (finger-safe, not waterproof)
Temperature (Operation): 0…60°C (32…140°F)
Temperature (Storage): -40…85°C (-40…185°F)
Relative Humidity: 95% non-condensing
Pollution Degree: 2 (for use in control rooms)
Keep the 140XTS33200 inside a NEMA 12 or IP54 enclosure. Direct moisture contact will damage the connector pins.
Packaging List
1 x Schneider Electric 140XTS33200 I/O connector (40 pins)
1 x dust cover for unused connector
1 x terminal number label sheet
1 x wiring diagram insert
Common FAQs
Q1: Can the 140XTS33200 work with non-intrinsically safe modules?
A1: No, the 140XTS33200 is designed only for intrinsically safe modules. Use standard connectors (140XTS00200) for non-IS modules.
Q2: How do I remove the 140XTS33200 from a Quantum module?
A2: Loosen the top and bottom locking screws first. Pull the 140XTS33200 straight outward. Do not twist or rock the connector.
Q3: What happens if I plug 140XTS33200 into an incompatible module?
A3: The 140XTS33200 will physically fit but may damage the module. Check the module documentation before connecting.
Q4: Why is the 140XTS33200 colored blue instead of black?
A4: The blue color identifies intrinsically safe applications. The Schneider Electric 140XTS33200 follows IEC 60079-11 color coding for IS circuits.
Q5: Can I reuse the 140XTS33200 after removing it from a module?
A5: Yes, you can reuse the 140XTS33200 many times. Inspect the 40 pins for bending or corrosion before each reuse.
