=== Technical Specifications ===
--- Physical and Electrical Parameters ---

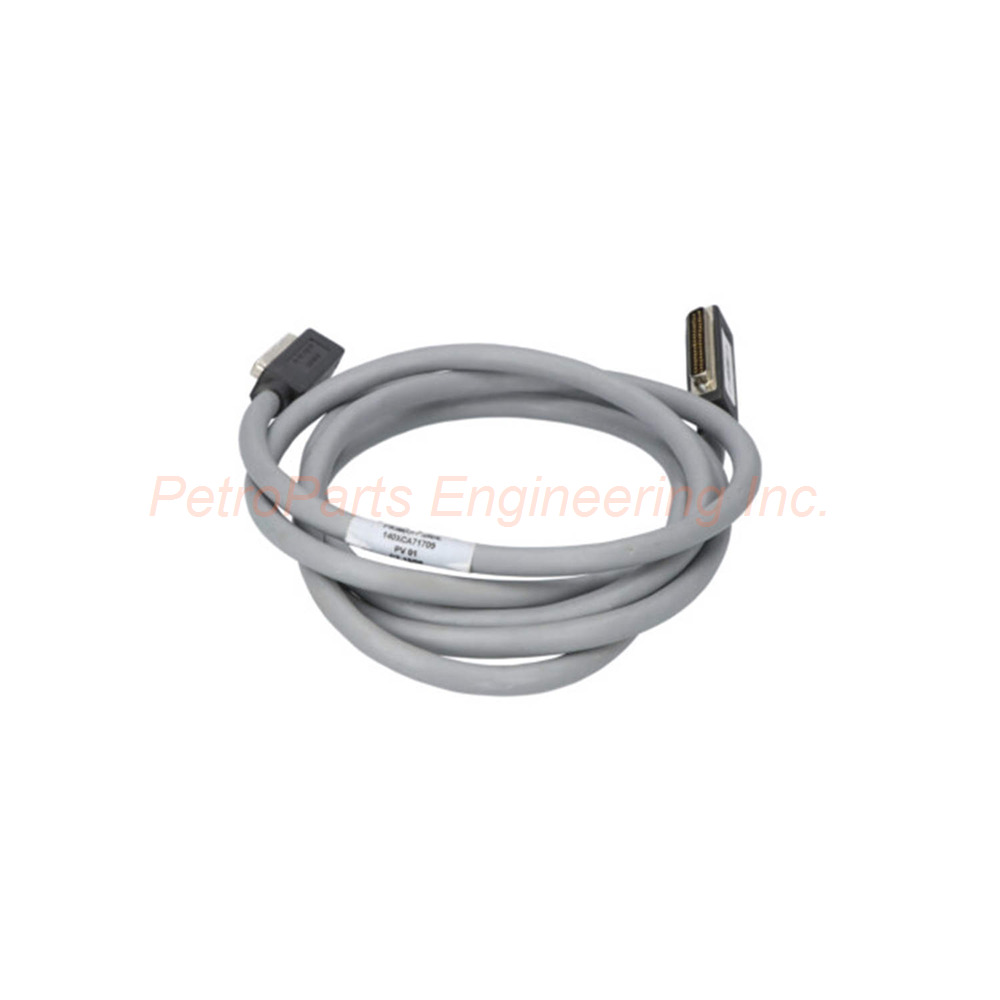

The Schneider Electric 140XCA71709 measures exactly 3 meters (9.84 feet) in length. Consequently, it allows flexible placement of remote I/O racks. Specifically, it requires a 24V DC input voltage for operation. Moreover, this cable has an IP20 protection rating for indoor use. For comparison, the unit weighs only 0.91 kg (2.00 lbs), which makes handling easy.

--- Environmental and Temperature Ranges ---
Regarding environmental performance, the 140XCA71709 operates from -20°C to 60°C reliably. Similarly, it can be stored from -40°C to 85°C safely. Additionally, this cable works at altitudes up to 2000 meters. As a result, such ranges suit most factory floor conditions.

--- Communication and Compatibility ---
When it comes to connectivity, this cable uses the Modbus TCP/IP communication interface. However, the Schneider Electric 140XCA71709 is compatible with the 140XBE10000 backplane expander only. Therefore, do not use it with other devices to avoid signal issues. This ensures signal integrity across long distances.

=== Installation and Application Guide ===
--- Primary Applications ---
For optimal use, employ the 140XCA71709 to separate your Quantum racks. As an example, place the main rack up to 3 meters from the expansion rack. Thus, this helps you fit systems into large cabinets. Clearly, it is ideal for distributed control systems.

--- Step-by-Step Installation ---
To begin, route the Schneider Electric 140XCA71709 away from power cables. Next, secure the cable using plastic clips every 30 cm. After that, ensure you do not bend the cable sharply at the connectors. Then, plug one end into the main rack's expander port. Finally, plug the other end into the 140XBE10000 module.

=== Packing List ===

• Schneider Electric 140XCA71709 Backplane Expander Cable (3m)

• Two cable tie mounts with adhesive backing

• Product identification label sheet

=== Frequently Asked Questions (FAQ) ===
1. Can I cut the 140XCA71709 to make it shorter?
No, you cannot cut the Schneider Electric 140XCA71709. Otherwise, cutting will destroy the shielding and impedance. As a result, you must use the cable at its full 3-meter length or coil the excess.

2. Does this cable work with the 140XBP01600 chassis?
No, the 140XCA71709 only works with the 140XBE10000 expander. Specifically, it does not connect directly to any chassis. Consequently, you need the expander module in between for proper function.

3. What happens if the cable exceeds 3 meters?
The Schneider Electric 140XCA71709 is only available in 3 meters. In fact, longer distances are not supported by the Quantum backplane. Therefore, signal degradation will occur beyond this specified length.

4. Is the IP20 rating safe for washdown areas?
No, the 140XCA71709 has an IP20 rating only. For example, it resists fingers but not water jets. Thus, keep this cable inside a sealed panel if water is present on site.

5. Can I use two cables together for more length?
No, daisy-chaining the 140XCA71709 is not allowed. Moreover, the Quantum system supports only one cable per expander. Hence, use a single 3-meter run for the best reliability.
