GE Nexus MDO53 369B1844G5004 16-Channel AC Relay Output Module
Introduction:
GE Nexus MDO53 369B1844G5004 digital output module. 16 AC relay outputs, 12A@250V AC capacity. LED status indicators. High isolation voltage.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
GE Nexus MDO53 369B1844G5004 Digital Output Module

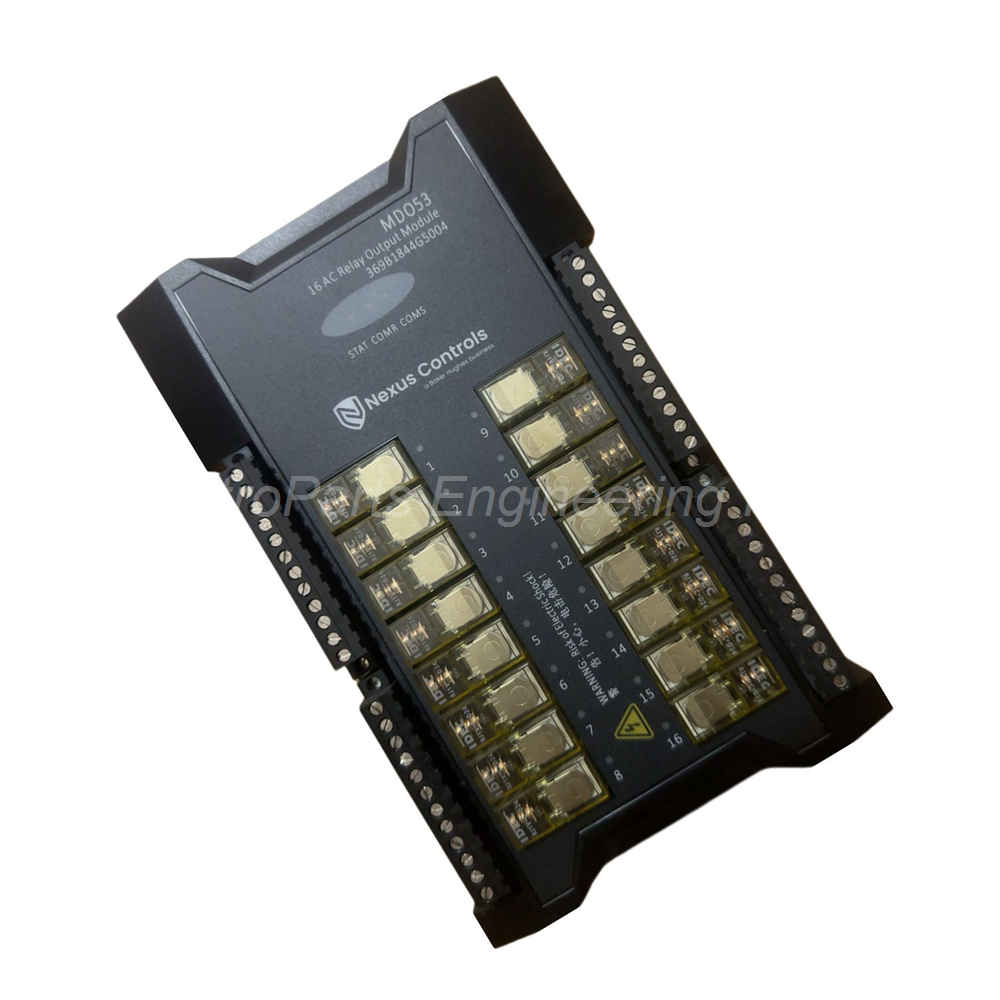

The GE Nexus MDO53 369B1844G5004 is a digital output module with relay outputs. This device belongs to the Nexus product family from GE. You can use it for switching AC and DC loads in industrial systems. The module provides 16 channels of AC relay outputs. It is designed for use with Nexus control systems.
Technical Specifications of the 369B1844G5004
The GE Nexus MDO53 369B1844G5004 features 16 channels of AC relay outputs. The output type uses 24V DC for control with 100 mA drive. Each channel has a dedicated output LED indicator. The LED shows the channel output status clearly.
Contact Capacity Ratings
The contact capacity for resistive loads is 12A at 250V AC. For resistive DC loads, the rating is 12A at 30V DC. For inductive AC loads, the rating is 7.5A at 250V AC. The GE Nexus MDO53 369B1844G5004 handles a wide range of load types.
LED Indicators
The module includes multiple LED indicators. These show the module operating status clearly. The LEDs also indicate communication status. Fault alarm status is also displayed for quick troubleshooting.
Isolation Specifications
The GE Nexus MDO53 369B1844G5004 provides 1000V AC isolation between channels. Channel-to-ground isolation is 2500V AC. Channel-to-system isolation reaches 3000V AC. This high isolation ensures safe operation in industrial environments.
Power Consumption
Typical power consumption is 1.3 Watts for energy efficiency. Maximum power consumption reaches 11 Watts under full load.
Physical Dimensions
The GE Nexus MDO53 369B1844G5004 measures 49 x 14 x 2.7 cm. This compact size saves cabinet space. The module weight is 0.4 kg for easy handling.
Certifications
The module carries CE certification with the system. This ensures compliance with European standards.
Installation Guidelines for the 369B1844G5004
Mount the GE Nexus MDO53 369B1844G5004 in a clean and dry cabinet. Ensure proper ventilation around the module. Do not exceed the contact ratings for your load type. Use appropriate snubbing for inductive loads. Verify the control voltage is 24V DC at 100 mA per channel.
Package Contents
One (1) GE Nexus MDO53 369B1844G5004 digital output module
Installation and wiring manual
Common FAQs for the 369B1844G5004
1. How many output channels does the MDO53 have?
The GE Nexus MDO53 369B1844G5004 provides 16 channels of AC relay outputs. Each channel has a dedicated LED indicator.
2. What is the contact rating for resistive AC loads?
For resistive AC loads, the GE Nexus MDO53 369B1844G5004 is rated at 12A at 250V AC. For inductive AC loads, the rating is 7.5A at 250V AC.
3. What is the isolation voltage for this module?
The GE Nexus MDO53 369B1844G5004 has 1000V AC channel-to-channel isolation. Channel-to-ground is 2500V AC. Channel-to-system is 3000V AC.
4. What is the typical power consumption?
The GE Nexus MDO53 369B1844G5004 consumes 1.3 Watts typically. Maximum consumption is 11 Watts under full load.
5. What are the dimensions of this module?
The GE Nexus MDO53 369B1844G5004 measures 49 x 14 x 2.7 cm. The module weight is 0.4 kg.
Why Choose the GE Nexus MDO53 369B1844G5004?
This digital output module provides 16 relay channels for load switching. The high isolation ratings ensure safe industrial operation. The LED indicators simplify troubleshooting and maintenance. The compact size saves valuable cabinet space. Order the GE Nexus MDO53 369B1844G5004 today for your relay output needs.
