GE MAO50 369B1842G5005 Analog Output Module 8 Channel
Introduction:
This article covers the GE MAO50 369B1842G5005 analog output module. It details technical specs, output ranges, and FAQs. This module provides precise analog signals for field devices.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Product Overview
The 369B1842G5005 is an analog output module from GE. This module belongs to the MAO50 series. It converts digital signals from the PLC to analog outputs. The device controls actuators like valves and drives. A high-performance 32-bit embedded processor manages all operations.
Technical Specifications
The 369B1842G5005 requires dual 24V DC power inputs with ±10% tolerance. The power supply supports 1:1 redundancy for maximum reliability. Power consumption stays below 6.5W. The module mounts using standard screw fixation.
This analog output module offers 8 output channels. Each channel has its own dedicated 12-bit D/A converter. This design ensures independent and precise signal generation. The measurement error is a maximum of 0.1%. This high accuracy suits demanding control applications.
Output Ranges for 369B1842G5005
The 369B1842G5005 supports current output signals of 0-20 mA or 4-20 mA. Many channels also support voltage output options. Voltage ranges include 0-5V or 1-5V depending on configuration. This flexibility matches many different field actuators.
Check your specific channel configuration for voltage support. The 369B1842G5005 provides clear labeling for each channel. Always verify the output type before connecting to your device.
Load Capacity
The 369B1842G5005 handles different loads for each output type. Current outputs drive a maximum load of 1000 Ω. This allows long cable runs to remote actuators. Voltage outputs need a minimum load of 500 kΩ. Staying within these limits ensures accurate signal output.
Exceeding the maximum load will cause signal errors. The 369B1842G5005 may not drive the connected device properly. Always calculate your loop resistance before installation.
Isolation and Protection Features
The 369B1842G5005 provides excellent electrical isolation. Channel to channel isolation is 250V AC. Channel to ground isolation is 500V AC. This protects your control system from field wiring faults.
The common mode rejection ratio exceeds 120 dB. The 369B1842G5005 rejects electrical noise very effectively. This ensures stable outputs even in noisy environments.
Communications and Connectivity
The 369B1842G5005 uses redundant high-speed intelligent serial buses. The communication rate is 1 Mbps for fast data transfer. A DB-9 female connector provides the bus interface. The terminal connector uses a single-row European-style terminal block. This block is removable for easy wiring replacement.
The terminal block accepts wire up to 2.5 mm². It supports dual-wire connections per terminal. The 369B1842G5005 communicates reliably with the main controller.
LED Indicators
The 369B1842G5005 includes several useful LED indicators. A module run status LED shows operational condition. A communication status LED indicates bus activity. A fault alarm LED warns of any problems. These LEDs help with quick troubleshooting and diagnostics.
Environmental Specifications
The 369B1842G5005 operates from 0°C to 60°C ambient temperature. Humidity range is 10% to 90% without condensation. Vibration tolerance is 10 to 500 Hz. Acceleration must not exceed 10 m/s². The module works in standard industrial environments.
For air quality, dust particle size must exceed 0.5 µm. The maximum concentration is 18,000 particles per liter. The 369B1842G5005 meets these typical industrial conditions. The module carries CE certification with its system.
Dimensions and Standards
The 369B1842G5005 measures 209 mm high by 129.5 mm wide by 51 mm deep. The module meets several important standards. These include CFR 47 FCC Part 15: 2009 and ANSI C63.4-2003. It also complies with EN 61326-1: 2006 and CISPR 11: 2007. IEC 61000-4-2/3/4/5/6/8/11 standards are fully met.
Installation Guidelines
Mount the 369B1842G5005 using screws on a flat panel. Ensure the mounting surface is clean and secure. Connect dual 24V DC power supplies for 1:1 redundancy. Verify the voltage stays within 21.6 to 26.4V DC. Connect field actuators to the 8 output channels. Use shielded twisted pair cables for all analog wiring. Keep output wires away from high-voltage power cables. Remove the terminal block for easier wiring access. Push the block back firmly after completing all connections. Configure the software for your specific output ranges. Test each channel with a known load before connecting to expensive actuators.
Package List
-

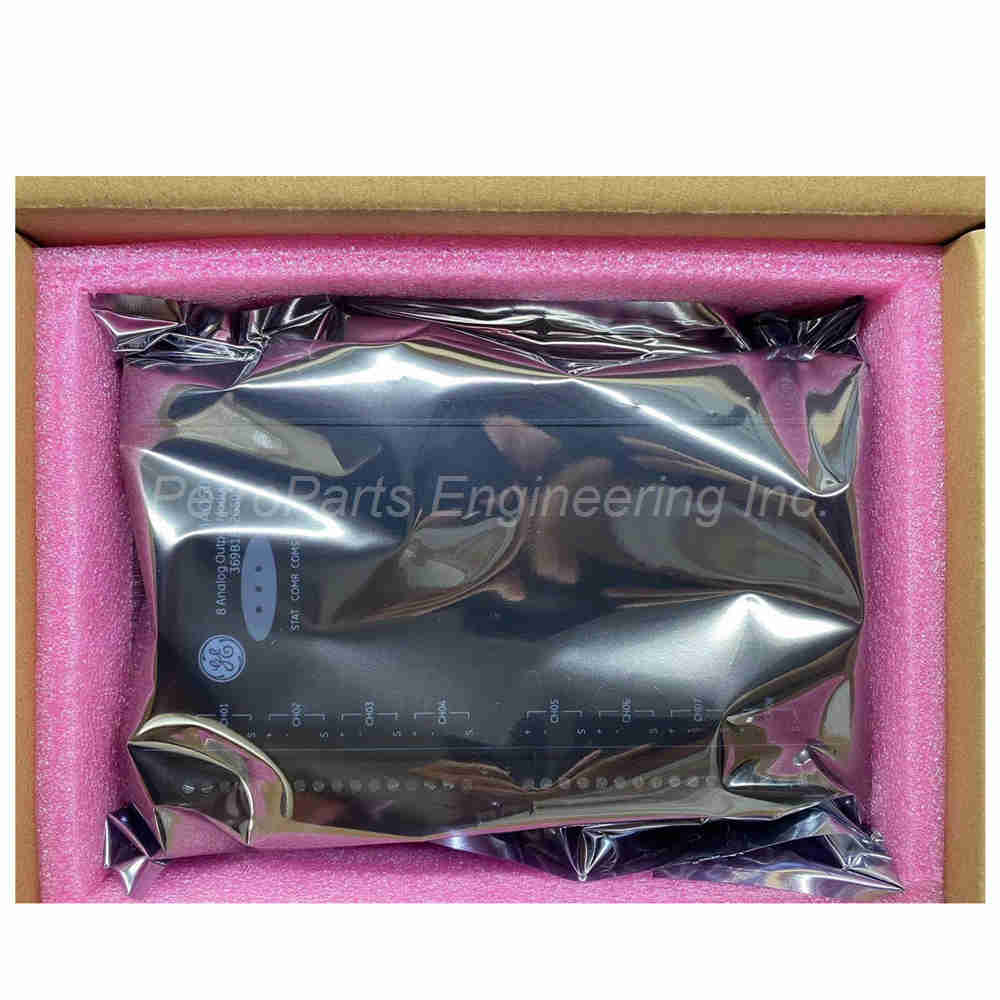

1 x GE MAO50 369B1842G5005 Analog Output Module
-
1 x Removable European-style terminal block
-
2 x Mounting screws for panel installation
-
1 x DB-9 communication connector
-
1 x Quick start configuration guide
Frequently Asked Questions (FAQ)
Q1: Can all 8 channels on the 369B1842G5005 output voltage?
No, only selected channels support voltage output. Check the 369B1842G5005 documentation for channel-specific capabilities.
Q2: What happens if I exceed the 1000Ω load on current output?
The output signal will drop below the expected value. The 369B1842G5005 cannot drive loads higher than 1000Ω.
Q3: Is the 0.1% error typical or maximum?
The 0.1% figure is the maximum error guarantee. The 369B1842G5005 typically performs better than this specification.
Q4: How does the 1:1 redundant power supply work?
Two independent 24V DC supplies connect to the module. The 369B1842G5005 continues working if one supply fails.
Q5: What is the advantage of separate D/A converters per channel?
Each channel has its own 12-bit DAC on the 369B1842G5005. This prevents interaction between channels and allows simultaneous updates.
