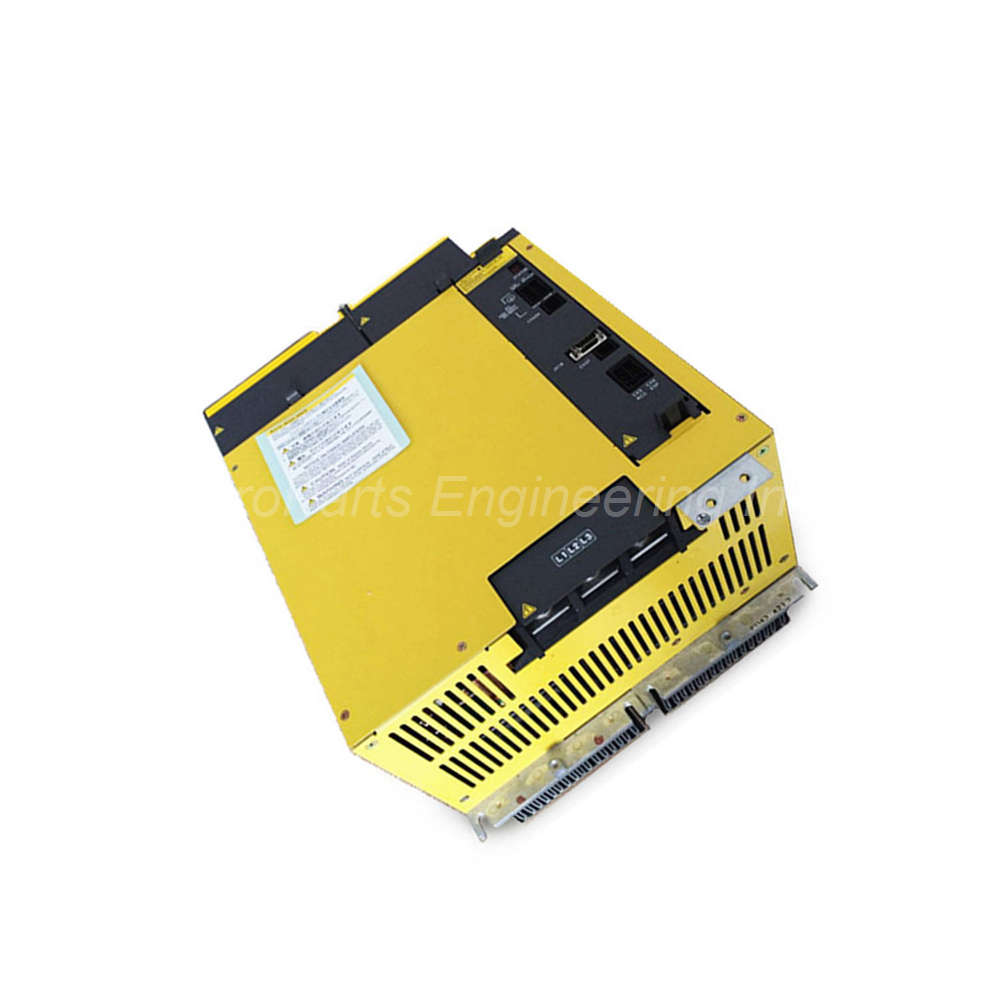

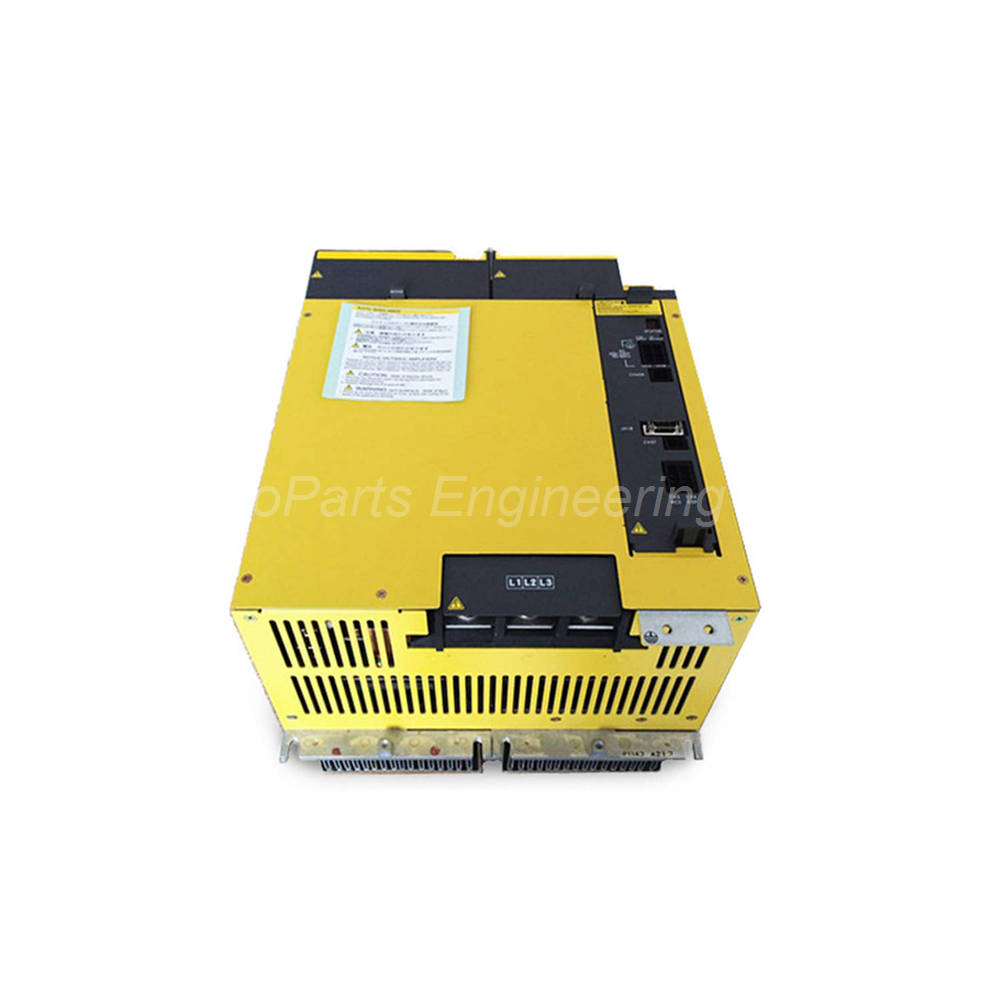

FANUC A06B-6140-H055 High-Power Servo Amplifier Module

The FANUC A06B-6140-H055 is a high-power servo amplifier module. This device belongs to the A06B product series from FANUC. You can use it for demanding motor control applications. The unit is designed for high-performance industrial automation. It handles substantial power for large servo systems.

Technical Specifications of the A06B-6140-H055

The FANUC A06B-6140-H055 operates under a voltage class of 200V. The rated input voltage ranges from 200 to 240 VAC. The main input current is 228 Amps for high-power tasks. The input frequency operates at 50 Hz or 60 Hz. The voltage phase is 3-phase for industrial power systems.

Output Specifications

The rated output voltage ranges from 283 to 339V DC. The rated output current is 65 kW of power. This provides substantial energy for large servo motors. The FANUC A06B-6140-H055 is suitable for high-performance applications. It delivers efficient motor control under heavy loads.

Physical Dimensions

The height is 38 cm for cabinet mounting. The width is 30 cm for standard rack spacing. The length is 27.2 cm for depth planning. The FANUC A06B-6140-H055 weighs 45.00 lbs or 20.41 kg. The robust construction ensures long-term reliability.

Installation Guidelines for the A06B-6140-H055

Mount the FANUC A06B-6140-H055 in a sturdy industrial cabinet. Provide 3-phase 200-240V AC power at 228A capacity. Ensure adequate ventilation for heat dissipation. Verify the input frequency matches your power system. Allow sufficient space for the 38 x 30 x 27.2 cm dimensions. Use proper cable gauges for 228A input current.

Package Contents

• One (1) FANUC A06B-6140-H055 high-power servo amplifier module

• Mounting hardware and basic installation guide

Common FAQs for the A06B-6140-H055

1. What is the power output of the A06B-6140-H055?
The FANUC A06B-6140-H055 delivers a rated output current of 65 kW. This provides substantial power for large servo systems.

2. What is the input current requirement for this module?
The FANUC A06B-6140-H055 requires a main input current of 228 Amps. This makes it suitable for high-performance applications.

3. What voltage class does this servo amplifier use?
The FANUC A06B-6140-H055 operates under a 200V voltage class. The rated input voltage is 200 to 240 VAC.

4. What are the dimensions of this module?
The FANUC A06B-6140-H055 measures 38 cm in height, 30 cm in width, and 27.2 cm in length. The weight is 20.41 kg.

5. What is the output voltage range?
The FANUC A06B-6140-H055 provides output voltage from 283 to 339V DC. This matches FANUC Alpha series servo motor requirements.

Why Choose the FANUC A06B-6140-H055?

This high-power servo amplifier delivers 65 kW for demanding industrial applications. The 228A input capacity handles heavy loads reliably. The 3-phase design ensures efficient power conversion. The robust construction guarantees long-term durability. Order the FANUC A06B-6140-H055 today for your high-power servo needs.
