Product Overview

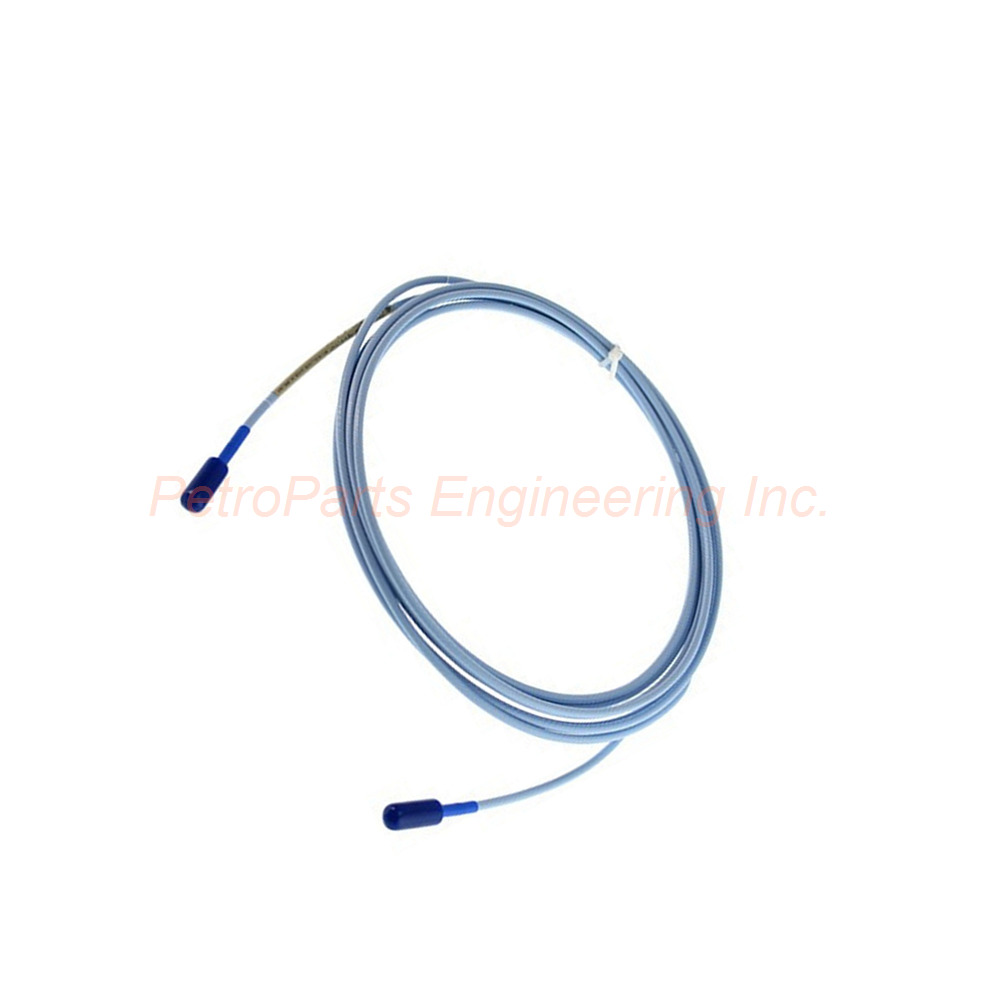

The Bently Nevada 330190-075-00-05 is an extended temperature range extension cable. It belongs to the 3300 XL series for proximity probes. This cable connects a Proximitor sensor to the monitor. You can use the 330190-075-00-05 in very hot or cold environments. The PFA insulation withstands extreme temperatures. Industrial users trust this cable for turbine and compressor monitoring.

Technical Specifications

The 330190-075-00-05 delivers reliable signal transmission in harsh conditions. Below are the core technical details.

Part Number Breakdown:

• 330190: Base part number for 3300 XL ETR extension cable.

• 075: 7.5 meters (24.6 feet) length.

• 00: Standard cable construction.

• 05: CSA, ATEX, IECEx agency approvals.

Electrical Specifications:

• Center Conductor Resistance (RCORE): 1.65 ± 0.25 Ω at 7.5 meters.

• Outer Conductor Resistance (RJACKET): 0.49 ± 0.10 Ω at 7.5 meters.

• Capacitance: 69.9 pF/m (21.3 pF/ft) typical.

• Cable Type: 75Ω triaxial.

Temperature Range & Materials

The 330190-075-00-05 uses special materials for extreme conditions.

Cable Insulation:

• Extended Temperature Range: Perfluoroalkoxy (PFA) insulated.

• Standard Cable: Fluoroethylene propylene (FEP) insulated.

Temperature Limits:

• Operating and Storage: -52°C to +260°C (-62°F to +500°F).

• This is the ETR rating. Standard cables only go to +177°C.

Connector Material:

• Gold-plated brass or gold-plated beryllium copper.

• Maximum Connector Torque: 0.565 N•m (5 in•lbf).

Physical & Mechanical Specifications

• Minimum Cable Bend Radius: 25.4 mm (1.0 inch).

• Cable Weight (Standard): 34 g/m (0.4 oz/ft).

• Cable Weight (Armored): 103 g/m (1.5 oz/ft) – not this model.

• Total Cable Weight: Approx 0.26 kg for 7.5m length.

Proximity Probe System Compatibility

The 330190-075-00-05 works with 3300 XL 8mm probes.

Linear Range:

• 2 mm (80 mils) total range.

• Linear range begins at approximately 0.25 mm (10 mils) from target.

• Full linear range: 0.25 to 2.3 mm (10 to 90 mils).

• Corresponding voltage: approximately -1 to -17 Vdc.

Recommended Gap Setting for Radial Vibration:

• -9 Vdc [approximately 1.27 mm (50 mils)].

Interchangeability Note:
3300 XL 8mm components are electrically and physically interchangeable with non-XL 3300 5mm and 8mm components. However, always observe the minimum permissible cable bend radius.

Field Wiring Guidelines

The 330190-075-00-05 connects to a Proximitor sensor. Use the following field wiring recommendations.

Wire Specifications:

• Wire Gauge: 0.2 to 1.5 mm² (16 to 24 AWG).

• Recommendation: Use 3-conductor shielded triad cable.

• Wire Type: Tinned field wiring.

Maximum Field Wiring Length:

• 305 meters (1,000 feet) between the 3300 XL Proximitor sensor and the monitor.

High Frequency Note:
See the frequency response graphs for signal rolloff at high frequencies. Longer field wiring lengths reduce high frequency response.

Agency Approvals

The 330190-075-00-05 carries the 05 approval option code.

• CSA certified.

• ATEX certified (European hazardous areas).

• IECEx certified (international hazardous areas).

Compliance & Certifications

The 330190-075-00-05 meets multiple global standards.

FCC:
Complies with part 15 of the FCC Rules. Operation is subject to two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received.

EMC:

• European Community Directive: EMC Directive 2014/30/EU.

• Standards: EN 61000-6-2 (Immunity) and EN 61000-6-4 (Emissions).

RoHS:

• European Community Directive: RoHS Directive 2011/65/EU.

Maritime:

• 2019 Rules for Conditions of Classification, Part 1, 1-1-1/7.7, 1-1-A3, 1-1-A4.

• Also meets Offshore Units and Structures standards.

Functional Safety:

• SIL 2, HFT = 0.

• SIL 3, HFT = 1.

Installation Guidelines

Install the 330190-075-00-05 between your 3300 XL Proximitor and the probe. Observe the minimum bend radius of 25.4 mm. Do not kink or crush the cable. Hand-tighten the connector to 0.565 N•m maximum. Do not use tools or over-torque. For hazardous area installations, follow ATEX/IECEx wiring methods. Keep the extension cable away from high voltage wires. Use shielded triad cable for field wiring extensions. The 330190-075-00-05 is not armored. Protect it from sharp edges and abrasion.

What is in the Box

Please inspect all items upon delivery.

• Bently Nevada 330190-075-00-05 ETR extension cable (7.5 meters).

• Gold-plated connectors on both ends.

• Anti-static protective bag.

Frequently Asked Questions (FAQ)

1. What is the difference between standard and ETR cables?
The ETR cable uses PFA insulation instead of FEP. The 330190-075-00-05 operates from -52°C to +260°C. Standard cables only go to +177°C.

2. Can I use this cable with non-Bently proximity probes?
The 330190-075-00-05 has specific 75Ω triaxial impedance. It is optimized for Bently 3300 XL systems. Other probes may not provide accurate readings.

3. What happens if I exceed the minimum bend radius?
Exceeding 25.4 mm may damage the internal conductors. This changes the cable capacitance. The 330190-075-00-05 will then give inaccurate gap voltage readings.

4. Is this cable approved for Zone 1 hazardous areas?
The 05 approval option includes CSA, ATEX, and IECEx. Check your specific zone requirements. Typically, these approvals cover Zone 1 and Zone 2 installations.

5. How do I clean the connectors on this cable?
Use a lint-free cloth with isopropyl alcohol. Do not use abrasive cleaners. The gold plating on the 330190-075-00-05 connectors is thin and can wear off.
