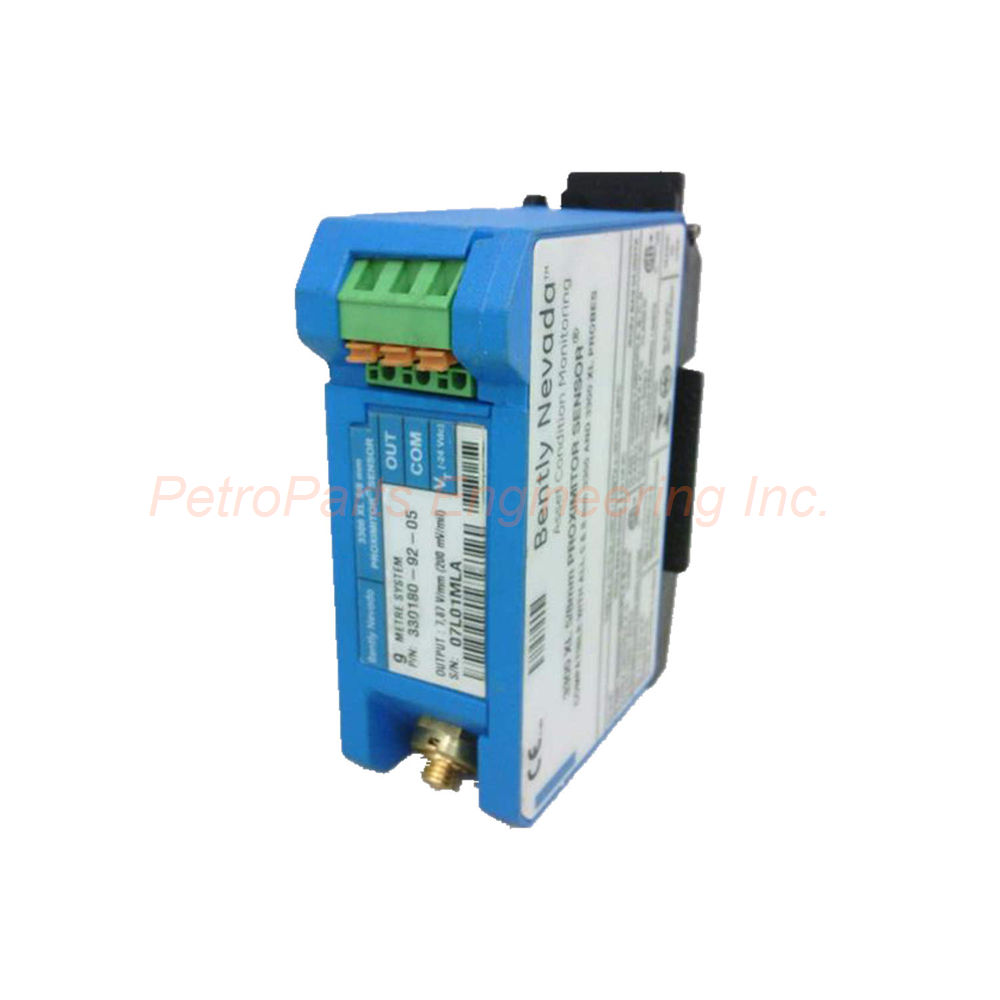

Bently Nevada 330180-90-00 3300 XL Proximitor Sensor Overview

The Bently Nevada 330180-90-00 is a 3300 XL Proximitor Sensor. This device incorporates numerous improvements over previous Proximitor designs. Its physical packaging allows high-density DIN-rail installations. Alternatively, traditional panel mount configuration is also available. For panel mounting, it shares an identical 4-hole footprint with older designs. Consequently, the Bently Nevada 330180-90-00 offers flexible installation options. The mounting base provides electrical isolation for either configuration. Therefore, separate isolator plates are not required.

Technical Specifications of 330180-90-00

Manufacturer: Bently Nevada (Baker Hughes Digital Solutions).

Part Number: Bently Nevada 330180-90-00.

Product Type: 3300 XL Proximitor Sensor.

Made in: U.S.A.

Total Length (Option 90): [Color: Red] 9.0 meters (29.5 feet) system length [/Color].

Mounting Option (90): Panel mount configuration.

Agency Approval Option (00): Not required (non-hazardous area use).

Proximitor Sensor Input: Accepts one non-contacting 3300-series 5 mm or 3300 XL 8 mm proximity probe. Extension cables are also fully compatible.

Power Requirement (Non-incendive): -17.5 Vdc to -26 Vdc at 12 mA maximum consumption. Use installation drawing 140979 for proper connection.

Power Requirement (With Barriers): -23 Vdc to -26 Vdc.

Critical Note: Operation above -23.5 Vdc may result in reduced linear range.

Supply Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage.

Output Resistance: 50 Ω.

Proximitor Sensor Material: A308 aluminum.

Connector Material: Gold-plated brass or gold-plated beryllium copper.

Sensor Weight: 246 g (8.67 oz).

Operating Temperature Range: -52°C to +100°C (-62°F to +212°F).

Storage Temperature Range: -52°C to +105°C (-62°F to +221°F).

Key Features of 330180-90-00

The Bently Nevada 330180-90-00 offers highly improved RFI/EMI immunity. Consequently, you can install it in fiberglass housings without adverse effects. Nearby radio frequency signals do not interfere with its operation. This improved immunity satisfies European CE mark approvals. Notably, special shielded conduit or metallic housings are not required. As a result, installation costs and complexity are significantly reduced. The SpringLoc terminal strips require no special installation tools. These strips eliminate screw-type clamping mechanisms that can loosen over time. Therefore, field wiring connections become faster and more robust. The 9.0 meter system length allows remote mounting of the Proximitor Sensor away from the measurement point. This feature is particularly valuable when space is limited near the machine.

Installation Guidelines for 330180-90-00

Before starting, disconnect all power to the monitoring system. Choose either DIN-rail or panel mount configuration. For panel mount, use the 4-hole mounting footprint. Then, secure the Bently Nevada 330180-90-00 using appropriate hardware. Connect your 3300-series 5 mm or 3300 XL 8 mm probe to the input. Ensure the extension cable is properly attached and secured. Wire the power supply within the -17.5 Vdc to -26 Vdc range. For installations with barriers, use -23 Vdc to -26 Vdc exclusively. Verify that the supply voltage does not exceed -23.5 Vdc for linear operation. After all connections are made, test the output signal for proper response at the recommended gap setting.

Application Scenarios for 330180-90-00

The Bently Nevada 330180-90-00 monitors shaft vibration in turbomachinery. Compressors and turbines benefit from its non-contacting measurement. High-density DIN-rail installations suit modern control cabinets with limited space. Panel mount configurations work well for retrofitting older panels. The 9.0 meter system length enables the Proximitor Sensor to be mounted in a control room away from hazardous machine areas. Consequently, this configuration improves accessibility for maintenance and adjustments. The 330180-90-00 operates reliably in extreme temperatures from -52°C to +100°C. Therefore, outdoor and cold climate applications are well supported.

Package List for 330180-90-00

• One Bently Nevada 330180-90-00 3300 XL Proximitor Sensor

• One panel mount adapter kit (4-hole footprint, pre-installed)

• One SpringLoc terminal strip (attached to unit)

• One installation drawing (reference 140979)

Common FAQs about the Bently Nevada 330180-90-00

Q1: What is the system length of the 330180-90-00?

The Bently Nevada 330180-90-00 has a total system length of 9.0 meters (29.5 feet). Option code 90 specifies this length with panel mount configuration. No agency approvals are included (option code 00).

Q2: What power supply is required for the 330180-90-00?

Without barriers, use -17.5 Vdc to -26 Vdc at 12 mA maximum. For installations with barriers, use -23 Vdc to -26 Vdc. Importantly, operation above -23.5 Vdc may reduce linear range. Always verify your supply voltage meets these requirements.

Q3: Can the 330180-90-00 be mounted on DIN rail?

Yes, the Bently Nevada 330180-90-00 supports high-density DIN-rail installations. Alternatively, traditional panel mount configuration is also available. Both options provide electrical isolation through the mounting base.

Q4: Is the 330180-90-00 immune to radio frequency interference?

Yes, this sensor has highly improved RFI/EMI immunity. Consequently, fiberglass housings are acceptable without special shielding. European CE mark approvals are satisfied without metallic conduit. This results in lower installation costs and complexity.

Q5: What probes work with the 330180-90-00?

This Proximitor Sensor accepts 3300-series 5 mm or 3300 XL 8 mm proximity probes. Extension cables from the same series are also fully compatible. Both probe types provide non-contacting measurement capability for vibration and position monitoring.
