Product Overview

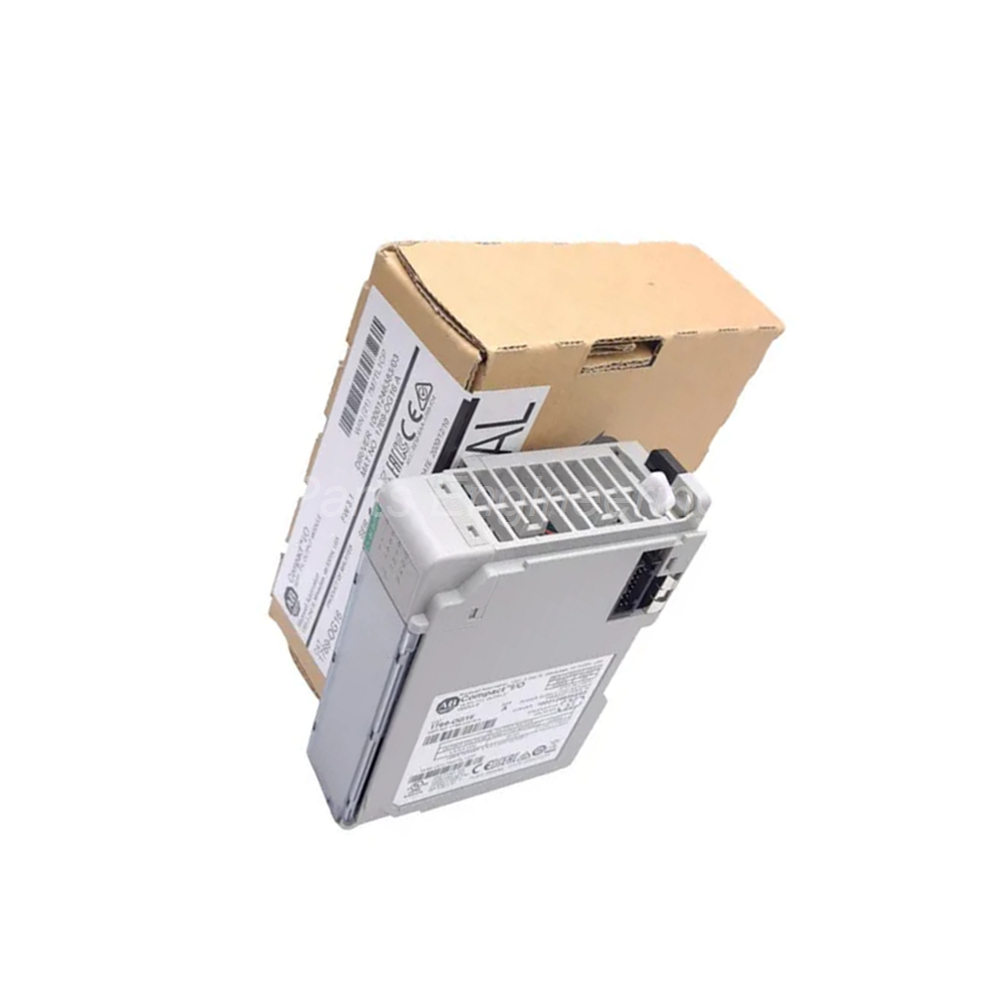

The Allen-Bradley 1769-OG16 belongs to the CompactLogix digital output module family. This module operates on DC voltage for TTL compatible applications. The Allen-Bradley 1769-OG16 is designed to be as compact as possible with 16 output channels. You get I/O memory mapping for flexible configuration to meet host system needs. The module has an open enclosure design for easy integration. The Allen-Bradley 1769-OG16 mounts on DIN rails, panels, or other 1769 modules.

Technical Specifications

The Allen-Bradley 1769-OG16 delivers reliable TTL output control for CompactLogix systems. All parameters follow the official datasheet.

Output Specifications

• Number of outputs: 16 channels

• Module type: TTL Output Module

• Input type: TTL Output

• Operating voltage range: 4.5 to 5.5 V DC

• On-state output guaranteed: 0 to 0.4 V DC

• Off-state output guaranteed: 4.5 to 5.5 V DC

• Uncertain region: 0.4 to 4.5 V DC (neither state guaranteed)

Current Ratings

• Minimum load current: 0.15 milliamps

• Maximum current per point: 24 milliamps

• The Allen-Bradley 1769-OG16 provides stable TTL level outputs for digital control.

Communication & Connection

• Communication cable: 16 point

• Maximum cable length: Do not exceed 30 feet for DC or I/O cables

• Maximum wires per terminal: 2 wires maximum

• Wire type: Copper - 90 degrees Celsius

• Solid wire size: 22 to 14 AWG

• Stranded wire size: 22 to 16 AWG

Physical Specifications

• Product line: CompactLogix

• Series: A and B

• Enclosure: Open style

• Dimensions: 4.7 inches (height) x 1.4 inches (width) x 3.4 inches (depth)

• Shipping weight: 2 lbs

• Shipping dimensions: 8 x 8 x 5 inches

• UPC / GTIN: 10662074455314

• Status: Current Product

Mounting Options

• Mounting methods: DIN rail, panel mount, or other 1769 modules

• The Allen-Bradley 1769-OG16 offers flexible installation for various system configurations.

Installation Guide

Follow these steps to install the Allen-Bradley 1769-OG16 correctly.

1. Power down the CompactLogix system before inserting the module.

2. Mount the 1769-OG16 on a DIN rail or panel in a clean environment.

3. Position the module away from debris, static, and direct sunlight.

4. Connect field wiring using 22-14 AWG solid or 22-16 AWG stranded copper wire.

5. Limit cable length to 30 feet maximum for DC or I/O cables.

6. Do not exceed 2 wires per terminal on the Allen-Bradley 1769-OG16.

7. Apply 4.5 to 5.5 V DC power and verify output states.

Packing List

This package for the Allen-Bradley 1769-OG16 includes the following items.

• Allen-Bradley 1769-OG16 TTL output module (one unit)

• Product documentation and installation guide

• Terminal block (pre-installed)

• Anti-static protective bag

Frequently Asked Questions (FAQ)

1. What voltage range does the 1769-OG16 operate on?
The Allen-Bradley 1769-OG16 operates on 4.5 to 5.5 V DC. On-state output is guaranteed at 0 to 0.4 V DC. Off-state output is guaranteed at 4.5 to 5.5 V DC.

2. How many outputs does the 1769-OG16 have?
The Allen-Bradley 1769-OG16 has 16 output channels. Each point has a maximum current of 24 milliamps with 0.15 mA minimum load.

3. What is the maximum cable length for the 1769-OG16?
Do not exceed 30 feet for DC or I/O cables on the Allen-Bradley 1769-OG16. Also do not connect more than 2 wires to any terminal.

4. Can the 1769-OG16 be panel mounted?
Yes, the Allen-Bradley 1769-OG16 mounts on DIN rails, panels, or other 1769 modules. It has an open enclosure design for flexible installation.

5. What wire sizes work with the Allen-Bradley 1769-OG16?
The Allen-Bradley 1769-OG16 accepts solid wire sizes 22 to 14 AWG. Stranded wire sizes 22 to 16 AWG are also compatible.
