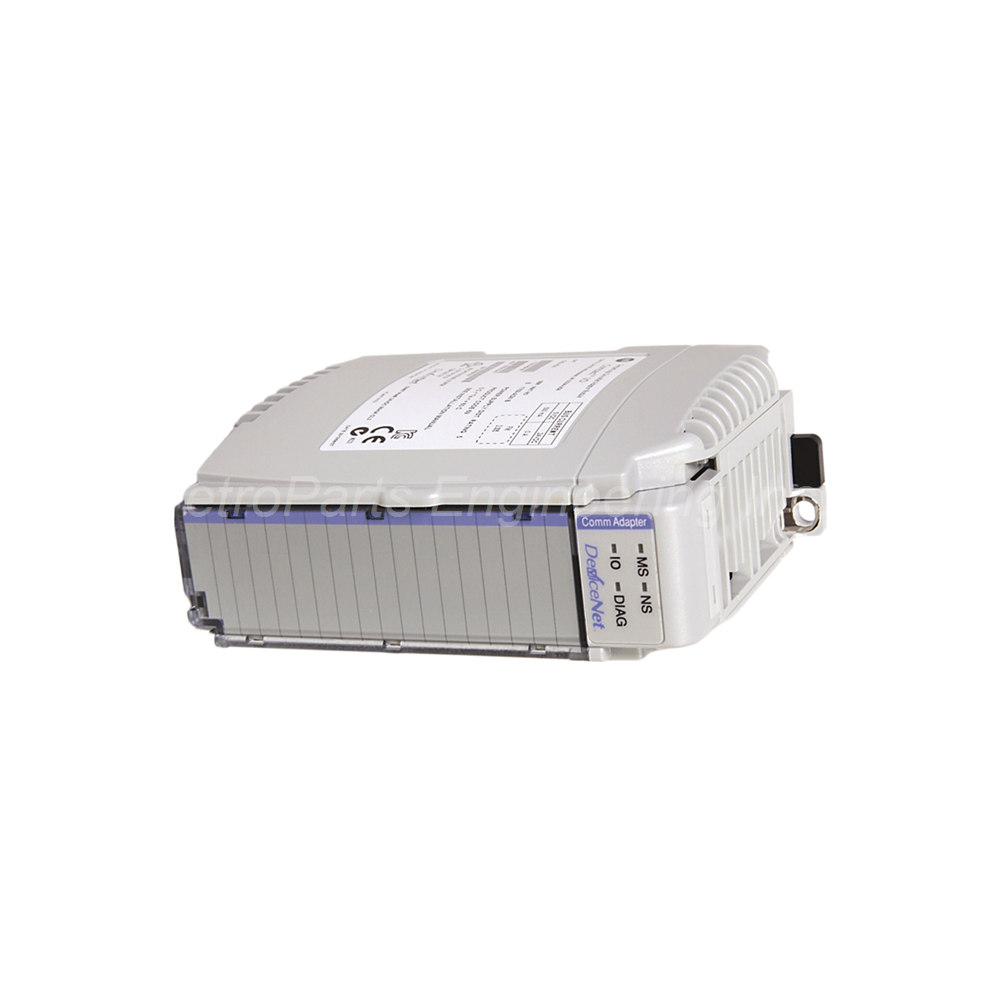

Product Overview

The Allen-Bradley 1769-ADN belongs to the CompactLogix family of I/O modules. This DeviceNet adapter connects actuators and sensors directly to controllers without I/O modules. The Allen-Bradley 1769-ADN uses the Common Industrial Protocol (CIP) for control and data collection. You get a maximum of 30 I/O nodes on the network. The module supports DIN rail or panel mounting for flexible installation. The Allen-Bradley 1769-ADN reduces start-up time and wiring compared to hard-wired systems.

Technical Specifications

The Allen-Bradley 1769-ADN delivers reliable DeviceNet communication for CompactLogix systems. All parameters follow the official datasheet.

Communication Specifications

• Communication port: One DeviceNet port

• Data transfer speeds: 125k bit/s, 250k bit/s, 500k bit/s

• Maximum distance at 125 kbps: 500 meters

• Maximum distance at 250 kbps: 250 meters

• Maximum distance at 500 kbps: 100 meters

• Maximum I/O nodes: 30

• Protocol: Common Industrial Protocol (CIP)

• Cable type: 802.3 compliant twisted pair, 2 mm² (14 AWG)

Data Capacity

• Input data: 180 words from I/O modules

• Output data: 180 words to I/O modules

• Configuration data: 724 words for I/O modules

Power & Current

• Backplane current (Series A): 450 mA at 5V DC (2.25W)

• Backplane current (Series B): 500 mA at 5V DC (2.5W)

• Current draw: 90 mA at 24V DC

• Voltage range: 11 to 25V DC

• Power consumption: 33.6 Watts

• Power dissipation: 7.5 Watts

• Isolation voltage: 30 Volts continuous

Power Supply Distance Rating

• Series A: 4 modules maximum from power supply

• Series B: 5 modules maximum from power supply

• The Allen-Bradley 1769-ADN must be installed within these distance limits.

Series Information

• Series A and B available

• Status: Discontinued by manufacturer

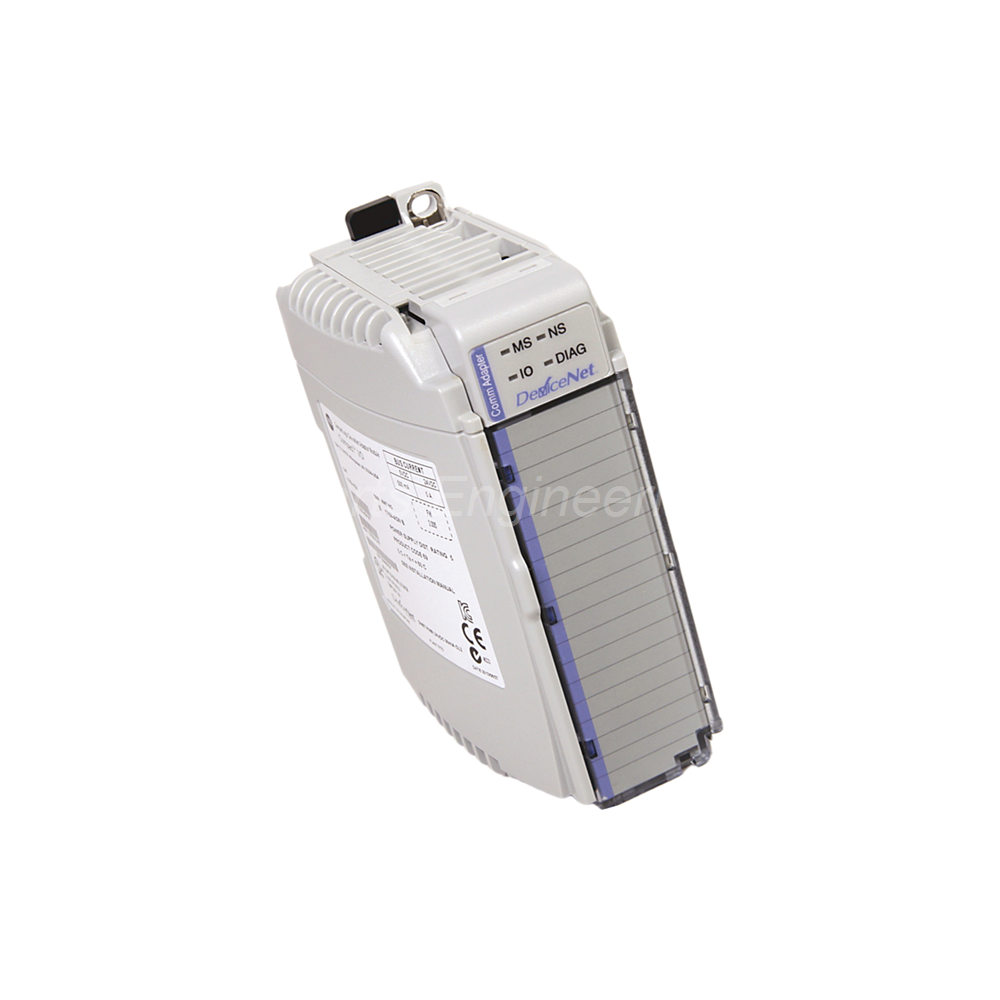

LED Indicators

The Allen-Bradley 1769-ADN provides four diagnostic LEDs:

• Module status: Red/green

• Network status: Red/green

• I/O status: Red/green

• Diagnostic status: Red/green

Environmental Specifications

• Operating temperature: 32°F to 140°F (0°C to 60°C)

• Storage temperature: -40°F to 185°F (-40°C to 85°C)

• Humidity: 5% to 95% non-condensing

• Enclosure: Open type

Physical Specifications

• Width: 50 mm (1.97 inches)

• Height: 118 mm (4.65 inches); with mounting tabs: 138 mm (5.43 inches)

• Depth: 87 mm (3.43 inches)

• Shipping weight: 2 pounds (0.9 kg)

• Shipping dimensions: 8 x 8 x 5 inches

Mounting Options

• DIN rail: Yes

• Panel: Yes

Agency Certifications

• UL: Yes

• CE: Yes

• DeviceNet Foundation: Yes

Installation Guide

Follow these steps to install the Allen-Bradley 1769-ADN correctly.

1. Power down your CompactLogix or MicroLogix 1500 system.

2. Mount the module on DIN rail or panel in the open enclosure.

3. Lock the bus connectors securely to establish electrical connection.

4. Verify power supply distance rating (4 modules for Series A, 5 for Series B).

5. Connect DeviceNet cable using 802.3 compliant twisted pair (14 AWG).

6. Set the communication rate to 125k, 250k, or 500k bit/s as needed.

7. Apply power and check Module Status and Network Status LEDs on the Allen-Bradley 1769-ADN.

Packing List

This package for the Allen-Bradley 1769-ADN includes the following items.

• Allen-Bradley 1769-ADN DeviceNet adapter module (one unit)

• Product documentation and installation guide

• Anti-static protective bag

Frequently Asked Questions (FAQ)

1. What controllers are compatible with the 1769-ADN?
The Allen-Bradley 1769-ADN is compatible with 1769 CompactLogix and MicroLogix 1500 systems. It also works with PLC5, SLC500, and ControlLogix scanners.

2. What communication speeds does the 1769-ADN support?
The Allen-Bradley 1769-ADN supports 125k, 250k, and 500k bit/s. The maximum distance varies from 500 meters at 125 kbps to 100 meters at 500 kbps.

3. How many I/O nodes can the 1769-ADN handle?
The Allen-Bradley 1769-ADN supports a maximum of 30 I/O nodes. It handles 180 words of input data and 180 words of output data.

4. What is the power supply distance rating for the 1769-ADN?
Series A of the Allen-Bradley 1769-ADN must be within 4 modules of the power supply. Series B allows up to 5 modules distance.

5. Does the 1769-ADN support hot swapping?
The Allen-Bradley 1769-ADN does not support hot swapping. Always power down the system before installing or removing the module.
