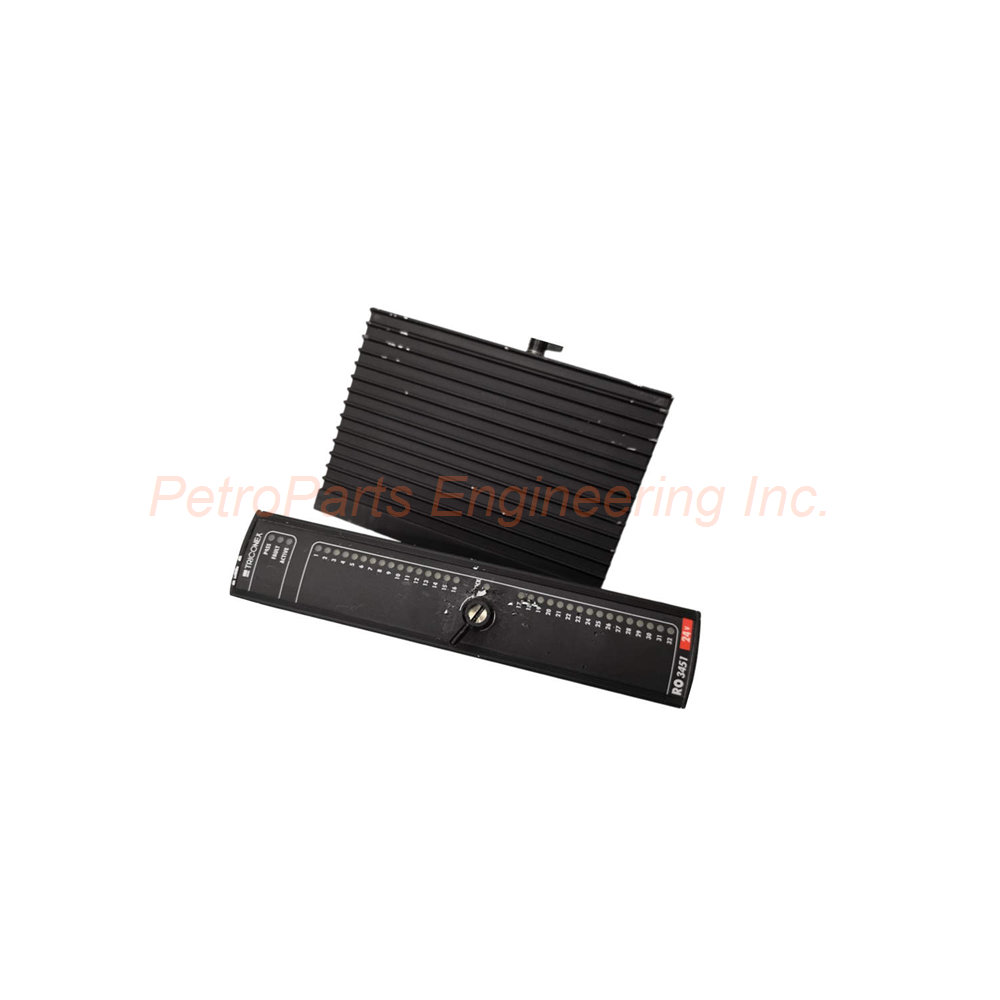

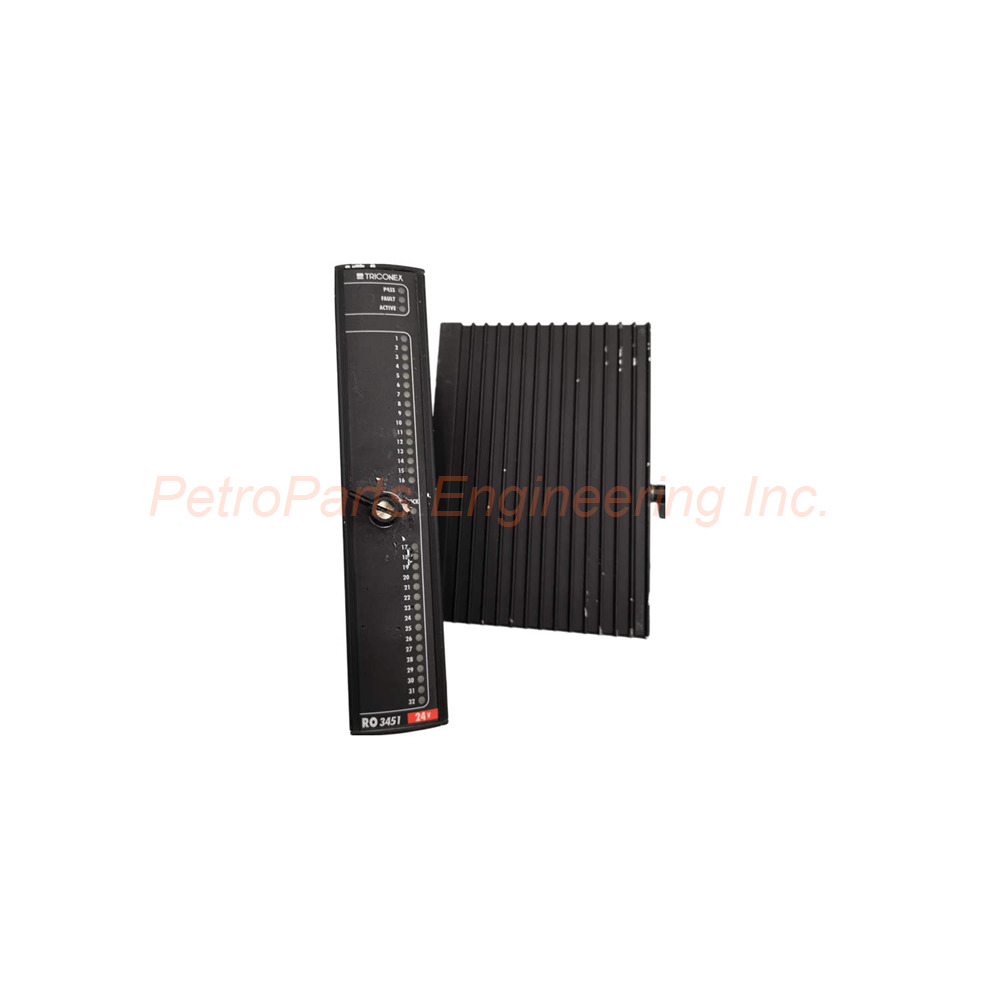

Triconex 3451 Solid-State Relay Output Module for Non-Critical Points

Overview of the Triconex 3451 SRO Module

The Triconex 3451 is a non-triplicated solid-state relay output module.
This module is designed for non-critical points in safety systems.
You can use the Triconex 3451 with annunciator panels and similar devices.
The module receives output signals from MPs on each of three channels.
All three sets of signals are voted before driving the output relays.
The Triconex 3451 uses voted data to control 32 individual relays.
This design works with loads not compatible with high-side solid-state switches.

Technical Specifications of the 3451 Solid-State Relay Module

Below are the complete technical parameters for this output module.

Loop-Back Verification and Diagnostics

The Triconex 3451 includes a loop-back circuit for each output.
This circuit verifies relay switch operation independently of any load.
You can test each relay without connecting field devices.
Ongoing diagnostics continuously check the operational status.
If diagnostics detect any channel failure, the Fault indicator turns on.
This fault indicator identifies a specific channel fault only.
The Triconex 3451 continues proper operation with a single fault.
The module may even operate correctly with multiple faults present.

Compatible Baseplate for the Triconex 3451

The Triconex 3451 requires the Model 2451 SRO Baseplate.
This baseplate contains all fuses for output protection.
Each output has its own 0.75 A fast-acting fuse on the baseplate.
The Triconex 3451 module is mechanically keyed for safety.
This keying prevents improper installation into a configured baseplate.
Always verify you have the correct baseplate before installation.

Hot-Spare Support and Mechanical Design

The Triconex 3451 fully supports a hot-spare module configuration.
You can replace a faulty module without shutting down the system.
The module features robust construction for industrial environments.
All 32 output points are commoned in pairs for flexible wiring.
The Triconex 3451 fits standard Tricon chassis slots seamlessly.
Maximum off-state leakage is less than 100 µA for reliable switching.
Voltage drop at the baseplate stays under 0.25 V at full current.

Installation Guidelines for the 3451 SRO Module

Follow these steps for correct installation of the Triconex 3451.

1. Remove all power from the Tricon chassis completely.

2. Verify you have the correct Model 2451 baseplate installed.

3. Check the mechanical keying on the baseplate slot.

4. Slide the Triconex 3451 gently into the designated slot.

5. Press firmly until the module locks securely in place.

6. Connect all field wiring to the termination points.

7. Apply power and observe the status indicators.

8. Allow the module to complete its self-diagnostic routine.

Only qualified technicians should install this safety system module.

Package Contents for the Triconex 3451

• One Triconex 3451 Solid-State Relay Output Module

• Module extraction tool for safe removal

• Anti-static transport bag for protection

• Protective dust cover for unused slots

• Quick reference installation card

Common FAQs About This Triconex SRO Module

Q1: Why is the 3451 called a non-triplicated module?
A1: The Triconex 3451 uses voted signals from three channels but does not have triple output circuits. It is designed for non-critical points only.

Q2: Can the 3451 drive inductive loads directly?
A2: The Triconex 3451 is rated for 15 W resistive maximum. For inductive loads, you must add external suppression devices.

Q3: Where are the fuses located on this module?
A3: The fuses are not on the Triconex 3451 module itself. They are mounted on the Model 2451 baseplate with one 0.75 A fuse per output.

Q4: What happens if a relay fails on the 3451?
A4: The loop-back circuit detects the failure without a load. The Triconex 3451 reports the fault, but other outputs continue normal operation.

Q5: Is the 3451 compatible with high-side output switches?
A5: No, the Triconex 3451 is specifically for loads not compatible with high-side solid-state switches. Use it for annunciator panels and similar devices.

Typical Applications for the Triconex 3451

The Triconex 3451 excels in non-critical control applications.
You can use it for annunciator panel driver interfaces.
The module works well for alarm indication and status lighting.
It is suitable for loads requiring relay isolation.
The Triconex 3451 provides reliable switching for many field devices.
