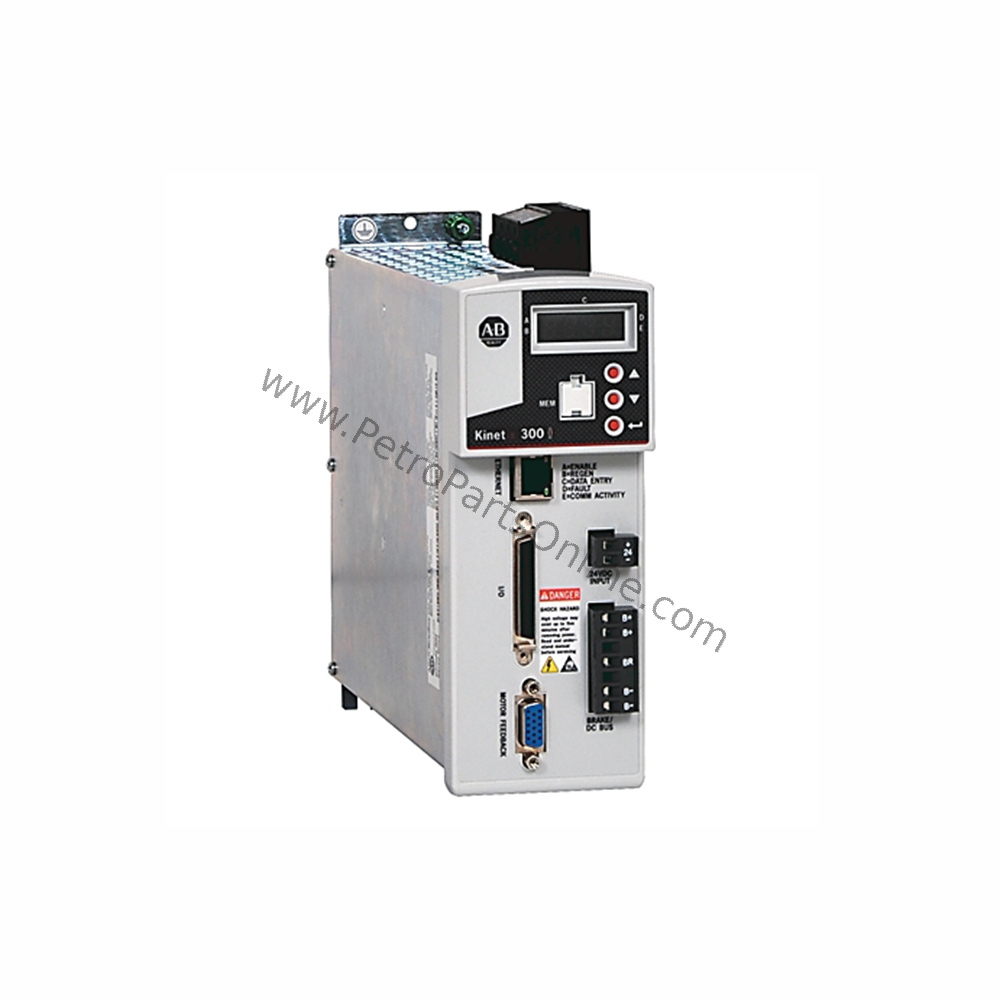

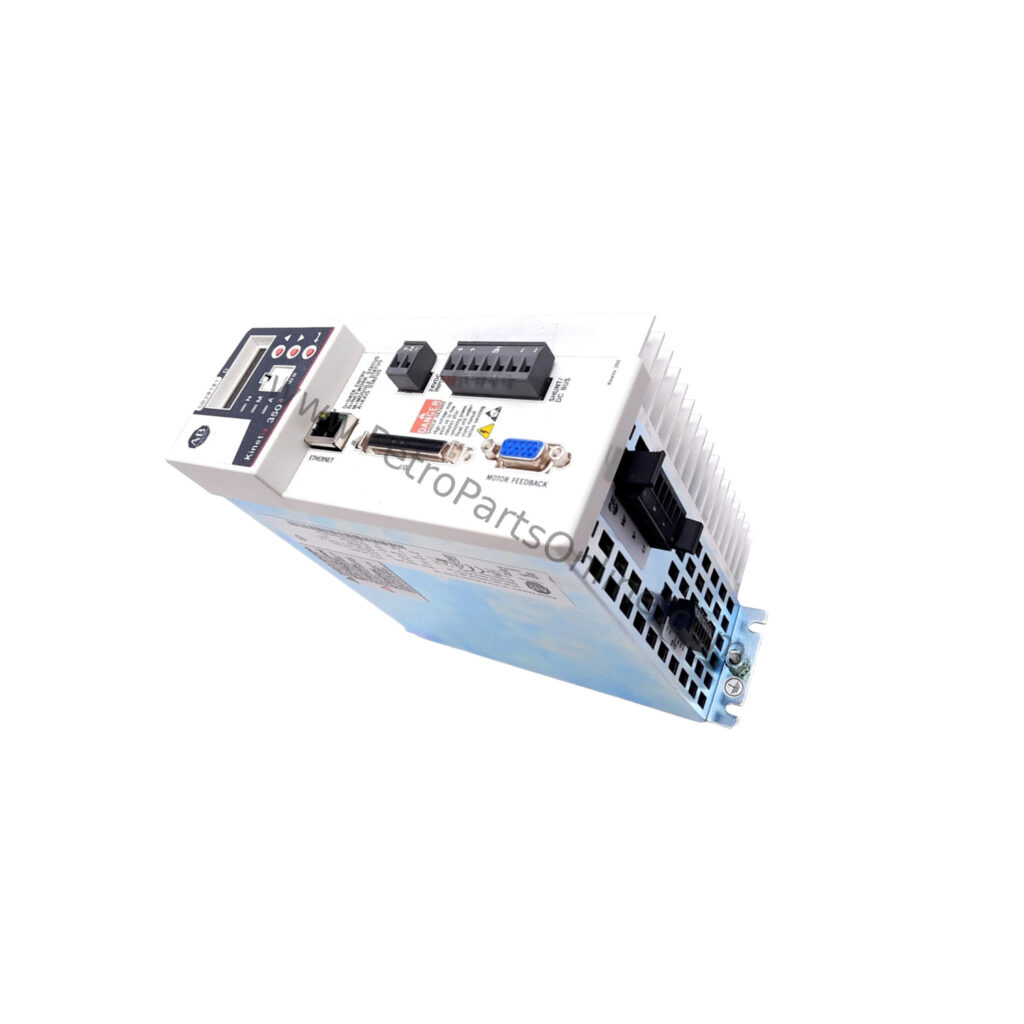

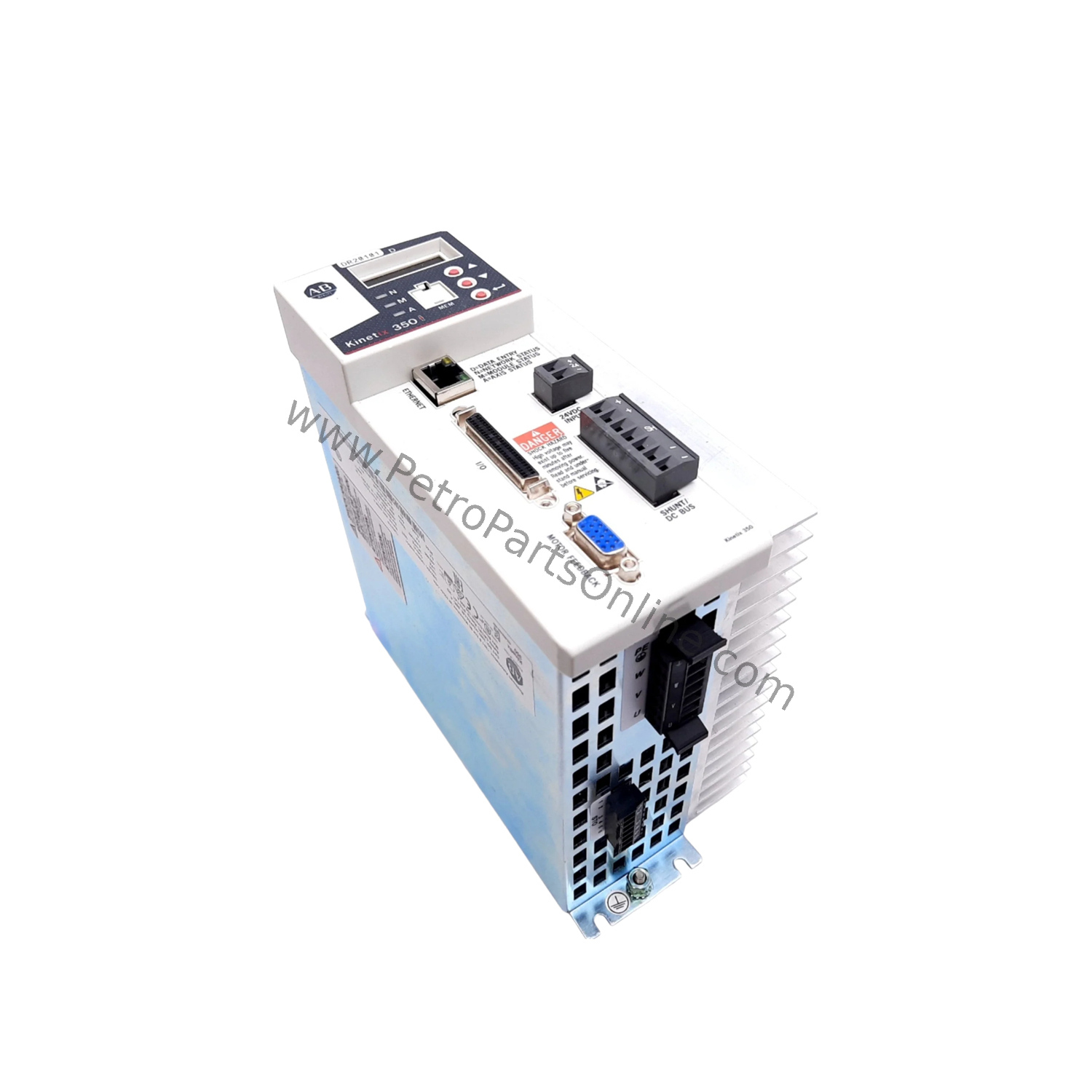

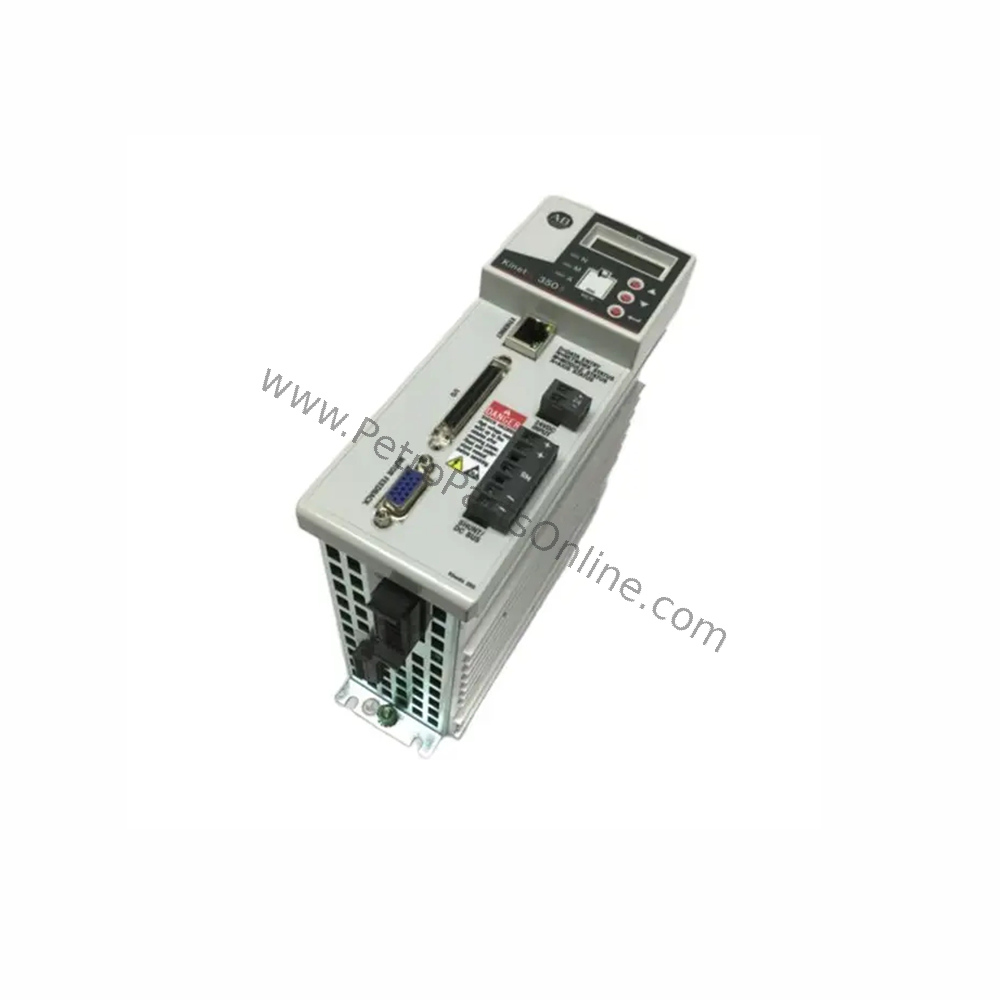

What Is the 2097-V33PR5?

When your application demands precise motion control with flexible power input, the 2097-V33PR5 from Allen-Bradley provides a reliable solution. This Kinetix 300 EtherNet/IP Indexing Servo Drive supports 80-132VAC single-phase, 80-264VAC single-phase, or 80-264VAC three-phase input voltages. It delivers a continuous output current of 11.3 A (0-pk) and a continuous power output of 2.00 kW. Manufactured by Rockwell Automation, this drive is designed for indexing applications that require accurate positioning and repeatable performance.

Key Features & Technical Specs

• Input voltage range: 80-132VAC, 1-phase; 80-264VAC, 1-phase; 80-264VAC, 3-phase.
• Input frequency: 48…62 Hz.
• Continuous output current (rms): 8.0 A; continuous output current (0-pk): 11.3 A.
• Peak output current (rms): 24.0 A; peak output current (0-pk): 33.9 A.
• Continuous power output: 2.00 kW.
• Power dissipation: 67 Watts.
• Torque value: 4.5 lbin (0.5 Nm).
• Safe Torque-Off: Yes.
• Operating temperature: 32-104 F (0-40 C).
• Dimensions: 9.37 x 7.29 x 3.72 in (238 x 185 x 94.0 mm).
• Weight: 4.4 lbs (2.0 kg).

A standout feature of the 2097-V33PR5 is its Safe Torque-Off functionality, which helps prevent unintentional motor rotation during maintenance. This drive also includes Smart Motor Technology for automatic motor-to-drive connectivity with compatible MP-Series and TL-Series motors, reducing commissioning time.

Installation Guide

For proper installation, mount the 2097-V33PR5 inside an enclosure with adequate climate control. Ensure minimum clearance of 3 mm (0.12 inches) on both sides and 25 mm (1 inch) at the bottom and rear for ventilation. The drive's power dissipation of 67 Watts should be considered when sizing heaters or coolers. Use recommended fuses and circuit breakers for protection: for 1-phase 120/240VAC applications, a Bussmann KTK-R-30 (30 A) fuse and 1489-A1C300 circuit breaker; for 3-phase applications, a KTK-R-20 (20 A) fuse and 1489-A3C200 circuit breaker.

Compatible Systems

The 2097-V33PR5 integrates with MP-Series motors such as MPL-A320H, MPL-A320P, MPL-A230P, MPM-A1151M, MPS-A330P, MPF-A320H, and MPF-A320P. For TL-Series, compatible motors include TLY-A2530P, TLY-A2540P, and TLY-A310M. It also works with Linear Thruster actuators and linear stage or ball screw stages. The drive supports indexing, PTO, analog, and EtherNet/IP commanded control.

Maintenance & Reliability

Regular inspection of the drive and its connections helps maintain reliable operation. Keep the enclosure clean and ensure proper airflow around the unit. The Safe Torque-Off feature should be tested periodically according to the manufacturer's safety manual. Following these practices extends service life and reduces unplanned downtime.

Common Questions About the 2097-V33PR5

Q: What input voltages does the 2097-V33PR5 support?

A: It supports 80-132VAC single-phase, 80-264VAC single-phase, and 80-264VAC three-phase.

Q: What is the continuous power output of this drive?

A: The continuous power output is 2.00 kW.

Q: Does the 2097-V33PR5 include Safe Torque-Off?

A: Yes, it includes Safe Torque-Off functionality.

Q: What motors are compatible with this drive?

A: Compatible motors include MP-Series models like MPL-A320H and TL-Series models like TLY-A2530P.

Q: What is the operating temperature range?

A: The operating temperature range is 32-104 F (0-40 C).

Product Support & Availability

The 2097-V33PR5 is available from PetroPartsOnline. Contact our team to check current stock and lifecycle status before ordering. We are ready to help you find the right motion control solution for your application.
