1763-L16AWA | Allen-Bradley PLC Controller
Introduction:
Allen-Bradley MicroLogix 1100 PLC with integrated I/O, Ethernet, and serial ports. Reliable control for small automation tasks.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Product Overview

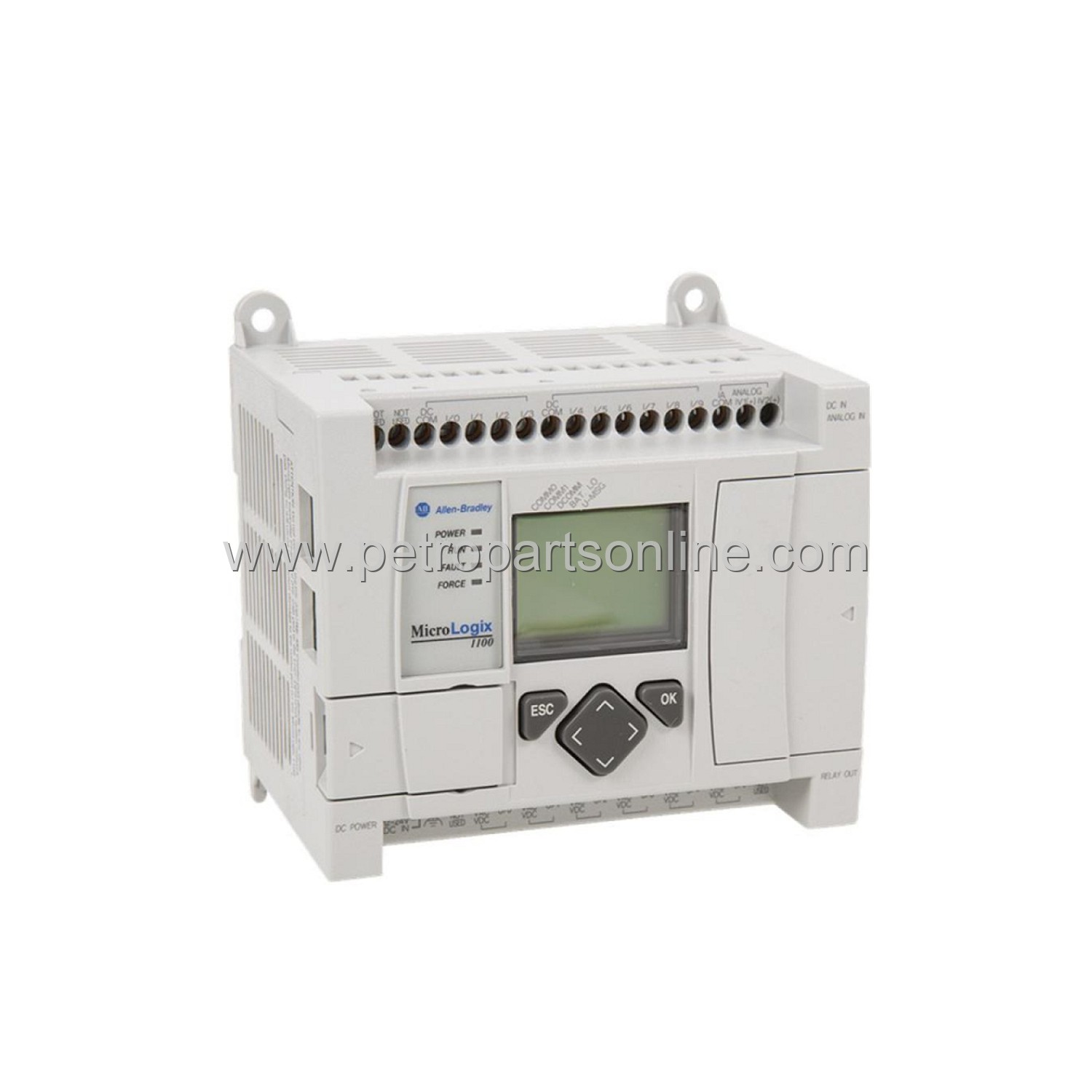

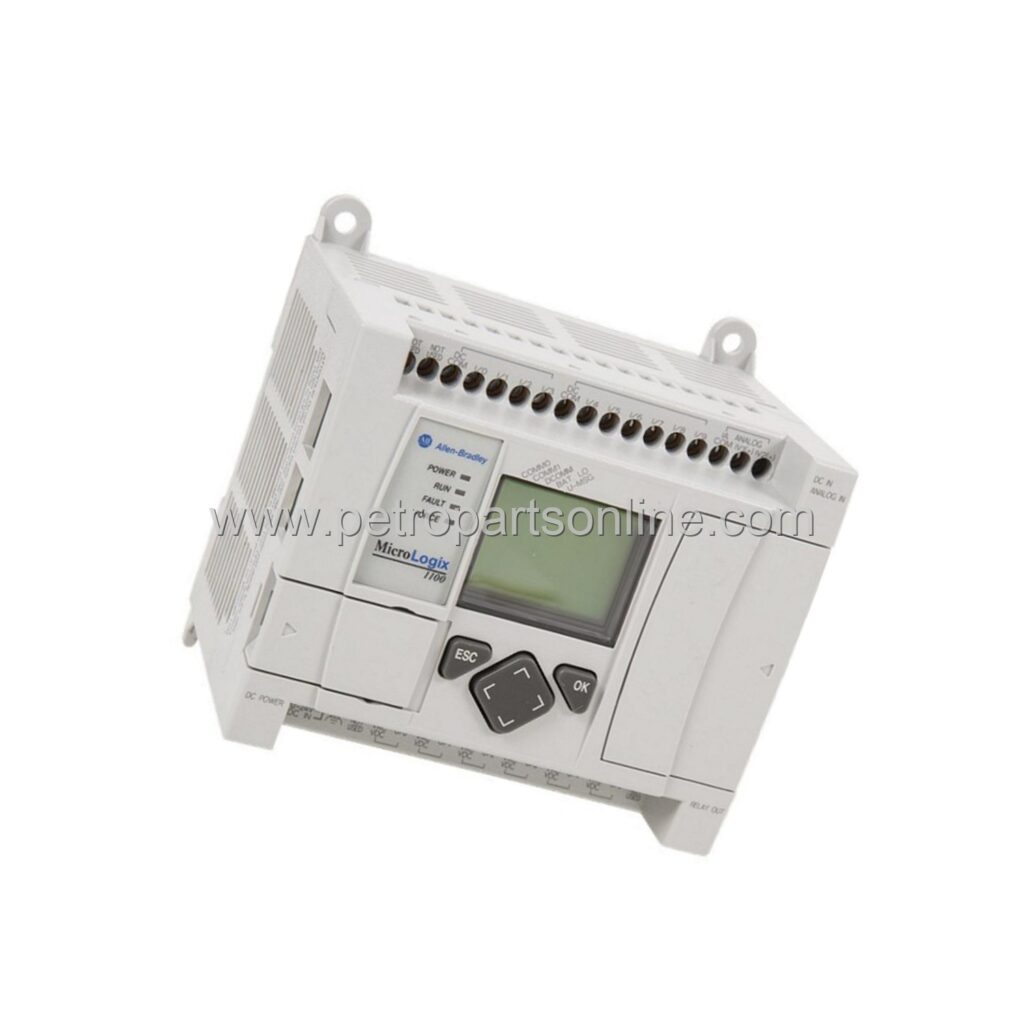

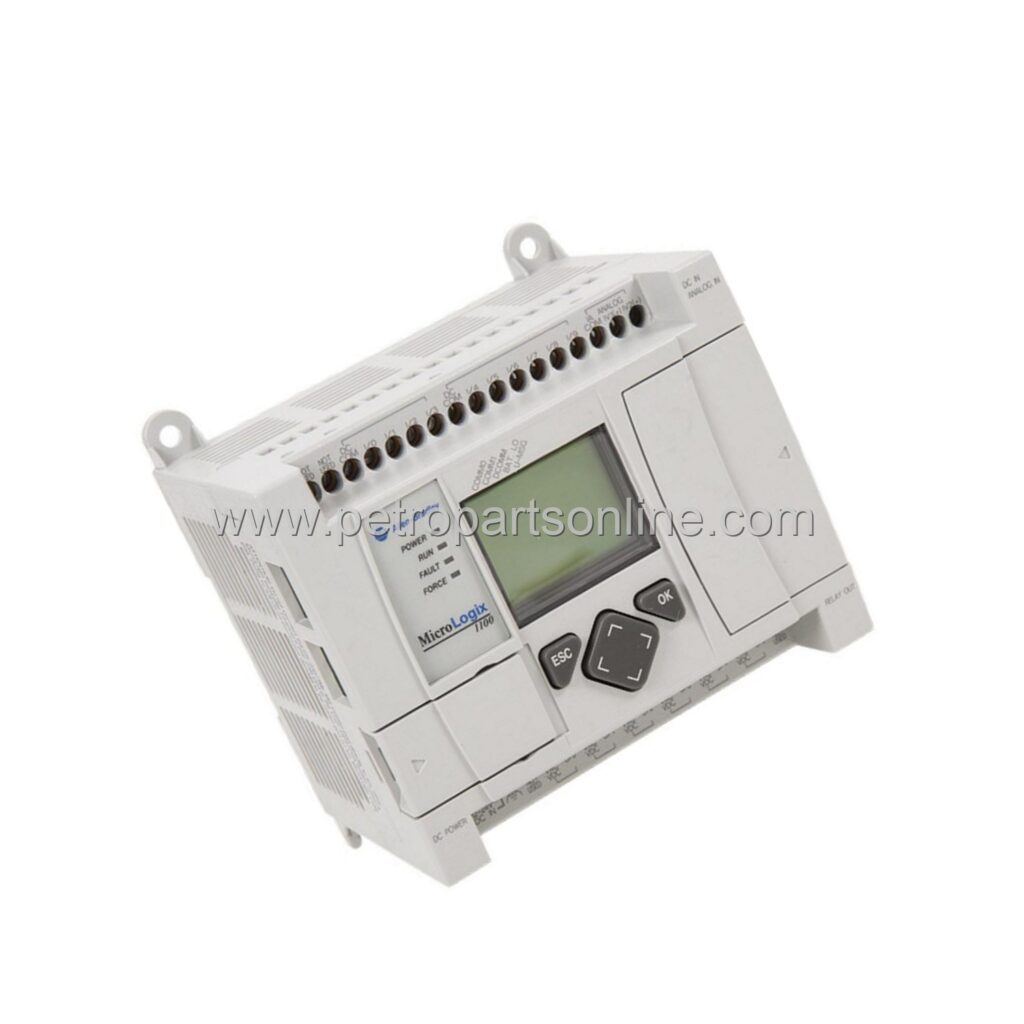

The Allen-Bradley 1763-L16AWA is a MicroLogix 1100 programmable logic controller. This compact PLC module provides reliable control for various automation tasks. It integrates a power supply and I/O in one unit. The 1763-L16AWA supports 120/240V AC input power. This controller is ideal for small to medium-sized applications. It offers 10 digital inputs and 6 digital outputs. The unit also includes 2 analog inputs. Built-in Ethernet and serial ports enable flexible communication. This PLC is a cost-effective solution for machine control. Its rugged design ensures long service life in industrial environments.
Application Scenarios
The 1763-L16AWA suits many industrial automation needs. Common uses include conveyor system control. It manages packaging machinery operations. The controller handles simple process automation tasks. It works well for material handling equipment. Small assembly lines benefit from its compact size. The PLC controls pump and fan systems. It manages lighting and environmental controls. Building automation systems use this controller. The 1763-L16AWA fits OEM machine building applications. It also supports remote monitoring and control. This module operates reliably in standard industrial warehouses. It performs effectively in manufacturing plants. The controller is suitable for commercial facilities. Its versatility makes it a popular choice for system integrators.
Technical Specifications
The 1763-L16AWA operates on 120/240V AC power. It consumes 100 VA maximum. This controller has 10 digital inputs rated at 24V DC. It includes 6 relay outputs rated at 2A each. The unit provides 2 analog inputs for 0-10V or 4-20mA signals. Memory capacity is 8K words for user program. It supports up to 16 I/O points. The built-in Ethernet port supports Modbus TCP/IP. Two serial ports allow RS-232 and RS-485 communication. The controller has a real-time clock for time-stamping. Operating temperature range is 0 to 55 degrees Celsius. Storage temperature range is -40 to 85 degrees Celsius. Humidity tolerance is 5 to 95 percent non-condensing. The unit meets UL, CSA, and CE standards. Dimensions are approximately 120 x 80 x 70 mm. Weight is around 0.5 kg. The 1763-L16AWA uses a removable terminal block for wiring.
Installation & Maintenance Guide
Mount the controller on a standard DIN rail. Ensure proper clearance for ventilation. Connect AC power to the designated terminals. Use appropriate wire gauges for connections. Wire digital inputs according to the manual. Connect relay outputs with proper load ratings. Set up Ethernet communication with an IP address. Configure serial ports for device connections. Download the user program via RSLogix 500 software. Perform regular inspections for loose connections. Keep the enclosure clean from dust and debris. Check ambient temperature within specified limits. Replace the unit if internal faults occur. Always disconnect power before servicing. Follow local electrical codes for installation. Use surge protection on power lines. Ground the controller properly to reduce noise. Test I/O points periodically for correct operation. Update firmware when necessary for improvements. Store spare units in a dry environment.
Frequently Asked Questions (FAQ)
What is the primary function of 1763-L16AWA?
The 1763-L16AWA is a MicroLogix 1100 programmable logic controller. It executes control logic for automation systems. This module processes inputs and controls outputs.
What power supply does 1763-L16AWA require?
The controller requires 120/240V AC power input. It has an internal power supply. No external power module is needed for basic operation.
Can 1763-L16AWA communicate with other devices?
Yes, it has built-in Ethernet and serial ports. It supports Modbus TCP/IP and DF1 protocols. This allows connection to HMIs, drives, and SCADA systems.
What is the maximum number of I/O points on 1763-L16AWA?
The controller supports up to 16 I/O points. It has 10 digital inputs and 6 relay outputs. Two analog inputs are also included.
Is 1763-L16AWA suitable for harsh environments?
The unit operates from 0 to 55 degrees Celsius. It tolerates 5 to 95 percent humidity. It is not rated for hazardous locations.
