Solving Output Challenges in Industrial Control

In modern manufacturing, precise control of actuators, valves, and indicators is critical. Engineers often face the challenge of managing numerous output points while maintaining signal integrity and response speed. The Schneider Electric TM3DQ32UK discrete output module addresses these needs with a compact design and robust performance.

This module provides 32 transistor outputs with negative logic (sink), operating at 24 V DC. It is part of the Modicon TM3 family, designed for seamless integration with Modicon M221, M241, M251, and M262 controllers. With a fast response time of 450 µs for both turn-on and turn-off, it ensures timely actuation in time-sensitive processes.

Key Technical Specifications of the TM3DQ32UK

The TM3DQ32UK delivers consistent performance across its output channels. Each of the 32 outputs can handle 100 mA at 24 V DC, making it suitable for driving small solenoids, indicator lamps, and PLC input modules. The module's maximum leakage current is only 0.1 mA, and the maximum voltage drop is less than 0.4 V, ensuring efficient power delivery.

Current consumption is minimal: 5 mA at 5 V DC and 0 mA at 24 V DC when outputs are off, and 25 mA at 5 V DC and 40 mA at 24 V DC when on. This low power draw helps reduce overall system energy costs. The module also features a maximum tungsten load of <1.2 W per output, protecting against inrush currents.

For installation flexibility, the TM3DQ32UK supports top hat rail mounting (TH35-15 or TH35-7.5) conforming to IEC 60715, or panel mounting with a fixing kit. Its compact dimensions—90 mm height, 81.3 mm depth, and 33.5 mm width—allow efficient use of control cabinet space. The module weighs only 0.112 kg, simplifying handling and installation.

Application Scenarios in Industrial Environments

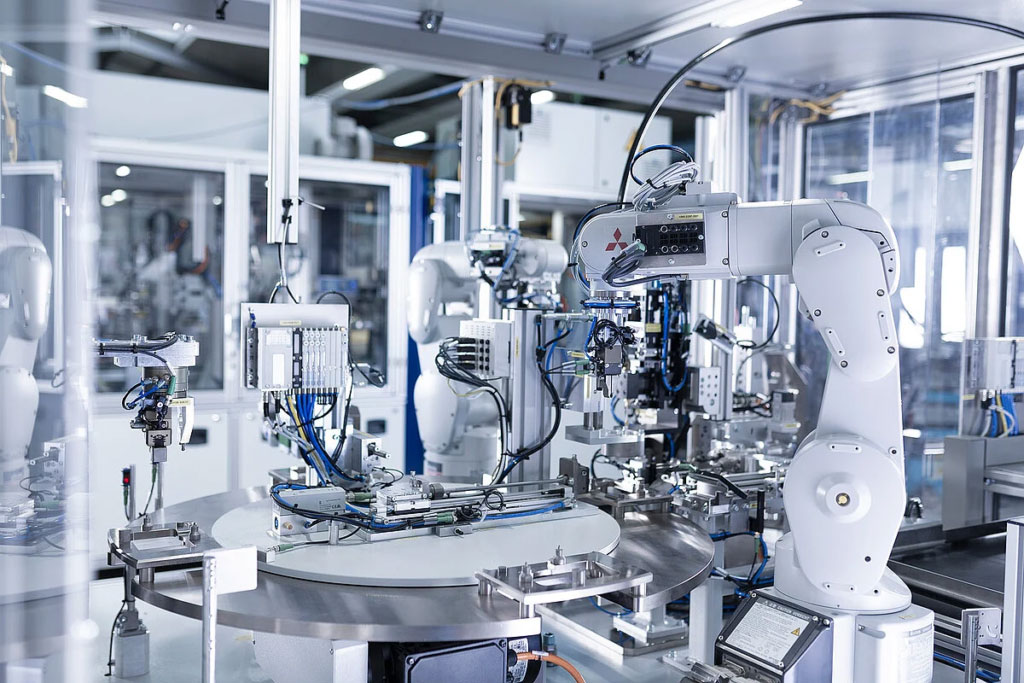

The TM3DQ32UK is well-suited for material handling systems, packaging machinery, and assembly lines where multiple output points must be controlled reliably. For example, in a bottling plant, the module can manage the sequencing of filling valves, capping heads, and conveyor diverters, all from a single compact unit.

In oil and gas facilities, the module's robust design—with immunity to electrostatic discharge up to 8 kV in air and 4 kV on contact—ensures dependable operation in harsh electrical environments. Its resistance to electromagnetic fields and fast transients further enhances reliability in industrial settings.

Integration with Modicon Controllers

As part of the Modicon TM3 range, the TM3DQ32UK is engineered for direct compatibility with Modicon M221, M241, M251, and M262 programmable logic controllers. This integration simplifies system design and reduces wiring complexity, as the module connects via the controller's bus connector.

The module uses a HE-10 connector for outputs, and unshielded cable runs up to 5 meters are supported, offering flexibility in cabinet layout. With insulation of 500 V AC between output and internal logic, the module provides a safety margin for industrial applications.

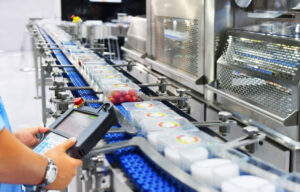

Case Study: Enhancing a Packaging Line

Consider a packaging line that previously relied on relay outputs, which suffered from slow response and frequent maintenance. By upgrading to the TM3DQ32UK, the line achieved faster actuation (450 µs response) and reduced downtime. The module's 32 outputs allowed consolidation of multiple relay boards into one unit, simplifying troubleshooting and spare parts inventory.

Frequently Asked Questions

What is the operating temperature range of the TM3DQ32UK?

The TM3DQ32UK operates in ambient temperatures from -10 to 35 °C for vertical installation and -10 to 55 °C for horizontal installation. This range accommodates typical industrial environments, but ensure proper ventilation in high-heat enclosures.

Can the TM3DQ32UK drive inductive loads like relays or solenoids?

Yes, the module's transistor outputs can drive small inductive loads, but you must consider the maximum output current of 100 mA per channel and the maximum tungsten load of <1.2 W. For larger loads, use external interposing relays.

What is the response time of the TM3DQ32UK outputs?

The turn-on and turn-off response times are both 450 µs. This fast switching makes the module suitable for high-speed applications such as counting or positioning.

Is the TM3DQ32UK compatible with Modicon M221 controllers?

Yes, the TM3DQ32UK is listed as compatible with Modicon M221, M241, M251, and M262 controllers. This compatibility ensures easy integration into existing or new control systems.

What are the mounting options for the TM3DQ32UK?

The module can be mounted on a top hat rail (TH35-15 or TH35-7.5) conforming to IEC 60715, or on a plate or panel using a fixing kit. This flexibility supports various cabinet designs.
