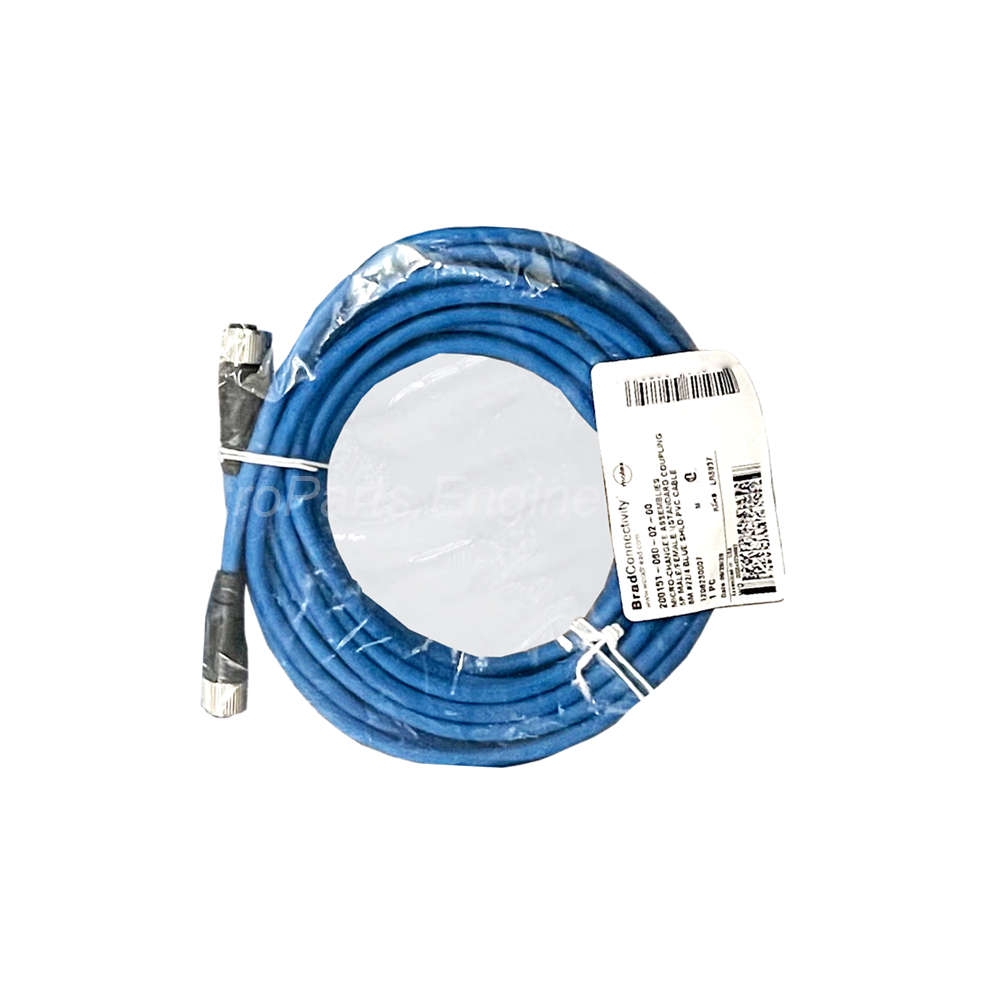

Bently Nevada 200151-20-03-10 Accelerometer Standard Cable

The Bently Nevada 200151-20-03-10 is an accelerometer interface standard cable. This cable has connectors on both ends for easy installation. You can use it to connect accelerometers to monitoring systems. The blue armored jacket provides excellent mechanical protection. The enhanced coupling nuts offer a better grip for tightening.

Technical Specifications of the 200151-20-03-10

The Bently Nevada 200151-20-03-10 has a cable length of 2.0 meters. The armor option is blue cable with armor for durability. The coupling nut option is an enhanced coupling nut. This option provides a better grip on both ends of the cable. The minimum bend radius is 63.5 mm (2.5 inches).

Cable Construction

The Bently Nevada 200151-20-03-10 uses 4-conductor 22 AWG wire. A braided shield with drain wire provides 85% coverage minimum. The outer jacket is made of PVC for chemical resistance. The coupling nuts are nickel-plated for corrosion protection. This construction ensures reliable signal transmission.

Connector Sealing

The connectors provide an IP67 seal to transducers and mating hardware. The Bently Nevada 200151-20-03-10 has connectors molded directly to the cable. DC4 electrical insulating compound is added inside the connectors. This provides additional moisture protection during thermal shock. The seal rating ensures reliable operation in wet environments.

Operating Temperature Range

The standard operating temperature range is -20°C to +100°C. The Bently Nevada 200151-20-03-10 may be used at lower temperatures. However, the installation must prevent cable flexing or bending. Flexing below -20°C may damage the cable. The connector temperature range is -55°C to +121°C for mating hardware.

Cure Time

The curing time for the connector compound is 24 hours. The Bently Nevada 200151-20-03-10 requires this full cure period. Allow 24 hours before exposing the cable to extreme conditions. This ensures proper sealing and moisture protection.

Installation Guidelines for the 200151-20-03-10

Install the Bently Nevada 200151-20-03-10 with a minimum bend radius of 63.5 mm. Avoid bending the cable tighter than 2.5 inches radius. Hand-tighten the enhanced coupling nuts for a secure connection. Do not flex the cable at temperatures below -20°C. Allow 24 hours cure time before thermal shock exposure. Keep the cable away from sharp edges and heat sources.

Package Contents

• One (1) Bently Nevada 200151-20-03-10 accelerometer standard cable (2.0m)

• Connectors on both ends with enhanced coupling nuts

• Installation instructions

Common FAQs for the 200151-20-03-10

1. What is the length of the 200151-20-03-10 cable?
The Bently Nevada 200151-20-03-10 has a length of 2.0 meters. Other lengths are available under different part number suffixes.

2. What does the enhanced coupling nut option provide?
The enhanced coupling nut on the Bently Nevada 200151-20-03-10 provides a better grip. This makes tightening to the accelerometer easier and more secure.

3. What is the temperature rating of this cable?
The Bently Nevada 200151-20-03-10 operates from -20°C to +100°C. The connectors withstand -55°C to +121°C for mating hardware.

4. Is this cable suitable for outdoor use?
Yes, the Bently Nevada 200151-20-03-10 has an IP67 connector seal. The blue armored jacket provides additional mechanical protection.

5. What is the minimum bend radius?
The minimum bend radius for the Bently Nevada 200151-20-03-10 is 63.5 mm (2.5 inches). Do not bend the cable tighter than this specification.

Why Choose the Bently Nevada 200151-20-03-10?

This accelerometer standard cable provides reliable signal transmission for monitoring systems. The blue armored jacket protects against mechanical damage. Enhanced coupling nuts ensure secure connections to your accelerometer. IP67 sealed connectors resist moisture in harsh environments. Order the Bently Nevada 200151-20-03-10 today for your accelerometer connectivity needs.
