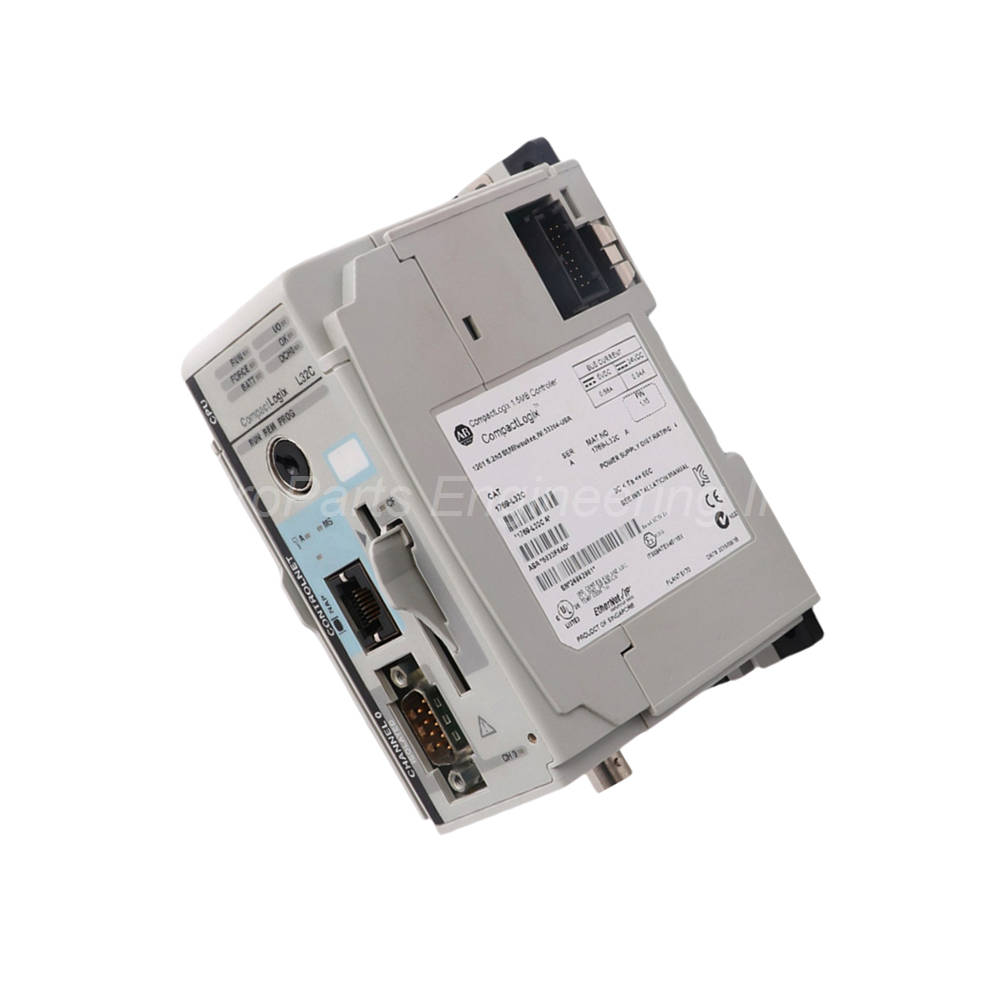

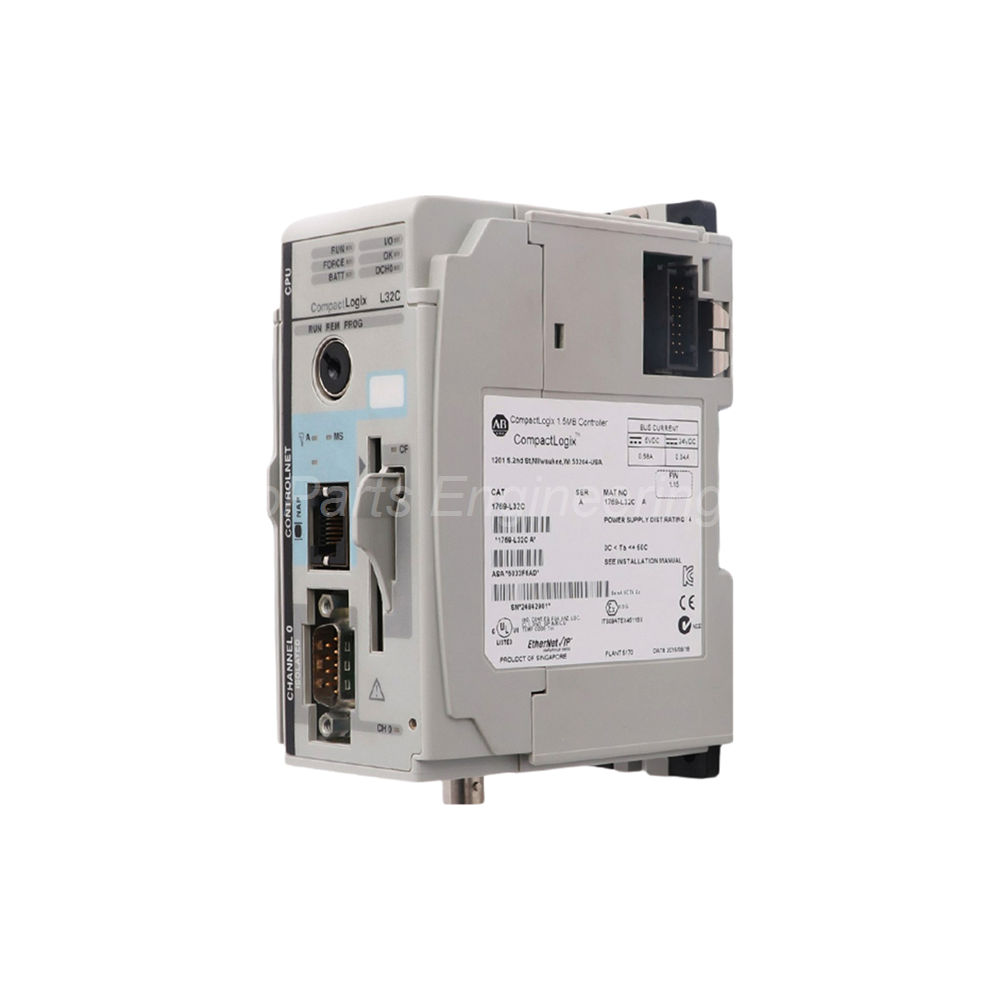

Product Overview of the Allen-Bradley 1769-L32C Controller

The Allen-Bradley 1769-L32C belongs to the CompactLogix series of modular controllers. This processor stores parameters and network configuration data for ControlNet networks. Each ControlNet network requires at least one module with this capability. Furthermore, the 1769-L32C automatically stores data while functioning as a backup.

The controller supports 16 I/O modules across a maximum of 3 banks. Two expansion cables connect the banks for extended I/O capacity. The backplane current draw is 650 milliamps at 5 Volts DC. Additionally, the module draws 40 milliamps at 24 Volts DC from the backplane.

Power dissipation for the 1769-L32C logic module reaches 4.21 Watts. A replacement battery must be the Allen-Bradley 1769-BA type only. The controller supports 100 simultaneous connections for communication. Therefore, this processor suits medium sized control applications requiring ControlNet.

Technical Specifications of the 1769-L32C

• Manufacturer: Rockwell Automation

• Brand: Allen-Bradley

• Part Number: 1769-L32C

• Product Line: CompactLogix

• Module Type: Processor Module

• Memory Size: 750 KB

• Communication Ports: RS-232, NAP, ControlNet channel 4

• Maximum I/O Modules: 16

• Maximum I/O Banks: 3

• Backplane Current (5V DC): 650 mA

• Backplane Current (24V DC): 40 mA

• Power Dissipation: 4.21 Watts

• User Connections: 100 maximum

• Replacement Battery: 1769-BA

• Operating Temperature: 0 to 60°C

• Relative Humidity: 5 to 95% non-condensing

• Operating Shock (DIN Rail): 20g

• Operating Shock (Panel): 30g

• Wire Type: Copper, 90°C rated

• Wire Size (Solid): 22 to 14 AWG

• Wire Size (Stranded): 22 to 16 AWG

• Weight: 0.32 kg (approx)

• Status Indicators: Multiple LEDs (steady, alternating, or flashing)

The Allen-Bradley 1769-L32C operates within a temperature range of 0 to 60°C. Relative humidity tolerance reaches 95% without condensation. Shock tolerance depends on the mounting method chosen. Panel mounting provides higher shock resistance than DIN rail mounting.

Communication Ports and Connectivity

The 1769-L32C includes three distinct communication ports for flexibility. Channel 4 provides a ControlNet port for high speed deterministic networking. This ControlNet port stores network configuration data automatically after startup. The RS-232 port supports serial communication with programming terminals and HMI devices.

The NAP or Network Access Port allows temporary connection for programming. This port provides easy access without removing existing network cables. Consequently, maintenance and troubleshooting become much more convenient. All three ports can operate simultaneously for multi-protocol communication.

The controller stores user applications in its 750KB of memory. CompactFlash memory can save and restore applications as a backup. This feature simplifies system recovery after hardware failures. Therefore, the 1769-L32C provides robust data retention capabilities.

Status Indicators and Diagnostics

The 1769-L32C provides multiple status indicators for diagnostics. These LEDs can be steady, alternating, or flashing during operation. Each lighting pattern has a specific meaning for troubleshooting. Consequently, operators can quickly identify controller conditions without extra tools.

Loss of power is indicated by specific LED patterns on the module. A misplaced module on the rack also triggers diagnostic indications. Major and minor faults are shown through these status indicators. Thus, the 1769-L32C simplifies fault finding in the field.

The status indicators help address different problems the controller may have. Regular monitoring of these LEDs prevents unexpected downtime. Operators should learn the meaning of each pattern. The user manual contains a complete LED status table.

Installation Guide for the 1769-L32C

Follow these steps to install the Allen-Bradley 1769-L32C correctly.

1. Power down the entire CompactLogix system before installation.

2. Mount the controller on a DIN rail or a panel securely.

3. Use the appropriate mounting method for your shock requirements.

4. Connect the 1769-BA battery to the controller before use.

5. Insert the controller into the first slot of the main bank.

6. Connect I/O modules to the right of the controller sequentially.

7. Use expansion cables between banks as needed for distance.

8. Connect the ControlNet cable to channel 4 on the controller.

9. Attach a programming terminal to the RS-232 or NAP port.

10. Power up the system and verify the status indicators.

Maintain the operating temperature between 0 and 60°C at all times. Keep relative humidity below 95% without condensation. Use copper wire rated for 90°C for all field connections. Tighten terminal screws to the torque specified in the manual.

Package Contents for Allen-Bradley 1769-L32C

• 1 x Allen-Bradley 1769-L32C CompactLogix controller

• 1 x 1769-BA replacement battery (pre-installed)

• 1 x Removable terminal block for RS-232 connections

• 1 x Quick start installation guide (printed)

Frequently Asked Questions (FAQ)

1. Is the 1769-L32C still available for purchase?
No, the Allen-Bradley 1769-L32C has been discontinued by the manufacturer. However, new old stock and refurbished units remain available. Consider the newer CompactLogix 5370 series for current applications.

2. What battery does the 1769-L32C require for memory backup?
This controller requires the Allen-Bradley 1769-BA battery exclusively. No other battery types are compatible with the 1769-L32C. Replace the battery every 12 months for reliable memory retention.

3. Can this controller operate without a battery installed?
Yes, the controller will run without a battery but will lose memory on power loss. User programs and data will not be retained after power cycles. Therefore, always install a good battery for production systems.

4. How many I/O modules can the 1769-L32C support?
The 1769-L32C supports up to 16 I/O modules in total configuration. These modules must be arranged across a maximum of 3 banks. Expansion cables connect the banks to the main controller.

5. What is the difference between DIN rail and panel mounting?
DIN rail mounting provides 20g shock resistance for most applications. Panel mounting provides 30g shock resistance for higher vibration environments. Choose panel mounting when the controller experiences significant mechanical stress.
