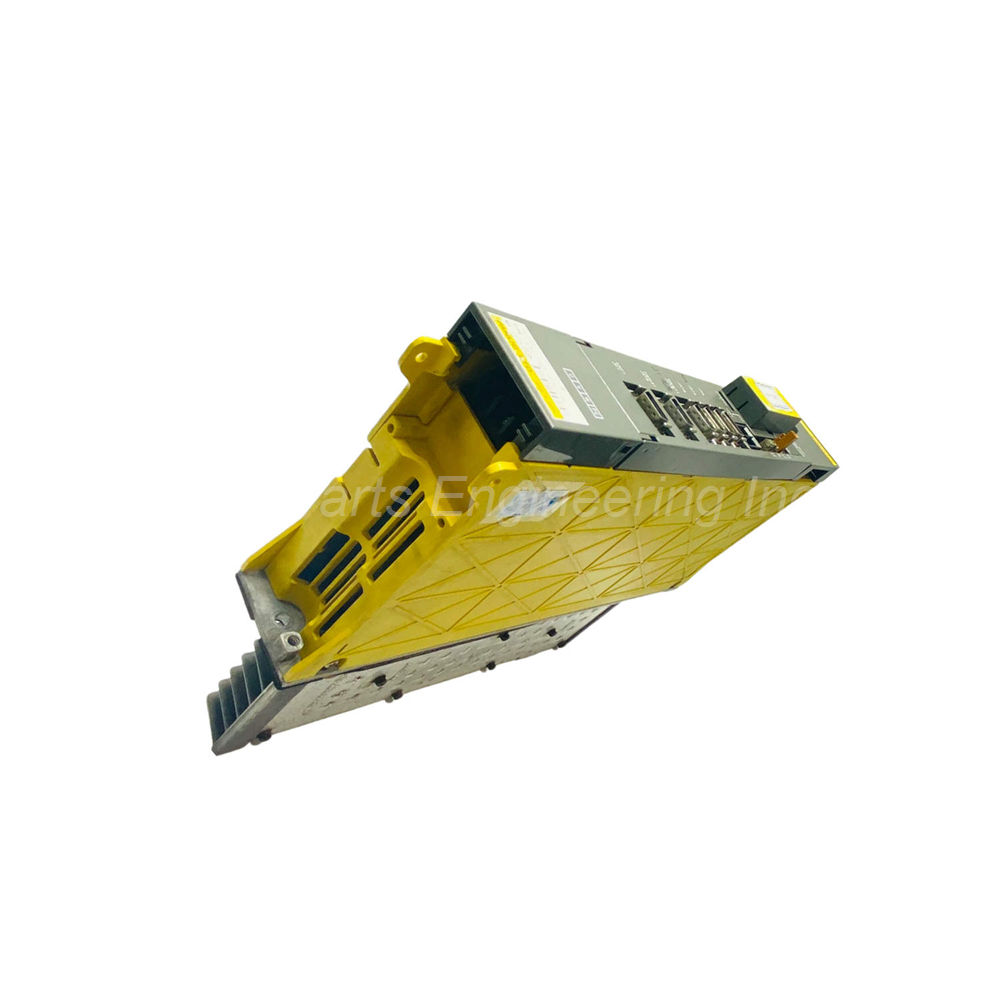

FANUC A06B-6240-H103 Servo Amplifier Module
The FANUC A06B-6240-H103 is a servo amplifier module for precise motor control. This device belongs to the A06B product series from FANUC. You can use it for high-performance industrial automation applications. The module supports efficient control of servo motors. It is designed for reliable operation in demanding environments.
Technical Specifications of the A06B-6240-H103
The FANUC A06B-6240-H103 operates on a 3-phase system. The output voltage ranges from 200 to 240 VAC. The output frequency range spans 0 to 550 Hz. This wide range ensures adaptability for various applications. The rated output current is 6.5 Amps for the L-axis.
Input Power Requirements
The input voltage range is 283 to 339 VDC. The rated input current is 9 Amps at 283V. The input frequency operates at 50 Hz or 60 Hz. This compatibility suits global power systems. The FANUC A06B-6240-H103 integrates easily into existing installations.
Environmental Specifications
The ambient operating temperature ranges from 0°C to 55°C. This ensures stability in diverse industrial environments. The FANUC A06B-6240-H103 maintains performance across this range. Proper cooling and ventilation are recommended for optimal operation.
Physical Specifications
The FANUC A06B-6240-H103 weighs 11.00 lbs or 4.99 kg. This weight provides a sturdy and durable construction. The compact design fits into various setups without adding unnecessary bulk.
Installation Guidelines for the A06B-6240-H103
Mount the FANUC A06B-6240-H103 in a well-ventilated cabinet. Provide 3-phase output connections to your servo motor. Ensure input DC voltage stays between 283 and 339V. Maintain ambient temperature between 0°C and 55°C. Provide adequate clearance for airflow around the unit.
Package Contents
Common FAQs for the A06B-6240-H103
1. What is the output frequency range of the A06B-6240-H103?
The FANUC A06B-6240-H103 has an output frequency range from 0 to 550 Hz. This wide range supports diverse motor control applications.
2. What is the rated output current for the L-axis?
The FANUC A06B-6240-H103 has a rated output current of 6.5 Amps for the L-axis. This provides ample power for many servo motors.
3. What input voltage does this servo amplifier require?
The FANUC A06B-6240-H103 requires DC input voltage between 283 and 339V. The rated input current is 9 Amps at 283V.
4. What is the operating temperature range?
The FANUC A06B-6240-H103 operates from 0°C to 55°C ambient temperature. This range suits most industrial environments.
5. What is the output voltage of this module?
The FANUC A06B-6240-H103 provides 3-phase output voltage from 200 to 240V AC. This matches standard industrial servo motor ratings.
Why Choose the FANUC A06B-6240-H103?
This servo amplifier module delivers precise 3-phase motor control for automation systems. The wide 0-550 Hz frequency range supports various speed requirements. The 6.5A L-axis output handles demanding applications. The rugged design ensures reliable operation. Order the FANUC A06B-6240-H103 today for your servo control needs.
